3-77 — BRAKE PIPING; AIR,REAR (#29544) — 201 parça

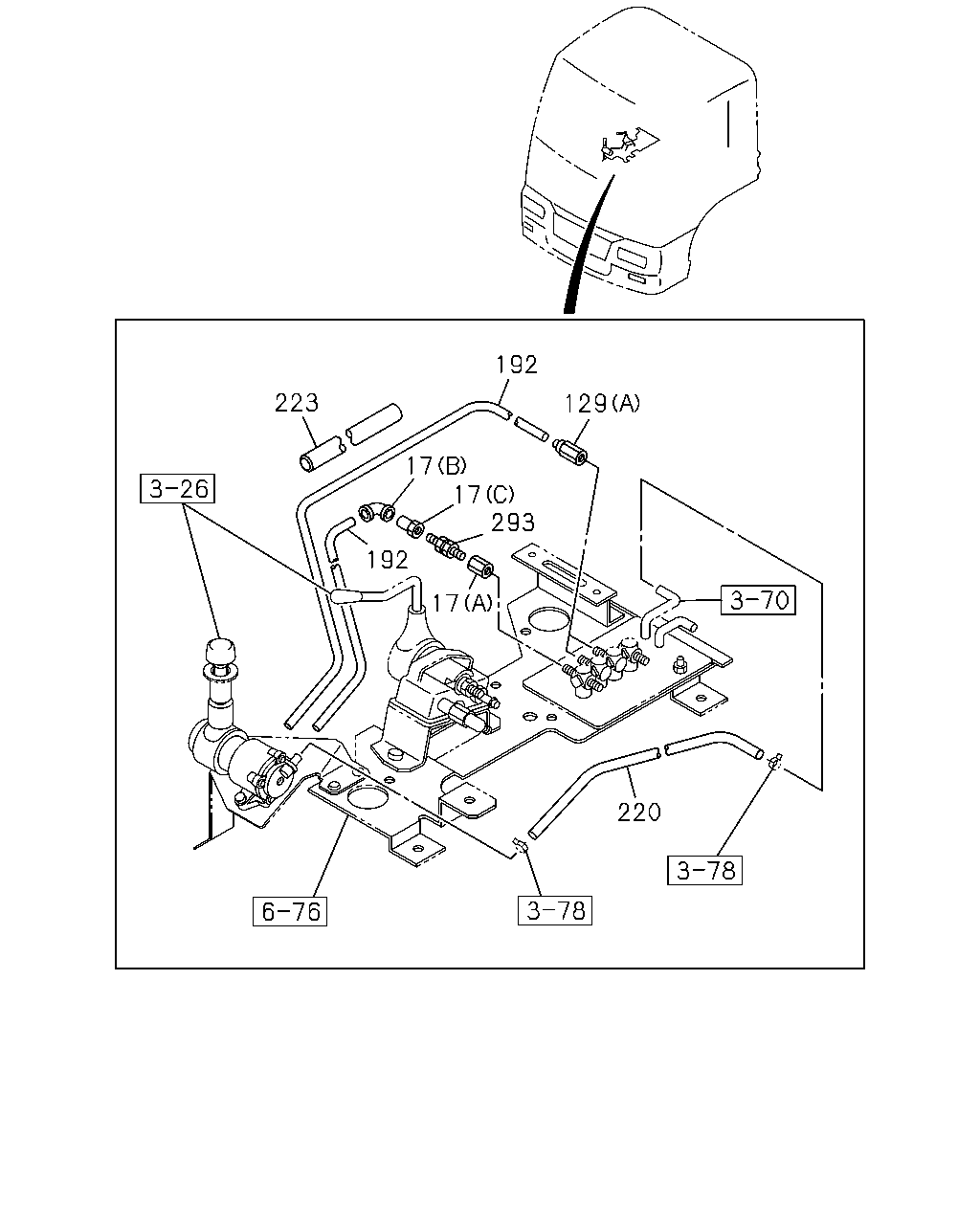

çizim 86921
192 223 129 17 17 293 192 17 220
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0512- ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0407-0511 ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0512-1008 ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1009- ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0512-1008 ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1009- ●
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 0512- ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0512-0610 ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0611-0803 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0512- ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0512- ●
129 CONNECTOR; NYLON TUBE
(B) 		1-09661-128-0 01 1 0407-0511 ●
192 TUBE; NYLON
FULLER M/T<X9B> L=200 OD=12 		1-49216-861-1 01 1 0512- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
FULLER M/T<X9B> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0512- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0407-0511 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJX M/T<Y9N> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0512- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0407- ● ●
293 VALVE; CHECK 1-48410-479-1 01 1 0407-0511 ●
293 VALVE; CHECK 1-48410-479-1 01 1 0512- ●

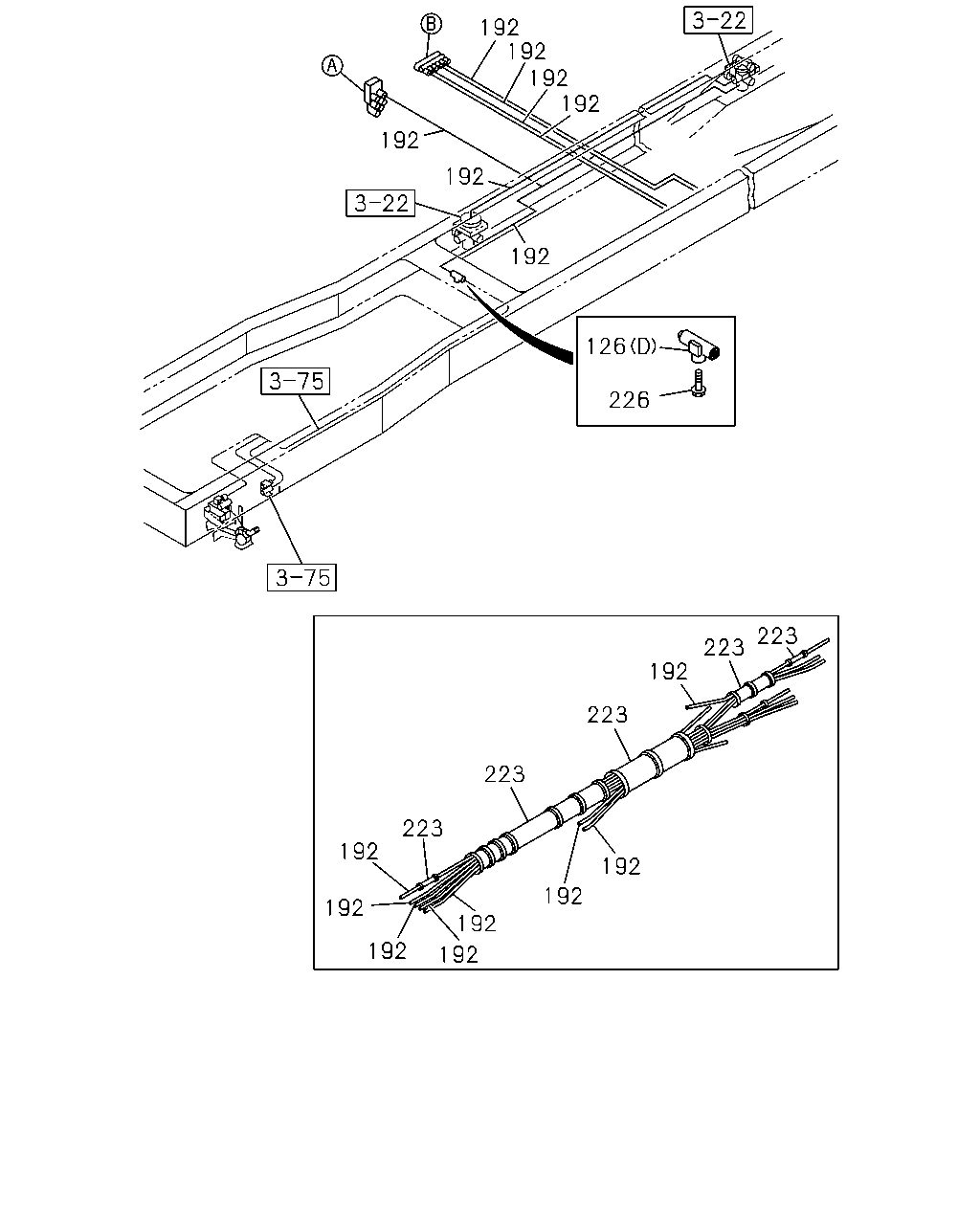

çizim 87062
192 192 192 192 192 192 192 126 226 223 223 192 223 223 223 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
126 UNION; NYLON TUBE
(E) DIN12 M22 STRAIGHT 		8-98107-103-0 03 1 0804- ●
126 UNION; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0512- ●
126 UNION; NYLON TUBE
(A) 		1-09661-610-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(A) 		1-09661-610-1 01 1 0512- ●
126 UNION; NYLON TUBE
(B) 		1-09661-611-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(B) 		1-09661-611-0 01 1 0512- ●
126 UNION; NYLON TUBE
(C) 		1-09661-612-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(C) 		1-09661-612-1 01 1 0512- ●
192 TUBE; NYLON
FULLER M/T<X9B> L=200 OD=12 		1-49216-861-1 01 1 0512- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0407- ● ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0407-0511 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0512-0512 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 06 1 0601- ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●

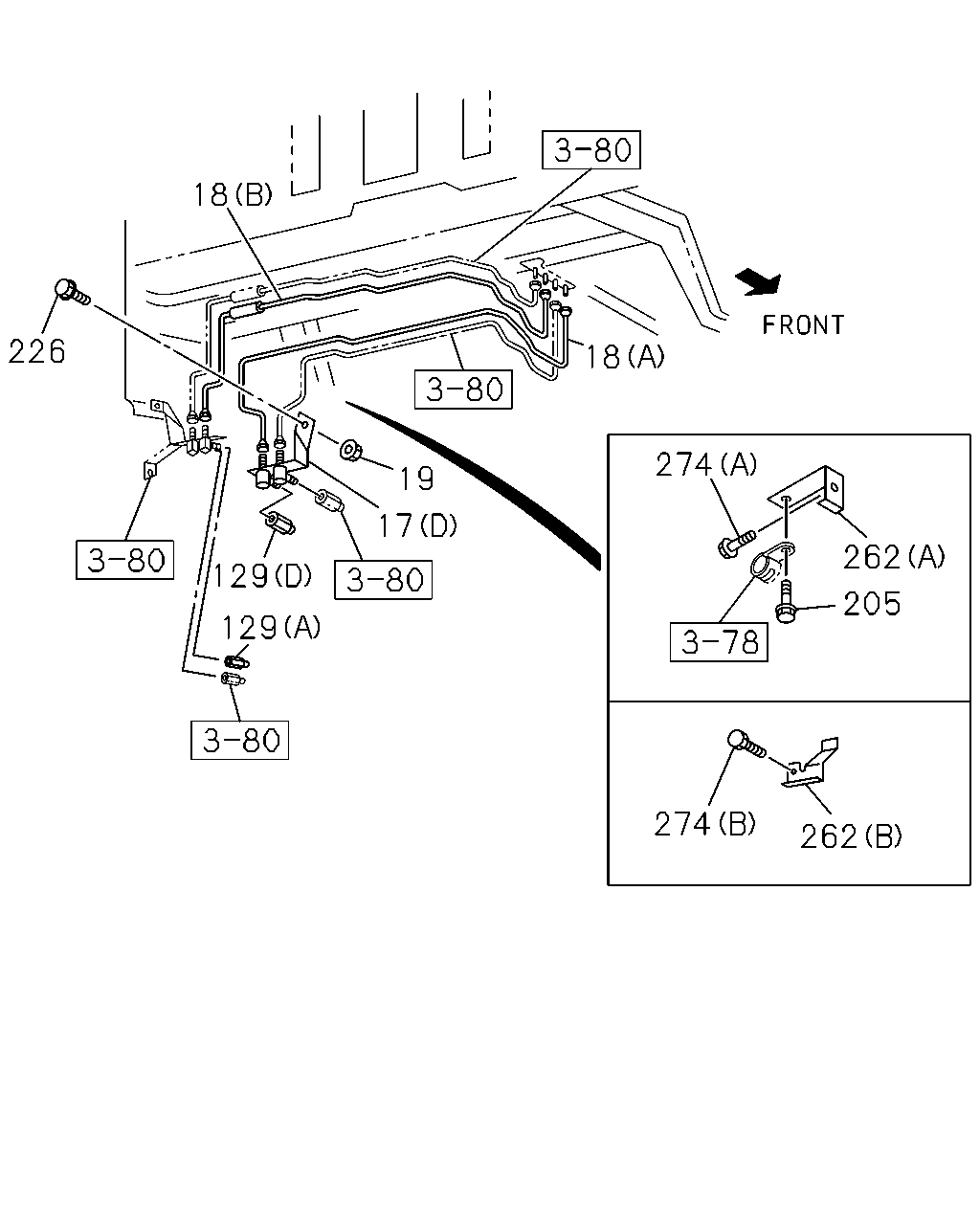

çizim 87063
18 226 18 274 19 17 262 129 205 129 274 262
BalonParca AdiParca NoAdetTipApplied Date A B
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0512- ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0407-0511 ●
17 UNION; AIR PIPE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0512-1008 ●
17 UNION; AIR PIPE
(B) 		8-97633-775-0 01 1 1009- ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(C) 		1-09661-083-0 01 1 0512-1008 ●
17 UNION; AIR PIPE
(C) 		8-97633-777-0 01 1 1009- ●
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 0407-0511 ●
17 UNION; AIR PIPE
(D) 		1-47470-609-0 01 1 0512- ●
18 PIPE; AIR,UNION TO UNION
(A) L=1749 		1-49121-758-1 01 1 0407-0511 ●
18 PIPE; AIR,UNION TO UNION
(A) L=1749 		1-49121-758-1 01 1 0512- ●
18 PIPE; AIR,UNION TO UNION
(B) L=1845 		1-49122-059-1 01 1 0407-0511 ●
18 PIPE; AIR,UNION TO UNION
(B) L=1845 		1-49122-059-1 01 1 0512- ●
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0407-0511 ●
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0512-0512 ●
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601- ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0512-0610 ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0611-0803 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0512- ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0512- ●
129 CONNECTOR; NYLON TUBE
(B) 		1-09661-128-0 01 1 0407-0511 ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0407-0511 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0512-0512 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 06 1 0601- ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
262 BRACKET
(A) 		1-79996-143-0 01 1 0407-0511 ●
262 BRACKET
(A) 		1-79996-143-0 01 1 0512- ●
262 BRACKET
(B) 		1-79996-144-0 01 1 0407-0511 ●
262 BRACKET
(B) 		1-79996-144-0 01 1 0512- ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0407-0511 ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512 ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0711 ●
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0407-0511 ●
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0512- ●

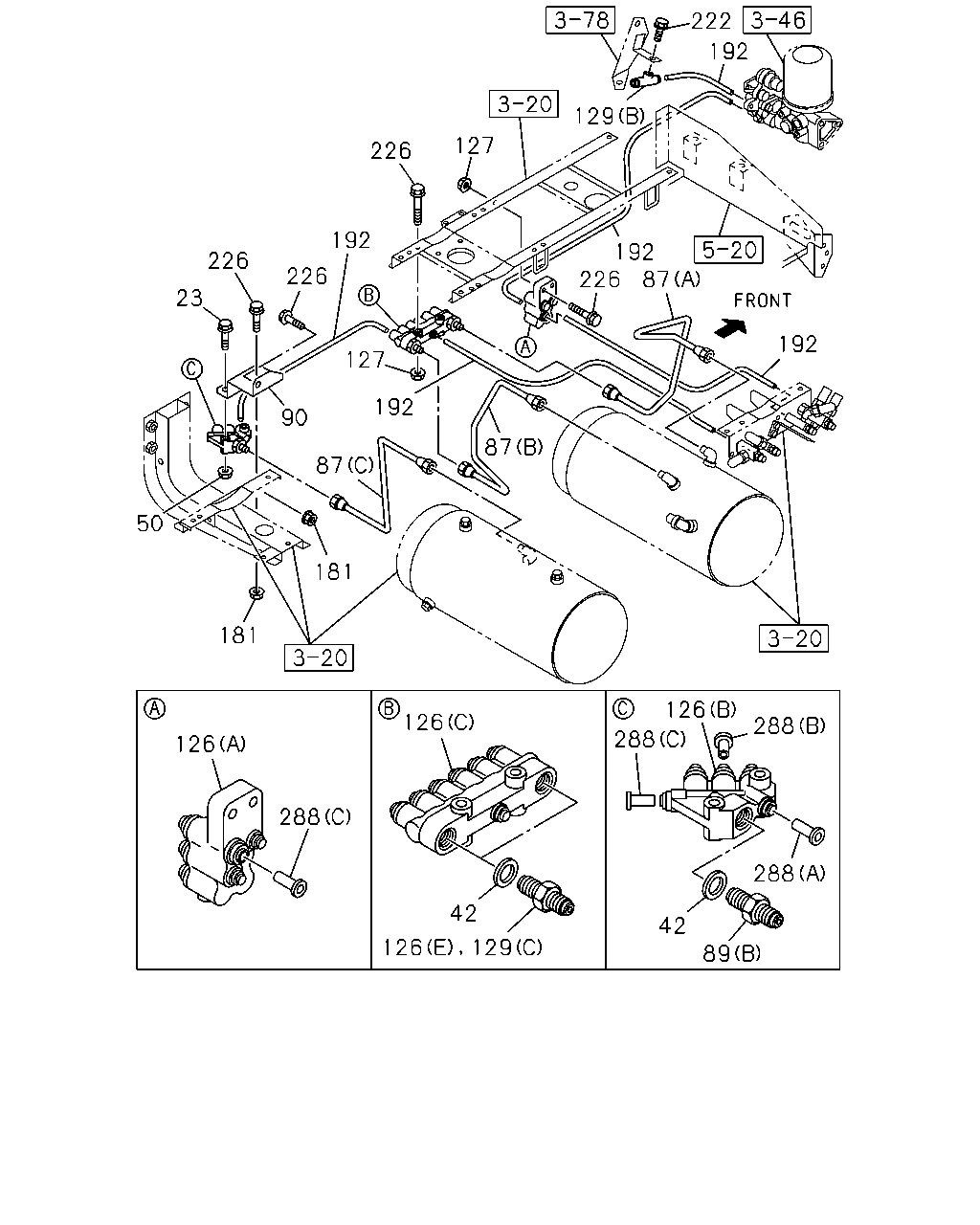

çizim 88488
222 192 129 192 127 226 192 226 23 226 226 87 192 127 87 192 90 181 87 50 181 126 288 126 42 126 129 89 288 42 288 288 126
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; UNION BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
23 BOLT; UNION BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
23 BOLT; UNION BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
42 GASKET; CONNECTOR 9-09572-022-0 03 1 0407-0511 ●
42 GASKET; CONNECTOR 9-09572-022-0 03 1 0512-0803 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=688 		1-49123-981-0 01 1 0407-0511 ●
87 PIPE; AIR,AIR TANK TO UNION
(A) L=688 		1-49123-981-0 01 1 0512- ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=643 		1-49123-984-0 01 1 0407-0511 ●
87 PIPE; AIR,AIR TANK TO UNION
(B) L=643 		1-49123-984-0 01 1 0512- ●
87 PIPE; AIR,AIR TANK TO UNION
(C) 		1-49123-987-0 01 1 0407-0511 ●
87 PIPE; AIR,AIR TANK TO UNION
(C) L=480 		1-49124-846-0 01 1 0512- ●
89 CONNECTOR; NYLON TUBE
(B) 		1-09654-416-1 01 1 0407-0511 ●
89 CONNECTOR; NYLON TUBE
(B) 		1-09654-416-1 01 1 0512-0610 ●
89 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 01 1 0611-0803 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
90 BRACKET; PIPE UNION 1-47479-678-0 01 1 0407-0511 ●
90 BRACKET; PIPE UNION 1-47479-678-0 01 1 0512- ●
126 UNION; NYLON TUBE
(E) DIN12 M22 STRAIGHT 		8-98107-103-0 03 1 0804- ●
126 UNION; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0512- ●
126 UNION; NYLON TUBE
(A) 		1-09661-610-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(A) 		1-09661-610-1 01 1 0512- ●
126 UNION; NYLON TUBE
(B) 		1-09661-611-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(B) 		1-09661-611-0 01 1 0512- ●
126 UNION; NYLON TUBE
(C) 		1-09661-612-0 01 1 0407-0511 ●
126 UNION; NYLON TUBE
(C) 		1-09661-612-1 01 1 0512- ●
127 NUT; UNION
M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
127 NUT; UNION
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09654-416-1 02 1 0512-0610 ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97618-539-0 02 1 0611-0803 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0512- ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0407-0511 ●
129 CONNECTOR; NYLON TUBE
(D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0512- ●
129 CONNECTOR; NYLON TUBE
(B) 		1-09661-128-0 01 1 0407-0511 ●
181 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
181 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
181 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
192 TUBE; NYLON
FULLER M/T<X9B> L=200 OD=12 		1-49216-861-1 01 1 0512- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ●
222 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0407-0511 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 06 1 0512-0512 ●
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 06 1 0601- ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ●
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0407-0511 ●
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0512- ●
288 PLUG
(B) OD=8 		1-09661-616-0 01 1 0407-0511 ●
288 PLUG
(B) OD=8 		1-09661-616-0 01 1 0512- ●
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 0407-0511 ●
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 0512- ●

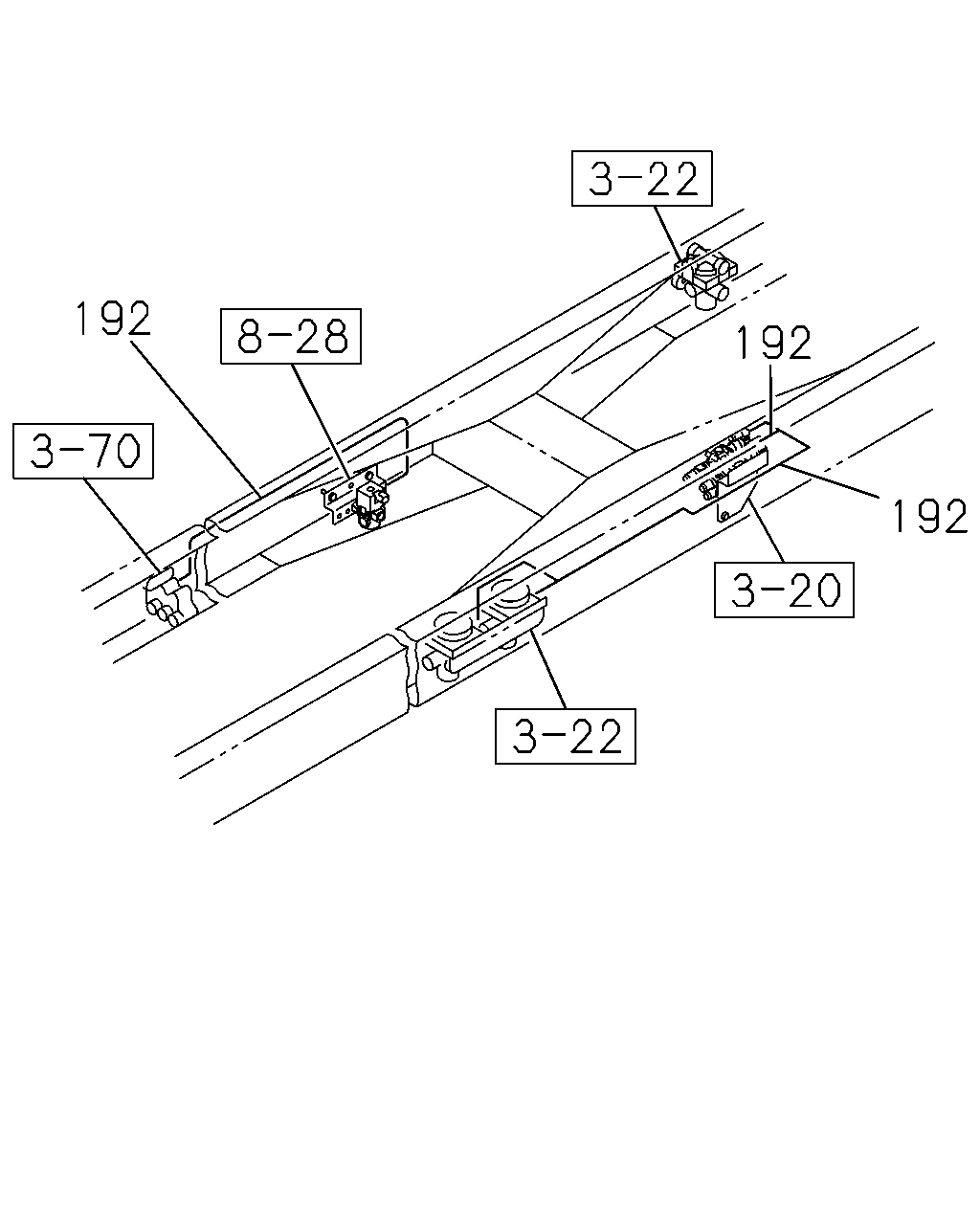

çizim 103863
192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
FULLER M/T<X9B> L=200 OD=12 		1-49216-861-1 01 1 0512- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ●

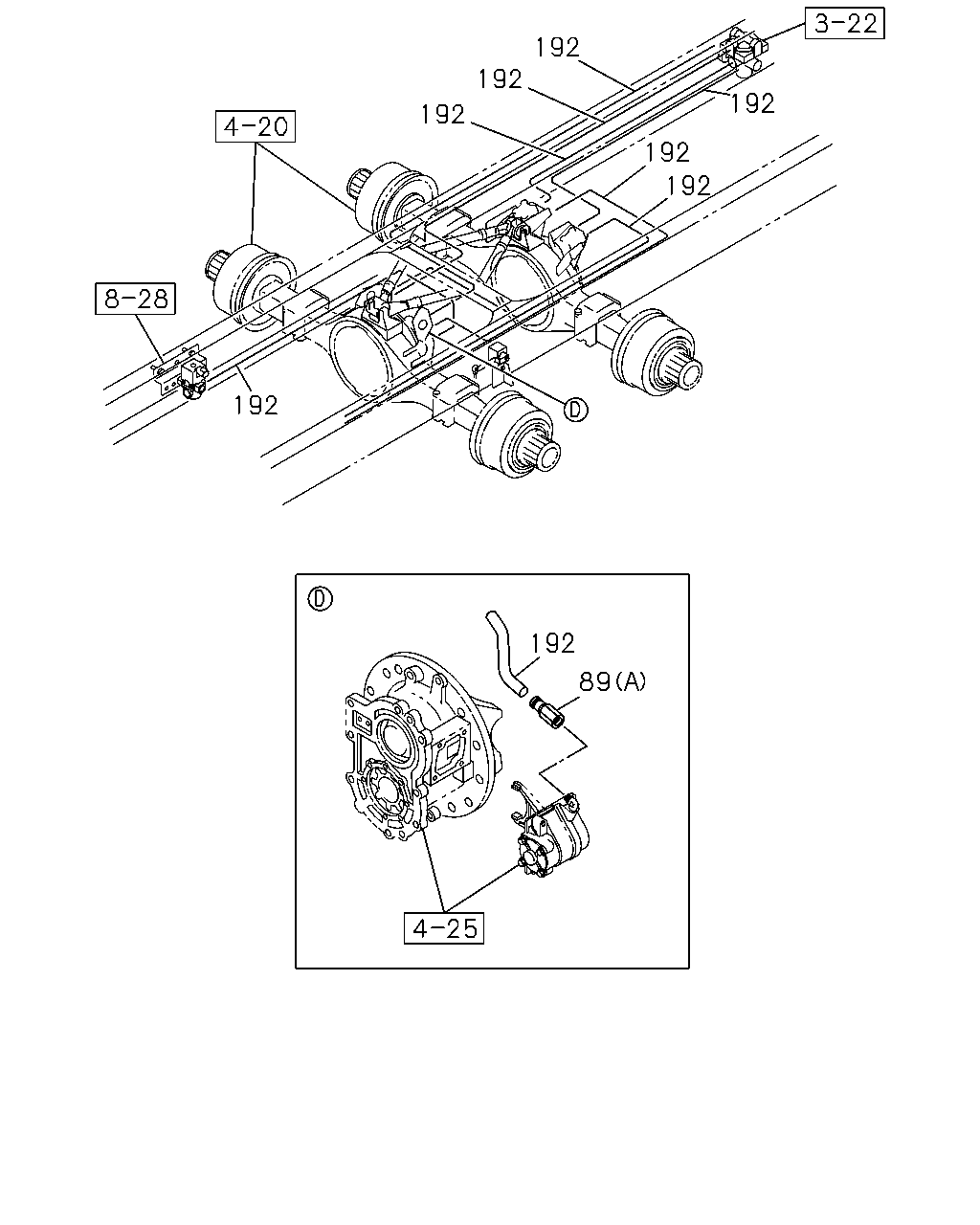

çizim 103869
192 192 192 192 192 192 192 192 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
(B) 		1-09654-416-1 01 1 0407-0511 ●
89 CONNECTOR; NYLON TUBE
(B) 		1-09654-416-1 01 1 0512-0610 ●
89 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 01 1 0611-0803 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
192 TUBE; NYLON
FULLER M/T<X9B> L=200 OD=12 		1-49216-861-1 01 1 0512- ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
