3-75 — BRAKE PIPING; AIR,FRONT (#29543) — 174 parça

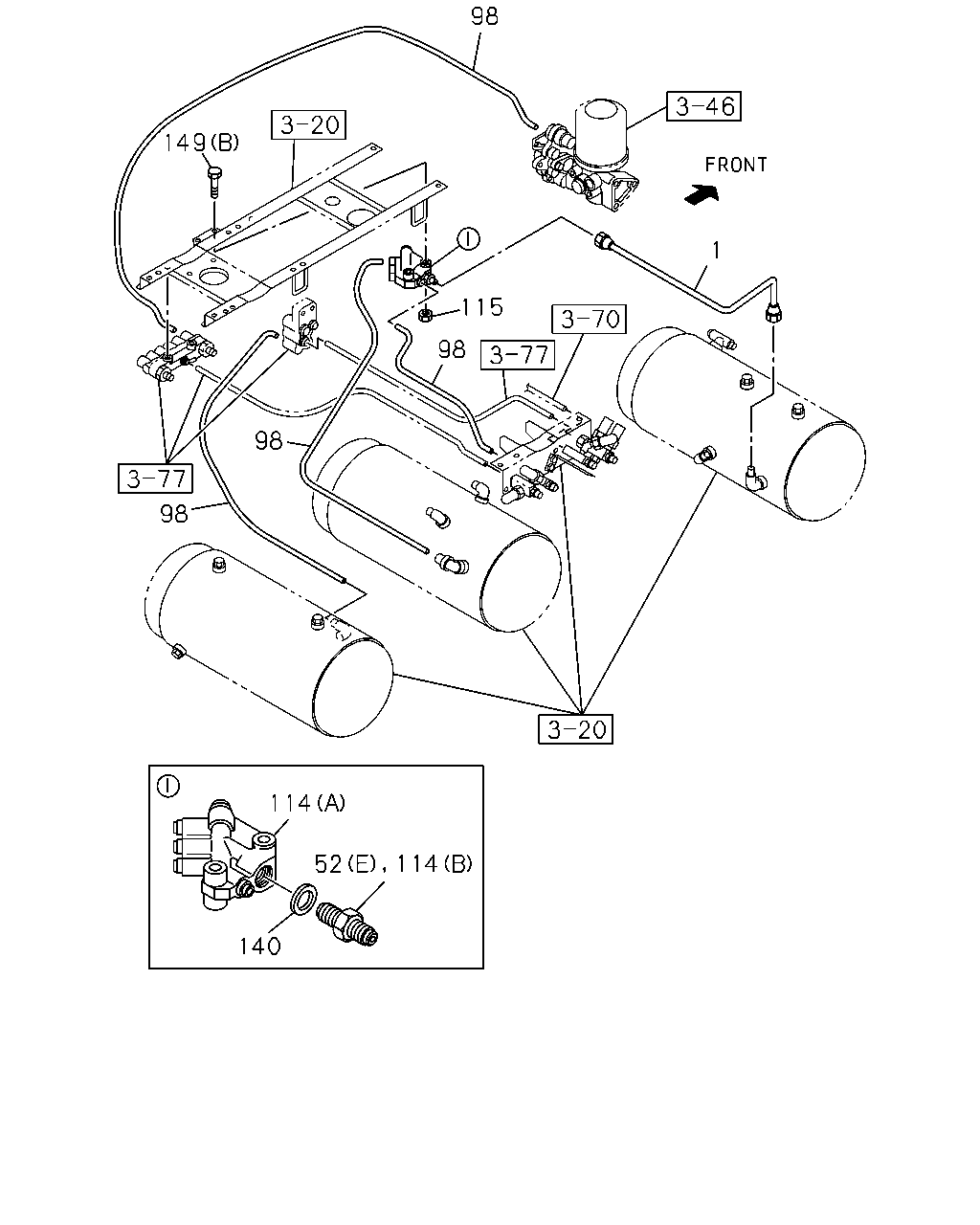

149 98 115 98 98 98 114 114 52 140 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0407-0511	●
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0512-0610		●
52	CONNECTOR; NYLON TUBE (E)	8-97618-539-0	01	1	0611-0803		●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0512-		●
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0407-0511	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0512-		●
114	UNION; NYLON TUBE (B) DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-		●
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	0407-0511	●
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	0512-		●
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0603-		●
140	GASKET; CONNECTOR	9-09572-022-0	01	1	0407-0511	●
140	GASKET; CONNECTOR	9-09572-022-0	01	1	0512-0803		●
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0407-0511	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0512-0512		●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0407-0511	●
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0512-0512		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●

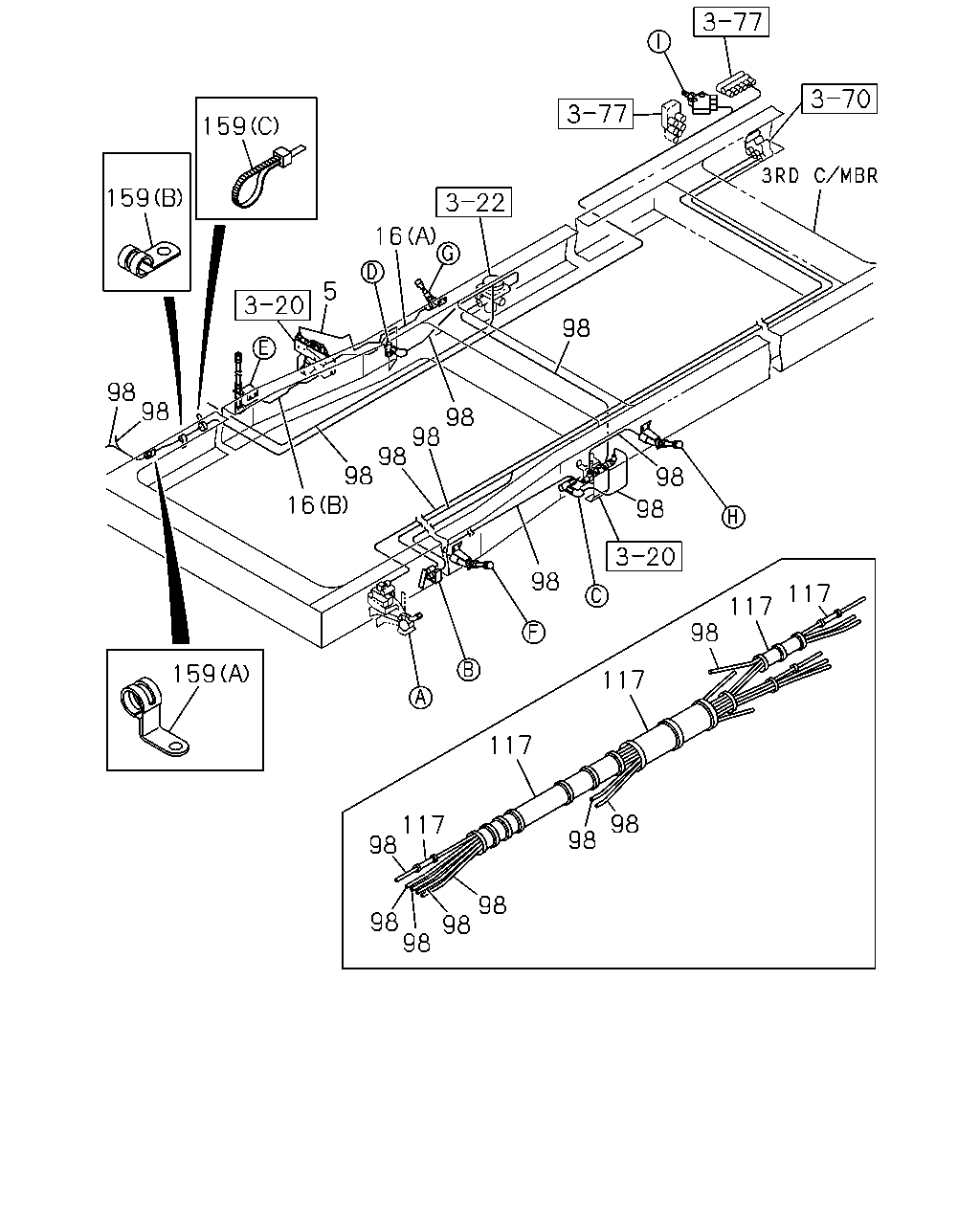

159 159 16 5 98 98 98 98 98 98 98 16 98 98 98 117 117 98 159 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO UNION	1-49124-159-0	01	1	0407-0511	●
5	PIPE; AIR,UNION TO UNION	1-49124-159-0	01	1	0512-		●
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0407-0511	●
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0512-		●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0407-0408	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1574 SERVICED BY L=1600	1-49115-490-0	01	1	0409-0410	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0411-0511	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0512-		●
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0407-0511	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0512-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0407-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0407-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0407-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0407-	●
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0407-0511	●
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0512-		●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0407-0511	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0512-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	11	1	0407-0511	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	13	1	0512-		●

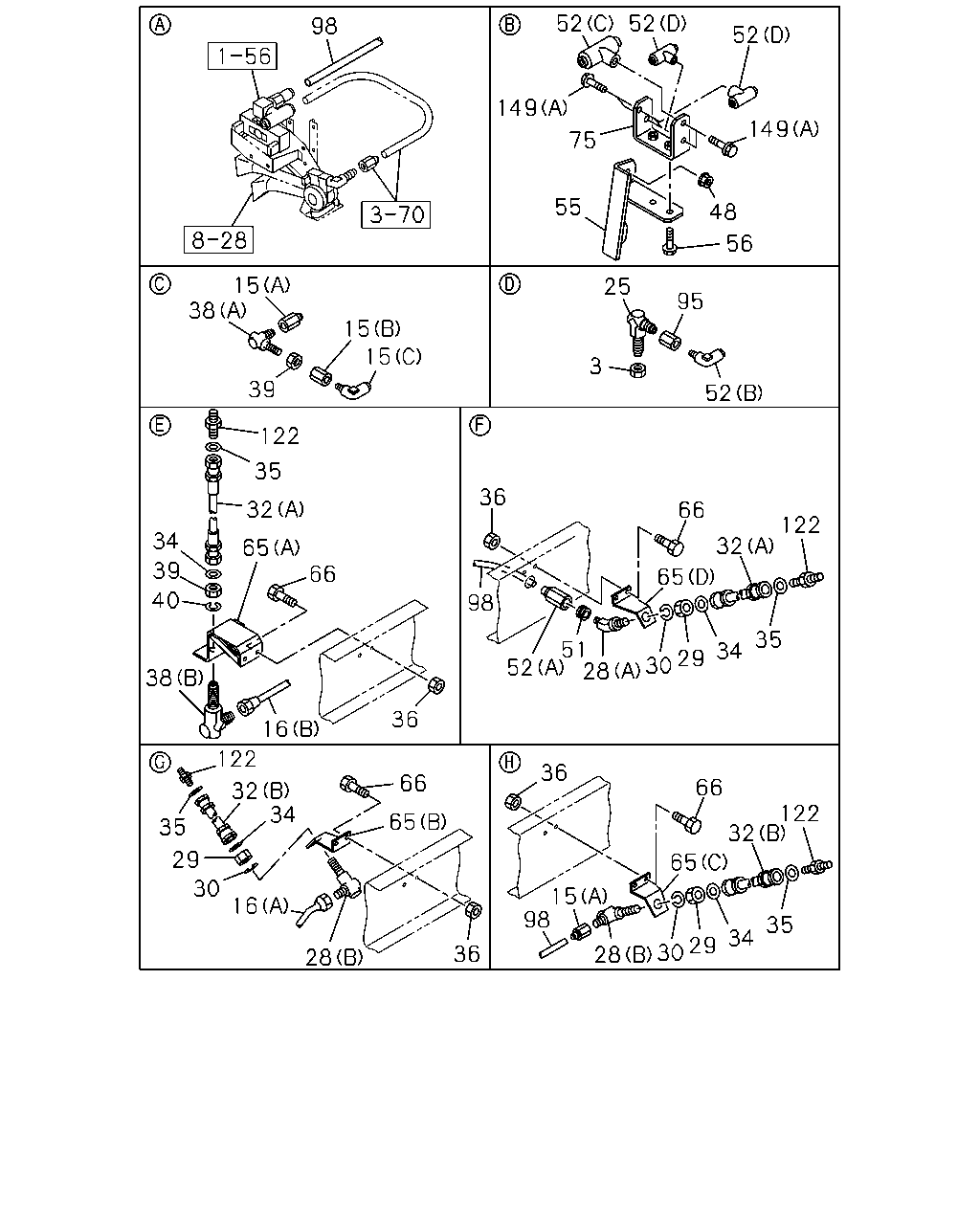

52 52 98 52 149 149 75 55 48 56 15 38 25 95 15 15 3 39 52 122 35 36 32 66 122 34 32 65 39 66 65 40 98 35 51 28 34 29 30 52 38 36 16 122 36 66 66 32 34 122 32 65 35 29 65 1 98 30 1 35 34 29 36 28 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0407-0511	●
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0512-		●
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	0407-0511	●
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	0512-0512		●
3	NUT; PIPE UNION M20	0-91111-520-0	01	1	0601-		●
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0407-0511	●
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0512-		●
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0407-0511	●
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0512-		●
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0407-0511	●
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0512-		●
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0407-0511	●
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0512-		●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0407-0408	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1574 SERVICED BY L=1600	1-49115-490-0	01	1	0409-0410	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0411-0511	●
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0512-		●
25	UNION; AIR PIPE M20	9-09235-212-1	01	1	0407-0511	●
25	UNION; AIR PIPE M20	9-09235-212-1	01	1	0512-0607		●
25	UNION; AIR PIPE M20	0-92135-212-0	01	1	0608-		●
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	0407-0511	●
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	0512-		●
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	0407-0511	●
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	0512-		●
29	NUT; NIPPLE M20	9-99111-420-0	03	1	0407-0511	●
29	NUT; NIPPLE M20	9-99111-420-0	03	1	0512-0512		●
29	NUT; NIPPLE M20	0-91111-520-0	03	1	0601-		●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	0407-0511	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	0512-0603		●
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	0604-		●
32	HOSE; FLEX,FRT (B) L=430	0-07847-430-1	02	1	0407-0511	●
32	HOSE; FLEX,FRT (B) L=430	0-07847-430-1	02	1	0512-0605		●
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	0606-		●
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0407-0511	●
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0512-0605		●
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	02	1	0606-		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0407-0511	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0512-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0407-0511	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0512-		●
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	0407-0511	●
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	0512-0602		●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	0603-		●
38	UNION; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	01	1	0407-0511	●
38	UNION; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	01	1	0512-		●
38	UNION; AIR PIPE (A) M20	9-09235-212-1	01	1	0407-0511	●
38	UNION; AIR PIPE (A) M20	9-09235-212-1	01	1	0512-0607		●
38	UNION; AIR PIPE (A) M20	0-92135-212-0	01	1	0608-		●
39	NUT; PIPE UNION M20	9-99111-420-0	02	1	0407-0511	●
39	NUT; PIPE UNION M20	9-99111-420-0	02	1	0512-0512		●
39	NUT; PIPE UNION M20	0-91111-520-0	02	1	0601-		●
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0407-0511	●
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0512-0603		●
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	0604-		●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0407-0511	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0512-0602		●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	0603-		●
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	0407-0511	●
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0512-0610		●
52	CONNECTOR; NYLON TUBE (E)	8-97618-539-0	01	1	0611-0803		●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0512-		●
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0407-0511	●
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0512-		●
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0407-0511	●
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0512-		●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0511	●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	02	1	0512-0512		●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	0407-0511	●
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	0512-		●
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	0407-0511	●
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	0512-		●
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	0407-0511	●
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	0512-		●
65	BRACKET; FLEX HOSE (A)	1-47479-793-0	01	1	0407-0503	●
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	0504-0511	●
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	0512-		●
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	06	1	0407-0511	●
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	08	1	0512-0512		●
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	0601-		●
66	BOLT; HOSE BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
75	BRACKET; UNION	1-47478-382-0	01	1	0407-0511	●
75	BRACKET; UNION	1-47478-382-0	01	1	0512-		●
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0407-0511	●
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0512-		●
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0407-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0407-0511	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0512-		●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-0	02	1	0407-0511	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-0	02	1	0407-0511	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0512-		●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0512-		●
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0407-0511	●
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0512-0512		●
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0407-0511	●
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0512-0512		●
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
