3-70 — BRAKE PIPING; AIR,AIR MASTER (#29542) — 364 parça

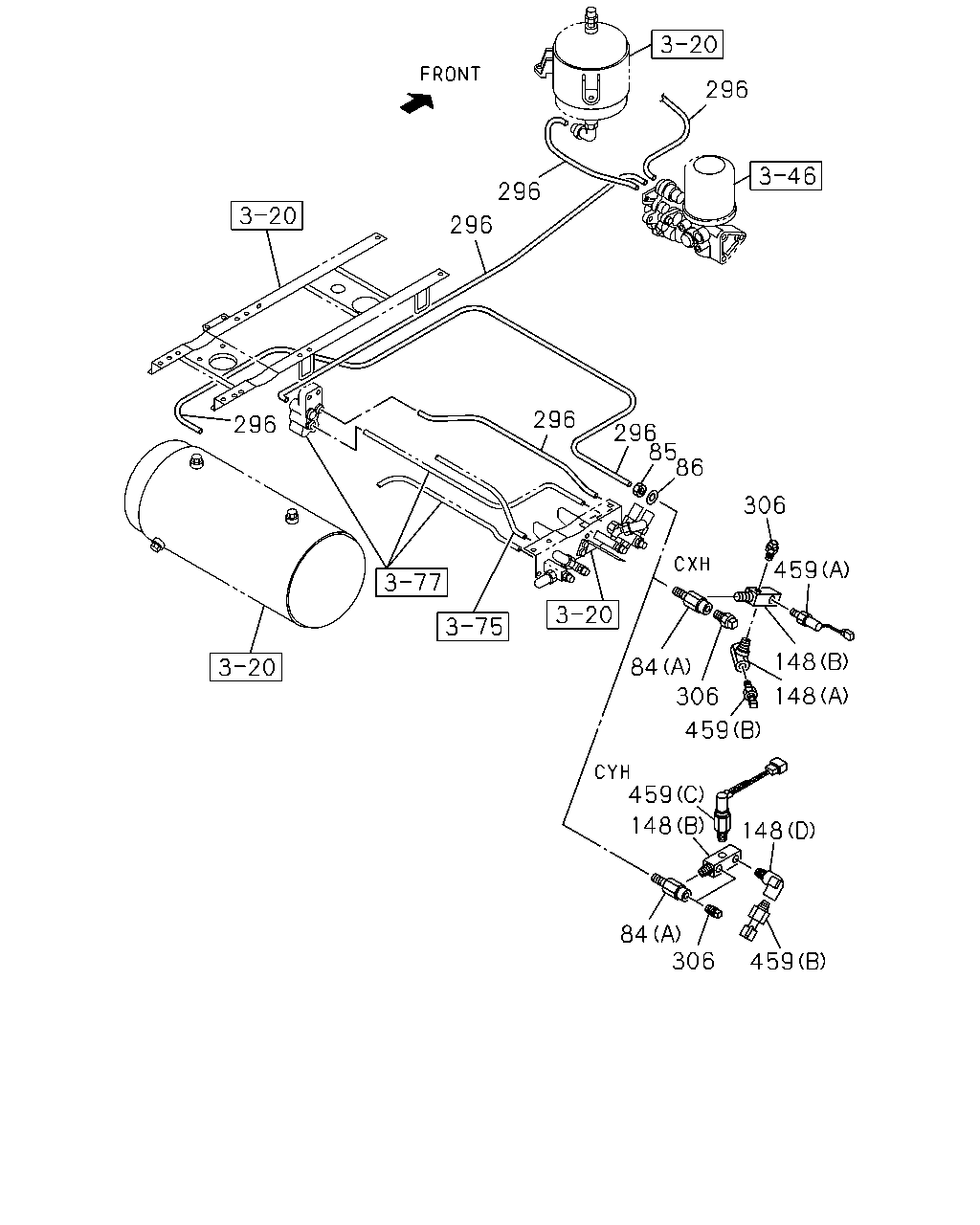

çizim 86559
296 296 296 296 296 296 85 86 306 459 148 84 148 306 459 459 148 148 84 306 459
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0512- ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0407-0511 ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0512-0512 ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601- ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0407-0511 ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0512-0603 ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604- ●
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0512- ●
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 0512-0704 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0705- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0407-0511 ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0512- ●
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0407-0511 ●
459 SWITCH; PRESS
(C) 		1-48340-065-0 01 1 0512- ●
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0407-0511 ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0512- ●

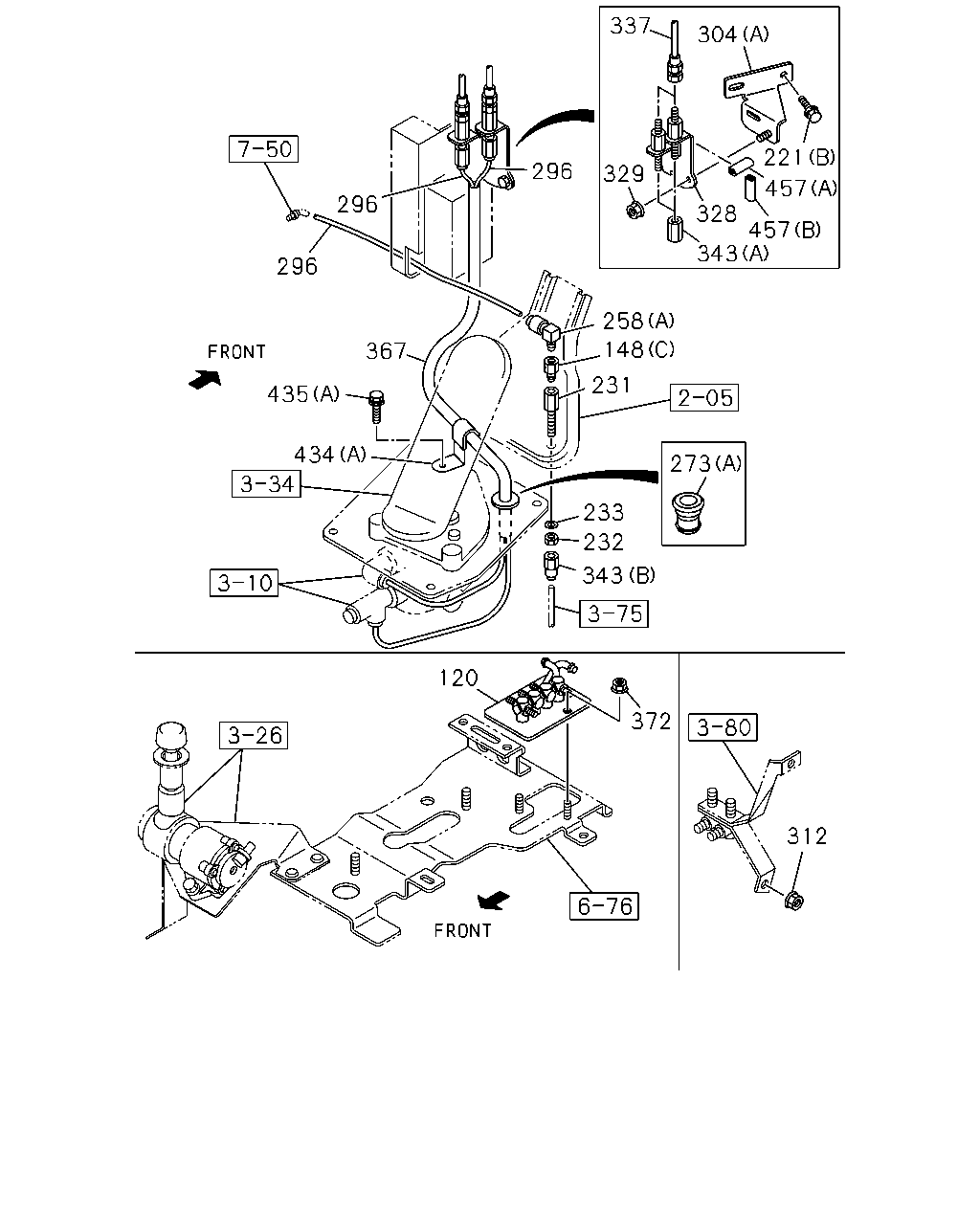

çizim 86722
337 304 221 296 329 457 296 328 457 343 296 258 148 367 231 435 434 273 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0407-0511 ●
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0512- ●
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0512- ●
148 CONNECTOR; UNION
(C) 		8-94338-417-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 0512-0704 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0705- ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
221 BOLT; BRKT
6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
231 UNION; AIR PIPE 1-09656-713-2 01 1 0407-0511 ●
231 UNION; AIR PIPE 1-09656-713-2 01 1 0512- ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0407-0511 ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0512- ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0407-0511 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		9-09150-510-0 01 1 0512-0603 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 0604-0711 ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0712- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0407-0511 ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0512- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407-0511 ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0407-0511 ●
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0512- ●
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0407-0407 ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0408-0507 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0508-0511 ●
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0512- ●
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512- ●
312 NUT; UNION
M8 		9-09110-408-0 01 1 0407-0511 ●
312 NUT; UNION
M8 		9-09110-408-0 01 1 0512-0512 ●
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601- ●
328 UNION; AIR PIPE 1-47470-442-0 01 1 0407-0511 ●
328 UNION; AIR PIPE
6WF1 TC-C(1B8) 		1-47470-442-0 01 1 0512- ●
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=440 		0-07210-440-0 02 1 0407-0511 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-07210-440-0 02 1 0512-0605 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-57210-440-0 02 1 0606- ●
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0407-0511 ●
343 UNION; NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-09660-796-1 02 1 0512- ●
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0407-0511 ●
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0512- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-0511 ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512- ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0407-0511 ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0512- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
457 FINISHER; UNION
(A) L=50 		8-94270-377-1 01 1 0407-0511 ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (A) L=50 		8-94270-377-1 01 1 0512- ●
457 FINISHER; UNION
(B) L=50 		8-94270-377-1 01 1 0407-0511 ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (B) L=50 		8-94270-377-1 01 1 0512- ●

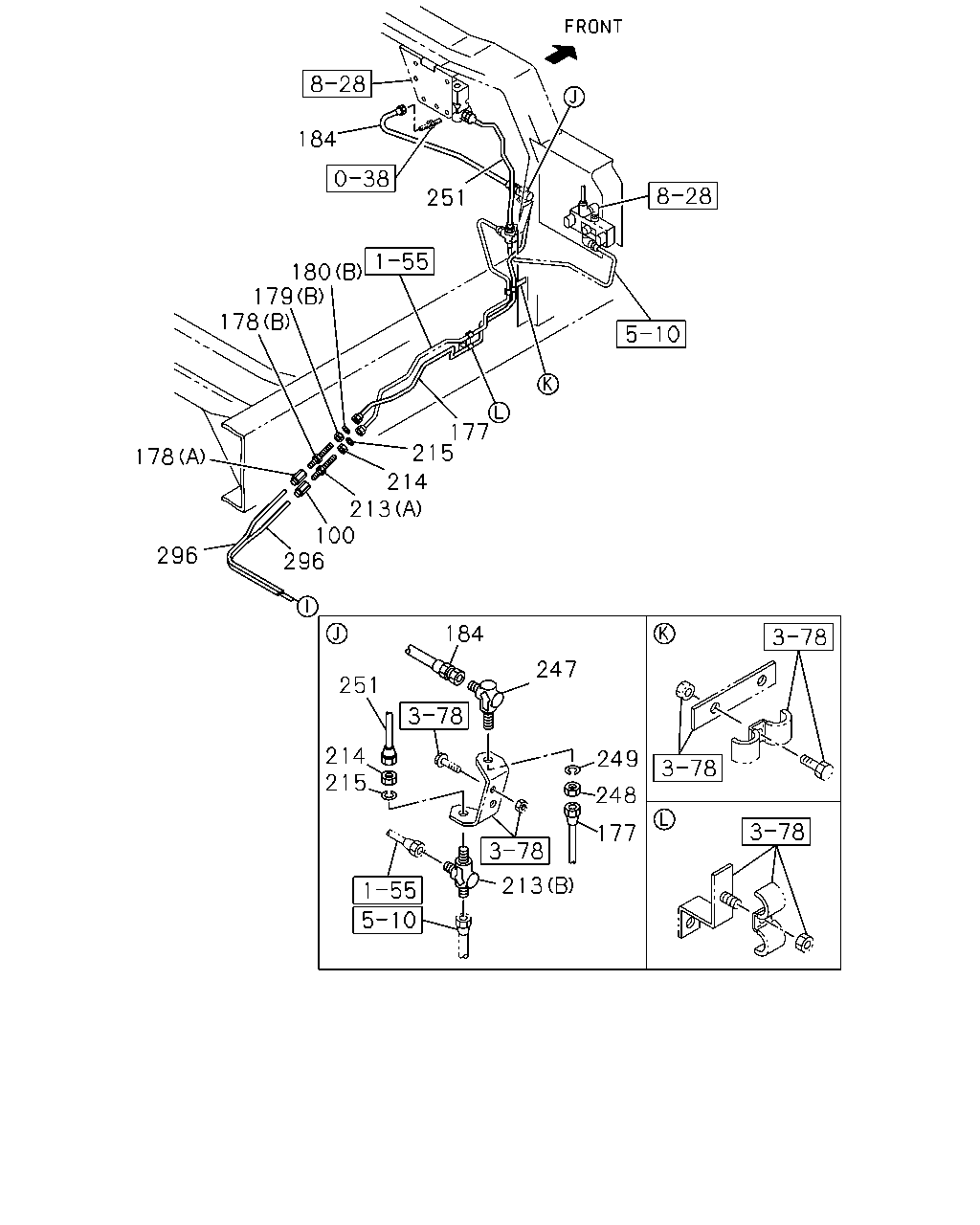

çizim 86923
184 251 180 179 178 177 215 178 214 213 100 296 296 184 247 251 214 215 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date A B
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ●
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0407-0511 ●
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0512- ●
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ●
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0407-0511 ●
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0512-0607 ●
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0407-0511 ●
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0512-0512 ●
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0601- ●
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0407-0511 ●
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0512- ●
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0512-0603 ●
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0604- ●
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0407-0511 ●
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0512-0603 ●
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0604- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0407-0511 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0512- ●
213 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0407-0511 ●
213 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0512-0607 ●
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0407-0511 ●
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0512-0607 ●
213 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0407-0511 ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0512- ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0407-0511 ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0512-0603 ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0604- ●
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0407-0511 ●
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0512-0607 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0407-0511 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0512- ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0512-0603 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604- ●
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-S(97L) L=375 		1-49124-511-0 01 1 0512-0704 ●
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) L=375 		1-49124-511-0 01 1 0705- ●
251 PIPE; AIR,UNION TO MAG VLV 1-49121-779-0 01 1 0407-0511 ●
251 PIPE; AIR,UNION TO MAG VLV
6WF1 TC-C(1B8) 		1-49121-779-0 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●

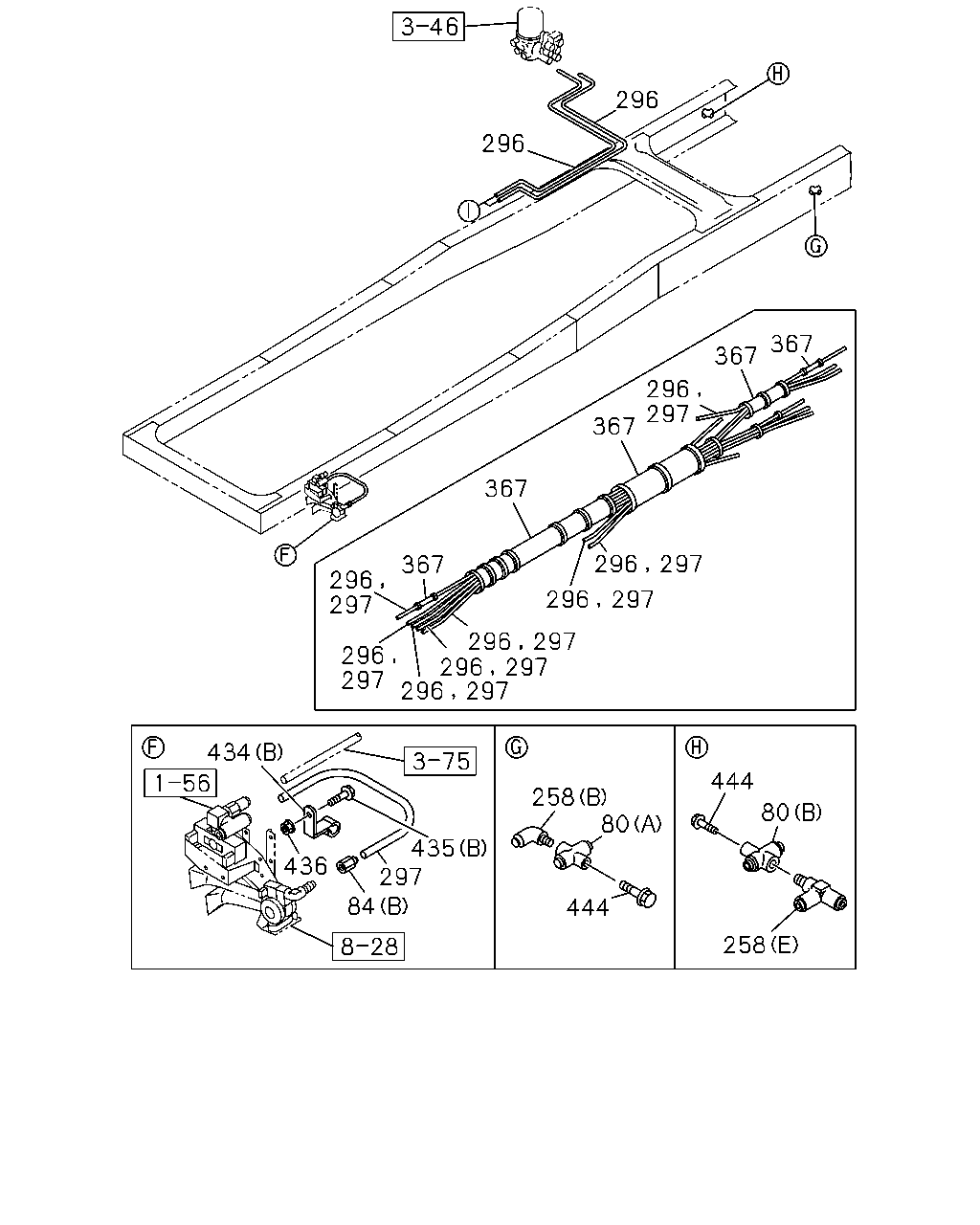

çizim 103868
296 296 367 367 296 297 367 367 296 367 296 297 296 296 296 296 296 297 434 444 258 80 80 435 297 84 436 444 258 297 297 297 297 297
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-0511 ●
80 UNION; 3 WAY
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0512- ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0407-0511 ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0512- ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0512- ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0512- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-0511 ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512- ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0407-0511 ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0512- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
444 BOLT; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
444 BOLT; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
444 BOLT; UNION
MJX16P M/T(Y3Z) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
444 BOLT; UNION
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
444 BOLT; UNION
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
444 BOLT; UNION
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0704 ●
444 BOLT; UNION
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0704 ●
444 BOLT; UNION
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X20 FLANGE 		0-28650-820-0 01 1 0705- ●
444 BOLT; UNION
FULLER M/T<X9B> M8X20 FLANGE 		0-28650-820-0 01 1 0705- ●

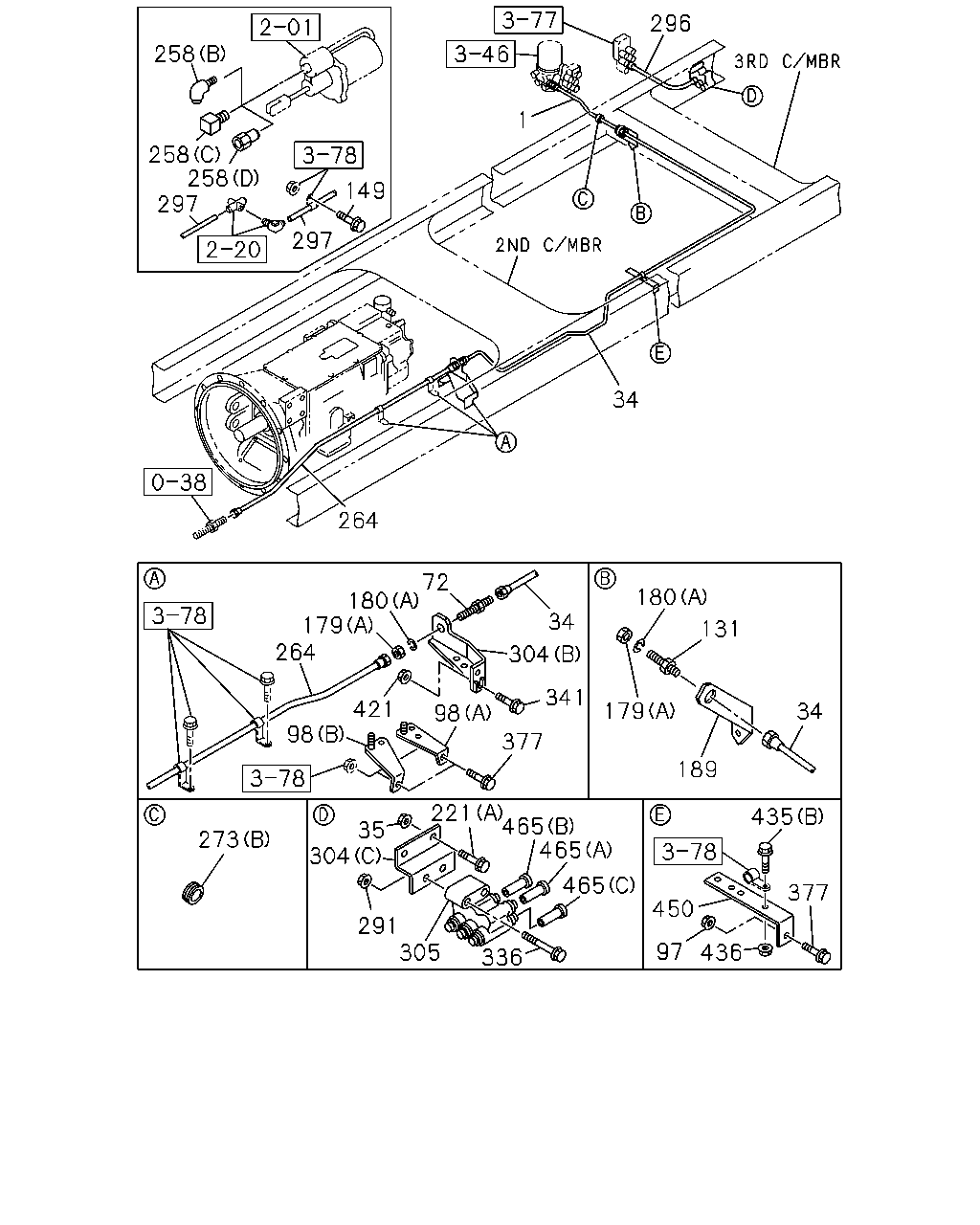

çizim 104907
296 258 1 258 258 297 149 297 34 264 72 180 180 179 264 34 131 304 341 421 98 179 34 98 377 189 221 465 465 435 35 304 273 377 465 450 291 305 97 436 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0407-0511 ●
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0512- ●
34 PIPE; AIR
L=1205 		1-49124-248-0 01 1 0407-0407 ●
34 PIPE; AIR
L=1231 SERVICED BY L=900 		1-47428-813-0 01 1 0408-0511 ●
34 PIPE; AIR
L=1408 		1-49124-905-0 01 1 0512- ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
72 UNION; AIR PIPE 1-48320-039-2 01 1 0407-0410 ●
72 UNION; AIR PIPE 1-48320-058-0 01 1 0411-0511 ●
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0512- ●
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0407-0511 ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (B) 		1-47479-639-0 01 1 0512- ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0407-0511 ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (A) 		1-47479-723-0 01 1 0512- ●
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0407-0511 ●
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0512- ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0704 ●
149 BOLT; TUBE CLIP
FULLER M/T<X9B> M8X25 FLANGE 		0-28650-825-0 01 1 0705- ●
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 0407-0511 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X50 FLANGE 		0-28080-850-0 01 1 0512-0512 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
149 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0407-0511 ●
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0512-0512 ●
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0601- ●
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0407-0511 ●
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0512- ●
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0512-0603 ●
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0604- ●
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0407-0511 ●
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0512-0603 ●
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0604- ●
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0407-0511 ●
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0512- ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
221 BOLT; BRKT
6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
264 HOSE; FLEX
TRANSMISSION-FULLER RTLO169 18(Y3S) L=1050 		1-09363-789-0 01 1 0512-0704 ●
264 HOSE; FLEX
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0705- ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0407-0511 ●
264 HOSE; FLEX
MJX16P M/T(Y3Z) L=1000 		1-09363-794-0 01 1 0512- ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0407-0511 ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0512- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407-0511 ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0512- ●
291 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
291 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0512- ●
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0407-0511 ●
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0512- ●
304 BRACKET; UNION
(B) 		1-47479-682-1 01 1 0407-0407 ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0408-0507 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0508-0511 ●
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0512- ●
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512- ●
305 UNION ASM; NYLON TUBE 1-09661-613-0 01 1 0407-0511 ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0512- ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0407-0511 ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0512-0512 ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0601- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0507 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0511 ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
450 BRACKET; CLIP 1-82698-358-0 01 1 0407-0511 ●
450 BRACKET; CLIP 1-82698-358-0 01 1 0512- ●
465 PLUG
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) OD=12 		1-09661-617-0 01 1 0512-0704 ●
465 PLUG
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0512-0704 ●
465 PLUG
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0705- ●
465 PLUG
FULLER M/T<X9B> (C) OD=12 		1-09661-617-0 01 1 0705- ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0407-0511 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 0512- ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0512- ●
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0407-0511 ●
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
