0-50 — OIL COOLER AND OIL FILTER (#2954) — 121 parça

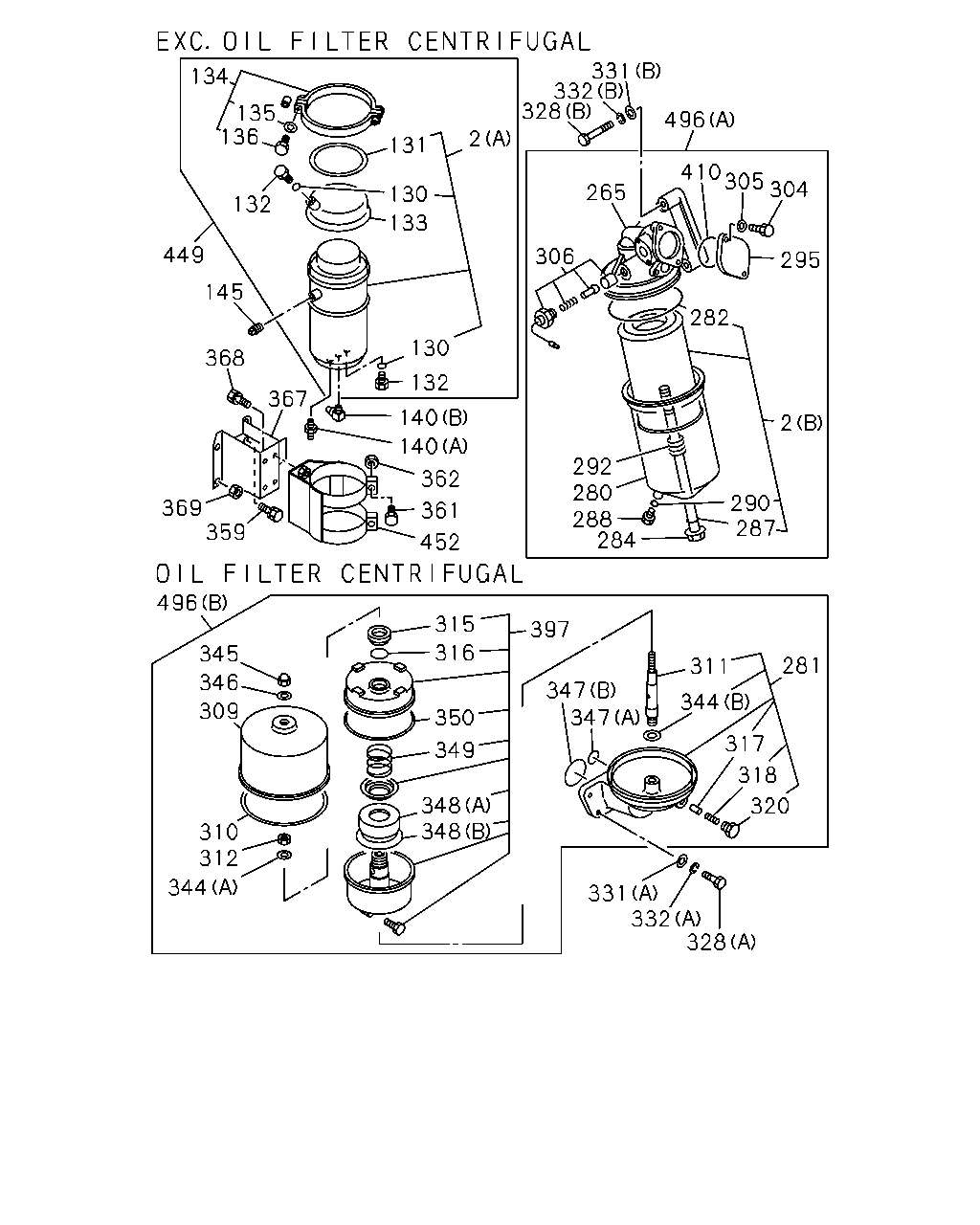

328 332 331 320 318 317 344 311 281 347 347 397 315 316 350 349 348 348 344 312 310 309 346 345 496 359 369 452 361 362 140 140 367 368 132 130 145 449 132 136 135 134 131 130 133 2 328 332 331 496 265 306 410 305 304 295 282 2 290 287 284 288 280 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (B)	1-87810-314-2	01	1	9002-	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13240-056-0	01	1	9002-	●	●
130	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=9.8	1-09623-055-0	02	1	9002-	●	●
131	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13213-006-0	01	1	9002-	●	●
132	PLUG; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	1-09000-105-0	02	1	9002-	●	●
133	COVER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13212-034-0	01	1	9002-	●	●
134	CLAMP; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-009-0	01	1	9002-	●	●
135	WASHER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=10.5	9-09164-510-0	01	1	9002-	●	●
136	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09029-021-0	01	1	9002-	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
145	PLUG; FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09605-024-0	01	1	9307-		●
265	BODY; OIL FILTER	1-13212-082-1	01	1	9002-	●	●
280	CASE ASM; OIL FILTER	1-13211-105-1	01	1	9002-9507	●
280	CASE ASM; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13211-105-1	01	1	9002-9507		●
280	CASE ASM; OIL FILTER	1-13211-105-2	01	1	9508-		●
280	CASE ASM; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13211-117-0	01	1	9002-9507		●
281	COVER; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13210-016-0	01	1	9002-		●
282	GASKET; BODY TO CASE	1-09623-357-0	01	1	9002-	●	●
284	BOLT; CENTER,OIL FILTER	1-13231-054-1	01	1	9002-	●	●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9002-	●	●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9002-	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9002-	●	●
292	SPRING; ELEMENT	1-13219-187-0	01	1	9002-	●	●
295	COVER; OIL FILTER	1-13219-122-0	01	1	9002-	●	●
304	BOLT; PIPE TO COVER M14X25	0-23801-425-0	02	1	9002-	●	●
305	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●
305	WASHER; PL EXC. OIL FILTER CENTRIFUGAL<E6S> ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306		●
305	WASHER; PL OIL FILTER CENTRIFUGAL<E6S> ID=10.5 OD=18	9-09160-510-0	02	1	9002-9507		●
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9002-9507	●
306	VALVE; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-875-0	01	1	9002-9507		●
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9508-		●
306	VALVE; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13260-056-0	01	1	9002-9507		●
309	BODY; OIL FILTER,CENTRIFUGAL OIL FILTER CENTRIFUGAL<E6S>	9-13212-151-1	01	1	9002-		●
310	GASKET; BODY TO COVER OIL FILTER CENTRIFUGAL<E6S>	1-13213-007-0	01	1	9002-		●
311	SPINDLE; ROTOR OIL FILTER CENTRIFUGAL<E6S>	9-13231-054-1	01	1	9002-		●
312	NUT; ROTOR BODY OIL FILTER CENTRIFUGAL<E6S>	9-09844-204-0	01	1	9002-		●
315	NUT; ROTOR LK OIL FILTER CENTRIFUGAL<E6S>	9-09844-221-0	01	1	9002-		●
316	GASKET; COVER TO BODY OIL FILTER CENTRIFUGAL<E6S>	9-09920-742-0	01	1	9002-		●
317	VALVE; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	9-13262-012-0	01	1	9002-		●
318	SPRING; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	9-09941-151-0	01	1	9002-		●
320	PLUG; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	1-13265-013-0	01	1	9002-		●
328	BOLT; OIL FILTER (B) M10X60	9-01656-060-0	03	1	9002-9004	●	●
328	BOLT; OIL FILTER (B) M10X60	0-16806-060-0	03	1	9005-	●	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9002-		●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	9-92351-440-0	01	1	9002-9005		●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	0-23801-440-0	01	1	9006-		●
331	WASHER; PL,OIL FILTER (B) ID=10.5 OD=18	9-09160-510-0	03	1	9002-	●	●
331	WASHER; PL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=15	9-09160-514-0	01	1	9002-		●
332	WASHER; LK,OIL FILTER (B) ID=10.2	9-09150-510-0	03	1	9002-	●	●
332	WASHER; LK,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=14.2	9-09150-514-0	01	1	9002-		●
344	WASHER; THRUST,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A)	1-13239-034-0	01	1	9002-		●
344	WASHER; THRUST,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	9-13239-035-0	01	1	9002-		●
345	NUT; CAP,COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	9-09844-222-0	01	1	9002-		●
346	GASKET; CAP NUT OIL FILTER CENTRIFUGAL<E6S> ID=8.2 OD=13.2	1-09630-082-0	01	1	9002-		●
347	GASKET; COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=24.4	1-09623-183-0	01	1	9002-		●
347	GASKET; COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	1-09623-373-0	01	1	9002-		●
348	GUIDE; OIL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A)	9-13249-015-0	01	1	9002-		●
348	GUIDE; OIL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	9-13249-016-0	01	1	9002-		●
349	SPRING; OIL GUIDE OIL FILTER CENTRIFUGAL<E6S>	9-09941-140-0	01	1	9002-		●
350	GASKET; BODY TO COVER OIL FILTER CENTRIFUGAL<E6S>	9-09920-743-0	01	1	9002-		●
359	BOLT; BRKT TO FRAME EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 W/LK WASHER	0-50041-030-0	04	1	9002-	●	●
361	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9002-	●	●
362	NUT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	9-09110-510-0	02	1	9002-	●	●
367	BRACKET; PARTIAL FILTER CVR&RHD(CVR5M*)	1-47475-256-7	01	1	9002-	●	●
367	BRACKET; PARTIAL FILTER CVR&LHD(CVR6M*)	1-47475-615-2	01	1	9002-9306	●	●
367	BRACKET; PARTIAL FILTER CVR&LHD(CVR6M*)	1-47475-371-3	01	1	9307-		●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-	●	●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-	●	●
397	ROTOR; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	9-13240-101-0	01	1	9002-		●
410	GASKET ID=59.6	9-09565-360-0	01	1	9002-	●	●
449	FILTER ASM; OIL PARTIAL CVR&RHD(CVR5M*)	1-13200-560-1	01	1	9002-	●	●
449	FILTER ASM; OIL PARTIAL CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-534-3	01	1	9002-	●	●
452	BRACKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-131-5	01	1	9002-	●	●
496	FILTER ASM; OIL (A)	1-13200-509-4	01	1	9002-9306	●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-509-4	01	1	9002-9306		●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-921-0	01	1	9307-9507		●
496	FILTER ASM; OIL (A)	1-13200-921-1	01	1	9508-		●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (B)	1-13200-619-1	01	1	9002-		●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-620-2	01	1	9002-9507		●

469 111 102 110 106 103 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL	1-21700-156-2	01	1	9002-9306	●
102	COOLER ASM; OIL	1-21700-140-2	01	1	9002-		●
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9002-9005	●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-9306	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9002-9005	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-9306	●
103	BOLT; OIL COOLER M8X80	9-01055-880-0	01	1	9002-9005		●
103	BOLT; OIL COOLER M8X80	0-10805-880-0	01	1	9006-		●
103	BOLT; OIL COOLER M8X22	9-01970-822-0	23	1	9002-9005		●
103	BOLT; OIL COOLER M8X22 W/LK&PL WASHER	0-50140-822-0	23	1	9006-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9002-	●	●
106	WASHER; LK,OIL COOLER ID=8.4	9-09160-508-0	01	1	9002-		●
110	BODY; CASE,OIL COOLER	1-21721-045-3	01	1	9002-9306	●
110	BODY; CASE,OIL COOLER	1-21721-044-1	01	1	9002-		●
111	CORE; OIL COOLER	1-21723-035-0	01	1	9002-9306	●
111	CORE; OIL COOLER	1-21723-018-1	01	1	9002-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9002-9306	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-096-0	01	1	9002-		●

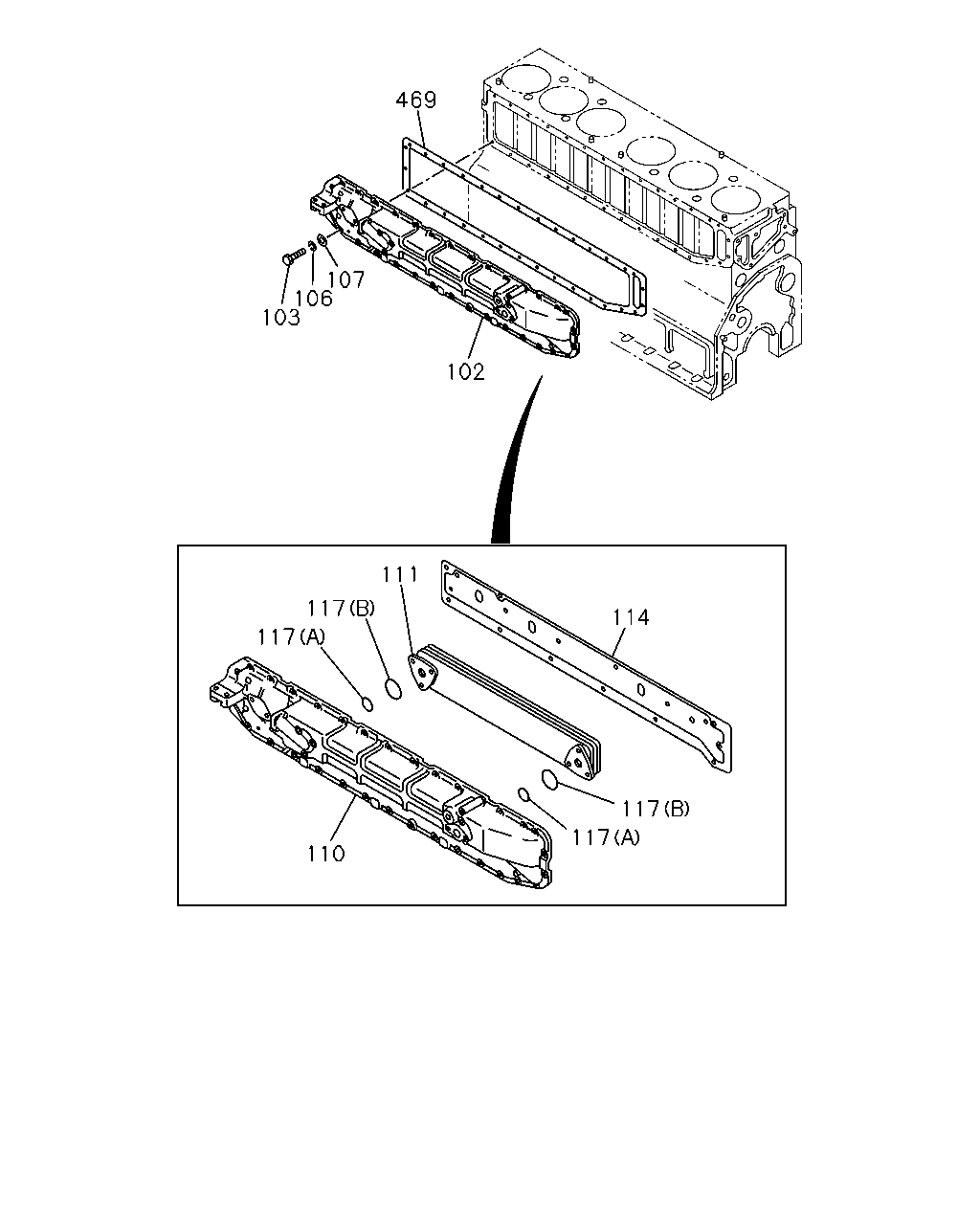

469 107 106 103 102 111 117 117 110 117 117 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL	1-21700-156-2	01	1	9002-9306	●
102	COOLER ASM; OIL	1-21700-140-2	01	1	9002-		●
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9002-9005	●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-9306	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9002-9005	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-9306	●
103	BOLT; OIL COOLER M8X80	9-01055-880-0	01	1	9002-9005		●
103	BOLT; OIL COOLER M8X80	0-10805-880-0	01	1	9006-		●
103	BOLT; OIL COOLER M8X22	9-01970-822-0	23	1	9002-9005		●
103	BOLT; OIL COOLER M8X22 W/LK&PL WASHER	0-50140-822-0	23	1	9006-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9002-	●	●
106	WASHER; LK,OIL COOLER ID=8.4	9-09160-508-0	01	1	9002-		●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9002-9306	●
110	BODY; CASE,OIL COOLER	1-21721-045-3	01	1	9002-9306	●
110	BODY; CASE,OIL COOLER	1-21721-044-1	01	1	9002-		●
111	CORE; OIL COOLER	1-21723-035-0	01	1	9002-9306	●
111	CORE; OIL COOLER	1-21723-018-1	01	1	9002-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-071-0	01	1	9002-9306	●
117	GASKET; OIL COOLER (A) D=27.7	1-09623-187-0	02	1	9002-9306	●
117	GASKET; OIL COOLER (B) D=39.7	1-09623-188-0	02	1	9002-9306	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9002-9306	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-096-0	01	1	9002-		●
