Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#29535) — 298 parça

32 32 172 34 35 38 39 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

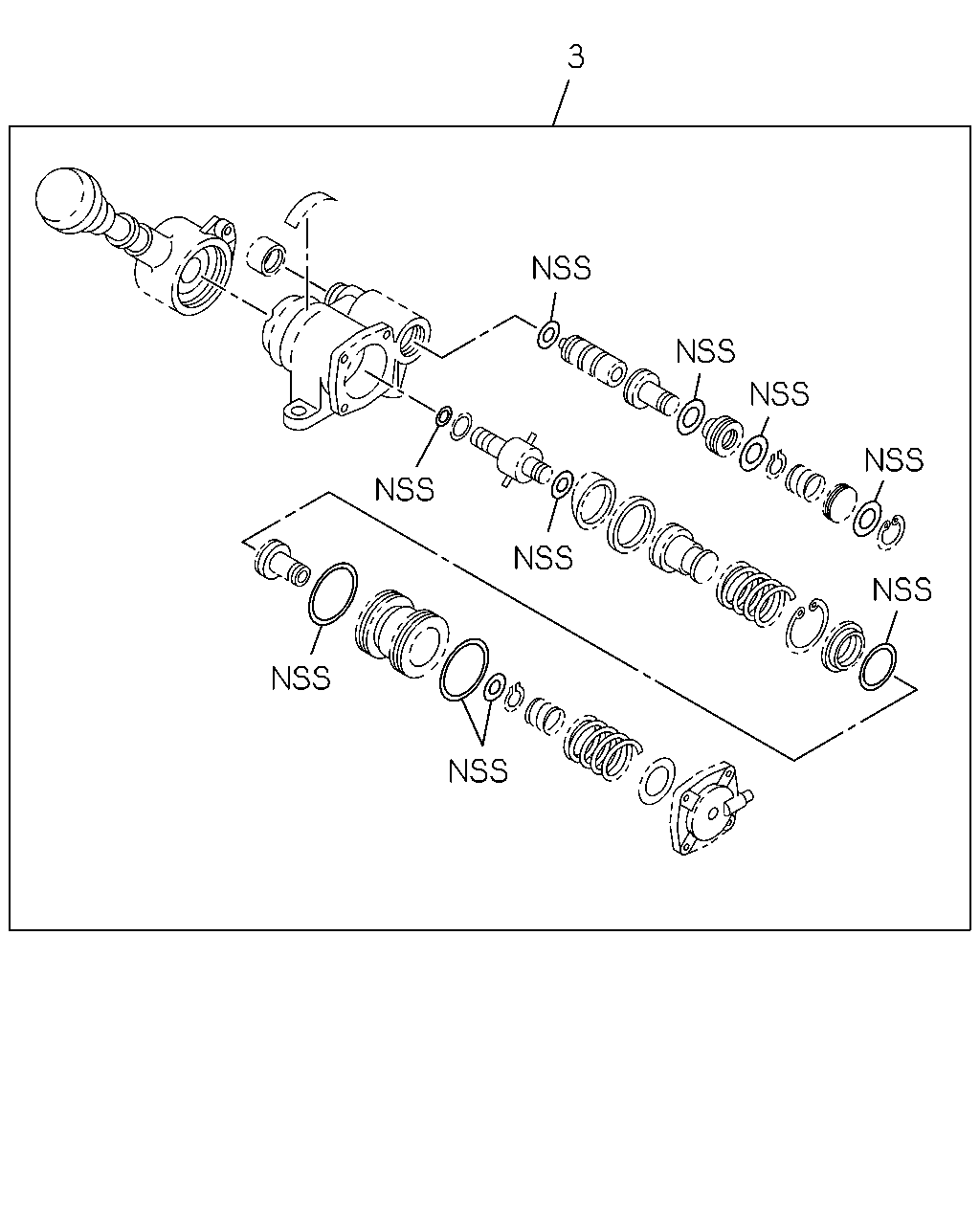

3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0511		●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0512-	●
7	HEAD; BRK VLV (A)	1-48119-577-0	01	1	0407-0511		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0512-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0511		●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0512-	●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-0511		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0512-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0511		●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0512-	●

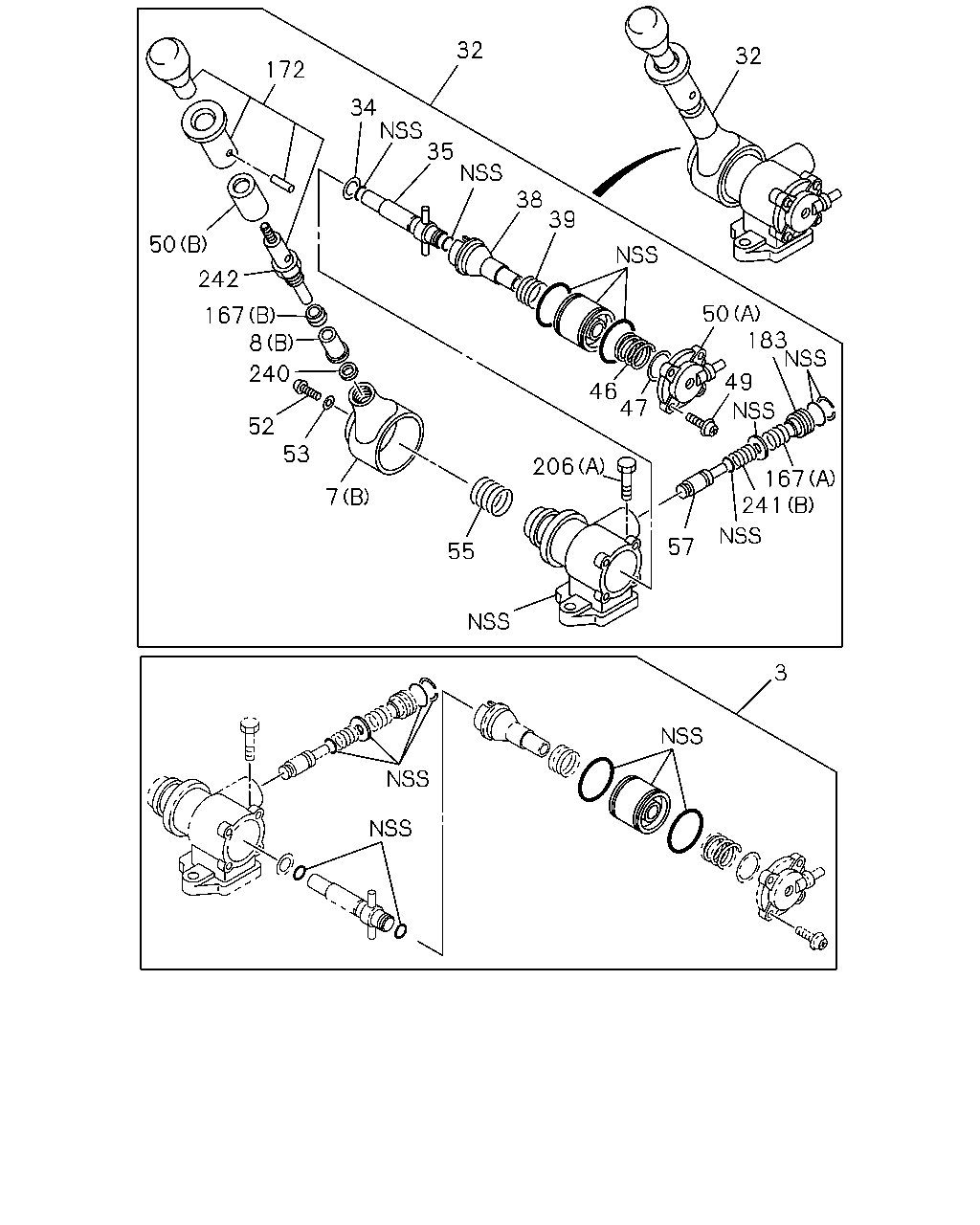

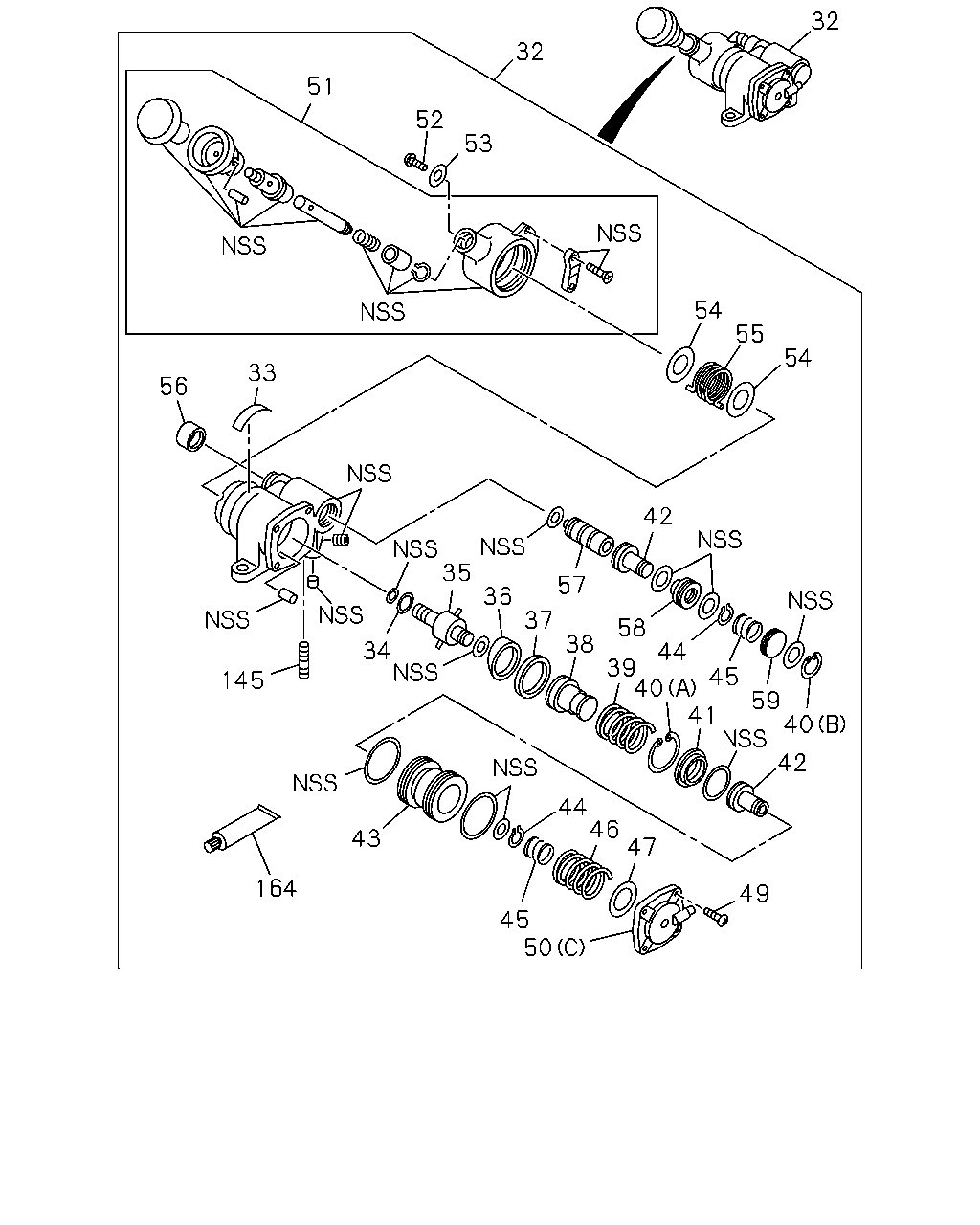

32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0511		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0512-	●
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0511		●
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0512-	●
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0511		●
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0511		●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0512-	●
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0511		●
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0511		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0512-	●
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0407-0511		●
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0512-	●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0512-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0511		●
52	SCREW; HANDLE	1-48469-062-0	01	1	0512-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0511		●
53	WASHER; HANDLE	1-48469-061-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0511		●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0511		●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0512-	●
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0407-0511		●
167	SPRING; VALVE MJX M/T<Y9N> (A)	1-48469-177-0	01	1	0512-	●
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0407-0511		●
167	SPRING; VALVE MJX M/T<Y9N> (B)	1-48469-184-0	01	1	0512-	●
172	KNOB; VALVE	1-48469-203-0	01	1	0407-0511		●
172	KNOB; VALVE MJX M/T<Y9N>	1-48469-203-0	01	1	0512-	●
183	RETAINER; VALVE	1-48469-185-0	01	1	0407-0511		●
183	RETAINER; VALVE MJX M/T<Y9N>	1-48469-185-0	01	1	0512-	●
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	0512-0512	●
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-	●
206	BOLT; HAND BRK VALVE (A)	1-48469-160-0	01	1	0407-0511		●
206	BOLT; HAND BRK VALVE MJX M/T<Y9N> (A)	1-48469-160-0	01	1	0512-	●
240	RING; STOPPER	1-48469-199-0	01	1	0407-0511		●
240	RING; STOPPER MJX M/T<Y9N>	1-48469-199-0	01	1	0512-	●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-0511		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0512-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0511		●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0512-	●
242	NUT; LK	1-48469-179-0	01	1	0407-0511		●
242	NUT; LK MJX M/T<Y9N>	1-48469-179-0	01	1	0512-	●

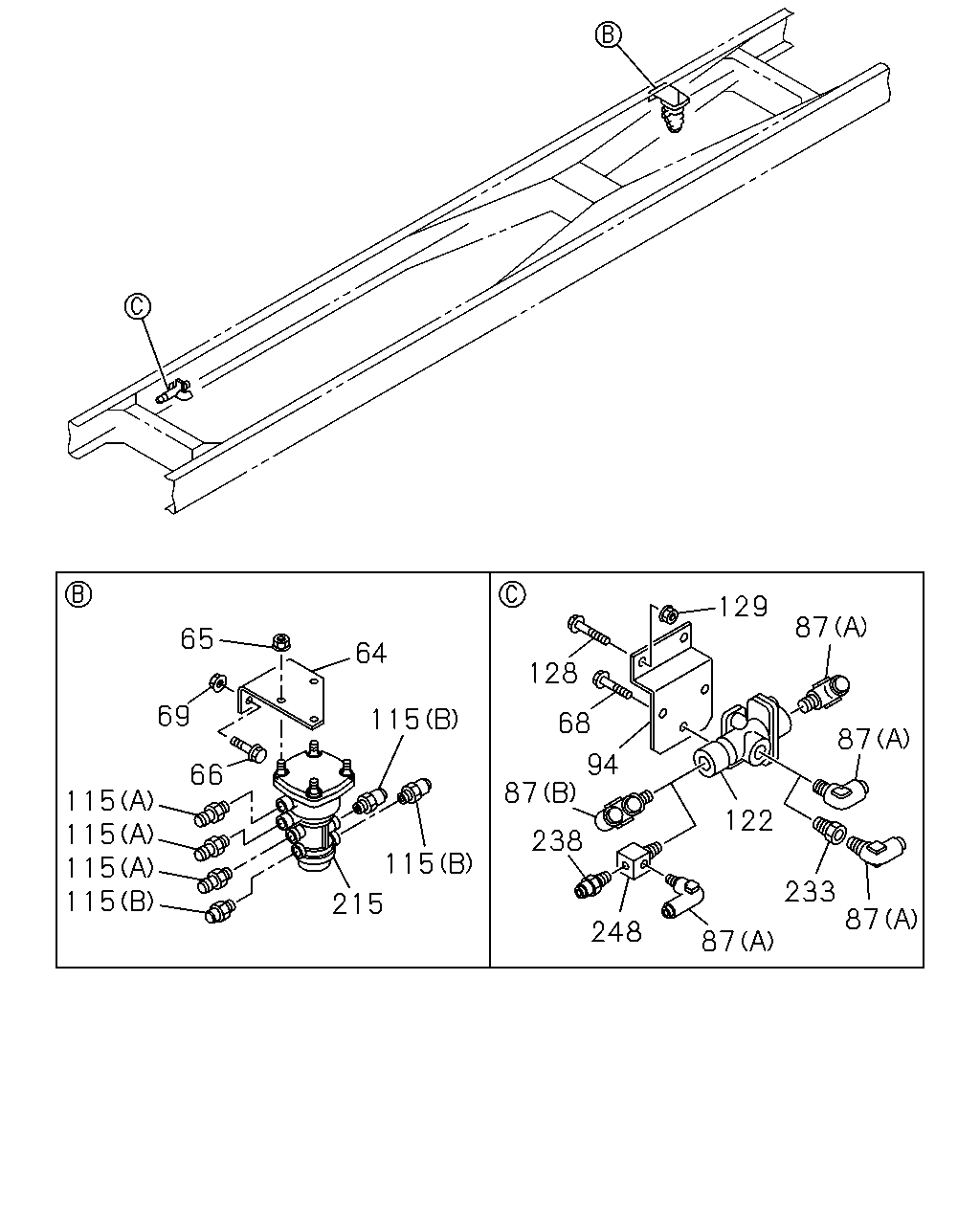

64 65 69 115 115 215 115 115 115 115 66 128 129 87 68 87 94 87 238 248 87 233 87 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BRACKET; RELAY VLV	1-48495-226-0	01	1	0407-0511		●
64	BRACKET; RELAY VLV	1-48495-226-0	01	1	0512-	●
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	03	1	0603-	●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0407-0511		●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0407-0511		●
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0512-0704	●
68	BOLT; DOUBLE CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X14 FLANGE	0-28080-814-0	02	1	0705-	●
68	BOLT; DOUBLE CHECK VLV MJX16P M/T(Y3Z) M8X14 FLANGE	0-28080-814-0	02	1	0705-	●
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511		●
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602	●
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
87	CONNECTOR; DBL CHECK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0705-	●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0407-0511		●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0512-0704	●
87	CONNECTOR; DBL CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0705-	●
87	CONNECTOR; DBL CHECK VLV MJX16P M/T(Y3Z) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0705-	●
87	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0407-0511		●
87	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0512-0704	●
87	CONNECTOR; DBL CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0705-	●
87	CONNECTOR; DBL CHECK VLV MJX16P M/T(Y3Z) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0705-	●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0407-0511		●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0512-0704	●
94	BRACKET; CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-367-0	01	1	0705-	●
94	BRACKET; CHECK VLV MJX16P M/T(Y3Z)	1-47479-367-0	01	1	0705-	●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0407-0511		●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0512-	●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0407-0511		●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0512-	●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0407-0511		●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0512-0704	●
122	VALVE ASM; DOUBLE CHECK 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S)	1-48410-531-0	01	1	0705-0705	●
122	VALVE ASM; DOUBLE CHECK MJX16P M/T(Y3Z)	1-48410-531-0	01	1	0705-0705	●
122	VALVE ASM; DOUBLE CHECK 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48410-531-1	01	1	0705-	●
122	VALVE ASM; DOUBLE CHECK 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S)	1-48410-531-1	01	1	0705-	●
122	VALVE ASM; DOUBLE CHECK MJX16P M/T(Y3Z)	1-48410-531-1	01	1	0705-	●
128	BOLT; VLV TRANSMISSION-FULLER RTLO189 18(Y4W) M8X16 FLANGE	0-28050-816-0	02	1	0705-	●
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0407-0511		●
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
128	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-0704	●
128	BOLT; VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X25 FLANGE	0-28650-825-0	02	1	0705-	●
128	BOLT; VLV MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	02	1	0705-	●
129	NUT; VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0705-	●
129	NUT; VLV MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0705-	●
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0603-0704	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0705-	●
215	VALVE; TRAILER CONT	1-48240-045-0	01	1	0407-0511		●
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	0512-	●
233	ADAPTER; VLV TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8	1-09664-210-0	01	1	0705-	●
238	CONNECTOR TRANSMISSION-FULLER RTLO189 18(Y4W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0705-	●
248	UNION TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8 3WAY	1-09661-300-0	01	1	0705-	●

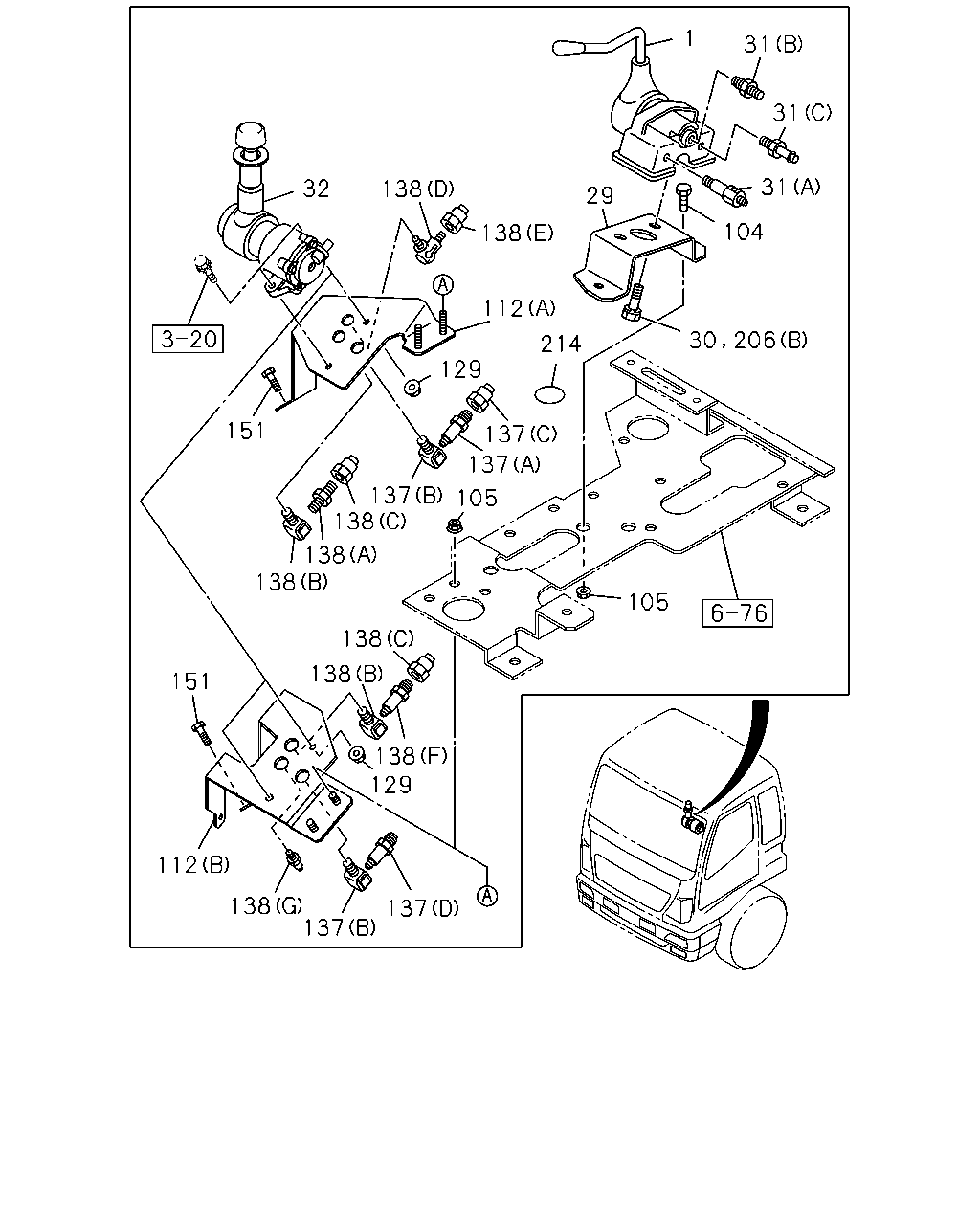

1 31 31 31 32 138 29 104 138 112 214 129 151 137 137 137 138 105 138 138 105 138 138 151 138 129 112 138 137 137 30 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-0511		●
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0512-	●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0407-0511		●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0512-	●
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0512-	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0512-	●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0512-0607	●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-	●
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0511		●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0512-0612	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
112	BRACKET; CONT VLV FULLER M/T<X9B> (B)	1-79996-336-1	01	1	0512-	●
112	BRACKET; CONT VLV (A)	1-79996-387-0	01	1	0407-0511		●
112	BRACKET; CONT VLV MJX M/T<Y9N> (A)	1-79996-387-0	01	1	0512-	●
129	NUT; VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0705-	●
129	NUT; VLV MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0705-	●
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0603-0704	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0705-	●
137	CONNECTOR; SUPPLY FULLER M/T<X9B> (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0512-	●
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0407-0511		●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (A)	1-09650-352-1	01	1	0512-	●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-0511		●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0512-	●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0407-0511		●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0512-	●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (F) M14	1-09656-391-2	01	1	0512-	●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-	●
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (D)	1-09650-263-2	01	1	0512-	●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0512-	●
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0512-	●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0512-	●
138	CONNECTOR; DELIVERY (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0512-	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0409		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-0511		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0512-	●
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	0512-0512	●
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-	●
206	BOLT; HAND BRK VALVE (A)	1-48469-160-0	01	1	0407-0511		●
206	BOLT; HAND BRK VALVE MJX M/T<Y9N> (A)	1-48469-160-0	01	1	0512-	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0407-0511		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0512-	●

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 34 44 39 40 45 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
33	PLATE; CAUTION FULLER M/T<X9B>	1-48469-121-0	01	1	0512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0511		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0512-	●
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0511		●
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0512-	●
36	RING; CAM FULLER M/T<X9B>	1-48469-056-0	01	1	0512-	●
37	GUIDE; CAM RING FULLER M/T<X9B>	1-48469-058-0	01	1	0512-	●
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0511		●
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0511		●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0512-	●
40	RING; SNAP FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0512-	●
40	RING; SNAP FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0512-	●
41	SEAT; FEED VLV FULLER M/T<X9B>	1-48469-066-0	01	1	0512-	●
42	VALVE; FEED FULLER M/T<X9B>	1-48469-065-0	02	1	0512-	●
43	PISTON; HAND BRK VLV FULLER M/T<X9B>	1-48469-064-0	01	1	0512-	●
44	RING; SNAP,FEED VLV FULLER M/T<X9B>	1-48469-068-0	02	1	0512-	●
45	SPRING; FEED VLV FULLER M/T<X9B>	1-48469-070-0	02	1	0512-	●
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0511		●
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0511		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0512-	●
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0407-0511		●
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0512-	●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0512-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0512-	●
51	HANDLE ASM; HAND BRK VLV FULLER M/T<X9B>	1-48469-060-0	01	1	0512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0511		●
52	SCREW; HANDLE	1-48469-062-0	01	1	0512-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0511		●
53	WASHER; HANDLE	1-48469-061-0	01	1	0512-	●
54	SEAT; SPRING FULLER M/T<X9B>	1-48469-082-0	02	1	0512-	●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0511		●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0512-	●
56	BOOT; PLUNGER FULLER M/T<X9B>	1-48469-080-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0511		●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0512-	●
58	HOLDER; FEED VLV FULLER M/T<X9B>	1-48469-077-0	01	1	0512-	●
59	HOLDER; SPRING FULLER M/T<X9B>	1-48469-078-0	01	1	0512-	●
145	STUD; HAND BRK VLV FULLER M/T<X9B>	1-48469-069-0	01	1	0512-	●
164	GREASE; HAND BRK VLV FULLER M/T<X9B>	1-48469-084-0	01	1	0512-	●

1 4 1 5 7 8 6 9 10 241 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-0511		●
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0512-	●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0407-0511		●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0512-	●
4	HANDLE ASM; BRK VLV	1-48119-580-0	01	1	0407-0511		●
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	0512-	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0407-0511		●
5	GASKET; HANDLE	1-48119-128-0	01	1	0512-	●
6	PIN; SPR	1-48119-143-0	01	1	0407-0511		●
6	PIN; SPR	1-48119-143-0	01	1	0512-	●
7	HEAD; BRK VLV (A)	1-48119-577-0	01	1	0407-0511		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0512-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0511		●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0512-	●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-0511		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0512-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0511		●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0512-	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0407-0511		●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0512-	●
10	RING; ADJ	1-48119-122-0	01	1	0407-0511		●
10	RING; ADJ	1-48119-122-0	01	1	0512-	●
12	COVER; BRK VLV	1-48129-319-0	01	1	0407-0511		●
12	COVER; BRK VLV	1-48129-319-1	01	1	0512-	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0407-0511		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0512-	●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0407-0511		●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0512-	●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0407-0511		●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0512-	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0407-0511		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0512-	●
17	PISTON; SPR	1-48129-095-0	01	1	0407-0511		●
17	PISTON; SPR	1-48129-095-0	01	1	0512-	●
18	GASKET; BODY	1-48129-096-0	01	1	0407-0511		●
18	GASKET; BODY	1-48129-096-0	01	1	0512-	●
19	SPRING; PISTON	1-48129-094-0	01	1	0407-0511		●
19	SPRING; PISTON	1-48129-094-0	01	1	0512-	●
20	GUIDE; VLV	1-48129-090-0	01	1	0407-0511		●
20	GUIDE; VLV	1-48129-090-0	01	1	0512-	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0407-0511		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0512-	●
22	SPRING; VLV	1-48123-024-0	01	1	0407-0511		●
22	SPRING; VLV	1-48123-024-0	01	1	0512-	●
23	BODY; BRK VLV	1-48111-060-0	01	1	0407-0511		●
23	BODY; BRK VLV	1-48111-060-1	01	1	0512-	●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0407-0511		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0512-	●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0407-0511		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0512-	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0407-0511		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0512-	●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-0511		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0512-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0511		●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0512-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0511		●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0512-	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
