3-22 — AIR CONTROL PARTS (#29534) — 132 parça

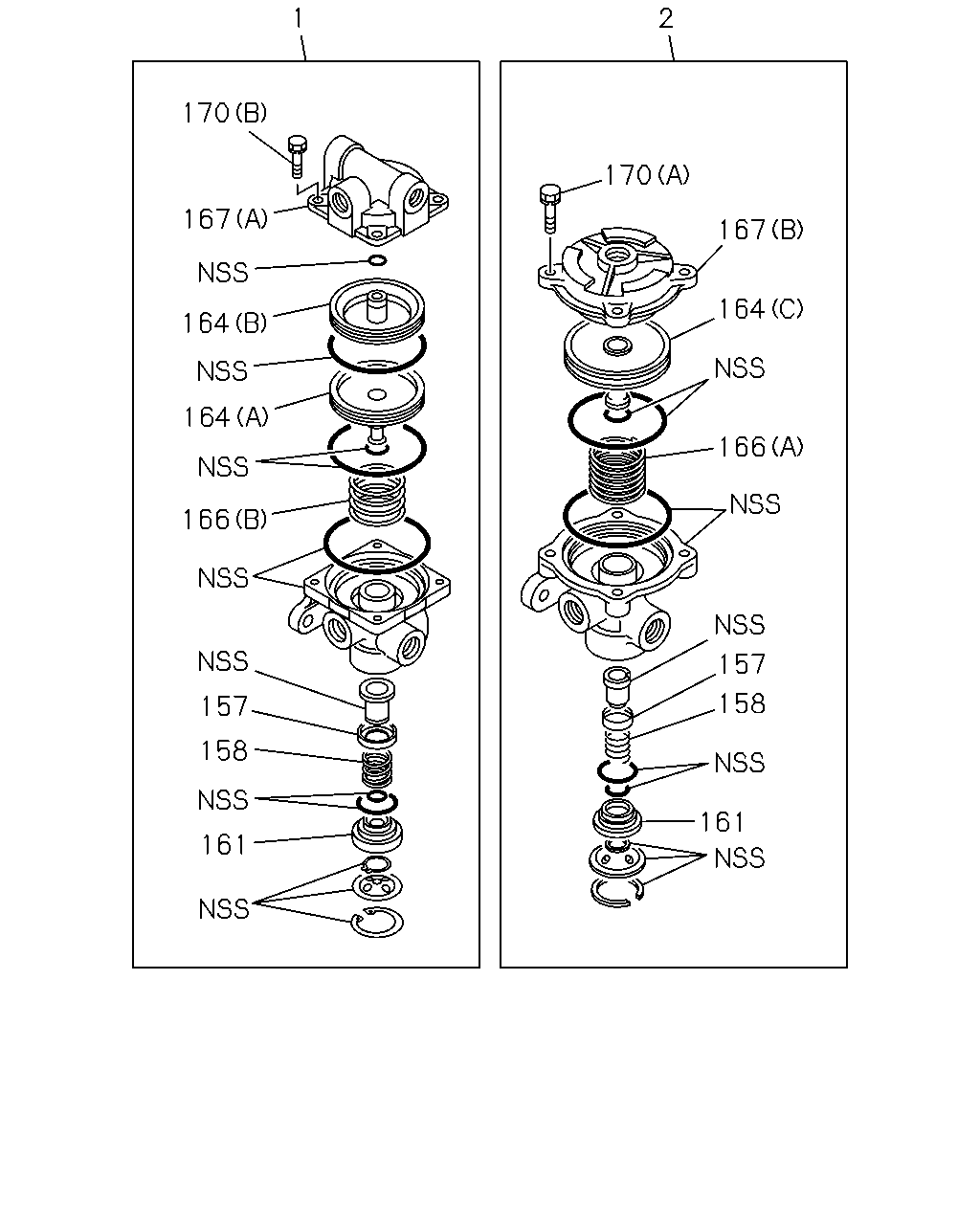

çizim 86788
2 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0407-0511 ●
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0512- ●
2 VALVE; RELAY 1-48210-875-0 02 1 0512- ●
2 VALVE; RELAY 1-48210-875-0 03 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 01 1 0512- ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0512- ●
157 RETAINER; VALVE 1-48213-002-0 04 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0512- ●
158 SPRING; VALVE 1-47819-089-0 03 1 0512- ●
158 SPRING; VALVE 1-47819-089-0 04 1 0407-0511 ●
158 SPRING; VALVE 1-47819-089-0 01 1 0512- ●
161 GUIDE; VALVE 1-48129-014-0 03 1 0512- ●
161 GUIDE; VALVE 1-48129-014-0 04 1 0407-0511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0512- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 0512- ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0407-0511 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0512- ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0407-0511 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0512- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 03 1 0407-0511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0512- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 0512- ●
166 SPRING; PISTON
(A) 		1-47819-090-0 03 1 0407-0511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0512- ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0407-0511 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0512- ●
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 0512- ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0407-0511 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0512- ●
167 COVER; VALVE
(B) 		1-48219-070-0 03 1 0407-0511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0512- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 0512- ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 12 1 0407-0511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0512- ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0407-0511 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0512- ●

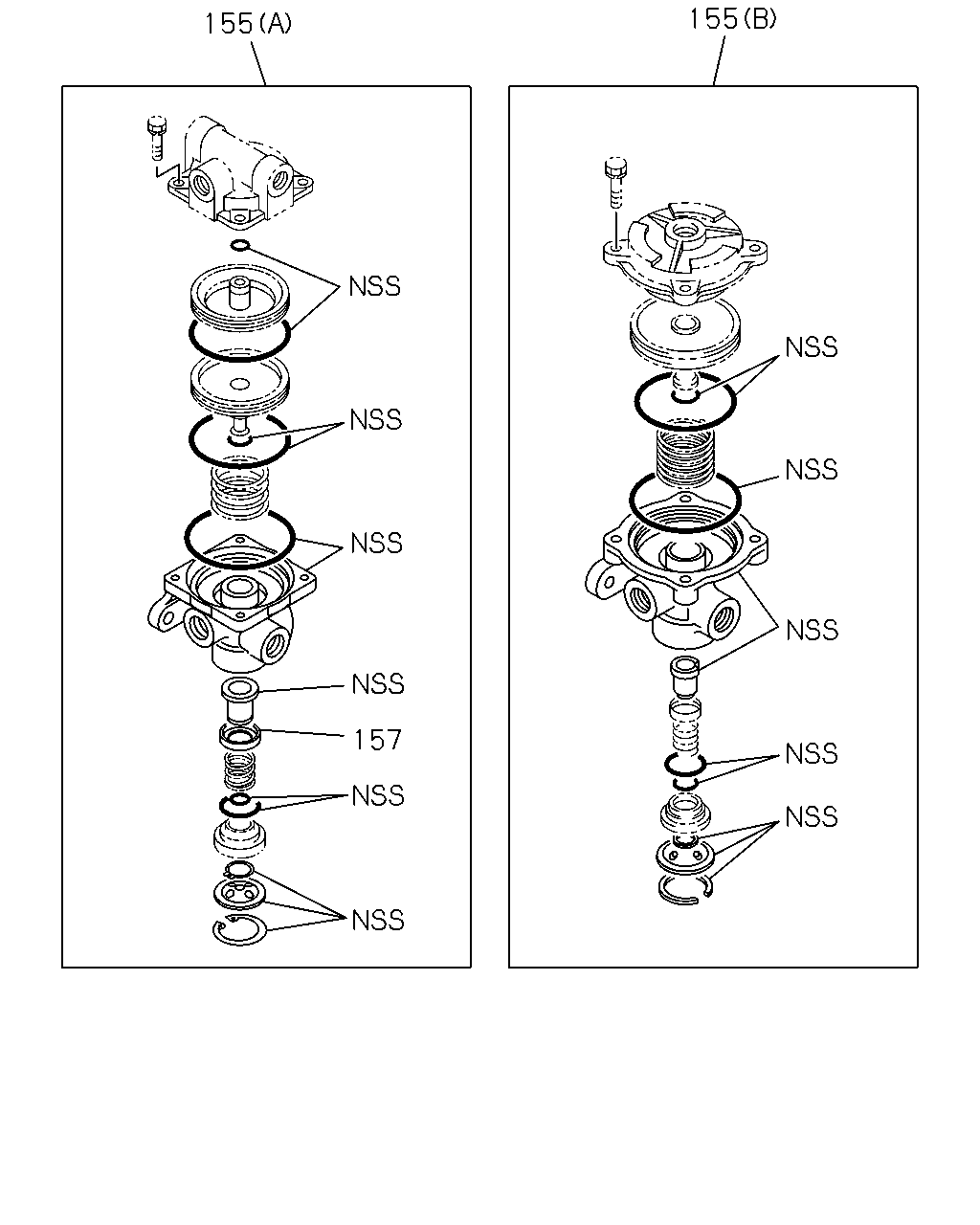

çizim 86789
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 0512- ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 03 1 0407-0511 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0512- ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0407-0511 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0512- ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0512- ●
157 RETAINER; VALVE 1-48213-002-0 04 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0512- ●

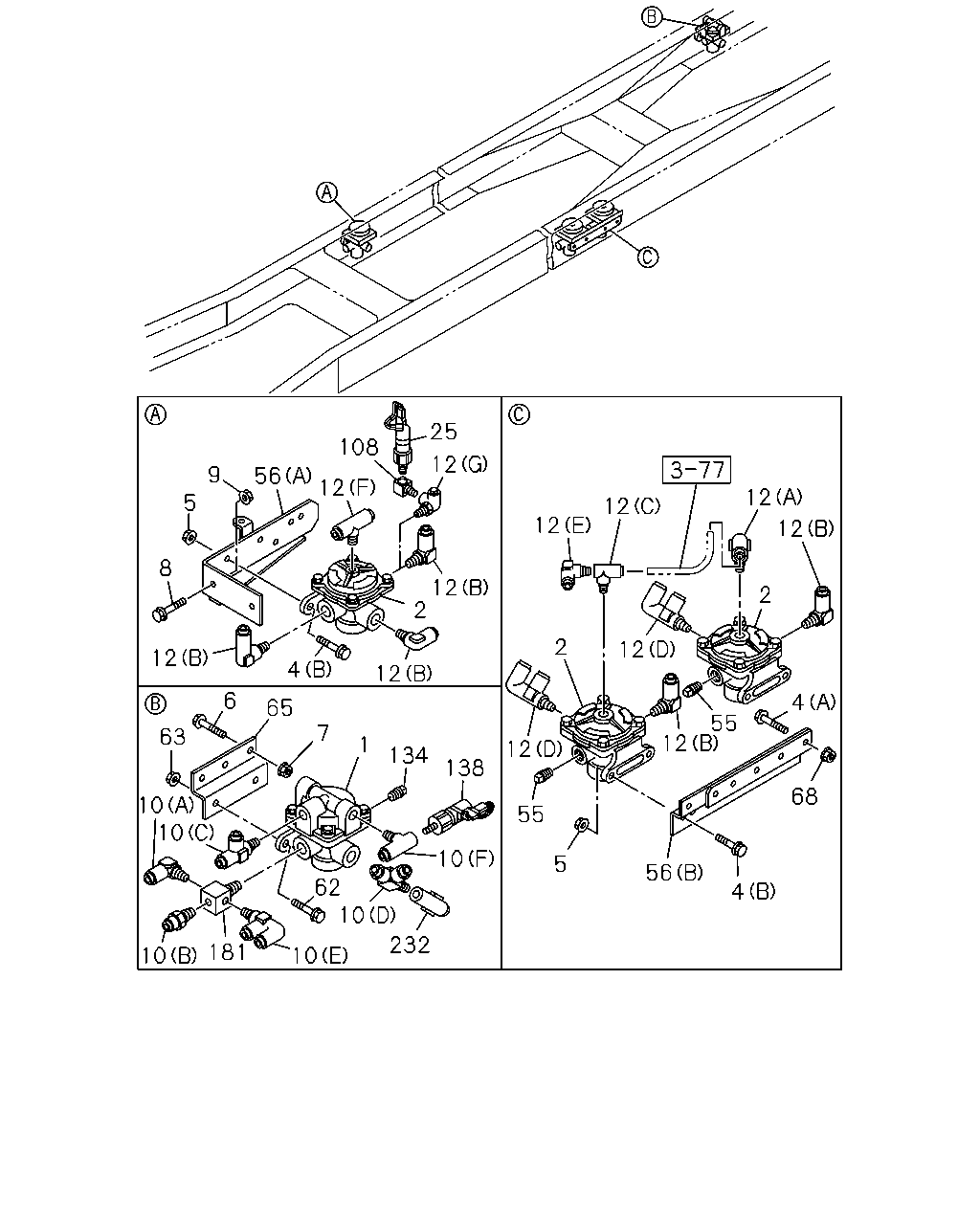

çizim 103966
25 108 12 9 56 12 12 5 12 12 12 8 12 2 2 2 12 12 4 12 6 4 65 55 12 7 63 1 12 134 138 68 10 10 55 10 5 56 62 10 4 181 232 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0407-0511 ●
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0512- ●
2 VALVE; RELAY 1-48210-875-0 02 1 0512- ●
2 VALVE; RELAY 1-48210-875-0 03 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 01 1 0512- ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 06 1 0407-0511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0512-0512 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
5 NUT
M10 FLANGE 		0-91150-210-0 06 1 0407-0511 ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
6 BOLT; VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
6 BOLT; VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
8 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
8 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
8 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
9 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
9 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
9 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511 ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
10 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0407-0511 ●
10 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0512- ●
10 CONNECTOR
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0407-0511 ●
10 CONNECTOR
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ●
10 CONNECTOR
(D) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0407-0511 ●
10 CONNECTOR
(D) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0512- ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0407-0511 ●
10 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0512- ●
10 CONNECTOR
(F) 		1-09661-537-0 01 1 0407-0511 ●
10 CONNECTOR
(F) 		1-09661-537-0 01 1 0512-0704 ●
10 CONNECTOR
(F) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705- ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (G) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0512- ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0512- ●
12 CONNECTOR; RELAY VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0706 ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0512- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0512- ●
12 CONNECTOR; RELAY VLV
(F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0512-0706 ●
12 CONNECTOR; RELAY VLV
(F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0707- ●
12 CONNECTOR; RELAY VLV
(F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0707- ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0512- ●
12 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0512-0706 ●
25 SWITCH; PRESSURE
SMOOTHER-G(C1W) 		1-82410-191-0 01 1 0512-0609 ●
25 SWITCH; PRESSURE
SMOOTHER-G(C1W) 		8-97383-820-1 01 1 0610- ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0407-0511 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0512- ●
56 BRACKET; RELAY VLV
(A) 		1-47479-893-1 01 1 0407-0511 ●
56 BRACKET; RELAY VLV
(A) 		1-47479-893-1 01 1 0512- ●
56 BRACKET; RELAY VLV
(B) 		1-47479-937-0 01 1 0407-0511 ●
56 BRACKET; RELAY VLV
(B) 		1-47479-937-0 01 1 0512- ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0511 ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 02 1 0512-0512 ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0407-0511 ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0512- ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
108 CONNECTOR; ELBOW
SMOOTHER-G(C1W) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0407-0511 ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0512- ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0407-0511 ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0512- ●
181 ADAPTER; PRESSURE SW
PT3/8 4WAY 		1-09661-489-0 01 1 0407-0511 ●
181 ADAPTER; PRESSURE SW
PT3/8 4WAY 		1-09661-489-0 01 1 0512- ●
232 VALVE; CHECK 1-48320-031-1 01 1 0407-0511 ●
232 VALVE; CHECK 1-48320-031-1 01 1 0512- ●
