◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#29533) — 271 parça

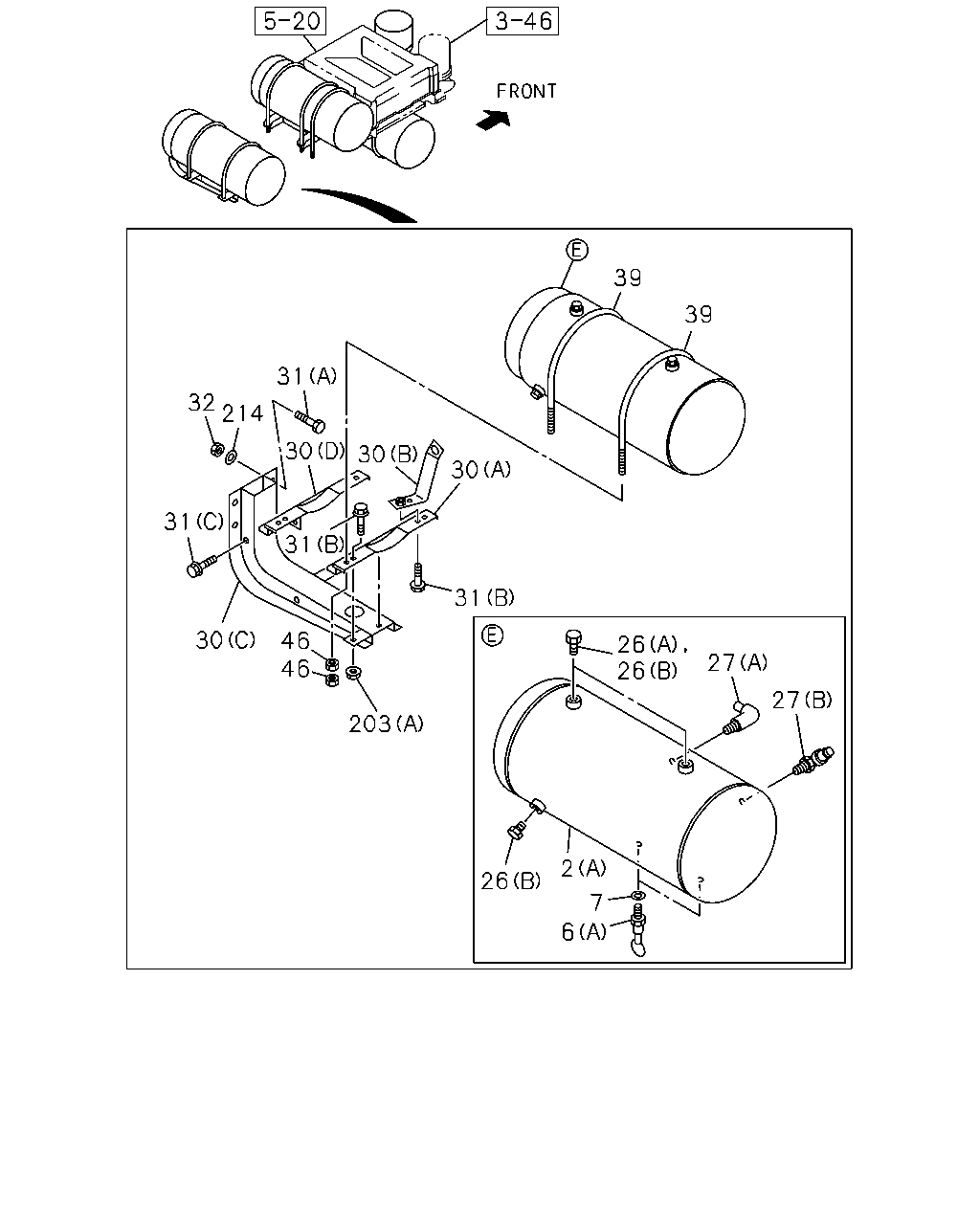

çizim 86786
39 39 31 32 214 30 30 30 31 31 31 30 46 46 26 26 27 27 203 2 26 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0407-0511 ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0512- ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
2 TANK; AIR
(A) 		1-48371-427-0 01 1 0512- ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 04 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0512- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512-0704 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0705- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512-0704 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0705- ●
26 PLUG; SUB AIR TANK
(B) M22 		1-09661-502-0 01 1 0407-0511 ●
26 PLUG; SUB AIR TANK
(B) M22 		1-09661-502-0 03 1 0512- ●
26 PLUG; SUB AIR TANK
(A) 		1-09661-569-0 02 1 0407-0511 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-0511 ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ●
27 UNION; ELBOW,AIR TANK
(B) 		1-09661-550-0 01 1 0407-0511 ●
27 UNION; ELBOW,AIR TANK
(B) 		1-09661-550-0 01 1 0512- ●
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-0 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-1 01 1 0512- ●
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0512- ●
30 BRACKET; AIR TANK,SUB
(C) 		1-48317-979-6 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(C) 		1-48317-979-6 01 1 0512- ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 0407-0511 ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-994-2 01 1 0512- ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0512-0512 ●
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20851-450-0 04 1 0601- ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0407-0511 ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0512-0512 ●
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28651-225-0 04 1 0601- ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0407-0511 ●
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0512-0512 ●
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 0601- ●
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 06 1 0407-0511 ●
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 06 1 0512- ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601- ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0511 ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ●
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0511 ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0512-0512 ●
203 NUT
(B) M16 		0-91110-516-0 01 1 0601- ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0511 ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0512-0512 ●
203 NUT
(C) M18 		0-91110-518-0 03 1 0601- ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0407-0511 ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0512-0603 ●
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604- ●
çizim 86787
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0407-0511 ●
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0512-0512 ●
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601- ●

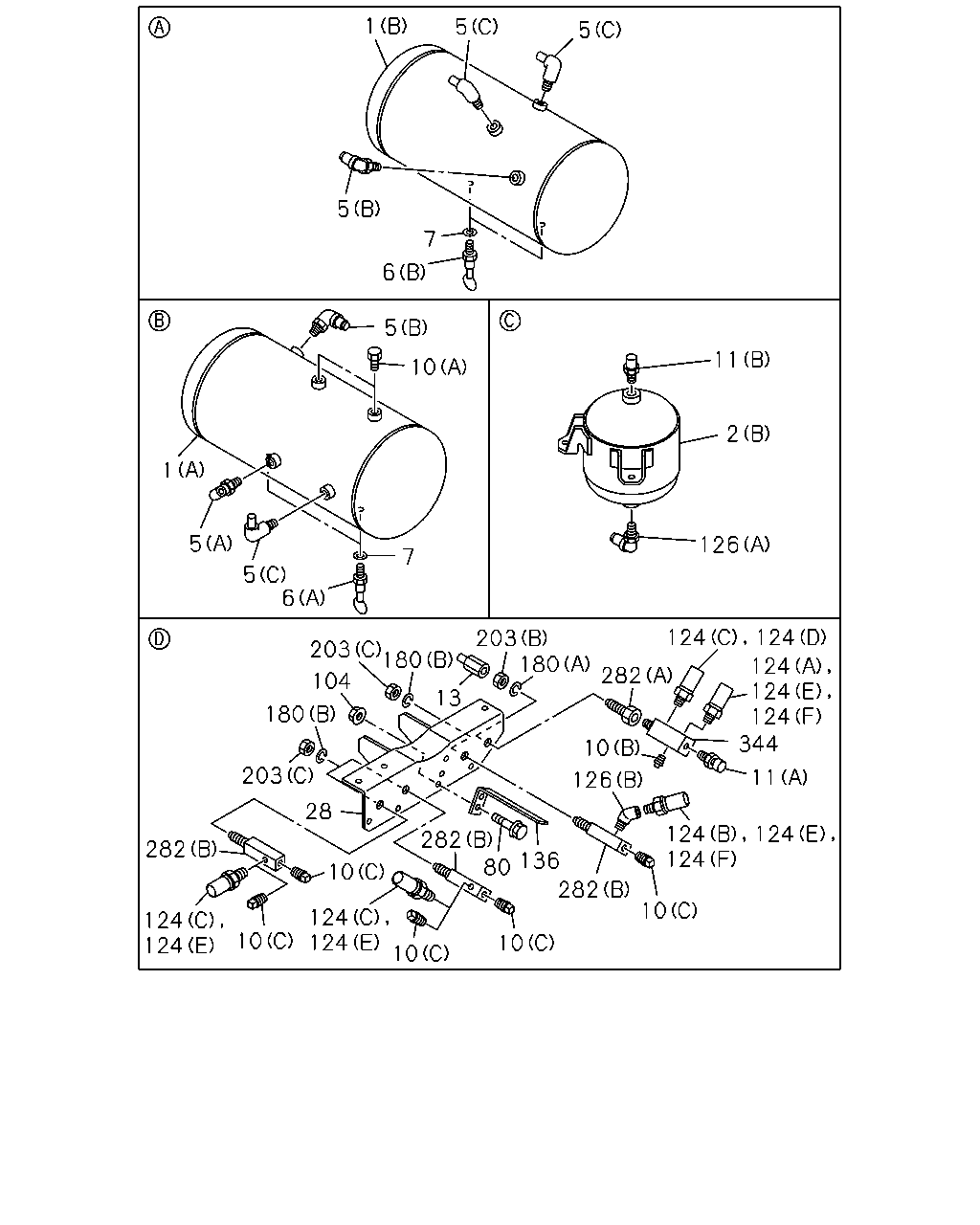

çizim 103753
1 5 5 5 7 6 5 11 10 2 1 5 126 7 5 6 124 124 203 180 203 180 124 124 124 344 282 104 13 180 10 203 11 126 28 282 80 124 124 124 282 136 10 282 10 124 124 124 124 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0512- ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0407-0511 ●
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0512- ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0407-0511 ●
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0512- ●
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0407-0511 ●
2 TANK; AIR
(A) 		1-48371-427-0 01 1 0512- ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0512- ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512- ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 0407-0511 ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ●
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 03 1 0407-0511 ●
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0512- ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 04 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ●
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0512- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0407-0511 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0512- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512-0704 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0705- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 0407-0511 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512-0704 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0705- ●
10 PLUG; AIR TANK
6WG1 TC-S(97L) (C) PT1/4 		9-99204-513-0 05 1 0512-0704 ●
10 PLUG; AIR TANK
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) PT1/4 		9-99204-513-0 05 1 0705- ●
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0407-0511 ●
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0512- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0407-0511 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0512- ●
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 03 1 0407-0511 ●
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 03 1 0512- ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-1 01 1 0407-0511 ●
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0512- ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-1 01 1 0407-0511 ●
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0512- ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407-0511 ●
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0512- ●
28 BRACKET; AIR TANK 1-47479-675-1 01 1 0407-0511 ●
28 BRACKET; AIR TANK 1-47479-675-1 01 1 0512- ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
80 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
80 BOLT; BRKT
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28050-816-0 02 1 0607- ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0607- ●
104 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607- ●
124 SWITCH; AIR PRESSURE
(B) 		1-48340-065-0 01 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
6WF1 TC-C(1B8) (E) 		1-48340-065-0 04 1 0512- ●
124 SWITCH; AIR PRESSURE
(C) 		1-48340-066-0 03 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
(D) 		1-48340-066-0 01 1 0512- ●
124 SWITCH; AIR PRESSURE
(A) 		1-48340-067-0 01 1 0407-0511 ●
124 SWITCH; AIR PRESSURE
6WG1 TC-S(97L) (F) 		1-48340-065-0 02 1 0512-0704 ●
124 SWITCH; AIR PRESSURE
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-48340-065-0 02 1 0705- ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511 ●
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512- ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0407-0511 ●
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0512- ●
136 BRACKET; CLIP 1-47479-674-0 01 1 0407-0511 ●
136 BRACKET; CLIP 1-47479-674-0 01 1 0512-0606 ●
136 BRACKET; CLIP
6WF1 TC-C(1B8) 		1-47479-674-0 01 1 0607- ●
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0407-0511 ●
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0512-0603 ●
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604- ●
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0407-0511 ●
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0512-0603 ●
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 0604- ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0511 ●
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ●
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0511 ●
203 NUT
(B) M16 		9-99110-516-0 01 1 0512-0512 ●
203 NUT
(B) M16 		0-91110-516-0 01 1 0601- ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0511 ●
203 NUT
(C) M18 		9-99110-518-0 03 1 0512-0512 ●
203 NUT
(C) M18 		0-91110-518-0 03 1 0601- ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0407-0511 ●
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0512- ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0407-0511 ●
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0512- ●
344 CONNECTOR; 4WAY 1-09660-521-1 01 1 0407-0511 ●
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0512- ●

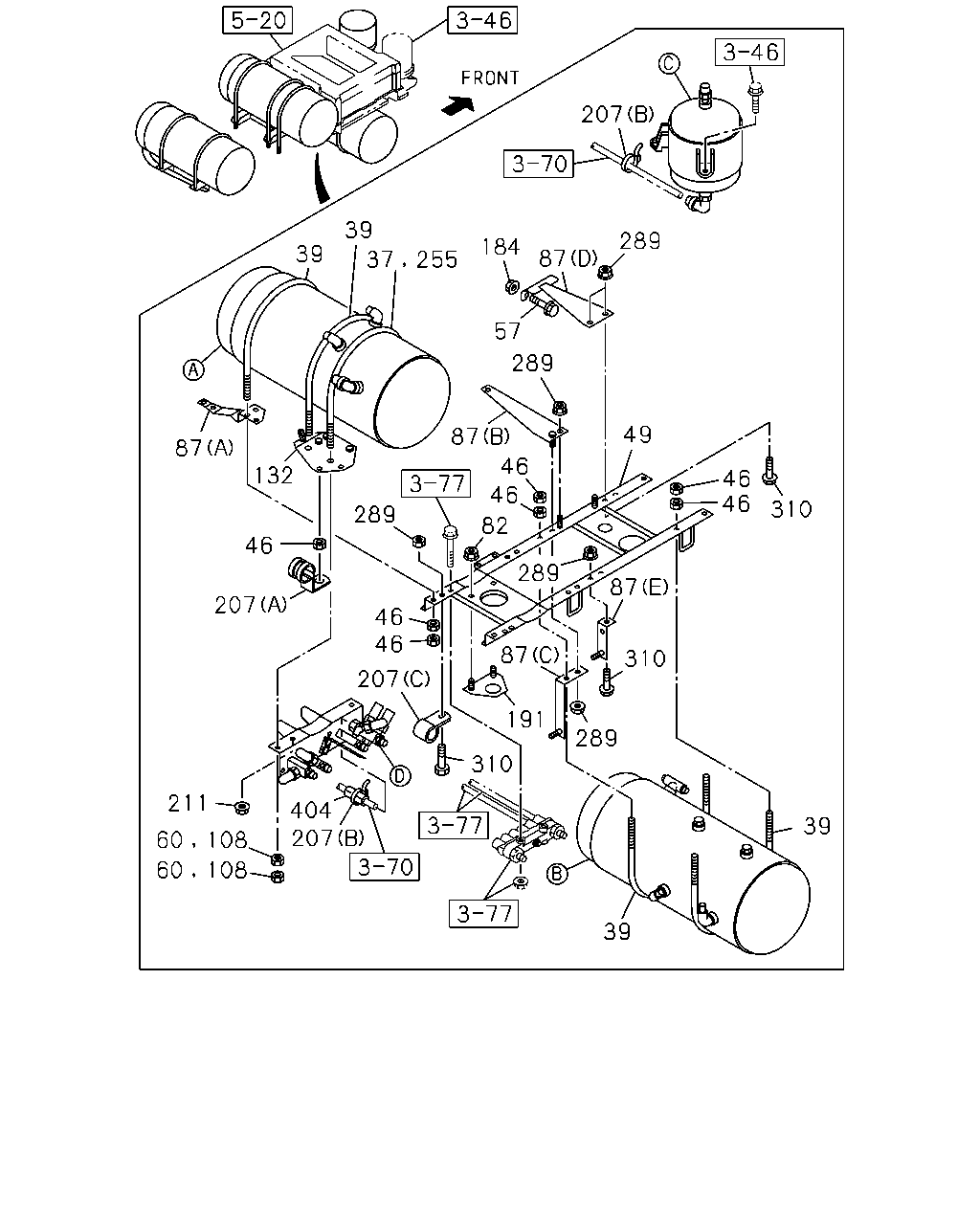

çizim 103754
207 39 289 184 39 87 255 57 289 49 87 87 46 132 46 46 46 310 289 82 289 87 46 207 46 46 87 310 207 191 289 310 211 404 207 39 60 108 60 108 39 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
L=303 		1-48317-087-2 01 1 0407-0409 ●
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 06 1 0407-0511 ●
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 06 1 0512- ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0407-0511 ●
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601- ●
49 BRACKET; AIR TANK 1-48316-046-0 01 1 0407-0511 ●
49 BRACKET; AIR TANK 1-48316-046-1 01 1 0512- ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0511 ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ●
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
60 NUT; AIR TANK FIX
M8 		9-09110-408-0 04 1 0407-0409 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-663-1 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-708-0 01 1 0512- ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0407-0511 ●
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-709-1 01 1 0512- ●
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0410-0511 ●
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0512-0512 ●
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 0601- ●
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0407-0511 ●
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0512- ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ●
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0407-0511 ●
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0512- ●
207 CLIP; AIR PIPE
(C) ID=18 L=54 		1-09701-068-0 01 1 0608- ●
207 CLIP; AIR PIPE
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 0407-0511 ●
207 CLIP; AIR PIPE
(A) ID=45 H=31 L=35 		1-09701-308-0 01 1 0512- ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 19 1 0407-0511 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 19 1 0512-0606 ●
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 21 1 0607- ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ●
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0410-0511 ●
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0512- ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 07 1 0407-0511 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 07 1 0512-0602 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 07 1 0603-0607 ●
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 08 1 0608- ●
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0608- ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 0407-0511 ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512 ●
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 07 1 0407-0511 ●
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 07 1 0512- ●

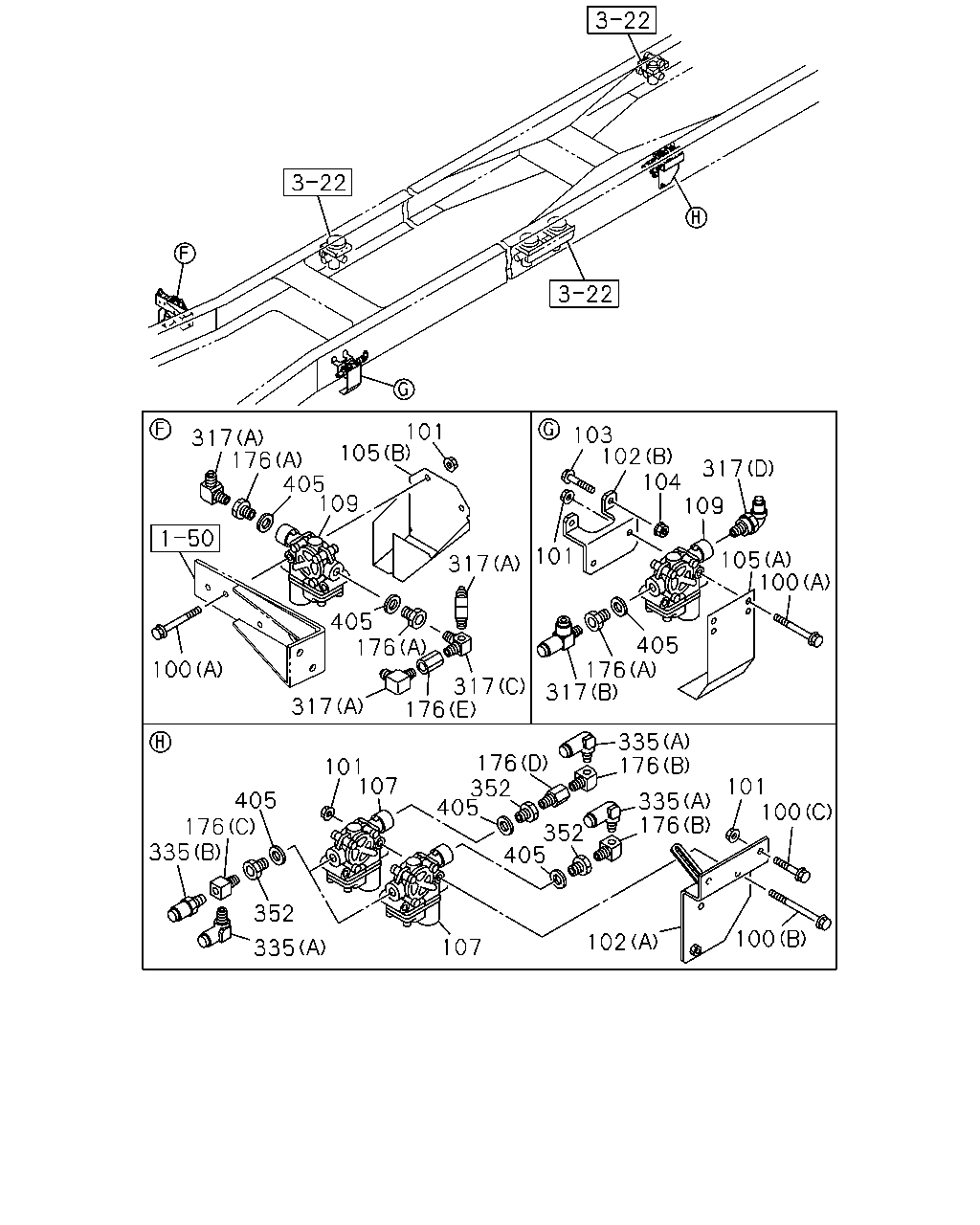

çizim 103755
101 105 103 102 104 109 317 176 405 109 317 101 105 100 317 405 176 405 176 317 100 317 176 317 335 176 176 352 405 101 107 101 100 405 176 335 335 176 352 405 352 100 102 107 335
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 04 1 0407-0511 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 04 1 0512-0512 ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0512-0512 ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 0601- ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 06 1 0512-0602 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 06 1 0603- ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 08 1 0407-0511 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 0512- ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0407-0511 ●
102 BRACKET; MODULATOR
(A) 		1-47479-863-0 01 1 0512- ●
103 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
103 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
103 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0607- ●
104 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607- ●
105 COVER; MODULATOR
(A) 		1-47479-434-1 01 1 0407-0511 ●
105 COVER; MODULATOR
(A) 		1-47479-434-1 01 1 0512- ●
105 COVER; MODULATOR
(B) 		1-47479-611-1 01 1 0407-0511 ●
105 COVER; MODULATOR
(B) 		1-47479-611-1 01 1 0512- ●
107 MODULATOR; RR 1-48240-115-0 02 1 0407-0511 ●
107 MODULATOR; RR 1-48240-115-0 02 1 0512- ●
109 MODULATOR; FRT 1-48240-115-0 02 1 0407-0511 ●
109 MODULATOR; FRT 1-48240-115-0 02 1 0512- ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0407-0511 ●
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0512- ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0407-0511 ●
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0512- ●
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0407-0511 ●
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0512- ●
176 ADAPTER
(C) PT3/8 3WAY 		1-09661-300-0 02 1 0407-0511 ●
176 ADAPTER
(C) PT3/8 3WAY 		1-09661-300-0 02 1 0512- ●
176 ADAPTER
(D) PT3/8 		1-48319-058-0 01 1 0407-0511 ●
176 ADAPTER
(D) PT3/8 		1-48319-058-0 01 1 0512- ●
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		1-09650-439-0 03 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		1-09650-439-0 03 1 0512-0607 ●
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 03 1 0608- ●
317 CONNECTOR; MODULATOR
(C) 		1-09656-722-0 01 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(C) 		1-09656-722-0 01 1 0512- ●
317 CONNECTOR; MODULATOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0512- ●
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-0511 ●
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0512- ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0407-0511 ●
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0512- ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0407-0511 ●
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0512- ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0407-0511 ●
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0512- ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0512- ●
405 GASKET
ID=22.5 		9-09571-422-0 07 1 0407-0511 ●
405 GASKET
ID=22.5 		9-09571-422-0 03 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
