3-08A — PARKING BRAKE (#29529) — 115 parça

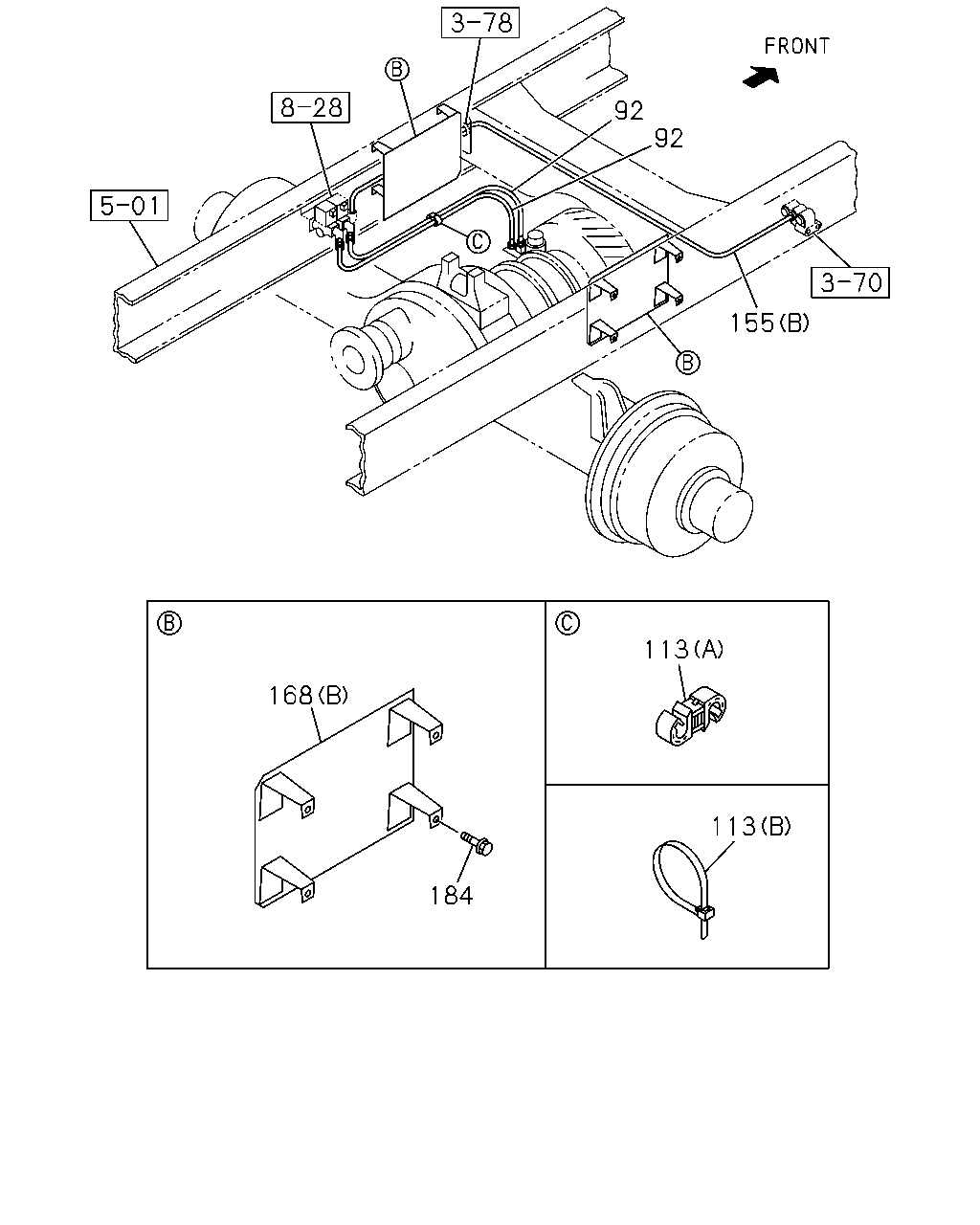

92 92 155 113 168 113 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=400	1-09363-743-0	02	1	0407-0511
92	HOSE; FLEX,RETARDER 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=400	1-09363-743-0	02	1	0512-0704
92	HOSE; FLEX,RETARDER 6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=400	1-09363-743-0	02	1	0705-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350	1-09707-183-0	01	1	0407-0511
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350	1-09707-183-0	01	1	0512-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=10 & 10	1-09709-277-1	01	1	0407-0511
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=10 & 10	1-09709-277-1	01	1	0512-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0512-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0512-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0407-0511
168	PROTECTOR; HEAT 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0512-0704
168	PROTECTOR; HEAT 6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0705-
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	08	1	0407-0511
184	BOLT; HEAT PROTECTOR 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	08	1	0512-0512
184	BOLT; HEAT PROTECTOR 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	08	1	0601-0704
184	BOLT; HEAT PROTECTOR 6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	08	1	0705-

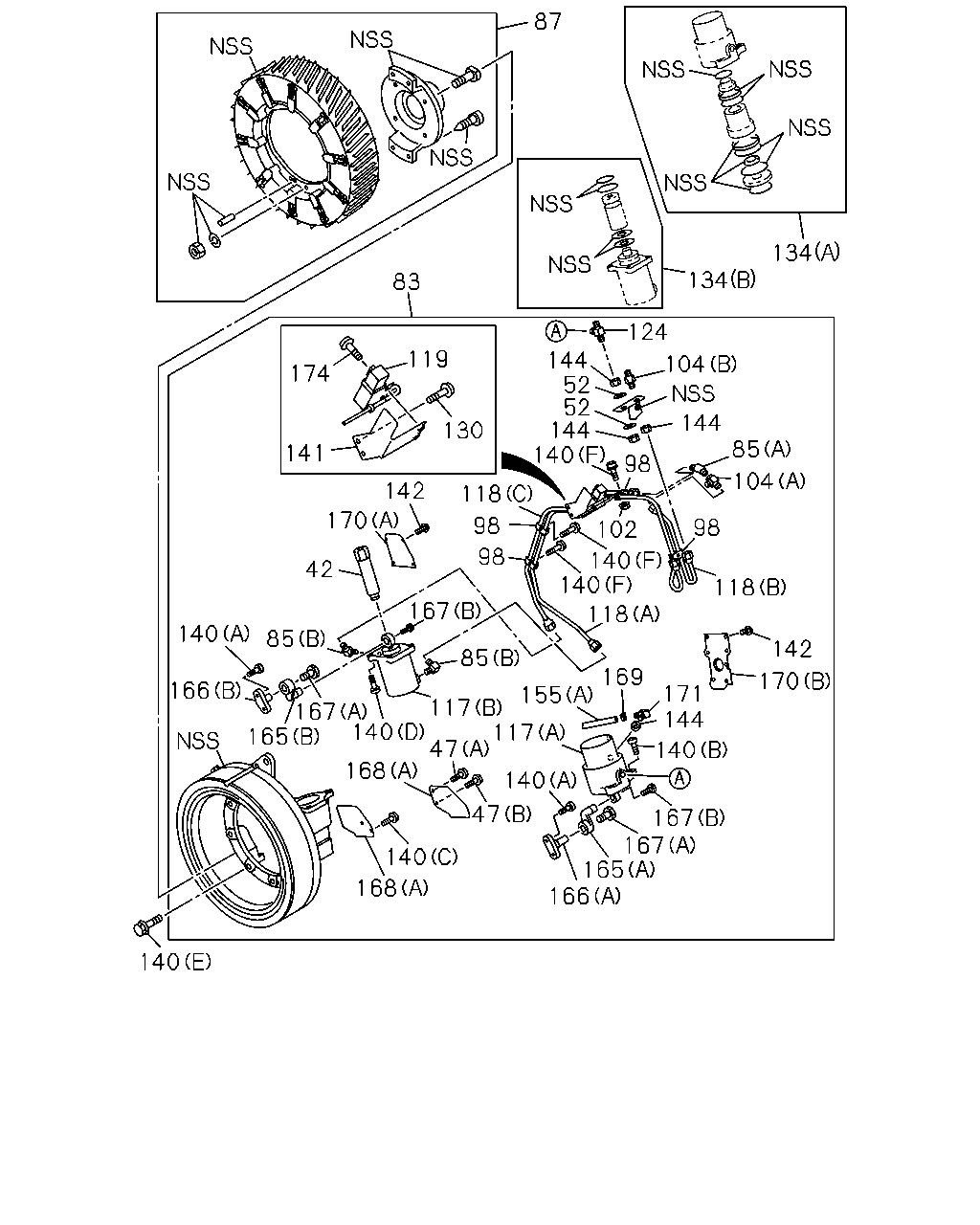

140 168 140 166 165 167 167 140 144 171 170 142 118 98 104 85 144 104 124 144 52 52 144 140 98 102 140 140 118 169 155 117 140 47 168 47 117 140 165 167 166 140 85 85 167 42 170 142 118 98 98 141 130 119 83 174 134 134 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0407-0511
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0512-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0407-0511
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0512-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0407-0511
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0512-
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0407-0511
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0512-0605
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	0-91610-612-0	02	1	0606-
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-5	01	1	0407-0511
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-5	01	1	0512-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0407-0511
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0512-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0407-0511
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0512-0607
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	02	1	0608-
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0407-0511
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0512-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0407-0511
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0512-
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0407-0511
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0512-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0407-0511
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0512-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0407-0511
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0512-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0407-0511
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0512-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0407-0511
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0512-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0512-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0512-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0512-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0407-0511
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0512-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	0407-0511
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	0512-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0407-0511
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0512-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0407-0511
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0512-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0407-0511
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0512-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12X35 FLANGE	0-28791-235-0	08	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12X35 FLANGE	0-28791-235-0	08	1	0512-0512
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12X35 FLANGE	0-28761-235-0	08	1	0601-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0512-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0512-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0512-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M8X18	1-48629-134-0	03	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M8X18	1-48629-134-0	03	1	0512-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0512-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0407-0511
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0512-
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0407-0511
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0512-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0407-0511
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0512-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0512-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0407-0511
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0512-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0407-0511
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0512-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0407-0511
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0512-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0407-0511
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0512-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0407-0511
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0512-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0407-0511
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0512-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0512-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0407-0511
168	PROTECTOR; HEAT 6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0512-0704
168	PROTECTOR; HEAT 6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0705-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0512-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0407-0511
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0512-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0407-0511
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0512-
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0407-0511
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0512-
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0407-0511
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0512-
