2-53 — TRANSMISSION OIL COOLER SYSTEM (#29524) — 93 parça

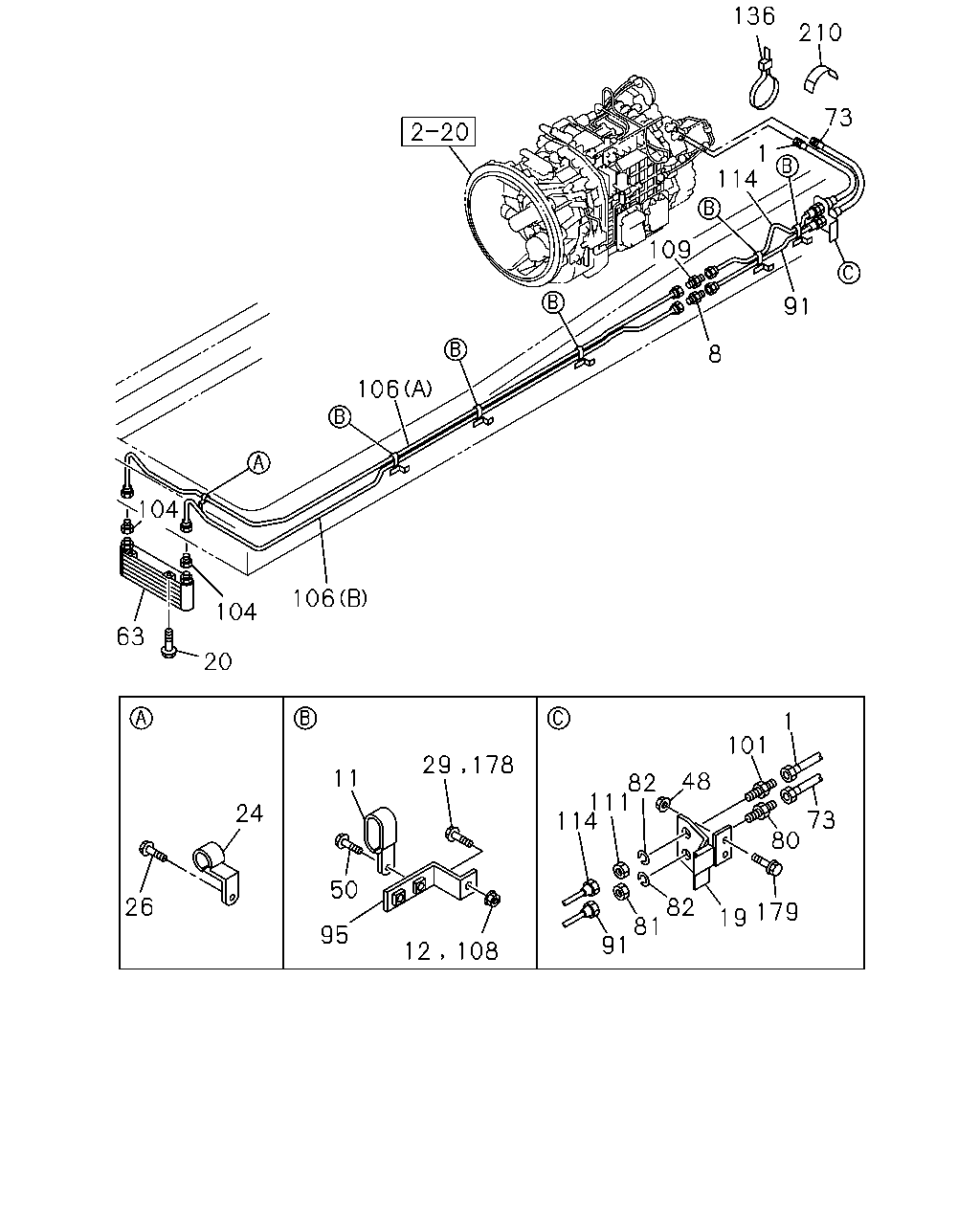

çizim 103640
136 210 73 1 114 109 91 8 106 104 106 104 63 20 1 101 29 178 11 48 82 111 114 24 73 80 50 26 82 81 91 179 19 95 12 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=600 		1-09365-232-0 01 1 0407-0511 ●
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0512- ●
8 UNION
M22 		9-09233-015-1 01 1 0407-0511 ●
8 UNION
M22 		9-09233-015-1 01 1 0512-0607 ●
8 UNION
M22 L=51 		0-92123-015-0 01 1 0608- ●
11 CLIP; PIPE
ID=16X2 L=20 		9-09535-535-0 05 1 0407-0511 ●
11 CLIP; PIPE
ID=16X2 L=20 		9-09535-535-0 05 1 0512-0606 ●
11 CLIP; PIPE
ID=16X2 L=20 		0-95325-535-0 05 1 0607- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
19 BRACKET; FLEX HOSE 1-47479-613-1 01 1 0407-0511 ●
19 BRACKET; FLEX HOSE 1-47479-613-1 01 1 0512- ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0407-0511 ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0512-0512 ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ●
24 CLIP; OIL PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0407-0511 ●
24 CLIP; OIL PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0512- ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0407-0511 ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512 ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0407-0511 ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0512-0512 ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-21700-395-1 01 1 0705- ●
63 COOLER; OIL 1-21700-290-0 01 1 0407-0511 ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		1-21700-290-0 01 1 0512-0609 ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		1-21700-394-0 01 1 0610-1405 ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		8-98269-766-0 01 1 1406- ●
73 HOSE; FLEX,TRANS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550 		1-09365-231-0 01 1 0512-0704 ●
73 HOSE; FLEX,TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550 		1-09365-231-0 01 1 0705- ●
73 HOSE; FLEX,TRANS
L=570 		1-09365-236-0 01 1 0407-0511 ●
73 HOSE; FLEX,TRANS
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=570 		1-09365-236-0 01 1 0512- ●
73 HOSE; FLEX,TRANS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=570 		1-09365-236-0 01 1 0512- ●
80 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-09654-261-1 01 1 0605-0704 ●
80 UNION; FLEX HOSE
FULLER M/T<X9B> 		1-09654-261-1 01 1 0705- ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0407-0511 ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0512-0604 ●
80 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0605- ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0407-0511 ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0512-0512 ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0407-0511 ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0512-0603 ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO169 18(Y3S) L=810 		8-98047-556-0 01 1 0605-0704 ●
91 PIPE; OIL,FLEX HOSE TO UNION
FULLER M/T<X9B> L=810 		8-98047-556-0 01 1 0705- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=916 		1-49167-189-0 01 1 0407-0511 ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=818 		1-49167-820-0 01 1 0512-0604 ●
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=818 		1-49167-820-0 01 1 0605- ●
95 BRACKET; CLIP 1-47479-482-0 01 1 0407-0511 ●
95 BRACKET; CLIP 1-47479-482-0 05 1 0512- ●
95 BRACKET; CLIP 1-47479-482-0 04 1 0407-0511 ●
101 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-09654-261-1 01 1 0605-0704 ●
101 UNION; FLEX HOSE
FULLER M/T<X9B> 		1-09654-261-1 01 1 0705- ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0407-0511 ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0512-0604 ●
101 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0605- ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0407-0511 ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0512- ●
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z) CAB UP +110MM<TGG> (A) L=2349 		1-49166-969-0 01 1 0407-0511 ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) 		1-49167-822-0 01 1 0512- ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1739 		1-49166-967-0 01 1 0407-0511 ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) 		1-49167-821-0 01 1 0512- ●
108 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
109 UNION
M22 		9-09233-015-1 01 1 0407-0511 ●
109 UNION
M22 		9-09233-015-1 01 1 0512-0607 ●
109 UNION
M22 L=51 		0-92123-015-0 01 1 0608- ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0407-0511 ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0512-0512 ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=869 		8-98047-557-0 01 1 0605-0704 ●
114 PIPE; OIL,UNION TO FLEX HOSE
FULLER M/T<X9B> L=869 		8-98047-557-0 01 1 0705- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=832 		1-49167-190-0 01 1 0407-0511 ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=877 		1-49167-823-0 01 1 0512-0604 ●
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=877 		1-49167-823-0 01 1 0605- ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0407-0511 ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0512- ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0407-0511 ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0512- ●
