Sayfa 2-38A - Isuzu EPC

220 220 24 220 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

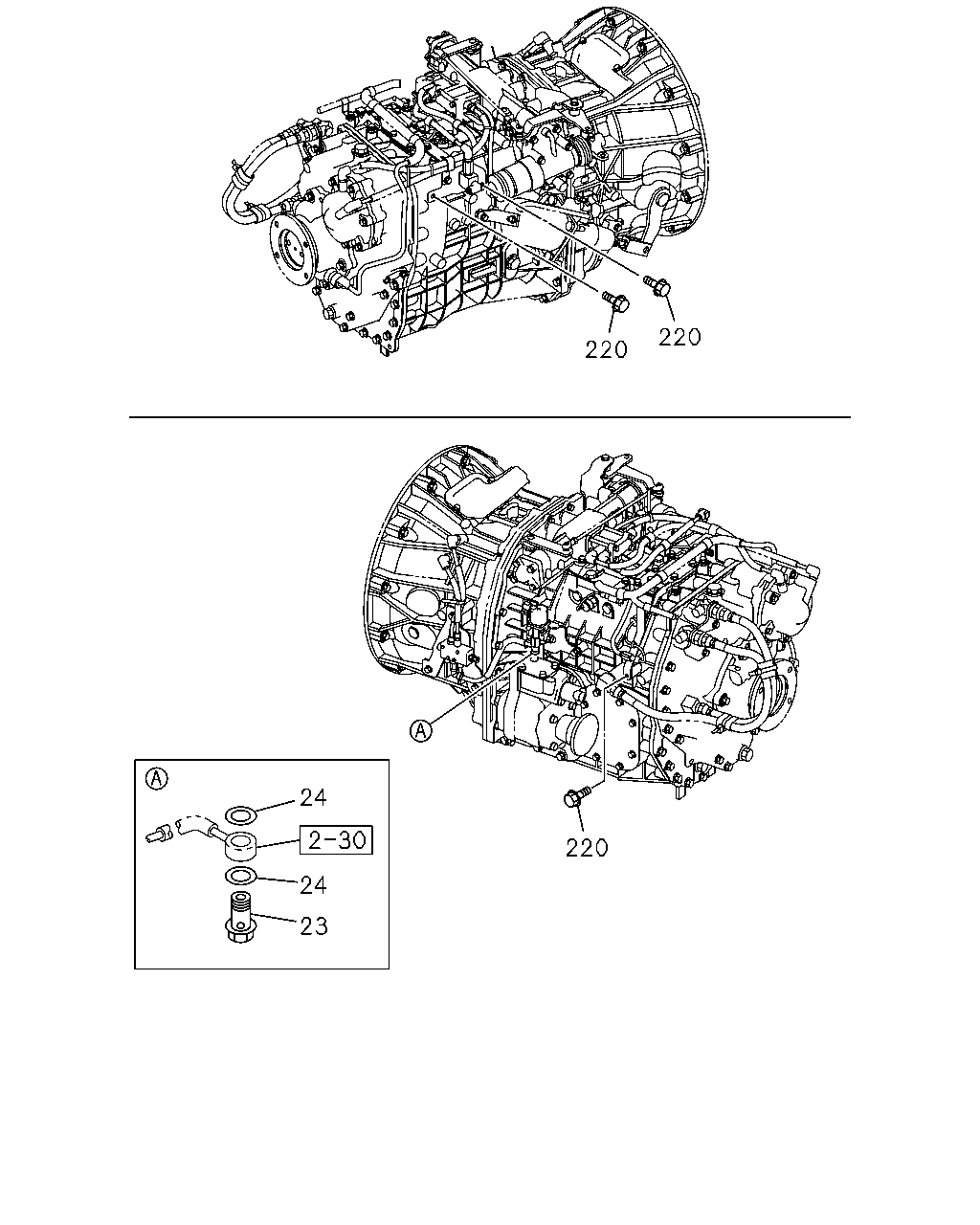

23	BOLT; EYE M12X27 FLANGE	1-09675-160-0	01	1	0407-0511
23	BOLT; EYE TRANSMISSION CONTROL LINK TYPE(B2A) M12X27 FLANGE	1-09675-160-0	01	1	0512-0805
23	BOLT; EYE TRANSMISSION CONTROL LINK TYPE(B2A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
24	GASKET ID=12.2	1-09630-084-0	02	1	0407-0511
24	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	1-09630-084-0	02	1	0512-1312
24	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	8-98251-344-0	02	1	1401-
220	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	07	1	0407-0511
220	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	07	1	0512-0512
220	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28751-025-0	07	1	0601-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

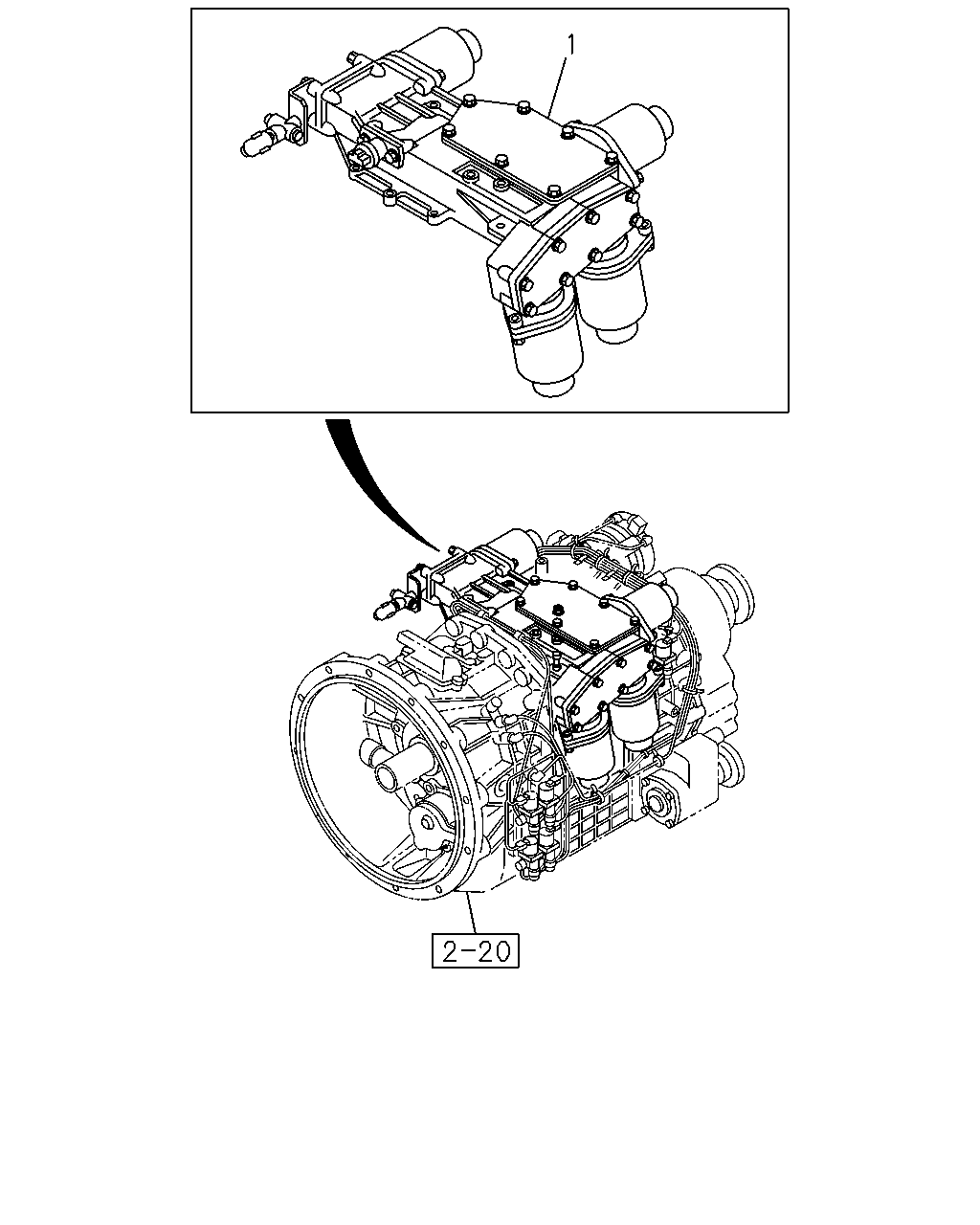

1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	1-33730-296-0	01	1	0512-0604
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98047-359-0	01	1	0605-0606
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98055-135-0	01	1	0607-0701
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98070-040-1	01	1	0702-0905
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98147-541-0	01	1	0906-1007
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98163-036-0	01	1	1008-1106
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98186-516-0	01	1	1107-1310
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98254-320-0	01	1	1311-1506
1	ACTUATOR ASM; GEAR SHIFT SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W)	8-98302-718-0	01	1	1507-
