Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#29521) — 141 parça

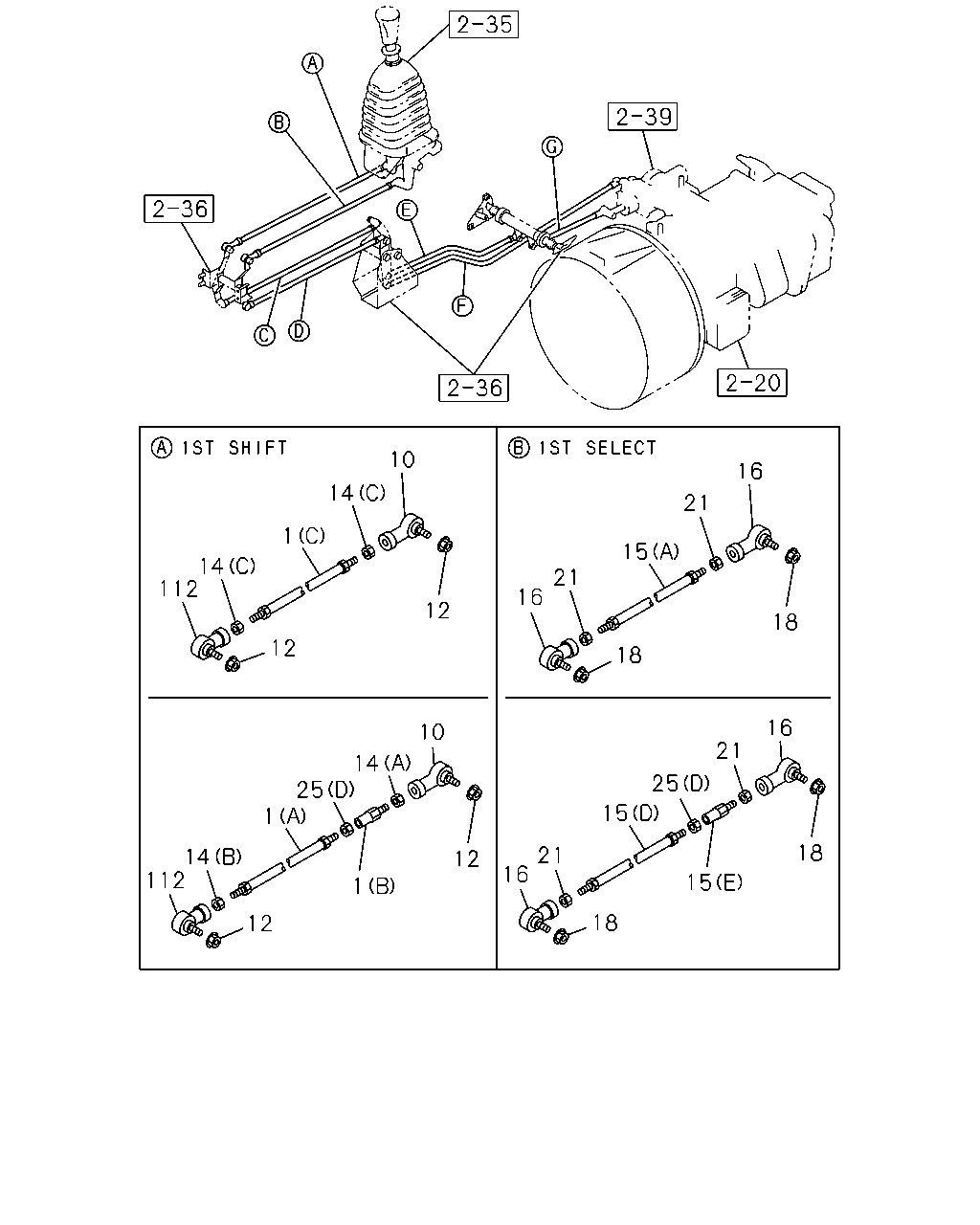

10 16 14 21 1 15 14 112 21 16 12 18 12 18 16 10 21 14 25 25 15 1 18 21 16 14 112 12 15 1 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430	1-33652-739-0	01	1	0512-0704	●
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430	1-33652-739-0	01	1	0705-1011	●
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=490	0-84001-249-0	01	1	1012-	●
1	ROD; LINK,1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88	1-33652-740-0	01	1	0512-0704	●
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88	1-33652-740-0	01	1	0705-1011	●
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	0407-0511		●
1	ROD; LINK,1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=480	9-08401-248-0	01	1	0512-	●
10	JOINT ASM; BALL,SELECT ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	01	1	0512-0704	●
10	JOINT ASM; BALL,SELECT ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	01	1	0705-1011	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0407-0511		●
10	JOINT ASM; BALL,SELECT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	0512-1011	●
10	JOINT ASM; BALL,SELECT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	1012-	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0407-0511		●
12	NUT; 1ST LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	9-09111-410-0	01	1	0512-0512	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	0-91111-510-0	01	1	0601-0704	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	0-91111-510-0	01	1	0705-1011	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	9-99111-412-0	01	1	0512-0512	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	01	1	0601-0704	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	01	1	0705-1011	●
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	0407-0511		●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	9-99111-412-0	02	1	0512-0512	●
14	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	0-91111-512-0	02	1	0601-1011	●
14	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	0-91111-512-0	02	1	1012-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0705-1011	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460	1-33652-373-0	01	1	1012-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0705-1011	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0705-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0705-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=435	1-33652-696-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0512-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0512-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=446	1-33652-998-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0512-	●
16	JOINT ASM; BALL,CONT ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-109-0	02	1	0512-0704	●
16	JOINT ASM; BALL,CONT ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-109-0	02	1	0705-1011	●
16	JOINT ASM; BALL,CONT ROD CAB UP +110MM<TGG>	1-09760-108-0	02	1	0407-0511		●
16	JOINT ASM; BALL,CONT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	0512-1011	●
16	JOINT ASM; BALL,CONT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	1012-	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0407-0511		●
18	NUT; 1ST LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0512-	●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512	●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-0704	●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0705-1011	●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M8	9-09111-408-0	02	1	1012-	●
21	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> M8	9-09111-408-0	02	1	0407-0511		●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8	9-09111-408-0	02	1	0512-0512	●
21	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8	0-91111-508-0	02	1	0601-	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10	9-09111-510-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0512-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0705-1011	●
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (B) M10	9-09111-410-0	02	1	0407-0511		●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	9-09111-410-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0601-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0705-	●
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (A) M12	9-99111-412-0	02	1	0407-0511		●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	9-99111-412-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0601-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0705-	●
112	JOINT; RUBBER 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0512-0704	●
112	JOINT; RUBBER 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0705-	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0407-0511		●
112	JOINT; RUBBER CAB UP +110MM<TGG>	1-33670-413-1	01	1	0407-0511		●
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-	●
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-	●

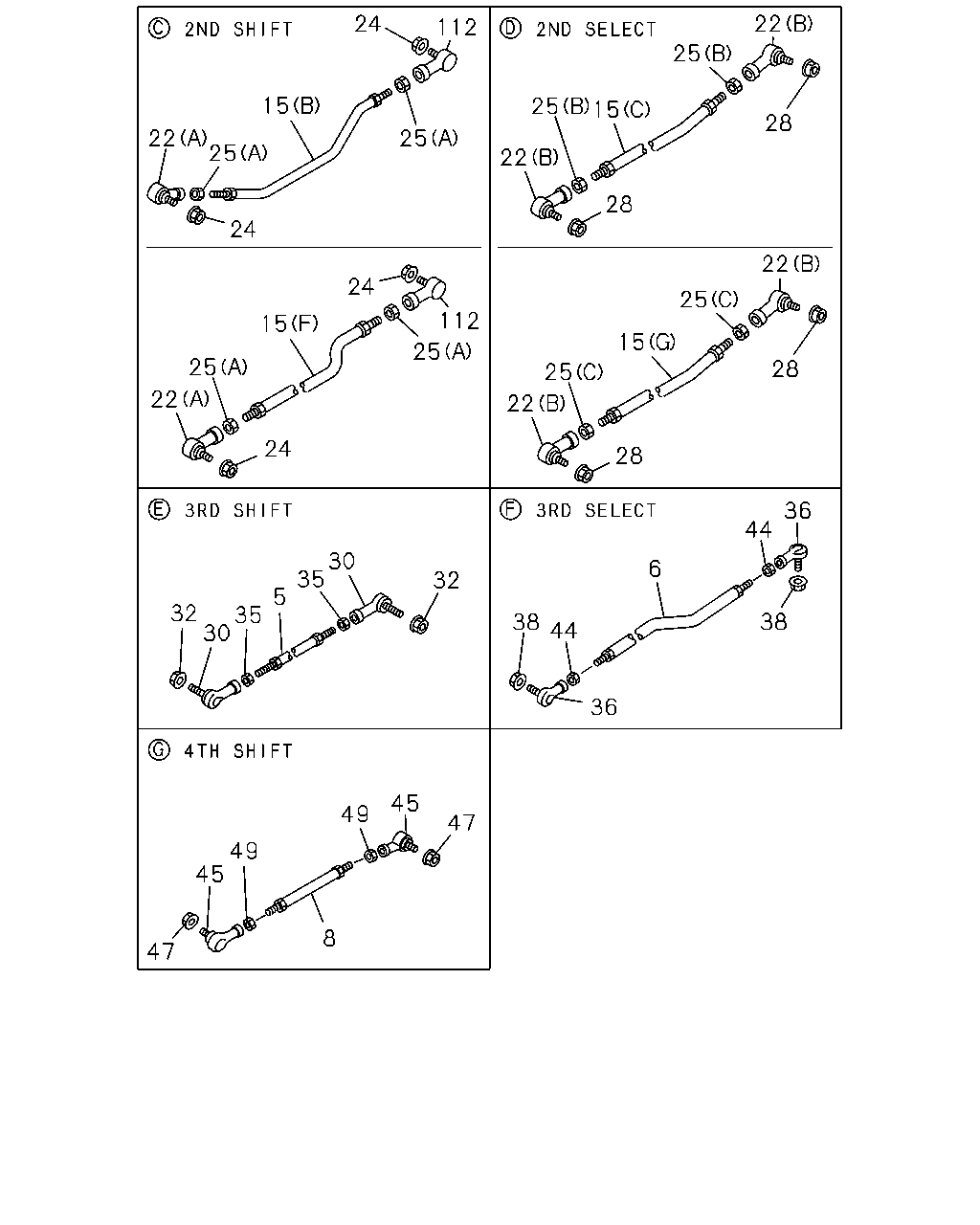

24 22 112 25 15 25 15 28 22 25 25 22 28 24 22 24 25 112 15 15 25 25 28 25 22 22 24 28 36 44 30 35 6 32 5 30 38 38 44 36 45 49 47 49 45 8 47 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0407-0511		●
5	ROD; LINK,3RD SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) L=1120	1-33652-603-0	01	1	0512-	●
6	ROD; LINK,3RD SELECT TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> L=1638	1-33652-997-1	01	1	0512-	●
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) L=1692	1-33662-004-0	01	1	0407-0511		●
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=1692	1-33662-004-2	01	1	0512-	●
8	ROD; LINK,4TH SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0512-	●
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) L=410	1-33652-947-0	01	1	0407-0511		●
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=410	1-33652-947-0	01	1	0512-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0705-1011	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460	1-33652-373-0	01	1	1012-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0705-1011	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0705-	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0512-0704	●
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0705-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=435	1-33652-696-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0512-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0512-	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=446	1-33652-998-0	01	1	0407-0511		●
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0512-	●
22	JOINT; BALL,SCREW,LINK ROD CAB UP +110MM<TGG> (B)	1-09760-109-0	02	1	0407-0511		●
22	JOINT; BALL,SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09760-109-0	02	1	0512-0704	●
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09760-109-0	02	1	0705-	●
22	JOINT; BALL,SCREW,LINK ROD CAB UP +110MM<TGG> (A)	1-09760-125-0	01	1	0407-0511		●
22	JOINT; BALL,SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09760-125-0	01	1	0512-0704	●
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09760-125-0	01	1	0705-	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0407-0511		●
24	NUT; 2ND LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10	9-09111-510-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0512-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0705-1011	●
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (B) M10	9-09111-410-0	02	1	0407-0511		●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	9-09111-410-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0601-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0705-	●
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (A) M12	9-99111-412-0	02	1	0407-0511		●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	9-99111-412-0	02	1	0512-0512	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0601-0704	●
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0705-	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0407-0511		●
28	NUT; 2ND LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0512-	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0407-0511		●
30	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0512-	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511		●
32	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0407-0511		●
35	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512	●
35	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z)	1-09760-124-0	02	1	0407-0511		●
36	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0512-	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511		●
38	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-	●
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) M10	9-09111-410-0	02	1	0407-0511		●
44	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512	●
44	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z)	1-09760-125-0	02	1	0407-0511		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	02	1	0512-	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511		●
47	NUT; 4TH LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-	●
49	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) M12	9-99111-412-0	02	1	0407-0511		●
49	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M12	9-99111-412-0	02	1	0512-0512	●
49	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M12	0-91111-512-0	02	1	0601-	●
112	JOINT; RUBBER 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0512-0704	●
112	JOINT; RUBBER 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0705-	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0407-0511		●
112	JOINT; RUBBER CAB UP +110MM<TGG>	1-33670-413-1	01	1	0407-0511		●
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-	●
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
