◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#2952) — 60 parça
çizim 36085
42 41 47 1 1 29 30 30 21 75 12 39 38 27 26 13 2 27 34 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13200-825-0 01 1 9002-9306 ●
1 FILTER ASM; FUEL 1-13200-562-1 01 1 9002-9310 ●
1 FILTER ASM; FUEL 1-13200-934-0 01 1 9311- ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9002-9306 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-027-2 01 1 9002-9310 ●
2 ELEMENT KIT; FUEL FILTER 1-13240-191-0 01 1 9311- ●
12 BOLT; CENTER,FUEL FILTER 1-13231-010-0 01 1 9002-9310 ●
12 BOLT; CENTER,FUEL FILTER 1-13231-012-0 01 1 9311- ●
13 GASKET; CENTER BOLT 9-09920-586-0 01 1 9002- ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 1-09580-149-0 01 1 9002- ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9002-9306 ●
21 COVER; UPR,FUEL FILTER 1-13212-048-2 01 1 9002- ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9002-9306 ●
26 GASKET; COVER TO BODY 9-13213-040-1 01 1 9002- ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9002- ● ●
29 VALVE; OVERFLOW 1-13260-085-0 01 1 9002-9306 ●
29 VALVE; OVERFLOW 1-13260-036-0 01 1 9002- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002-9306 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 9002-9306 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 05 1 9002- ●
34 WASHER; ELEMENT 9-09857-040-0 01 1 9002- ●
38 PLUG; DRAIN 9-09202-308-0 01 1 9002- ●
39 GASKET; DRAIN PLUG 9-09562-106-0 01 1 9002- ●
41 BRACKET; FUEL FILTER 1-13219-118-1 01 1 9002-9306 ●
41 BRACKET; FUEL FILTER 1-19755-045-1 01 1 9002- ●
42 BOLT; FUEL FILTER
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9002-9306 ●
42 BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9002- ●
47 BOLT; BRKT,FUEL FILTER
M10X22 W/LK WASHER 		0-50051-022-0 02 1 9307- ●
75 BODY; FUEL FILTER 1-13211-106-0 01 1 9002-9310 ●
75 BODY; FUEL FILTER 1-13211-027-1 01 1 9311- ●

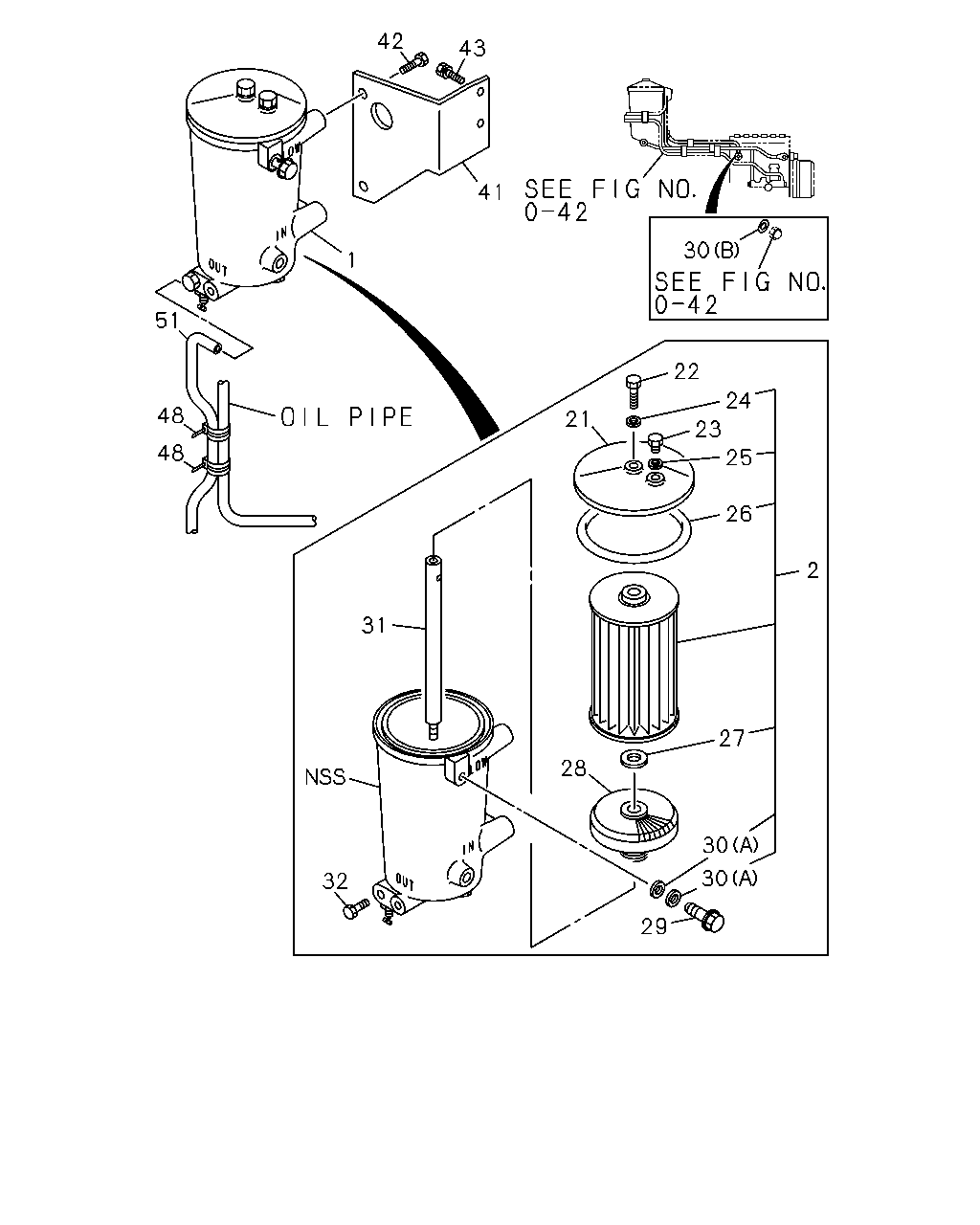

çizim 36670
43 42 41 1 51 48 48 30 22 24 23 25 26 2 21 31 32 28 27 30 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13200-825-0 01 1 9002-9306 ●
1 FILTER ASM; FUEL 1-13200-562-1 01 1 9002-9310 ●
1 FILTER ASM; FUEL 1-13200-934-0 01 1 9311- ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9002-9306 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-027-2 01 1 9002-9310 ●
2 ELEMENT KIT; FUEL FILTER 1-13240-191-0 01 1 9311- ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9002-9306 ●
21 COVER; UPR,FUEL FILTER 1-13212-048-2 01 1 9002- ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9002-9306 ●
23 PLUG; COVER 1-13219-074-0 01 1 9002-9306 ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9002-9306 ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9002-9306 ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9002-9306 ●
26 GASKET; COVER TO BODY 9-13213-040-1 01 1 9002- ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9002- ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9002-9306 ●
29 VALVE; OVERFLOW 1-13260-085-0 01 1 9002-9306 ●
29 VALVE; OVERFLOW 1-13260-036-0 01 1 9002- ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002-9306 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 9002-9306 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 05 1 9002- ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9002-9306 ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9002-9306 ●
41 BRACKET; FUEL FILTER 1-13219-118-1 01 1 9002-9306 ●
41 BRACKET; FUEL FILTER 1-19755-045-1 01 1 9002- ●
42 BOLT; FUEL FILTER
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9002-9306 ●
42 BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9002- ●
43 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9002-9306 ●
48 CLIP; VINYL PIPE
L=140 		5-09707-031-0 02 1 9002-9306 ●
51 PIPE; VINYL
EXC. TROPICAL ZONE KIT(WB6) L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9002-9306 ●
