2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#29519) — 292 parça

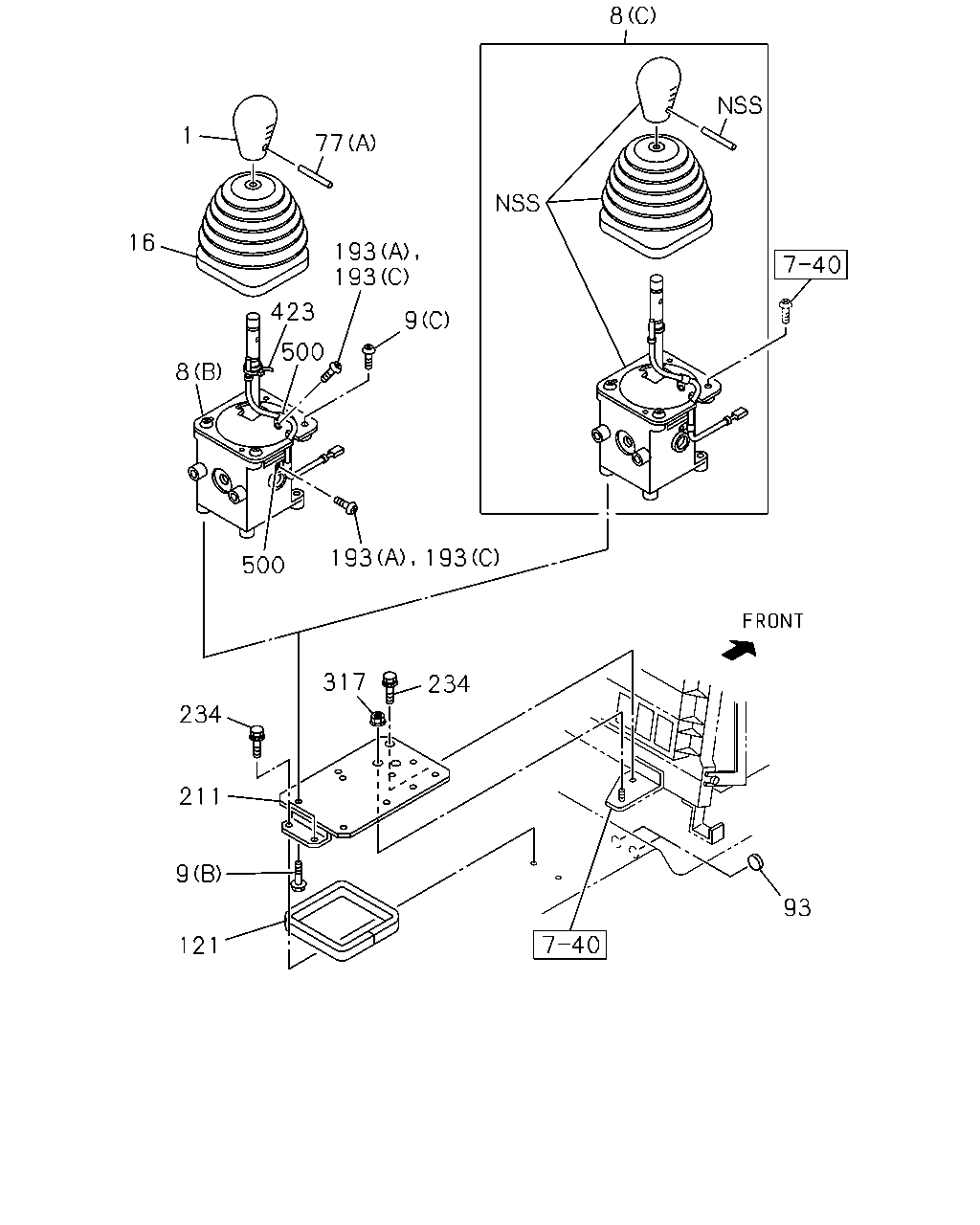

çizim 86666
8 1 77 16 193 193 423 9 500 8 193 193 500 317 234 234 211 9 93 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		1-33611-116-0 01 1 0512-0804 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98120-384-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0705-0911 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98152-481-0 01 1 0912-1010 ●
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 0407-0511 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33611-038-0 01 1 0705- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> (D) 		1-33613-349-0 01 1 0512- ●
8 LEVER; CHANGE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0512-0704 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0705-1010 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(A) 		1-33613-345-0 01 1 0407-0511 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (A) 		1-33613-345-0 01 1 0512-0704 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33613-345-0 01 1 0705- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0512- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0512-0704 ●
9 BOLT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0705-1010 ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-1 01 1 0512- ●
16 BOOT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0705-1010 ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 0407-0511 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-369-0 01 1 0705- ●
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0512-0704 ●
77 PIN; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0705-1010 ●
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0512-0704 ●
77 PIN; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0705-1010 ●
93 SEAL; HOLE COVER,GEAR CONT
EXC. SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 02 1 1010- ●
93 SEAL; HOLE COVER,GEAR CONT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 04 1 0512- ●
121 SEAL; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-79997-354-0 01 1 0512- ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-0704 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0705-1010 ●
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0704 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0705-0911 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
211 BRACKET; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-79907-115-1 01 1 0512- ●
234 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0512-0904 ●
234 BOLT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
317 NUT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
317 NUT; BRKT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
423 CLIP; BAND
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-781-0 01 1 0512-0704 ●
423 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-781-0 01 1 0705-0911 ●
423 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-97138-392-0 01 1 0912-1010 ●
500 CLIP; HARNESS
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=9 L=16 		9-09524-822-0 02 1 0512-0704 ●
500 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=9 L=16 		9-09524-822-0 02 1 0705-1010 ●

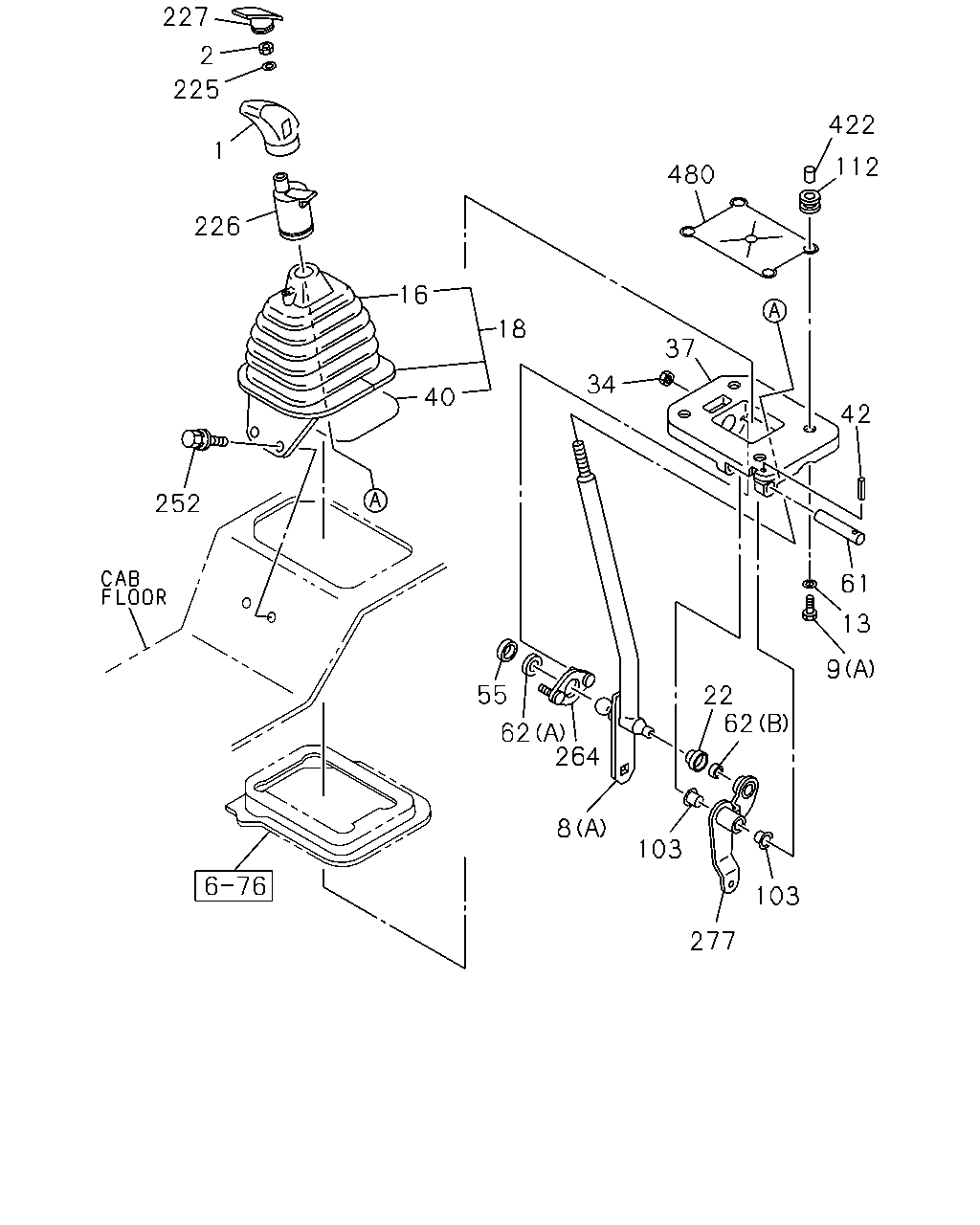

çizim 86855
227 2 225 422 1 112 480 226 16 18 37 34 40 42 252 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		1-33611-116-0 01 1 0512-0804 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98120-384-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0705-0911 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98152-481-0 01 1 0912-1010 ●
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 0407-0511 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33611-038-0 01 1 0705- ●
2 NUT; KNOB
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 1/2-13UNC 		1-33619-033-0 01 1 0512- ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91180-210-0 01 1 0603-0704 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0705- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> (D) 		1-33613-349-0 01 1 0512- ●
8 LEVER; CHANGE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0512-0704 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0705-1010 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(A) 		1-33613-345-0 01 1 0407-0511 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (A) 		1-33613-345-0 01 1 0512-0704 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33613-345-0 01 1 0705- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0512- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0512-0704 ●
9 BOLT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0705-1010 ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0407-0511 ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		9-09160-708-0 04 1 0512-0605 ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ●
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-1 01 1 0512- ●
16 BOOT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0705-1010 ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 0407-0511 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-369-0 01 1 0705- ●
18 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-435-2 01 1 0512- ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 0407-0511 ●
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 0512-0704 ●
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-401-0 01 1 0705- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0407-0511 ●
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-573-0 01 1 0512- ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
34 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
34 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0407-0511 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-467-0 01 1 0512-0802 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98100-876-1 01 1 0803- ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0407-0511 ●
40 SEAL; BOOT HOLDER CHANGE LEVER
FULLER M/T<X9B> 		1-79996-345-0 01 1 0512- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-345-0 01 1 0512- ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0407-0511 ●
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28 		8-94252-581-0 01 1 0512- ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0407-0511 ●
55 SEAT; RUBBER,SELECT SPRING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-429-0 01 1 0512-0802 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0407-0511 ●
61 PIN; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-470-0 01 1 0512- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0407-0511 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33619-427-0 01 1 0512- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0407-0511 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97011-900-0 01 1 0512- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0407-0511 ●
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16 		8-94252-671-0 02 1 0512- ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0407-0511 ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-426-0 04 1 0512-0810 ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 		9-09160-610-0 01 1 0407-0511 ●
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) ID=10.5 OD=22 		9-09160-610-0 01 1 0512-0605 ●
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606-0704 ●
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0705- ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0407-0511 ●
226 VALVE; SELECTOR
MJX16P M/T(Y3Z) 		1-33710-008-0 01 1 0512-0704 ●
226 VALVE; SELECTOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33710-008-0 01 1 0705- ●
227 COVER; KNOB 1-33619-219-0 01 1 0407-0511 ●
227 COVER; KNOB
MJX16P M/T(Y3Z) 		1-33619-219-0 01 1 0512-0704 ●
227 COVER; KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-219-0 01 1 0705- ●
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0511 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
264 PLATE; COVER 1-33619-469-0 01 1 0407-0511 ●
264 PLATE; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-469-0 01 1 0512- ●
277 LEVER; RELAY 1-33651-636-0 01 1 0407-0511 ●
277 LEVER; RELAY
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33651-636-1 01 1 0512- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0407-0511 ●
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-427-0 04 1 0512- ●
480 RUBBER; COVER 1-33619-554-0 01 1 0407-0511 ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-554-0 01 1 0512-0810 ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98119-365-0 01 1 0811- ●

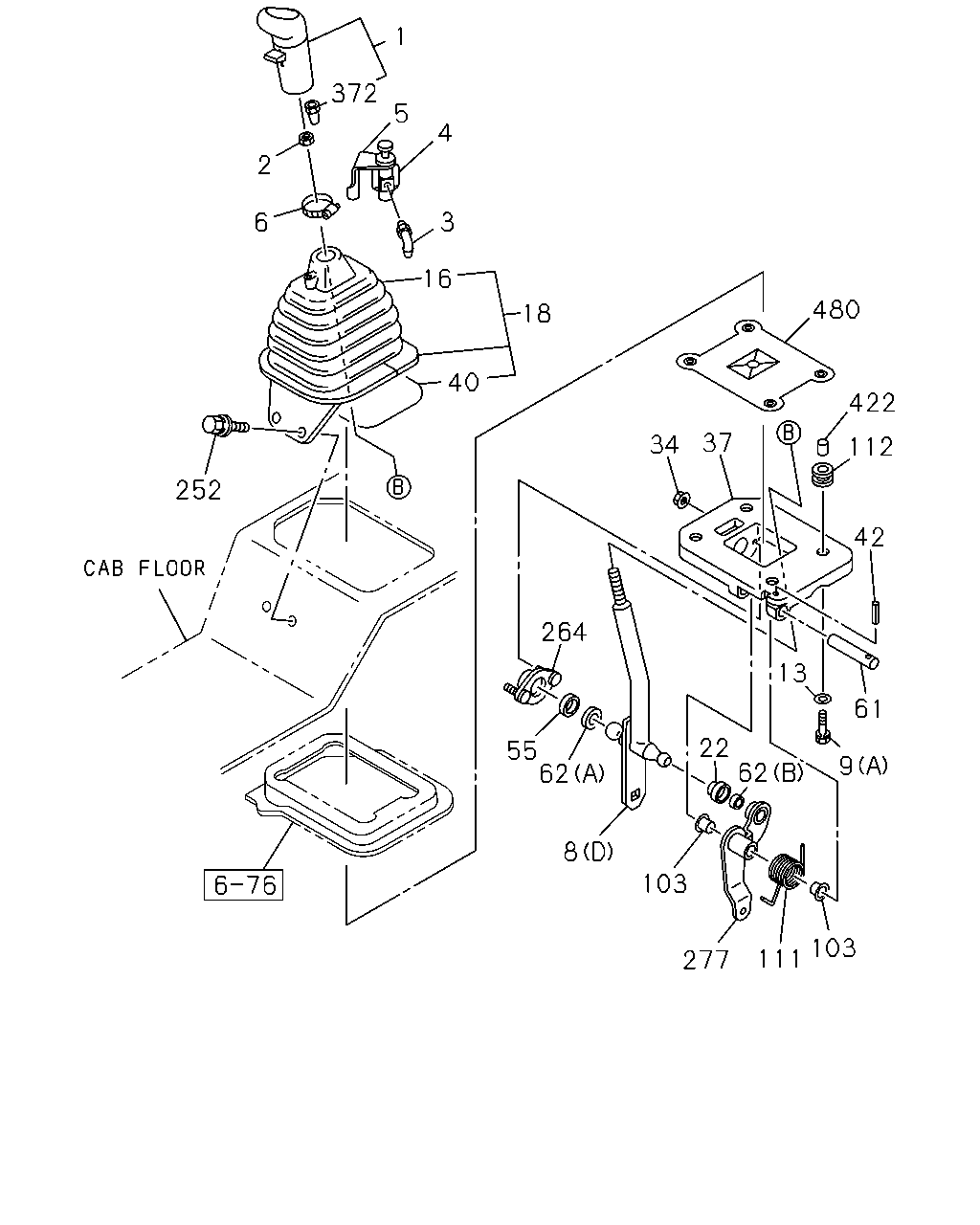

çizim 87122
1 372 5 4 2 3 6 16 480 18 40 422 37 34 112 252 42 264 13 61 22 62 55 62 9 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		1-33611-116-0 01 1 0512-0804 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98120-384-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33611-124-0 01 1 0705-0911 ●
1 KNOB; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98152-481-0 01 1 0912-1010 ●
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 0407-0511 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 0512-0704 ●
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33611-038-0 01 1 0705- ●
2 NUT; KNOB
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 1/2-13UNC 		1-33619-033-0 01 1 0512- ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91180-210-0 01 1 0603-0704 ●
2 NUT; KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		0-91180-210-0 01 1 0705- ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 0512-0804 ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		8-98114-398-0 02 1 0805- ●
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 0512- ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 0512- ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 0512- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> (D) 		1-33613-349-0 01 1 0512- ●
8 LEVER; CHANGE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0512-0704 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0705-1010 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(A) 		1-33613-345-0 01 1 0407-0511 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (A) 		1-33613-345-0 01 1 0512-0704 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33613-345-0 01 1 0705- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0512- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0512-0704 ●
9 BOLT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0705-1010 ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0407-0511 ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		9-09160-708-0 04 1 0512-0605 ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ●
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-1 01 1 0512- ●
16 BOOT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0705-1010 ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 0407-0511 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 0512-0704 ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-369-0 01 1 0705- ●
18 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-435-2 01 1 0512- ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 0407-0511 ●
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 0512-0704 ●
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-401-0 01 1 0705- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0407-0511 ●
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-573-0 01 1 0512- ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
34 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
34 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0407-0511 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-467-0 01 1 0512-0802 ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98100-876-1 01 1 0803- ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0407-0511 ●
40 SEAL; BOOT HOLDER CHANGE LEVER
FULLER M/T<X9B> 		1-79996-345-0 01 1 0512- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-345-0 01 1 0512- ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0407-0511 ●
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28 		8-94252-581-0 01 1 0512- ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0407-0511 ●
55 SEAT; RUBBER,SELECT SPRING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-429-0 01 1 0512-0802 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0407-0511 ●
61 PIN; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-470-0 01 1 0512- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0407-0511 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33619-427-0 01 1 0512- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0407-0511 ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		8-97011-900-0 01 1 0512- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0407-0511 ●
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16 		8-94252-671-0 02 1 0512- ●
111 SPRING
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		1-09585-133-1 01 1 0512- ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0407-0511 ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-426-0 04 1 0512-0810 ●
252 BOLT; COVER,CHANGE LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0511 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
264 PLATE; COVER 1-33619-469-0 01 1 0407-0511 ●
264 PLATE; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-469-0 01 1 0512- ●
277 LEVER; RELAY 1-33651-636-0 01 1 0407-0511 ●
277 LEVER; RELAY
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33651-636-1 01 1 0512- ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-97500-148-0 04 1 0512-0804 ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		8-98114-396-0 04 1 0805- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0407-0511 ●
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97091-427-0 04 1 0512- ●
480 RUBBER; COVER 1-33619-554-0 01 1 0407-0511 ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33619-554-0 01 1 0512-0810 ●
480 RUBBER; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98119-365-0 01 1 0811- ●

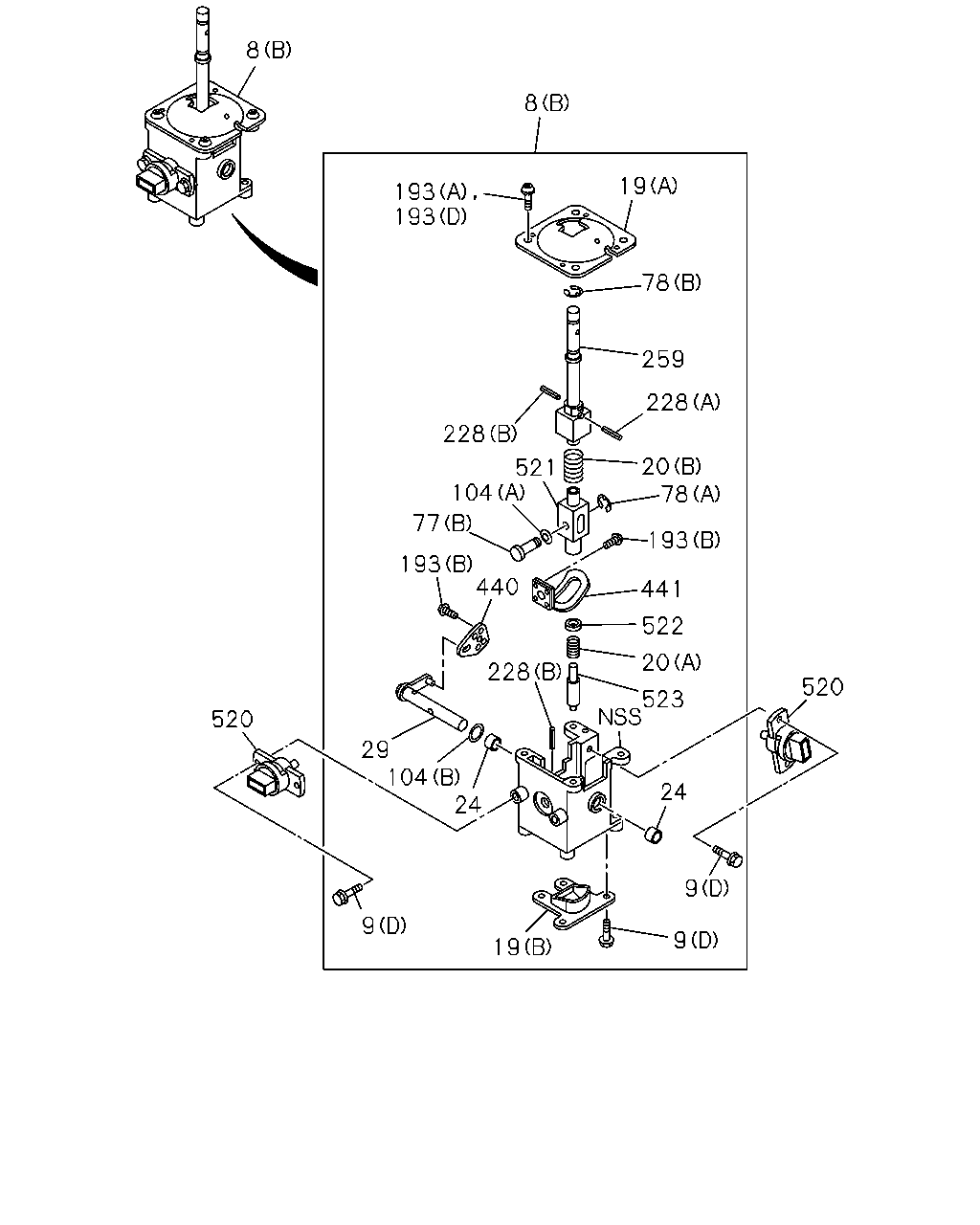

çizim 88006
8 8 19 193 193 78 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 520 523 520 29 104 24 24 9 9 9 19
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> (D) 		1-33613-349-0 01 1 0512- ●
8 LEVER; CHANGE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0512-0704 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0705-1010 ●
8 LEVER; CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(A) 		1-33613-345-0 01 1 0407-0511 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) (A) 		1-33613-345-0 01 1 0512-0704 ●
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33613-345-0 01 1 0705- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0512- ●
9 BOLT; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0512-0604 ●
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0512-0704 ●
9 BOLT; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) 		1-33619-798-0 08 1 0705-1010 ●
9 BOLT; CHANGE LEVER
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-790-0 01 1 0512-0704 ●
19 COVER; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-790-0 01 1 0705-1010 ●
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-791-0 01 1 0512-0704 ●
19 COVER; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-791-0 01 1 0705-1010 ●
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-786-0 01 1 0512-0704 ●
20 SPRING; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-786-0 01 1 0705-1010 ●
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-787-0 01 1 0512-0704 ●
20 SPRING; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-787-0 01 1 0705-1010 ●
24 BUSHING; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-797-0 02 1 0512-0704 ●
24 BUSHING; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-797-0 02 1 0705-1010 ●
29 SHAFT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-792-0 01 1 0512-0704 ●
29 SHAFT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-792-0 01 1 0705-1010 ●
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0512-0704 ●
77 PIN; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0705-1010 ●
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0512-0704 ●
77 PIN; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0705-1010 ●
78 RING; SNAP,CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=4 		9-09185-404-0 01 1 0512-0704 ●
78 RING; SNAP,CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=4 		9-09185-404-0 01 1 0705-1010 ●
78 RING; SNAP,CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9 		9-09185-409-0 01 1 0512-0704 ●
78 RING; SNAP,CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9 		9-09185-409-0 01 1 0705-1010 ●
104 WASHER; WAVED
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-788-0 01 1 0512-0704 ●
104 WASHER; WAVED
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-788-0 01 1 0705-1010 ●
104 WASHER; WAVED
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-789-0 01 1 0512-0704 ●
104 WASHER; WAVED
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-789-0 01 1 0705-1010 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-0704 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0705-1010 ●
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0704 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0705-0911 ●
193 SCREW; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
228 PIN; SPR,CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-505-0 01 1 0512-0704 ●
228 PIN; SPR,CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-33619-505-0 01 1 0705-1010 ●
228 PIN; SPR,CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-796-0 02 1 0512-0704 ●
228 PIN; SPR,CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-33619-796-0 02 1 0705-1010 ●
259 LEVER; CHANGE,UPR
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-782-0 01 1 0512-0704 ●
259 LEVER; CHANGE,UPR
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-782-0 01 1 0705-1010 ●
440 LEVER; SHIFT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-794-0 01 1 0512-0704 ●
440 LEVER; SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-794-0 01 1 0705-1010 ●
441 LEVER; SELECT
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-793-0 01 1 0512-0704 ●
441 LEVER; SELECT
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-793-0 01 1 0705-1010 ●
520 SENSOR; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-81541-113-0 02 1 0512-0704 ●
520 SENSOR; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-81541-113-0 02 1 0705-1010 ●
521 LEVER; CHANGE,LOW
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-783-0 01 1 0512-0704 ●
521 LEVER; CHANGE,LOW
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-783-0 01 1 0705-1010 ●
522 GUIDE; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-784-0 01 1 0512-0704 ●
522 GUIDE; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-784-0 01 1 0705-1010 ●
523 PLUNGER; CHANGE LEVER
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-785-0 01 1 0512-0704 ●
523 PLUNGER; CHANGE LEVER
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-33619-785-0 01 1 0705-1010 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
