2-30B — GEAR SHIFTER AND QUADRANT BOX (#29517) — 93 parça

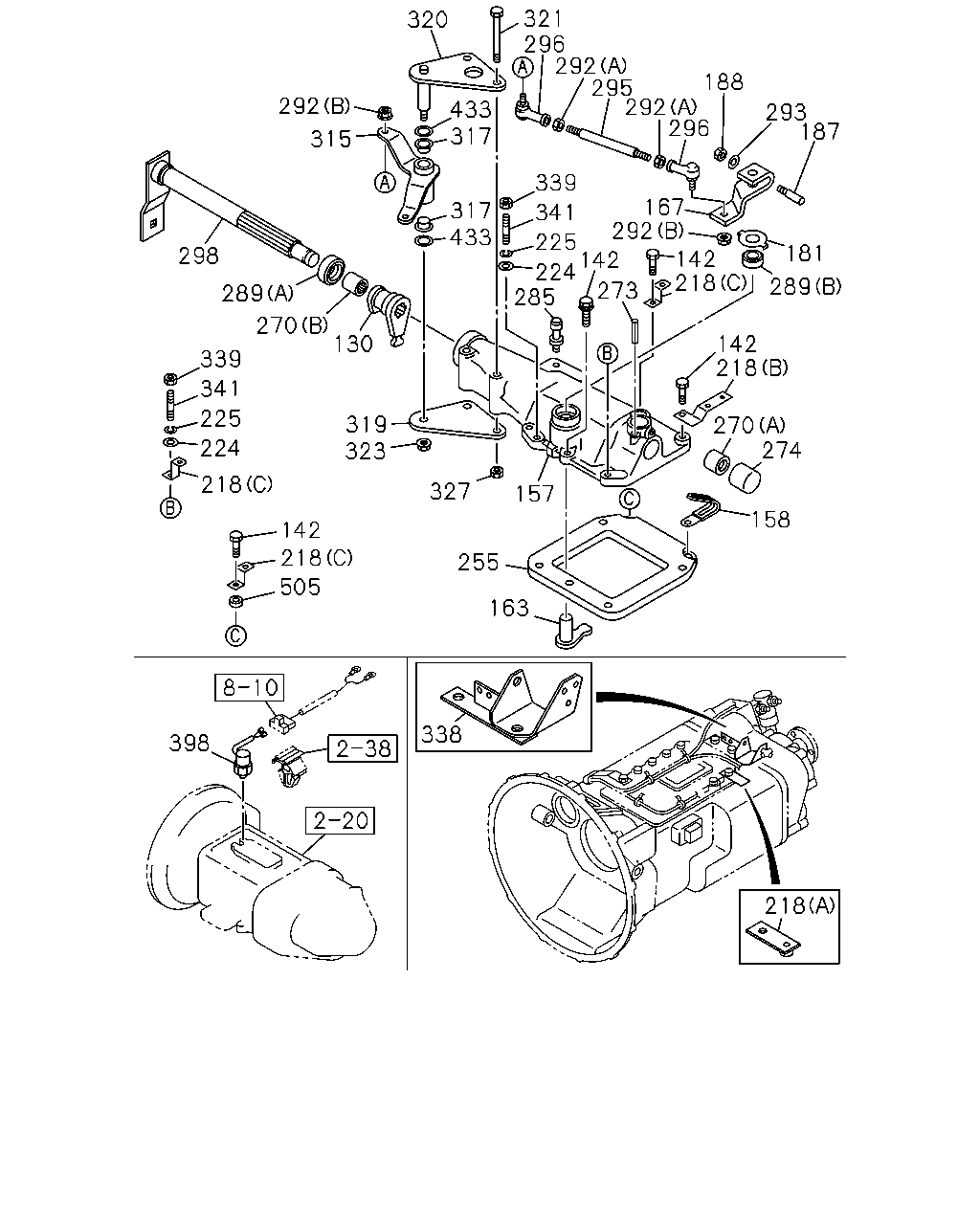

çizim 104569
320 321 296 292 295 292 296 188 293 187 181 289 218 142 167 292 142 273 142 218 270 158 274 163 255 157 327 323 319 142 218 505 398 218 224 225 341 339 270 130 289 298 315 292 317 433 317 433 339 341 225 224 285 218 338
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 0512-0704 ●
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 0705- ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0512-0704 ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0705-0906 ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 0512-0704 ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 0705- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0512-0704 ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0705- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0512-0704 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0705- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0512-0704 ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0705- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0512-0704 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0705- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0512-0704 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0705- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0512-0704 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0705- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 0512-0704 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 0705- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82569-341-0 01 1 0512-0704 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82569-341-0 01 1 0705- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 03 1 0512-0704 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 03 1 0705- ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0512-0605 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606-0704 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0705- ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0512-0603 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604-0704 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0705- ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0512-0704 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0705- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0512-0704 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0705- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0512-0704 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0705- ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0512-0704 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0705- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0512-0704 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0705- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0512-0704 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0705- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0512-0512 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0512-0704 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0705- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0512-0704 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0705- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0512-0704 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0705- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0512-0704 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0705- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0512-0512 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-0704 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0705- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0512-0605 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0704 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0705- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0512-0704 ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0705- ● ●
296 ROD END 1-09760-108-0 02 1 0512-0704 ●
296 ROD END 1-09760-108-0 02 1 0705- ● ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 0512-0704 ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 0705- ● ●
315 LEVER; SELECT 1-33651-980-0 01 1 0512-0704 ●
315 LEVER; SELECT 1-33651-980-0 01 1 0705- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0512-0704 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0705- ● ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 0512-0704 ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 0705- ● ●
320 SHAFT; LEVER 1-33619-629-0 01 1 0512-0704 ●
320 SHAFT; LEVER 1-33619-629-0 01 1 0705- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0512-0512 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601-0704 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0705- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0512-0704 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0705- ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603-0704 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0705- ● ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 0512-0704 ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 0705- ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 0512-0512 ●
339 NUT; QUAD BOX
M10 		0-91110-510-0 02 1 0601-0704 ●
339 NUT; QUAD BOX
M10 		0-91110-510-0 02 1 0705- ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 0512-0704 ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 0705- ● ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0512-0704 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0705- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0512-0704 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0705- ● ●
505 SPACER; BRKT 1-53459-587-0 01 1 0512-0704 ●
505 SPACER; BRKT 1-53459-587-0 01 1 0705- ● ●
