0-40 — FUEL INJECTION SYSTEM (#2951) — 157 parça

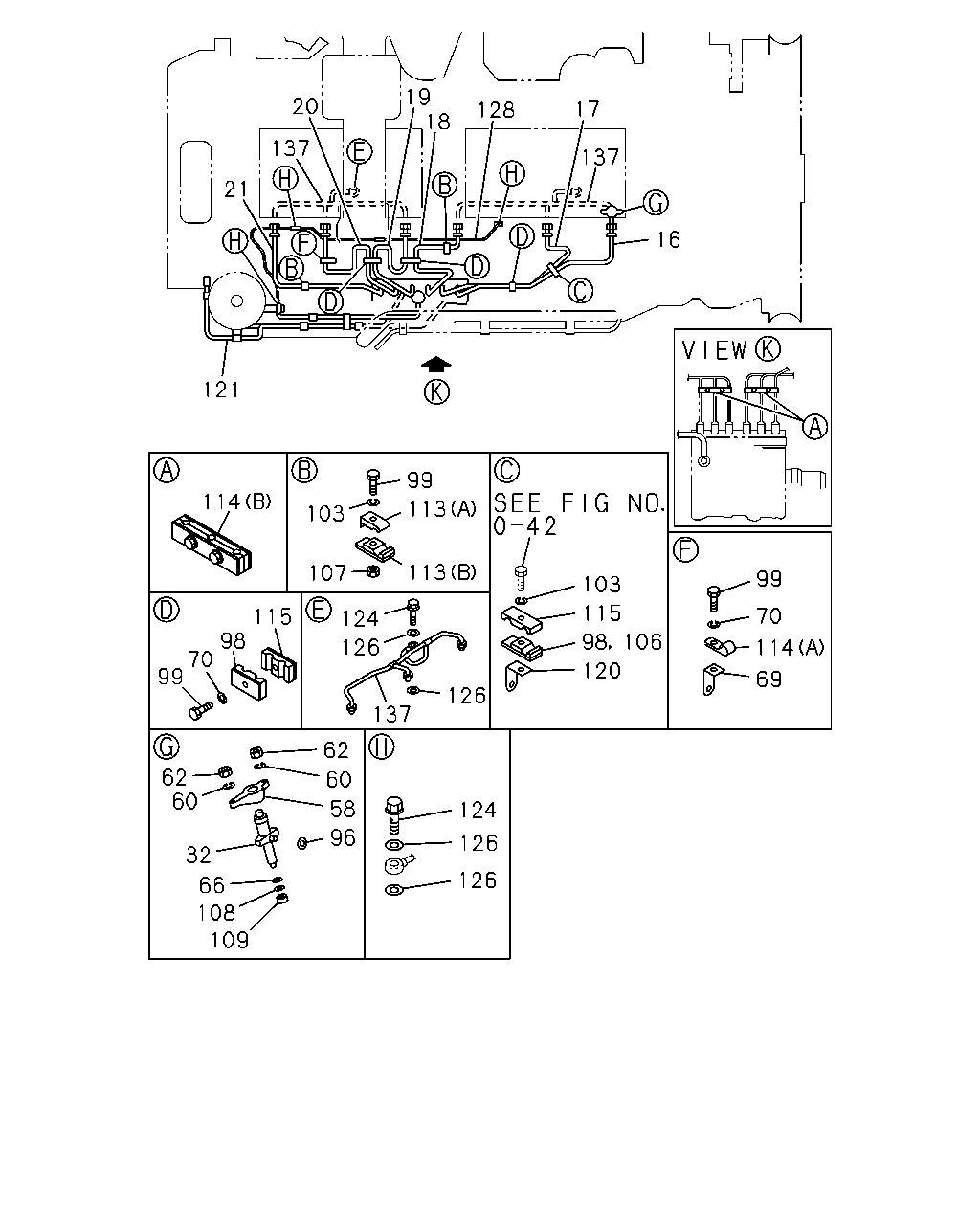

20 19 18 128 17 137 16 137 21 121 114 103 99 113 107 113 103 115 98 106 120 99 70 114 69 126 124 126 137 115 98 70 99 62 60 62 60 58 96 32 66 108 109 124 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9002-9306	●
16	PIPE; INJ NO.1	1-15413-303-0	01	1	9002-		●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9002-9306	●
17	PIPE; INJ NO.2	1-15413-304-0	01	1	9002-		●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9002-9306	●
18	PIPE; INJ NO.3	1-15413-305-0	01	1	9002-		●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9002-9306	●
19	PIPE; INJ NO.4	1-15413-306-0	01	1	9002-		●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9002-9306	●
20	PIPE; INJ NO.5	1-15413-307-0	01	1	9002-		●
21	PIPE; INJ NO.6	1-15413-046-0	01	1	9002-9306	●
21	PIPE; INJ NO.6	1-15413-308-0	01	1	9002-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9002-		●
58	FLANGE; INJ,NOZZLE HOLDER	9-15337-017-0	06	1	9002-9306	●
60	WASHER; NOZZLE HOLDER ID=10	1-09503-033-1	06	1	9002-9306	●
60	WASHER; NOZZLE HOLDER ID=8.4 OD=16	1-09503-039-0	06	1	9002-9306	●
60	WASHER; NOZZLE HOLDER ID=8.5 OD=15 T=4	1-09503-219-0	12	1	9002-		●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	06	1	9002-9101	●
62	NUT; NOZZLE HOLDER M10	9-09110-510-0	06	1	9002-9306	●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	06	1	9102-9306	●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	12	1	9002-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18	9-15315-075-0	06	1	9002-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-103-0	02	1	9002-9306	●
69	BRACKET; INJ PIPE CLIP	1-15419-140-0	02	1	9002-		●
70	WASHER; LK,BRKT ID=5.1	9-09150-505-0	05	1	9002-9306	●
96	GASKET; HOLDER TO SLEEVE NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-019-0	06	1	9002-9306	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE M5X10	9-92050-510-0	01	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE M5X10	0-20800-510-0	01	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE M5X25	9-09602-082-0	02	1	9002-		●
103	WASHER; LK,CLIP,INJ PIPE ID=5.1	9-09150-505-0	01	1	9002-9306	●
106	CLIP; INJ PIPE	9-15419-613-0	06	1	9002-9306	●
107	NUT; INJ PIPE CLIP M5	9-99110-405-0	04	1	9002-9306	●
108	GASKET; SLEEVE NUT TO HD ALSO INCLUDED IN GASKET SET(ENGINE).	1-09639-018-0	06	1	9002-9306	●
109	NUT; GASKET M18.5	9-15419-105-0	06	1	9002-9306	●
113	CLIP; INJ PIPE (A)	1-09700-110-0	02	1	9002-	●	●
113	CLIP; INJ PIPE (B)	1-15419-102-0	02	1	9002-	●	●
114	CLIP; INJ PIPE (B) ID=6	1-15419-099-0	02	1	9002-9306	●
114	CLIP; INJ PIPE (A) ID=7 L=20	9-09524-632-0	01	1	9002-9306	●
114	CLIP; INJ PIPE ID=6	9-15419-084-0	06	1	9002-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-9306	●
120	BRACKET; INJ PIPE	1-15419-103-0	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-092-0	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-309-0	01	1	9002-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	05	1	9002-9306	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	10	1	9002-9306	●
128	PIPE ASM; INJ	1-15413-297-2	01	1	9002-9306	●
137	PIPE ASM; LEAK OFF	9-15413-003-1	02	1	9002-9306	●

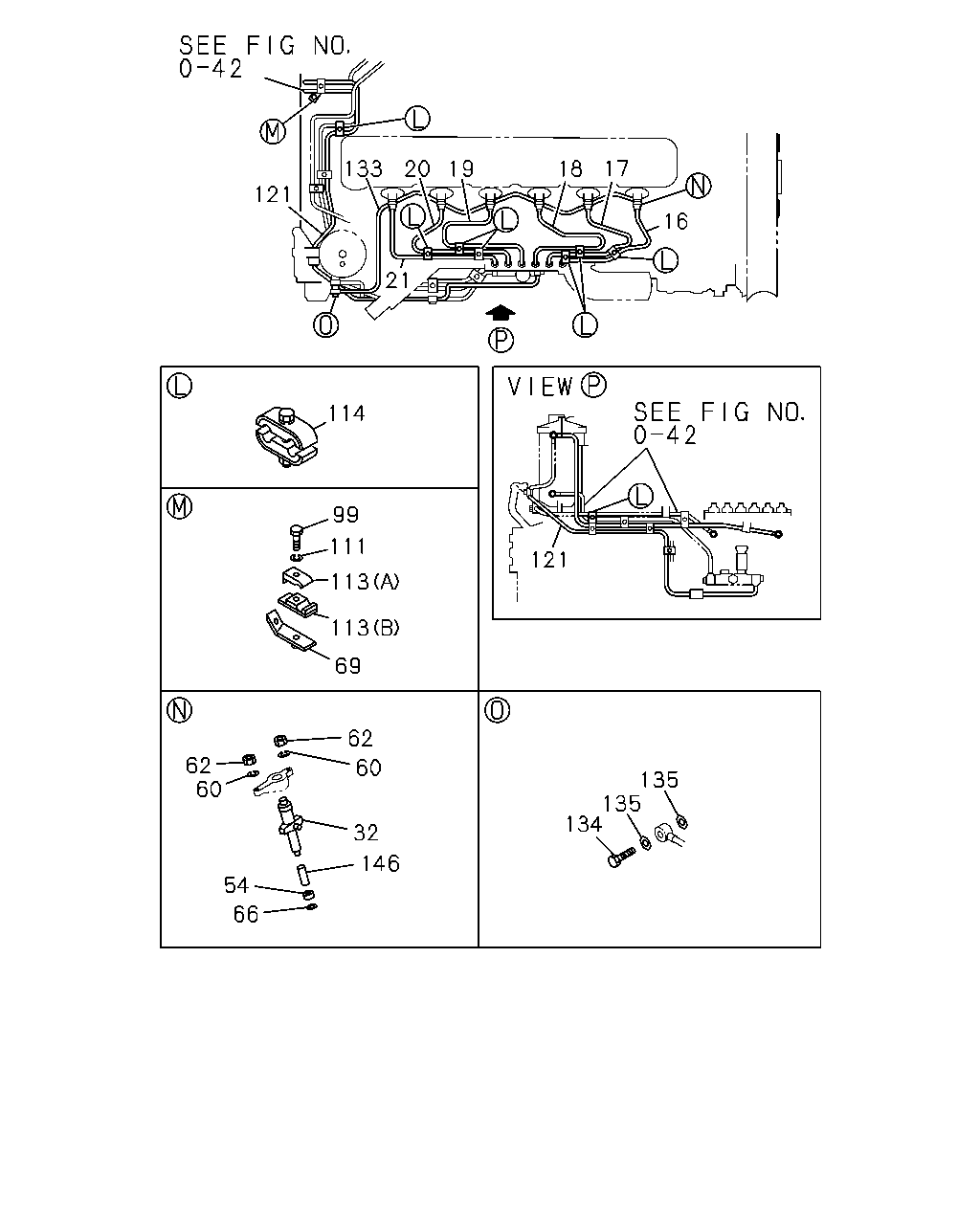

121 133 20 19 18 17 16 114 99 111 113 113 69 121 62 60 62 60 32 146 54 66 135 135 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15413-041-0	01	1	9002-9306	●
16	PIPE; INJ NO.1	1-15413-303-0	01	1	9002-		●
17	PIPE; INJ NO.2	1-15413-042-0	01	1	9002-9306	●
17	PIPE; INJ NO.2	1-15413-304-0	01	1	9002-		●
18	PIPE; INJ NO.3	1-15413-043-0	01	1	9002-9306	●
18	PIPE; INJ NO.3	1-15413-305-0	01	1	9002-		●
19	PIPE; INJ NO.4	1-15413-044-0	01	1	9002-9306	●
19	PIPE; INJ NO.4	1-15413-306-0	01	1	9002-		●
20	PIPE; INJ NO.5	1-15413-045-0	01	1	9002-9306	●
20	PIPE; INJ NO.5	1-15413-307-0	01	1	9002-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9002-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9002-		●
60	WASHER; NOZZLE HOLDER ID=10	1-09503-033-1	06	1	9002-9306	●
60	WASHER; NOZZLE HOLDER ID=8.4 OD=16	1-09503-039-0	06	1	9002-9306	●
60	WASHER; NOZZLE HOLDER ID=8.5 OD=15 T=4	1-09503-219-0	12	1	9002-		●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	06	1	9002-9101	●
62	NUT; NOZZLE HOLDER M10	9-09110-510-0	06	1	9002-9306	●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	06	1	9102-9306	●
62	NUT; NOZZLE HOLDER M8	9-09110-508-0	12	1	9002-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18	9-15315-075-0	06	1	9002-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-103-0	02	1	9002-9306	●
69	BRACKET; INJ PIPE CLIP	1-15419-140-0	02	1	9002-		●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE M5X10	9-92050-510-0	01	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE M5X10	0-20800-510-0	01	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE M5X25	9-09602-082-0	02	1	9002-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	02	1	9002-		●
113	CLIP; INJ PIPE (A)	1-09700-110-0	02	1	9002-	●	●
113	CLIP; INJ PIPE (B)	1-15419-102-0	02	1	9002-	●	●
114	CLIP; INJ PIPE (B) ID=6	1-15419-099-0	02	1	9002-9306	●
114	CLIP; INJ PIPE (A) ID=7 L=20	9-09524-632-0	01	1	9002-9306	●
114	CLIP; INJ PIPE ID=6	9-15419-084-0	06	1	9002-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-092-0	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-309-0	01	1	9002-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15413-316-0	01	1	9002-		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	9002-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9002-		●
146	SPACER; NOZZLE	1-15339-013-0	12	1	9002-		●

31 34 36 36 37 38 40 32 38 39 139 44 45 41 42 46 33 35 37 38 40 38 32 31 39 139 44 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-041-1	06	1	9002-9306	●
31	NOZZLE ASM; INJ CHINA TIBET EQUIPMENT(WD1)	1-15300-107-2	06	1	9002-		●
31	NOZZLE ASM; INJ EXC. CHINA TIBET EQUIPMENT(WD1)	1-15300-103-2	06	1	9002-		●
32	HOLDER ASM; NOZZLE	9-15330-085-2	06	1	9002-9306	●
32	HOLDER ASM; NOZZLE	1-15330-035-2	06	1	9002-		●
33	NOZZLE; INJ	1-15311-073-0	06	1	9002-9306	●
33	NOZZLE; INJ CHINA TIBET EQUIPMENT(WD1)	1-15311-120-0	06	1	9002-		●
33	NOZZLE; INJ EXC. CHINA TIBET EQUIPMENT(WD1)	1-15311-112-0	06	1	9002-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9002-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-024-0	06	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	9-15332-017-0	06	1	9002-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-018-0	06	1	9307-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9002-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-001-0	06	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER	5-15334-001-0	06	1	9002-9306		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-006-0	06	1	9307-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9002-9306	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9002-9410		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9411-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	9-15343-011-0	06	1	9002-	●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-001-0	06	1	9002-9306	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-002-0	06	1	9002-9306		●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15339-012-0	06	1	9002-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-15352-005-0	06	1	9002-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	9-15343-013-0	06	1	9002-	●	●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-008-0	06	1	9002-9306	●
45	ROD; PUSH,NOZZLE HOLDER	9-15341-005-0	06	1	9002-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9002-	●	●
139	WASHER; NOZZLE SPRING,NOZZLE HOLDER	9-15339-057-0	06	1	9002-	●	●

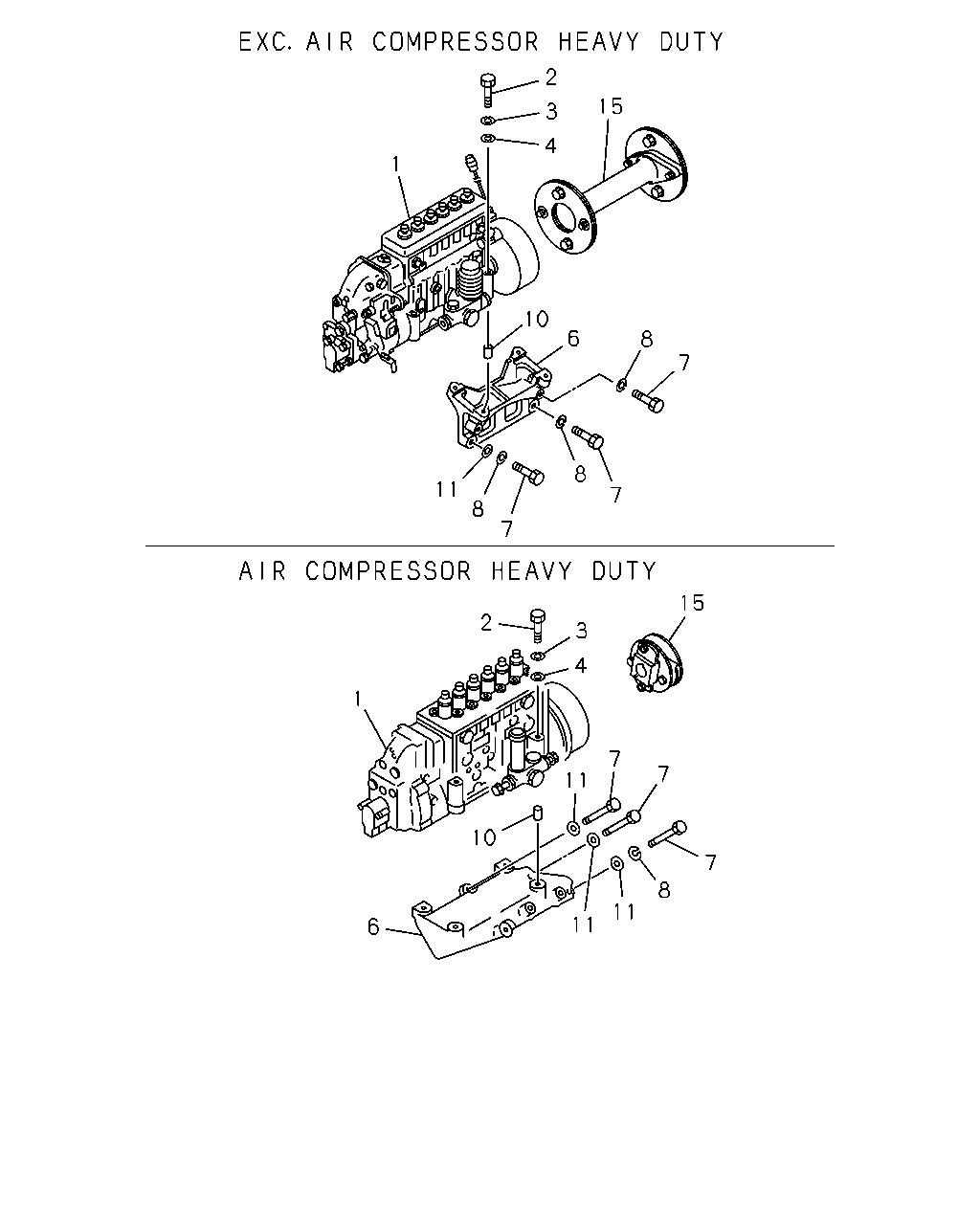

2 3 4 15 10 6 8 7 1 11 8 7 8 7 2 3 4 15 1 6 10 11 7 7 7 8 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE REAR PTO(SV1)	1-15602-441-0	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-438-0	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. ENGINE REAR PTO(SV1)	1-15602-439-0	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CHINA TIBET EQUIPMENT(WD1)	1-15602-585-1	01	1	9002-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. CHINA TIBET EQUIPMENT(WD1),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-505-1	01	1	9002-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. CHINA TIBET EQUIPMENT(WD1)	1-15602-506-1	01	1	9002-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. MIXER TRUCK<RA2>,CHINA TIBET EQUIPMENT(WD1), GOVERNOR CONTROL<W69>	1-15602-520-1	01	1	9002-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MIXER TRUCK<RA2> EXC. CHINA TIBET EQUIPMENT(WD1),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-521-0	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. MIXER TRUCK<RA2>,CHINA TIBET EQUIPMENT(WD1), GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-519-1	01	1	9002-		●
2	BOLT; INJ PUMP M10X90	9-01656-090-0	04	1	9002-9004	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9005-9306	●
2	BOLT; INJ PUMP M8X75	9-01055-875-0	04	1	9002-9005		●
2	BOLT; INJ PUMP M8X75	0-10805-875-0	04	1	9006-9108		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9109-		●
3	WASHER; LK,INJ PUMP ID=10.2	9-09150-510-0	04	1	9002-9306	●
4	WASHER; INJ PUMP ID=10.5 OD=18	9-09160-510-0	04	1	9002-9306	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9002-		●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	9002-		●
6	BRACKET; INJ PUMP TO C/BL	9-19751-118-1	01	1	9002-9306	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-026-1	01	1	9002-		●
7	BOLT; INJ PUMP BRKT M10X40 W/LK WASHER	0-50051-040-0	01	1	9002-9306	●
7	BOLT; INJ PUMP BRKT M10X80	9-01656-080-0	02	1	9002-9004	●
7	BOLT; INJ PUMP BRKT M10X80	0-16806-080-0	02	1	9005-9306	●
7	BOLT; INJ PUMP BRKT M14X55	9-91656-455-0	01	1	9002-9005	●
7	BOLT; INJ PUMP BRKT M14X55	0-16806-455-0	01	1	9006-9306	●
7	BOLT; INJ PUMP BRKT M10X35 W/LK WASHER	0-50051-035-0	01	1	9002-		●
7	BOLT; INJ PUMP BRKT M10X60	9-01656-060-0	02	1	9002-9004		●
7	BOLT; INJ PUMP BRKT M10X60	0-16806-060-0	02	1	9005-		●
7	BOLT; INJ PUMP BRKT M14X40	9-92351-440-0	01	1	9002-9005		●
7	BOLT; INJ PUMP BRKT M14X40	0-23801-440-0	01	1	9006-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	02	1	9002-	●	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	01	1	9002-	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-0	02	1	9002-9306	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	01	1	9002-9306	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	01	1	9002-9306	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15780-020-2	01	1	9002-9306	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15780-105-0	01	1	9002-9306	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9002-9306		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-105-0	01	1	9307-		●
