Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#29508) — 245 parça

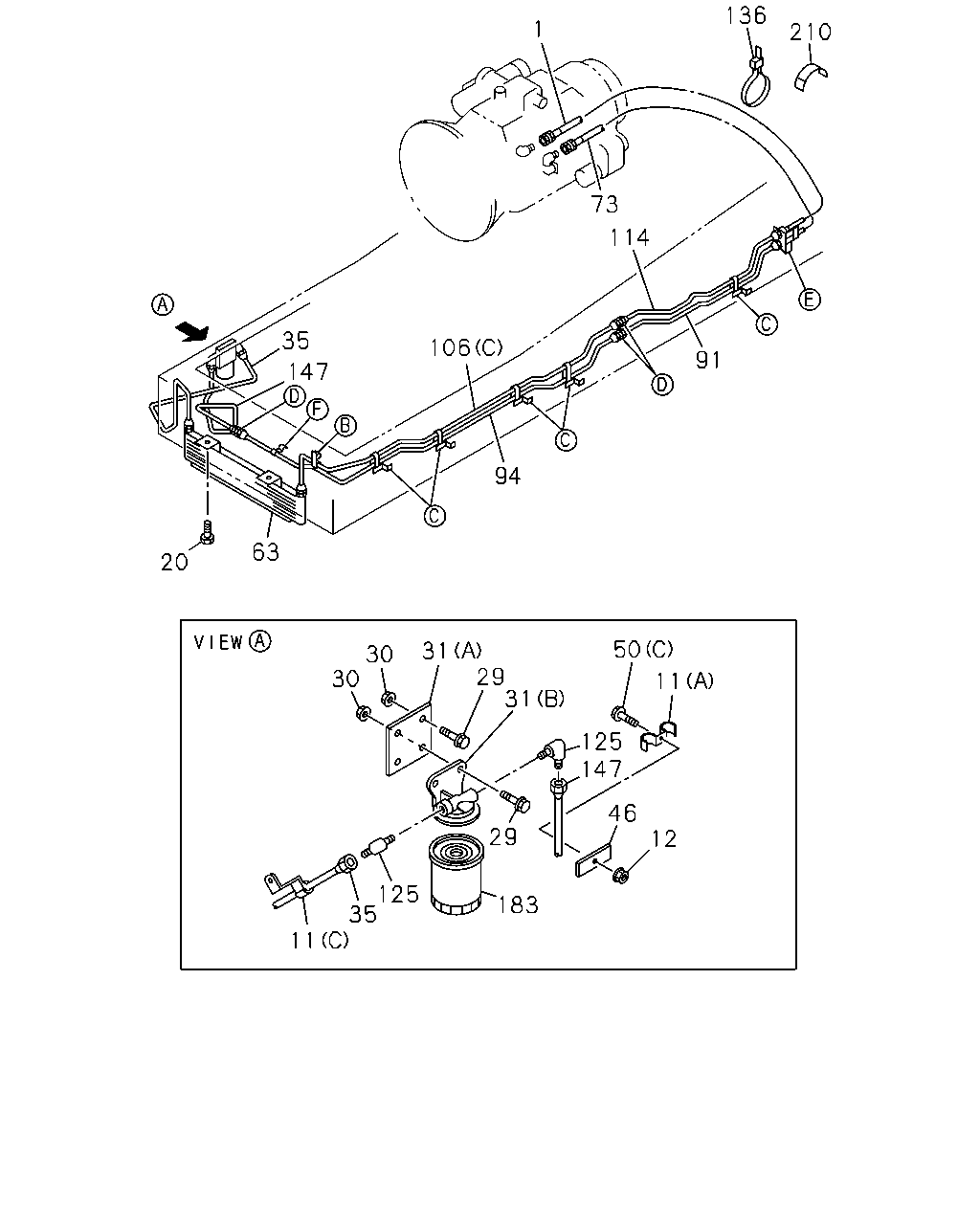

136 1 210 73 114 35 106 91 147 94 63 20 50 31 29 31 30 30 11 125 147 46 29 12 125 35 11 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	0810-
1	HOSE; ATF L=430	1-09364-872-0	01	1	0509-0809
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	05	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0810-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0810-
11	CLIP; PIPE (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0810-
11	CLIP; PIPE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0509-0707
11	CLIP; PIPE (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0810-0810
11	CLIP; PIPE (D) ID=11X2 L=20	9-09535-036-0	05	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (D) ID=11X2 L=20	9-09535-036-0	05	1	0810-
12	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0810-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-0809
12	NUT; BRKT MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	06	1	0810-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0509-0512
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0601-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0509-0512
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0509-0512
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-0809
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> M10X30 FLANGE	0-28651-030-0	02	1	0810-
30	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0509-0602
30	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0809
30	NUT; BRKT MJT7 M/T<Y9E> M10 FLANGE	0-91180-210-0	02	1	0810-
31	BRACKET; OIL FILTER (B)	1-33119-222-0	01	1	0509-0809
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (B)	1-33119-222-0	01	1	0810-
31	BRACKET; OIL FILTER (A)	1-47471-155-0	01	1	0509-0809
31	BRACKET; OIL FILTER MJT7 M/T<Y9E> (A)	1-47471-155-0	01	1	0810-
35	PIPE; OIL,OIL COOLER TO FILTER L=787	1-49167-386-0	01	1	0509-0809
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=787	1-49167-386-0	01	1	0810-
46	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	0509-0809
46	BRACKET; OIL PIPE MJT7 M/T<Y9E> L=50	1-47475-299-2	01	1	0810-
50	BOLT; CLIP MJT7 M/T<Y9E> (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-
50	BOLT; CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0509-0512
50	BOLT; CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (C) M8X20 FLANGE	0-28050-820-0	01	1	0810-0810
50	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (B) M8X20 FLANGE	0-28650-820-0	02	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0809
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	05	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-0809
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
63	COOLER; OIL	1-21700-290-0	01	1	0509-0609
63	COOLER; OIL	1-21700-394-0	01	1	0610-1405
63	COOLER; OIL	8-98269-766-0	01	1	1406-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=570	1-09365-236-0	01	1	0810-
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0509-0809
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=840	1-49167-560-0	01	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION L=775 SERVICED BY L=800	1-47428-872-0	01	1	0509-0809
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=775 SERVICED BY L=800	1-47428-872-0	01	1	0810-
94	PIPE; OIL,UNION TO UNION L=2298 SERVICED BY L=2500	1-47428-883-0	01	1	0509-0809
94	PIPE; OIL,UNION TO UNION MJT7 M/T<Y9E> L=2298 SERVICED BY L=2500	1-47428-883-0	01	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1836	1-49167-761-0	01	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A) L=2254	1-49167-762-0	01	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	0509-0809
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=908	1-49167-563-0	01	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE L=835 SERVICED BY L=900	1-47428-873-0	01	1	0509-0809
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=835 SERVICED BY L=900	1-47428-873-0	01	1	0810-
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0509-0607
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-0809
125	CONNECTOR; OIL FILTER MJT7S M/T(Y3E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0810-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0601-
147	PIPE; OIL,UNION TO FILTER L=739 SERVICED BY L=800	1-47428-872-0	01	1	0509-0809
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0810-
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0509-0809
183	CARTRIDGE; OIL FILTER MJT7S M/T(Y3E)	8-94459-700-1	01	1	0810-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0601-

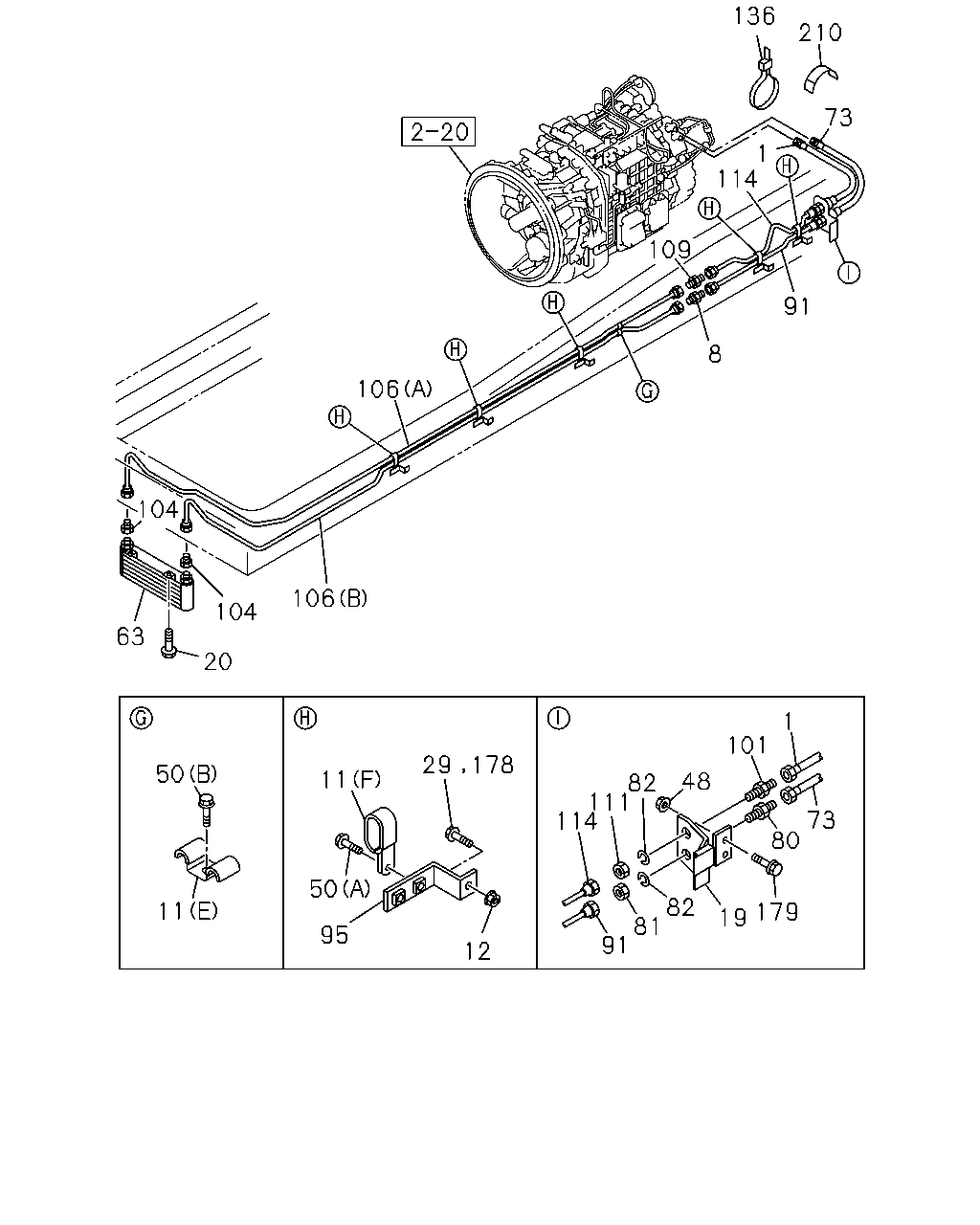

11 50 29 178 12 50 12 11 95 1 48 117 116 114 8 109 73 179 77 76 91 19 50 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	0810-
1	HOSE; ATF L=430	1-09364-872-0	01	1	0509-0809
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	0810-
8	UNION M16 L=42	9-09233-010-1	01	1	0509-0607
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	0608-0809
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	05	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0810-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0810-
11	CLIP; PIPE (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0810-
11	CLIP; PIPE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0509-0707
11	CLIP; PIPE (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0810-0810
11	CLIP; PIPE (D) ID=11X2 L=20	9-09535-036-0	05	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (D) ID=11X2 L=20	9-09535-036-0	05	1	0810-
12	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0810-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-0809
12	NUT; BRKT MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	06	1	0810-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	0810-
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	0509-0809
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	0810-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0509-0512
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0509-0512
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-0809
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> M10X30 FLANGE	0-28651-030-0	02	1	0810-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0809
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0810-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0509-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0809
48	NUT; BRKT MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	0810-
50	BOLT; CLIP MJT7 M/T<Y9E> (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-
50	BOLT; CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0509-0512
50	BOLT; CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (C) M8X20 FLANGE	0-28050-820-0	01	1	0810-0810
50	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (B) M8X20 FLANGE	0-28650-820-0	02	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0809
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	05	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-0809
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=570	1-09365-236-0	01	1	0810-
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0509-0809
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
76	NUT; FLEX HOSE M16	9-99111-416-0	01	1	0509-0512
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0601-0809
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	0810-
77	WASHER; LK ID=16.2	9-09150-516-0	01	1	0509-0603
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	0604-0809
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=840	1-49167-560-0	01	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION L=775 SERVICED BY L=800	1-47428-872-0	01	1	0509-0809
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=775 SERVICED BY L=800	1-47428-872-0	01	1	0810-
95	BRACKET; CLIP	1-47479-482-0	05	1	0509-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	0810-
109	UNION M16 L=42	9-09233-010-1	02	1	0509-0607
109	UNION M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-0809
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	02	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=908	1-49167-563-0	01	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE L=835 SERVICED BY L=900	1-47428-873-0	01	1	0509-0809
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=835 SERVICED BY L=900	1-47428-873-0	01	1	0810-
116	NUT; BRKT,FLEX HOSE M16	9-99111-416-0	01	1	0509-0512
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	0601-0809
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	0810-
117	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	0509-0603
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	01	1	0604-0809
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	0810-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-

136 210 73 1 114 109 91 8 106 104 106 104 63 20 1 101 29 178 50 11 48 82 111 114 73 80 50 82 81 91 11 179 19 95 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	0810-
1	HOSE; ATF L=430	1-09364-872-0	01	1	0509-0809
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	0810-
8	UNION M16 L=42	9-09233-010-1	01	1	0509-0607
8	UNION M16 STRAIGHT L=42	0-92123-010-0	01	1	0608-0809
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (F) ID=16X2 L=20	0-95325-535-0	05	1	0810-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0810-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0810-
11	CLIP; PIPE (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	0810-
11	CLIP; PIPE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0509-0707
11	CLIP; PIPE (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0810-0810
11	CLIP; PIPE (D) ID=11X2 L=20	9-09535-036-0	05	1	0509-0809
11	CLIP; PIPE MJT7 M/T<Y9E> (D) ID=11X2 L=20	9-09535-036-0	05	1	0810-
12	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0810-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0509-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-0809
12	NUT; BRKT MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	06	1	0810-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	0810-
19	BRACKET; FLEX HOSE	1-47479-559-0	01	1	0509-0809
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	0810-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0509-0512
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0601-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0509-0512
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0509-0512
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-0809
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> M10X30 FLANGE	0-28651-030-0	02	1	0810-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0809
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0810-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0509-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0809
48	NUT; BRKT MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	0810-
50	BOLT; CLIP MJT7 M/T<Y9E> (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-
50	BOLT; CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0509-0512
50	BOLT; CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (C) M8X20 FLANGE	0-28050-820-0	01	1	0810-0810
50	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0809
50	BOLT; CLIP MJT7 M/T<Y9E> (B) M8X20 FLANGE	0-28650-820-0	02	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0809
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0810-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	05	1	0509-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-0809
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
63	COOLER; OIL	1-21700-290-0	01	1	0509-0609
63	COOLER; OIL	1-21700-394-0	01	1	0610-1405
63	COOLER; OIL	8-98269-766-0	01	1	1406-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=570	1-09365-236-0	01	1	0810-
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0509-0809
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	0810-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	0810-
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	0810-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=840	1-49167-560-0	01	1	0810-
91	PIPE; OIL,FLEX HOSE TO UNION L=775 SERVICED BY L=800	1-47428-872-0	01	1	0509-0809
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=775 SERVICED BY L=800	1-47428-872-0	01	1	0810-
95	BRACKET; CLIP	1-47479-482-0	05	1	0509-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	0810-
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1836	1-49167-761-0	01	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (A) L=2254	1-49167-762-0	01	1	0810-
106	PIPE ASM; OIL,COOLER TO UNION (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	0509-0809
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (C) L=1747 SERVICED BY L=1783	1-47428-881-0	01	1	0810-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	0810-
109	UNION M16 L=42	9-09233-010-1	02	1	0509-0607
109	UNION M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-0809
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	02	1	0810-
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=908	1-49167-563-0	01	1	0810-
114	PIPE; OIL,UNION TO FLEX HOSE L=835 SERVICED BY L=900	1-47428-873-0	01	1	0509-0809
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=835 SERVICED BY L=900	1-47428-873-0	01	1	0810-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	0601-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
