Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#29501) — 378 parça

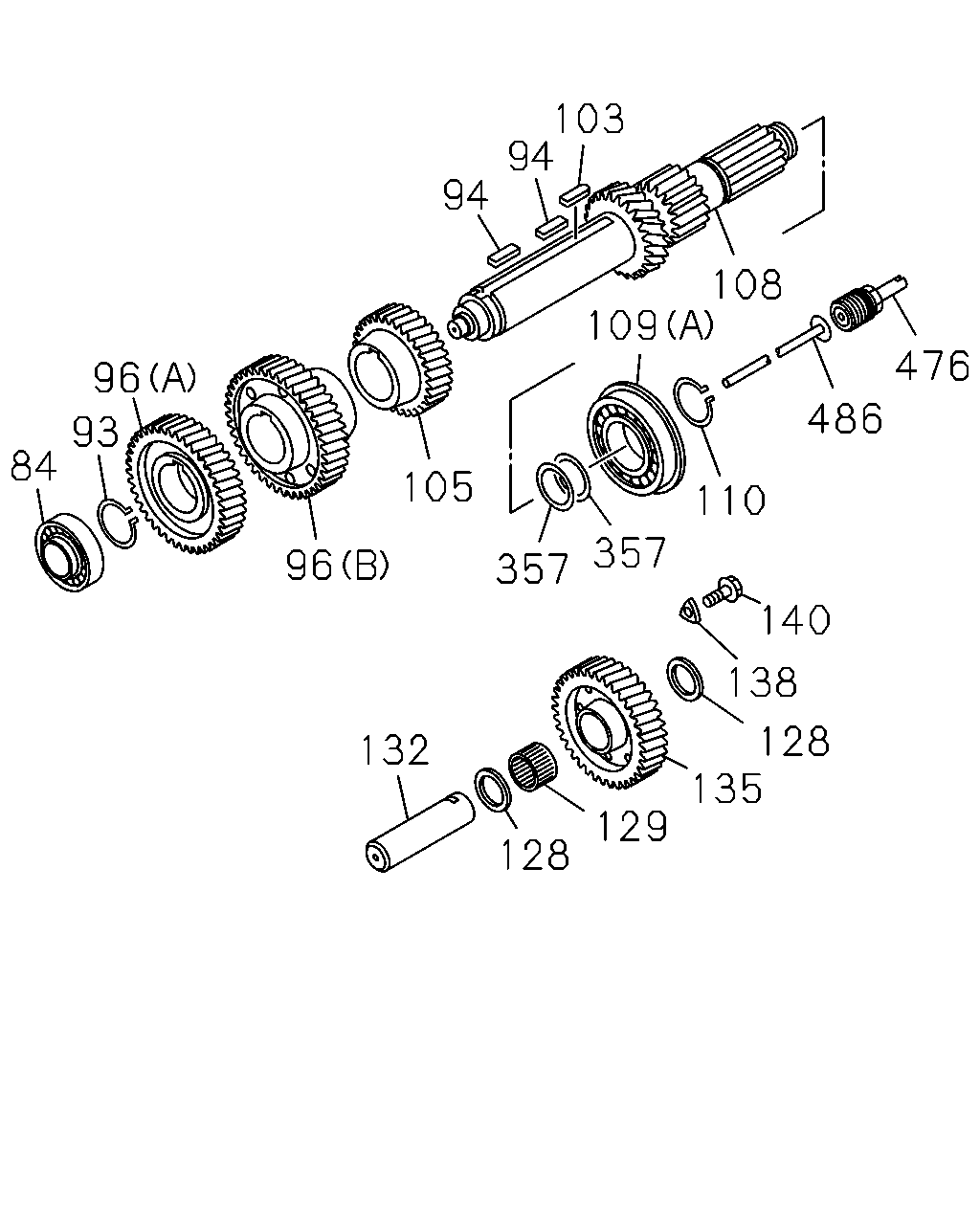

103 94 94 108 109 476 96 486 93 84 105 110 357 96 357 140 138 128 135 132 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0810-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0810-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0509-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0509-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0509-0809		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0810-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0810-	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0509-		●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0810-	●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0810-	●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0509-		●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0810-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	0509-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	0509-		●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0810-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0810-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0509-0809		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0810-	●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0509-0809		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0810-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0509-0809		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0810-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0509-0809		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0810-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0509-0809		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0810-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0509-0809		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0810-	●	●
132	SHAFT; REV	1-33351-035-1	01	1	0810-	●
132	SHAFT; REV	1-33351-025-4	01	1	0509-		●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0810-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0509-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0509-0809		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0810-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0509-0809		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0810-	●	●
357	RING	1-31349-044-0	04	1	0810-	●
357	RING	1-31349-015-0	01	1	0509-		●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0810-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0509-		●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0810-	●

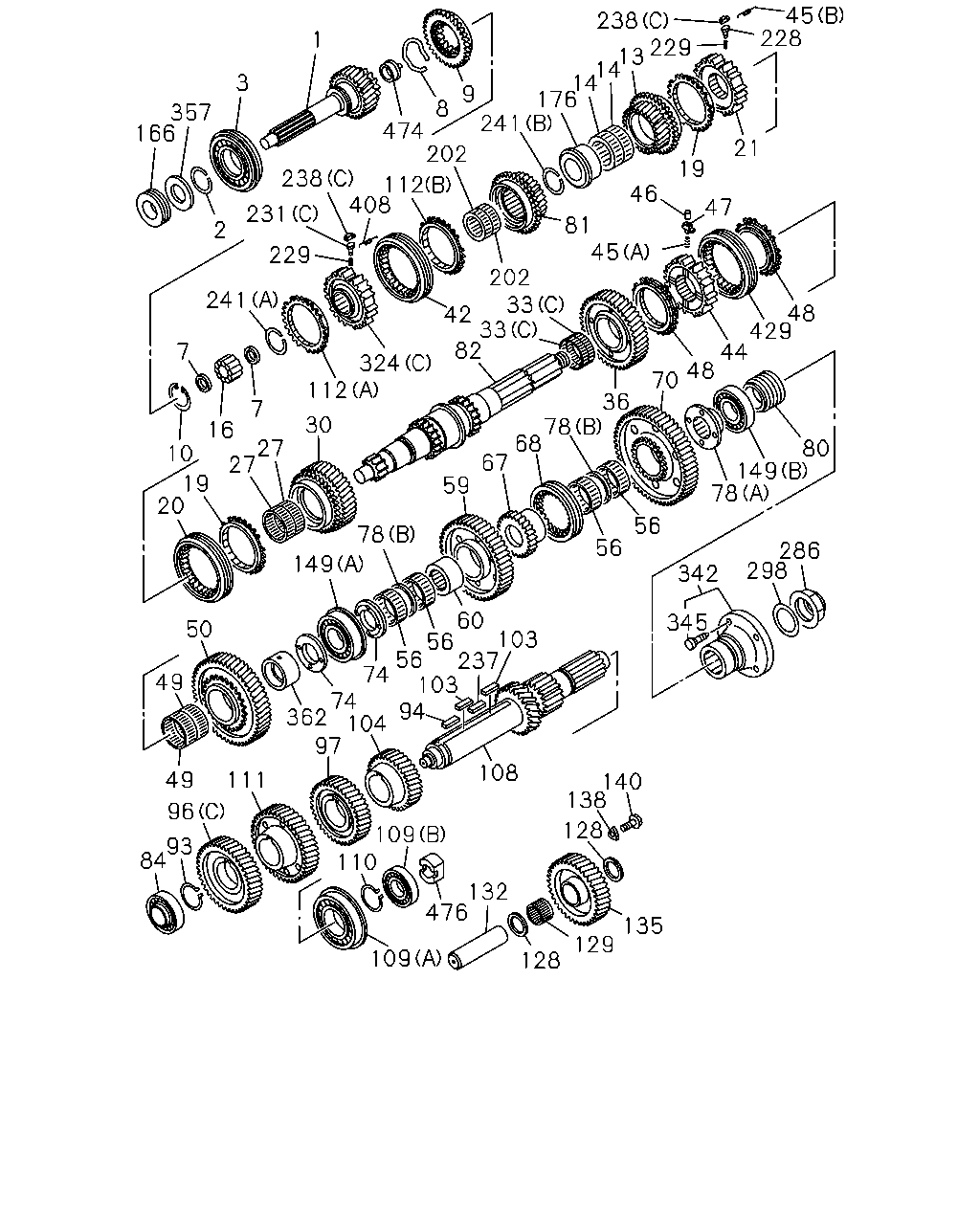

45 228 238 229 13 14 14 176 241 1 3 9 8 357 166 474 202 21 19 238 112 408 46 47 231 81 45 2 229 202 33 42 33 82 241 48 429 44 48 70 7 324 112 36 78 68 67 7 30 16 27 27 80 149 78 10 19 20 59 56 78 56 286 298 149 342 60 56 103 74 103 74 94 362 104 97 345 50 49 108 49 111 140 138 96 128 109 110 93 84 132 476 135 129 109 128 56 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0509-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0810-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0810-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0509-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0509-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0509-0809		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0810-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0509-		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0509-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0509-0809		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0810-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0509-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0509-1311		●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0509-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0810-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0810-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0509-1511		●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0509-1511		●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-1	02	1	0509-		●
20	SLEEVE	1-33262-216-1	01	1	0810-	●
20	SLEEVE	1-33262-222-0	01	1	0509-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0509-		●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0509-1311		●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0509-		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	0509-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0810-1308	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0810-	●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0810-1311	●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0810-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0509-1311		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0509-		●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0810-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0509-		●
42	SLEEVE	1-33262-222-0	01	1	0509-0809		●
42	SLEEVE	1-33262-222-0	01	1	0810-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0509-		●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	0810-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0509-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0509-0809		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0810-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0810-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0509-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0509-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0509-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0509-1308		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0509-		●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0810-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0509-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0810-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0810-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0509-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0509-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0810-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0509-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0509-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0509-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0509-		●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0810-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0509-		●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0810-	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0509-1506		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0509-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0509-		●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0810-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0509-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0509-		●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0810-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0509-1506		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0810-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0810-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0509-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0509-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0509-0809		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0810-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0810-	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0509-		●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0810-	●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0810-	●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0509-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0509-		●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0810-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	0509-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	0509-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0509-		●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0810-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0509-0809		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0810-	●	●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0509-		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0509-0809		●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0810-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0509-0809		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0810-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0509-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	0509-		●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	0509-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0509-0809		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0810-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0509-0809		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0810-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0509-0809		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0810-	●	●
132	SHAFT; REV	1-33351-035-1	01	1	0810-	●
132	SHAFT; REV	1-33351-025-4	01	1	0509-		●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0810-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0509-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0509-0809		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0810-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0509-0809		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0810-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0810-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0810-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0509-		●
166	PIECE; DIST	1-33363-032-1	01	1	0509-		●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0509-		●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0509-1311		●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0509-		●
228	PLUNGER; SYN	1-33263-020-0	03	1	0509-		●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0810-1403	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0509-		●
231	PLUNGER (A)	1-33263-033-0	06	1	0810-1403	●
231	PLUNGER (A)	8-98273-831-0	06	1	1404-	●
231	PLUNGER (B)	1-33263-038-1	12	1	0810-	●
231	PLUNGER (C)	1-33263-020-0	03	1	0509-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0509-		●
238	INSERT (A)	1-33263-036-0	06	1	0810-	●
238	INSERT (B)	1-33263-039-0	09	1	0810-	●
238	INSERT (C)	1-33263-025-2	06	1	0509-		●
241	RING; SNAP (A)	1-09587-023-0	02	1	0810-	●
241	RING; SNAP (B)	1-09587-104-0	01	1	0810-	●
241	RING; SNAP (A)	1-09588-185-0	01	1	0509-		●
241	RING; SNAP (B)	1-09588-189-0	01	1	0509-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0509-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0509-		●
324	HUB; CLU (A)	1-34231-015-0	01	1	0810-	●
324	HUB; CLU (B)	1-34371-017-0	01	1	0810-1307	●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-	●
324	HUB; CLU (C)	1-33261-238-0	01	1	0509-		●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0810-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0509-1211		●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0509-0809		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0810-	●	●
357	RING	1-31349-044-0	04	1	0810-	●
357	RING	1-31349-015-0	01	1	0509-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0509-		●
408	SPRING	1-09583-171-0	03	1	0509-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0509-		●
474	NOZZLE; OIL	1-33219-257-1	01	1	0509-		●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0810-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0509-		●

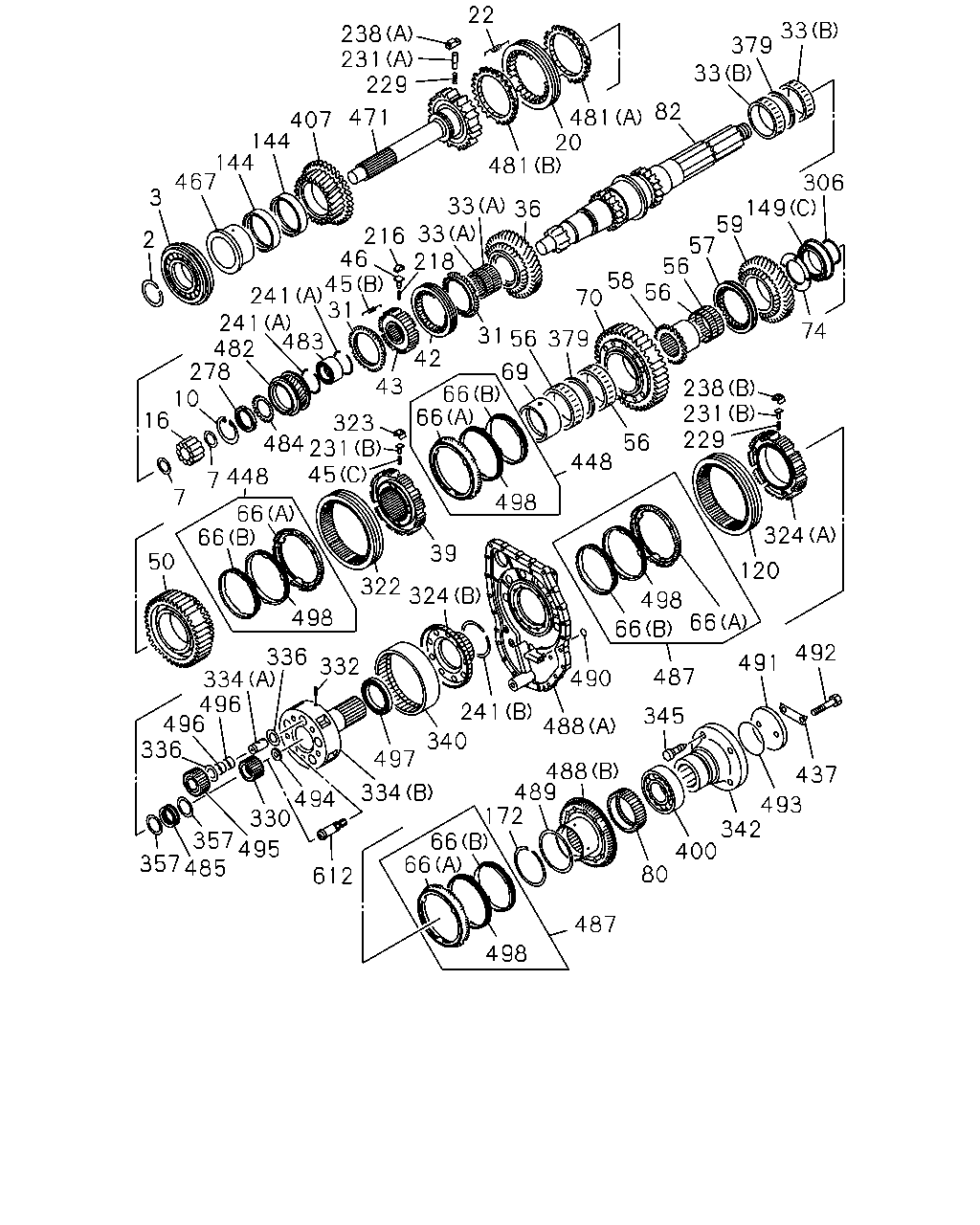

2 3 467 144 144 407 471 229 231 238 22 33 379 33 82 481 20 481 36 33 33 218 216 46 45 31 241 241 483 482 278 10 16 7 7 448 484 43 42 31 50 66 66 45 231 323 498 322 39 498 66 66 69 56 379 70 58 56 56 57 59 149 306 74 238 231 229 56 448 324 332 336 334 496 496 336 357 485 357 495 330 494 612 334 497 340 241 490 66 498 66 120 324 487 491 492 488 488 489 172 66 66 498 487 80 400 342 493 437 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0810-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0509-0809		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0810-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0810-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0509-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0509-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0509-0809		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0810-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0509-0809		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0810-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0810-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0810-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0509-1511		●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0509-1511		●
20	SLEEVE	1-33262-216-1	01	1	0810-	●
20	SLEEVE	1-33262-222-0	01	1	0509-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0810-	●
31	RING; BLOCK,3RD & 4TH	1-33265-552-1	02	1	0810-1202	●
31	RING; BLOCK,3RD & 4TH	8-98212-814-1	02	1	1203-	●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0810-1308	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0810-	●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0810-1311	●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0810-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0509-1311		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0509-		●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0810-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0509-		●
39	HUB; CLU,LOW & 2ND	1-33261-277-0	01	1	0810-	●
42	SLEEVE	1-33262-222-0	01	1	0509-0809		●
42	SLEEVE	1-33262-222-0	01	1	0810-	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	0810-	●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	0810-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0509-		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0509-0809		●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0810-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0810-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0509-		●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0810-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0509-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0810-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0810-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0509-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0509-		●
57	SLEEVE; REV	1-33262-209-1	01	1	0810-	●
58	HUB; CLU,REV	1-33261-286-1	01	1	0810-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0810-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0509-		●
66	RING; BLOCK,SYN (A)	1-33265-588-0	04	1	0810-1312	●
66	RING; BLOCK,SYN (A)	8-98239-909-1	04	1	1401-	●
66	RING; BLOCK,SYN (B)	1-33265-590-0	04	1	0810-1307	●
66	RING; BLOCK,SYN (B)	8-98239-294-0	04	1	1308-1312	●
66	RING; BLOCK,SYN (B)	8-98239-911-1	04	1	1401-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	0810-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0810-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0509-		●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0810-	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0509-1506		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-		●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0810-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0509-		●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0810-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0509-1506		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-		●
120	SLEEVE	1-33262-229-0	01	1	0810-	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0810-1311	●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0810-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0810-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0810-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0509-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0509-		●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0810-	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0810-	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	0810-	●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0810-1403	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0509-		●
231	PLUNGER (A)	1-33263-033-0	06	1	0810-1403	●
231	PLUNGER (A)	8-98273-831-0	06	1	1404-	●
231	PLUNGER (B)	1-33263-038-1	12	1	0810-	●
231	PLUNGER (C)	1-33263-020-0	03	1	0509-		●
238	INSERT (A)	1-33263-036-0	06	1	0810-	●
238	INSERT (B)	1-33263-039-0	09	1	0810-	●
238	INSERT (C)	1-33263-025-2	06	1	0509-		●
241	RING; SNAP (A)	1-09587-023-0	02	1	0810-	●
241	RING; SNAP (B)	1-09587-104-0	01	1	0810-	●
241	RING; SNAP (A)	1-09588-185-0	01	1	0509-		●
241	RING; SNAP (B)	1-09588-189-0	01	1	0509-		●
278	NUT; BRG	1-09449-080-0	01	1	0810-	●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0810-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-228-0	01	1	0810-	●
323	INSERT	1-33263-041-0	03	1	0810-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	0810-	●
324	HUB; CLU (B)	1-34371-017-0	01	1	0810-1307	●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-	●
324	HUB; CLU (C)	1-33261-238-0	01	1	0509-		●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0810-	●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0810-	●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0810-	●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0810-1307	●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-	●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0810-	●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0810-	●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0810-	●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0810-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0810-	●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0509-1211		●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0509-0809		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0810-	●	●
357	RING	1-31349-044-0	04	1	0810-	●
357	RING	1-31349-015-0	01	1	0509-		●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0810-	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0810-0910	●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-	●
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0810-0910	●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0810-	●
437	PLATE; LOCK	1-34252-032-0	01	1	0810-	●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33265-616-0	02	1	0810-1307	●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-293-0	02	1	1308-1312	●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-908-1	02	1	1401-	●
467	COLLAR; SHAFT	1-33234-091-1	01	1	0810-	●
471	SHAFT; INPUT	1-33215-020-0	01	1	0810-1102	●
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-	●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0810-1407	●
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410	●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-	●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0810-1407	●
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410	●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-	●
482	GEAR; PRIMARY Z=29	1-33253-718-0	01	1	0810-	●
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0810-1007	●
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504	●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-	●
484	PLATE; SETTING	1-33313-023-0	01	1	0810-	●
485	PIECE; GUIDE	1-33363-040-1	01	1	0810-	●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0810-1307	●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312	●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-	●
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0810-1211	●
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307	●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-	●
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0810-1307	●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-	●
489	WASHER; THRUST	1-09503-308-0	01	1	0810-	●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0810-	●
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0810-	●
492	BOLT; PLATE	1-09000-740-0	02	1	0810-	●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0810-	●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0810-1307	●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0810-	●
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0810-	●
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0810-	●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0810-1307	●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0810-1307	●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-	●
498	CONE; SYN	1-33265-617-0	04	1	0810-1312	●
498	CONE; SYN	8-98239-910-0	04	1	1401-	●
612	GALLERY; OIL	8-98239-463-0	01	1	1308-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
