Sayfa 0-39 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶

0-39 — AIR COMPRESSOR; BRAKE (#2950) — 176 parça

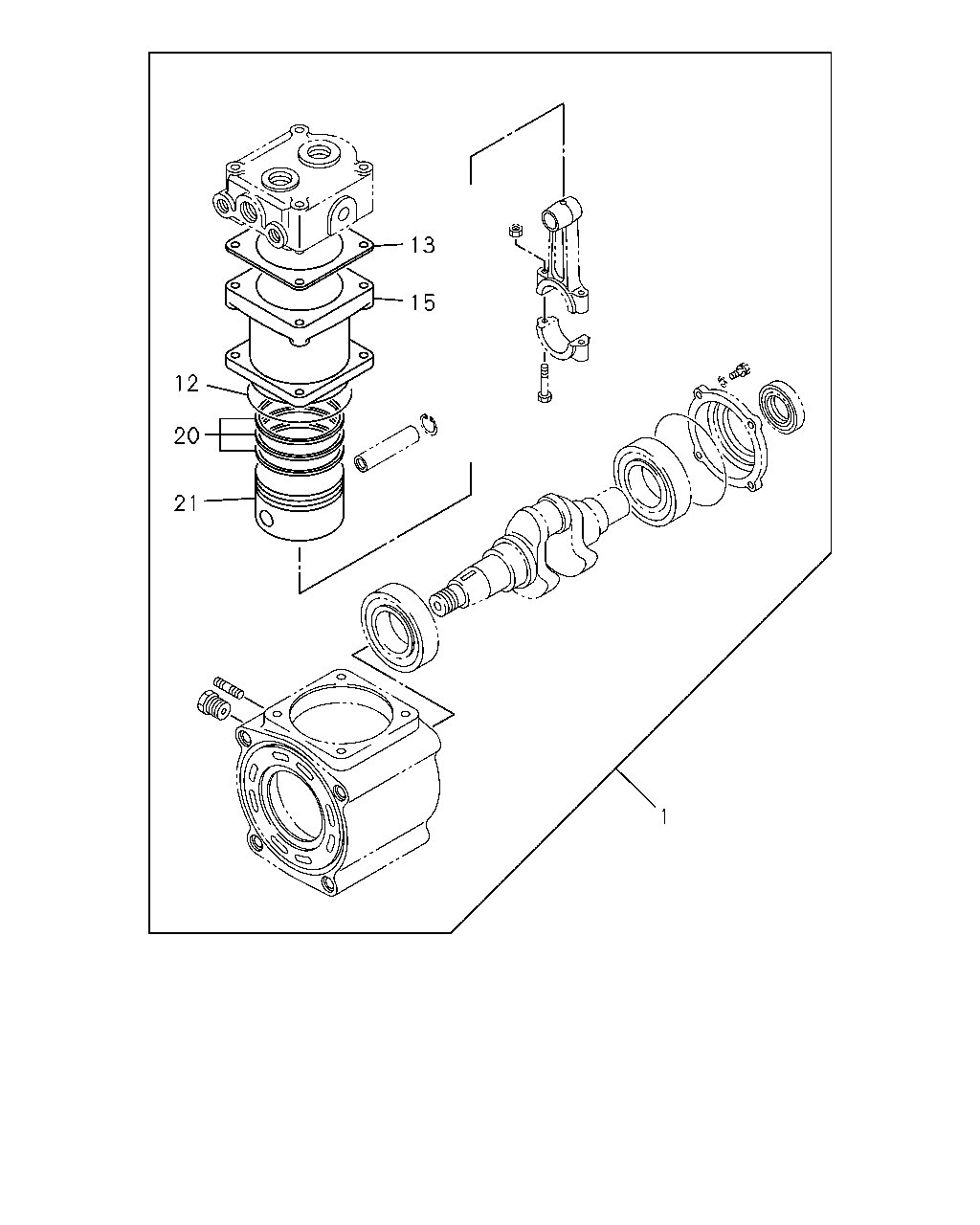

13 15 12 20 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-032-0	01	1	9002-9306	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-038-0	01	1	9002-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-038-0	01	1	9002-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-007-0	01	1	9002-9306	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19139-009-0	01	1	9002-9306	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19139-001-0	01	1	9002-	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9002-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-236-0	01	1	9002-9306	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-251-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9002-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-029-0	01	1	9002-9306	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9002-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-014-0	01	1	9002-9306	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9002-		●

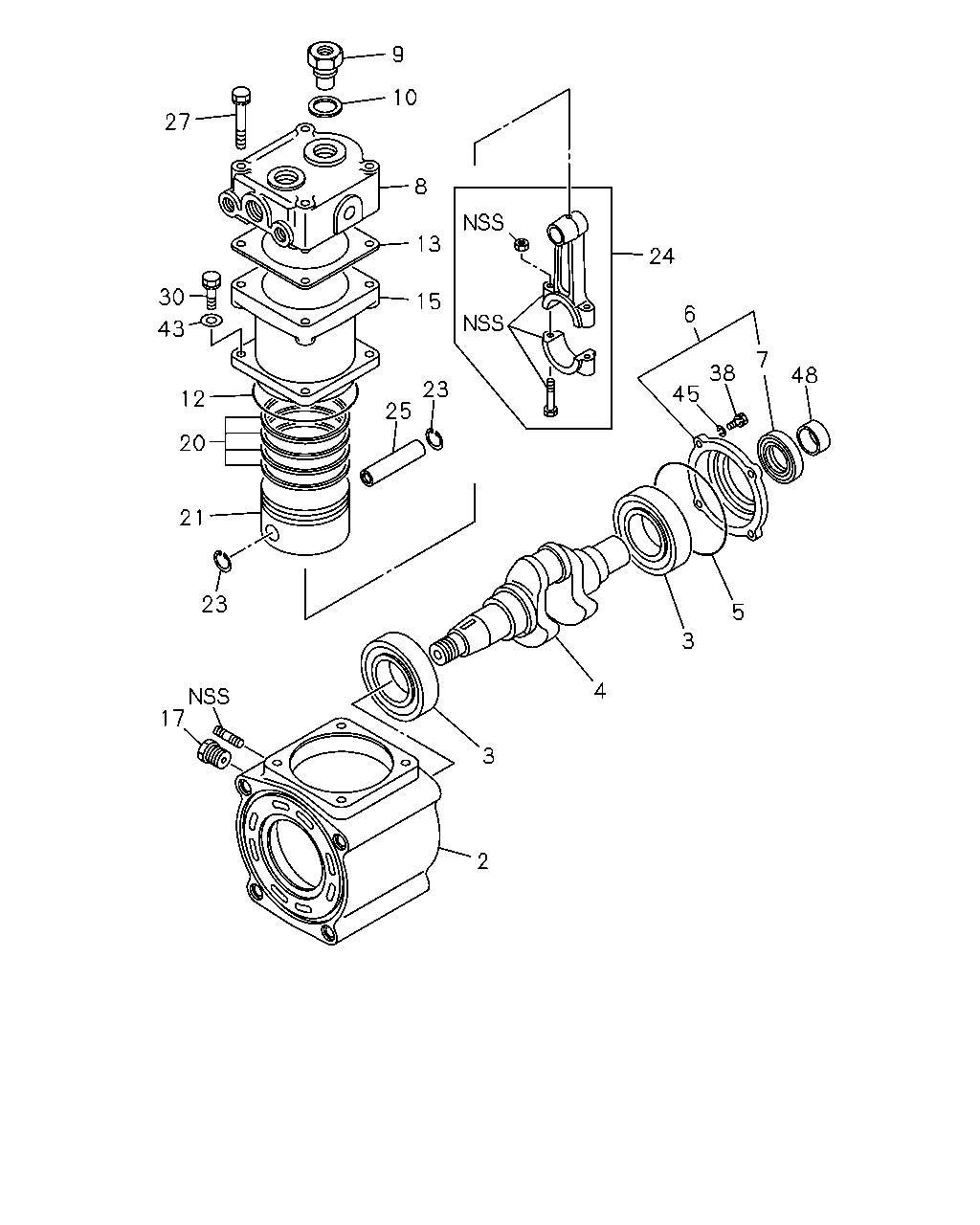

9 10 8 27 30 43 13 15 12 20 21 23 25 23 24 6 45 38 7 48 5 3 4 3 2 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-238-0	01	1	9002-9306	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-233-0	01	1	9002-	●
2	CRANKCASE; AIR CMPR	1-19151-233-0	01	1	9002-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9002-9306	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9002-9306	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09800-232-0	02	1	9002-	●
3	BEARING; AIR CMPR	1-09800-232-0	02	1	9002-		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-028-0	01	1	9002-9111	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-031-0	01	1	9112-9306	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-023-1	01	1	9002-	●
4	CRANKSHAFT; AIR CMPR	1-19171-023-1	01	1	9002-		●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9002-9306	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-150-0	01	1	9002-	●
5	GASKET; AIR CMPR	1-09623-150-0	01	1	9002-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-039-0	01	1	9002-9306	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-049-0	01	1	9002-9311	●
6	COVER ASM; BRG,AIR CMPR	1-19156-049-0	01	1	9002-9311		●
6	COVER ASM; BRG,AIR CMPR	1-19156-070-0	01	1	9312-		●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09625-187-0	01	1	9002-9311	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-187-0	01	1	9002-9311		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9312-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-035-1	01	1	9002-9111	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-050-0	01	1	9112-9306	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-027-0	01	1	9002-9204	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-027-0	01	1	9002-9204		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-016-0	01	1	9205-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	9205-		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-009-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-018-0	01	1	9112-9306	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-002-0	01	1	9002-9204	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-002-0	01	1	9002-9204		●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-021-1	01	1	9205-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	9205-		●
10	SHIM; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19139-021-0	01	1	9002-	●
10	SHIM; AIR CMPR	9-19139-021-0	01	1	9002-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-007-0	01	1	9002-9306	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19139-009-0	01	1	9002-9306	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19139-001-0	01	1	9002-	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9002-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-236-0	01	1	9002-9306	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-251-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9002-		●
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-09902-405-0	01	1	9002-	●
17	ADAPTER; AIR CMPR	9-09902-405-0	01	1	9002-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-029-0	01	1	9002-9306	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9002-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-014-0	01	1	9002-9306	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9002-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-005-0	02	1	9002-9306	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9002-		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-012-0	01	1	9002-9306	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-007-0	01	1	9002-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	9002-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-007-0	01	1	9002-9306	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9002-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19119-013-0	04	1	9002-9306	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19119-014-0	02	1	9002-9306	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X60	9-01066-060-0	04	1	9002-	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	9002-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19159-007-0	04	1	9002-9306	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19159-004-0	04	1	9002-	●
30	BOLT; CYL TO CRANKCASE	1-19159-004-0	04	1	9002-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19179-011-0	04	1	9002-9306	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9002-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9002-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9002-	●	●
45	WASHER; PL,COVER FIX,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.4	9-09164-508-0	04	1	9002-	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09164-508-0	04	1	9002-		●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9312-		●

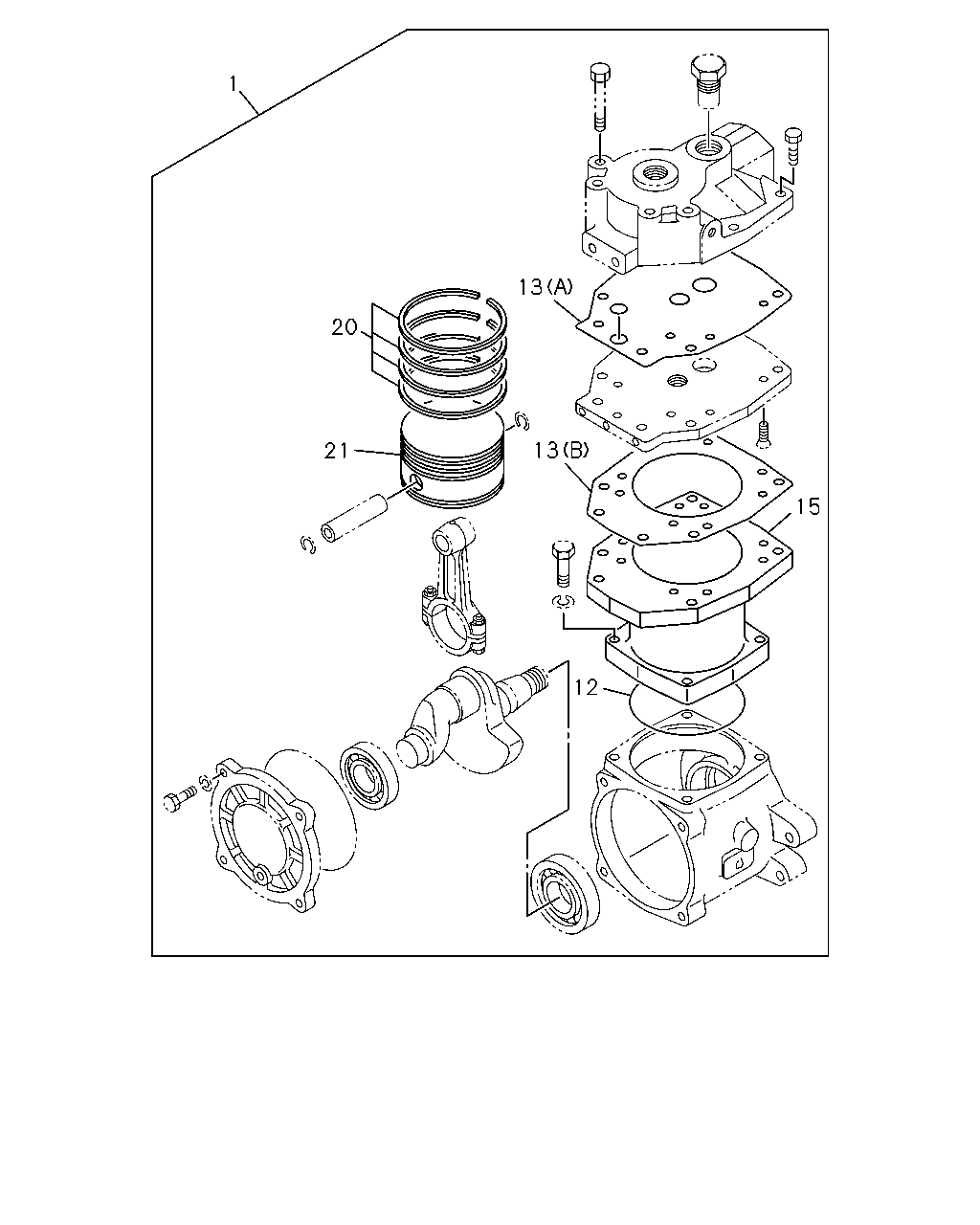

1 13 20 21 13 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-032-0	01	1	9002-9306	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-038-0	01	1	9002-	●
1	LINER KIT; CYL,AIR CMPR	1-19163-038-0	01	1	9002-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-007-0	01	1	9002-9306	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19139-009-0	01	1	9002-9306	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19139-001-0	01	1	9002-	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9002-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-236-0	01	1	9002-9306	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-251-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9002-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-029-0	01	1	9002-9306	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9002-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-014-0	01	1	9002-9306	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9002-		●

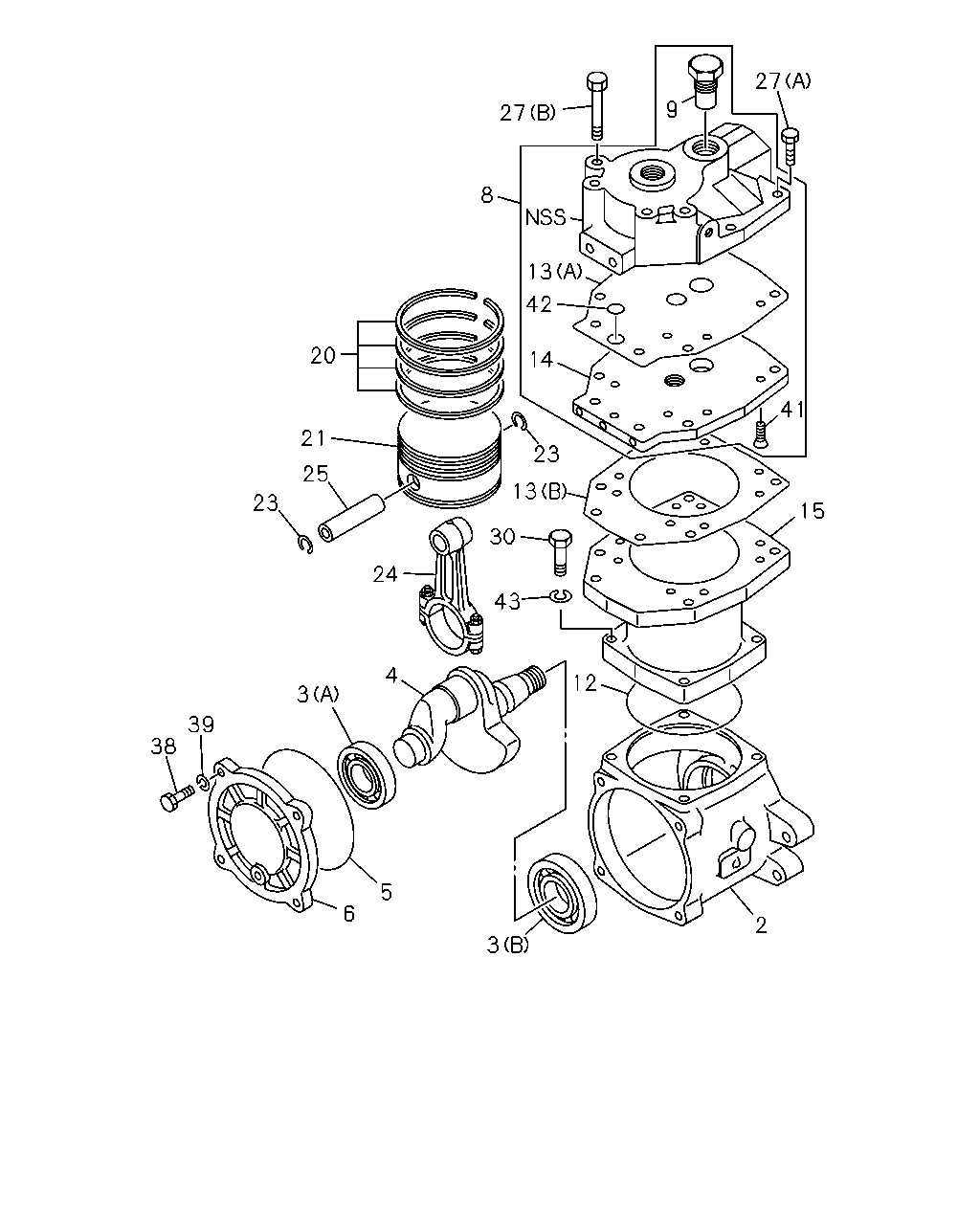

27 9 27 8 13 42 14 41 15 23 13 30 43 12 20 21 25 23 24 4 3 39 38 5 6 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-238-0	01	1	9002-9306	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-233-0	01	1	9002-	●
2	CRANKCASE; AIR CMPR	1-19151-233-0	01	1	9002-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9002-9306	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9002-9306	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09800-232-0	02	1	9002-	●
3	BEARING; AIR CMPR	1-09800-232-0	02	1	9002-		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-028-0	01	1	9002-9111	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-031-0	01	1	9112-9306	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-023-1	01	1	9002-	●
4	CRANKSHAFT; AIR CMPR	1-19171-023-1	01	1	9002-		●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9002-9306	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-150-0	01	1	9002-	●
5	GASKET; AIR CMPR	1-09623-150-0	01	1	9002-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-039-0	01	1	9002-9306	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-049-0	01	1	9002-9311	●
6	COVER ASM; BRG,AIR CMPR	1-19156-049-0	01	1	9002-9311		●
6	COVER ASM; BRG,AIR CMPR	1-19156-070-0	01	1	9312-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-035-1	01	1	9002-9111	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-050-0	01	1	9112-9306	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-027-0	01	1	9002-9204	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-027-0	01	1	9002-9204		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-016-0	01	1	9205-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	9205-		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-009-0	01	1	9002-9111	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-018-0	01	1	9112-9306	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-002-0	01	1	9002-9204	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-002-0	01	1	9002-9204		●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-021-1	01	1	9205-	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	9205-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9002-	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-007-0	01	1	9002-9306	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19139-009-0	01	1	9002-9306	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19139-001-0	01	1	9002-	●
13	GASKET; AIR CMPR	1-19139-001-0	01	1	9002-		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-017-1	01	1	9002-9306	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-236-0	01	1	9002-9306	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-251-0	01	1	9002-	●
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	9002-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-029-0	01	1	9002-9306	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9002-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-034-0	01	1	9002-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-014-0	01	1	9002-9306	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9002-	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9002-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-005-0	02	1	9002-9306	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9002-	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9002-		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-012-0	01	1	9002-9306	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-007-0	01	1	9002-	●
24	ROD ASM; CONN,AIR CMPR	1-19173-007-0	01	1	9002-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-007-0	01	1	9002-9306	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9002-	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9002-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19119-013-0	04	1	9002-9306	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19119-014-0	02	1	9002-9306	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X60	9-01066-060-0	04	1	9002-	●
27	BOLT; HD M10X60	9-01066-060-0	04	1	9002-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19159-007-0	04	1	9002-9306	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19159-004-0	04	1	9002-	●
30	BOLT; CYL TO CRANKCASE	1-19159-004-0	04	1	9002-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19179-011-0	04	1	9002-9306	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9002-	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9002-		●
39	WASHER; LK,COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.2	9-09150-608-0	04	1	9002-9306	●
41	SCREW; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09100-018-0	02	1	9002-9306	●
42	GASKET; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-402-0	02	1	9002-9306	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
