2-07 — CLUTCH BOOSTER; MINIPACK (#29496) — 213 parça

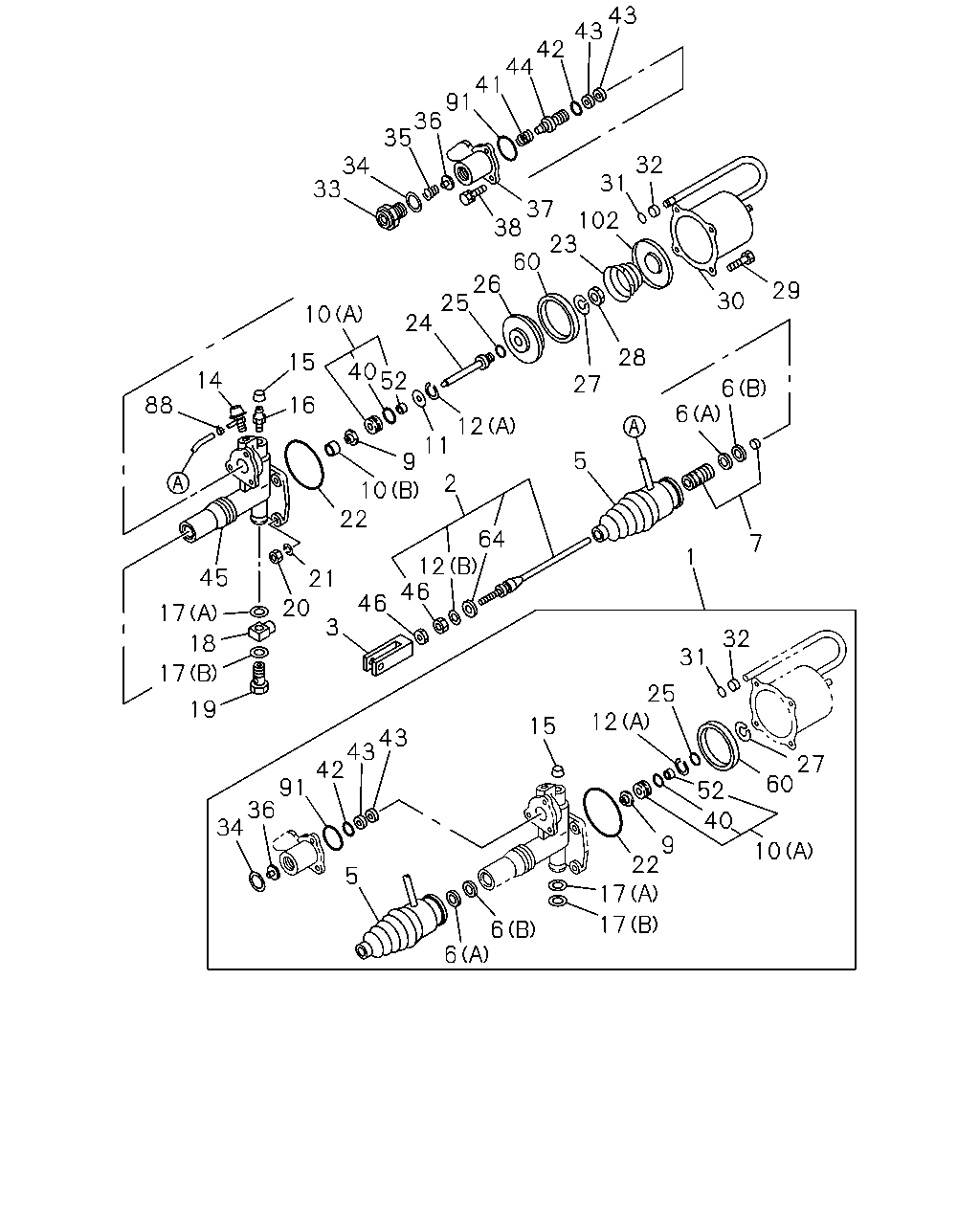

çizim 104669
43 43 42 44 41 91 36 35 32 34 33 31 37 38 102 23 60 26 25 24 29 30 10 28 15 40 52 14 27 6 88 16 6 12 11 5 9 10 22 2 64 12 46 7 1 45 21 46 20 17 3 32 18 31 17 25 19 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0810- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 0509- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0810- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0509-0910 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 0911- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 0911- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0509-0809 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0810-0910 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0911- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0810- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0509- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0810- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0810- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0509- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0509- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0810- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0509- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0509-0809 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0810- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0509-0809 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0810- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0509-0809 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0810- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0509-0809 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0810- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0810- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0509-0809 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0810- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0810- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0509- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0509-0809 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0810- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0810- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0509- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0509-0809 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0810- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0509-0809 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0810- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0509-0809 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0810- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0509-0809 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0810- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 0911- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0509-0809 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0810-0910 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0911- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0509-0809 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0810- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0509-0809 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0810- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0810- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0509- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0810- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0509- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0509-0809 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0810- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0810- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0509- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0509-0809 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0810- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0509-0809 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0810- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0509-0809 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0810- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0810- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0509- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0509-0809 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0810- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0509-0809 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0810- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0509-0809 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0810- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0509-0809 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0810- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0810- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0509- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0810- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0509- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0509-0809 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0810- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0509-0809 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0810- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0509-0809 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0810- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0810- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0509- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0509-0809 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0810- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0509-0809 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0810- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0509-0809 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0810- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0810- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0509- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0810- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0509-0910 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 02 1 0911- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0509-0809 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0810- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0810- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0509- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 0810- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 0810- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0509-0809 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0810- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 0810- ●

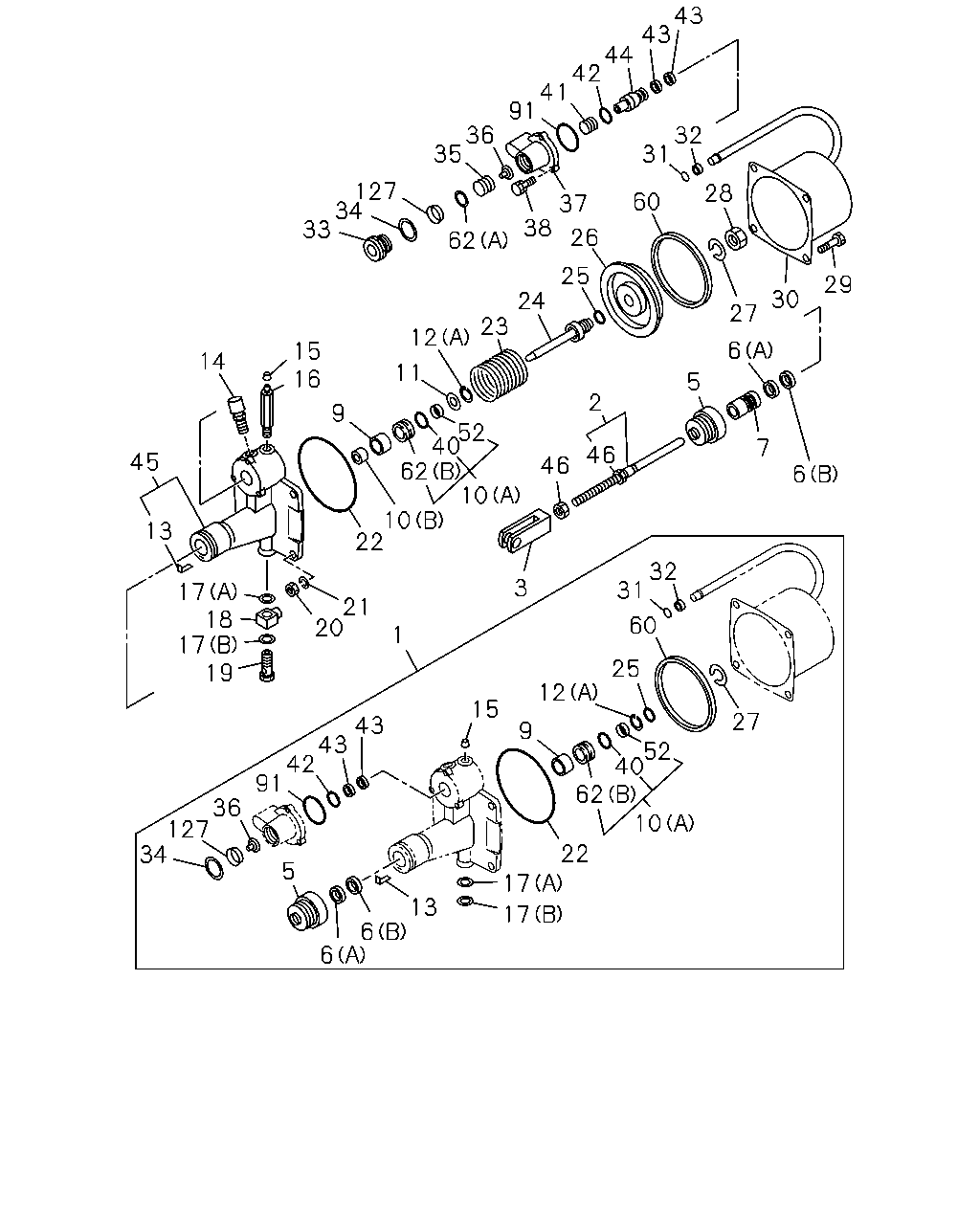

çizim 105243
43 43 44 42 41 91 36 35 32 31 127 34 33 28 60 37 38 26 62 25 29 30 24 23 27 12 6 15 16 14 11 5 2 9 52 40 62 10 7 46 45 46 6 10 22 13 32 31 3 17 18 17 19 21 20 60 1 25 12 15 27 43 43 42 91 9 52 40 62 10 36 127 34 22 17 5 13 6 17 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0810- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 0509- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0810- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0509-0910 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 0911- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 0911- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0509-0809 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0810-0910 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0911- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0810- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0509- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0810- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0810- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0509- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0509- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0810- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0509- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0509-0809 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0810- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0509-0809 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0810- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0509-0809 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0810- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0509-0809 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0810- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0810- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0509-0809 ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0810- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0509- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0810- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0509- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0509-0809 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0810- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0810- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0509- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0509-0809 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0810- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0509-0809 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0810- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0509-0809 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0810- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0509-0809 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0810- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 0911- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0509-0809 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0810-0910 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0911- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0509-0809 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0810- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0509-0809 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0810- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0810- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0509- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0810- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0509- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0509-0809 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0810- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0810- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0509- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0509-0809 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0810- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0509-0809 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0810- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0509-0809 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0810- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0810- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0509- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0509-0809 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0810- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0509-0809 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0810- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0509-0809 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0810- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0509-0809 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0810- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0810- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0509- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0810- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0509- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0509-0809 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0810- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0509-0809 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0810- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0509-0809 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0810- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0810- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0509- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0509-0809 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0810- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0509-0809 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0810- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0509-0809 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0810- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0810- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0509- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0810- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0509-0910 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 02 1 0911- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0509-0809 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0810- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0810- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0509- ●
62 RETAINER; POPPET
(B) 		1-31829-357-0 01 1 0509- ●
62 RETAINER; POPPET
(A) 		1-31829-489-0 01 1 0509- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0509-0809 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0810- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 0509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
