Isuzu WW
▶
TRUCKS
▶
EXR
▶
10950 - EXR LHD WEDGE BRAKE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#29493) — 155 parça
Tümü
A - MJT7S M/T
B - MJX16P M/T
◀
[201A] MJT;BOOSTER AND BRACKET (35 parça)
[201A] MJX;BOOSTER AND BRACKET (26 parça)
[201A] MJX;DISC AND PLATE (31 parça)
[201A] MJT;DISC AND PLATE (63 parça)
▶

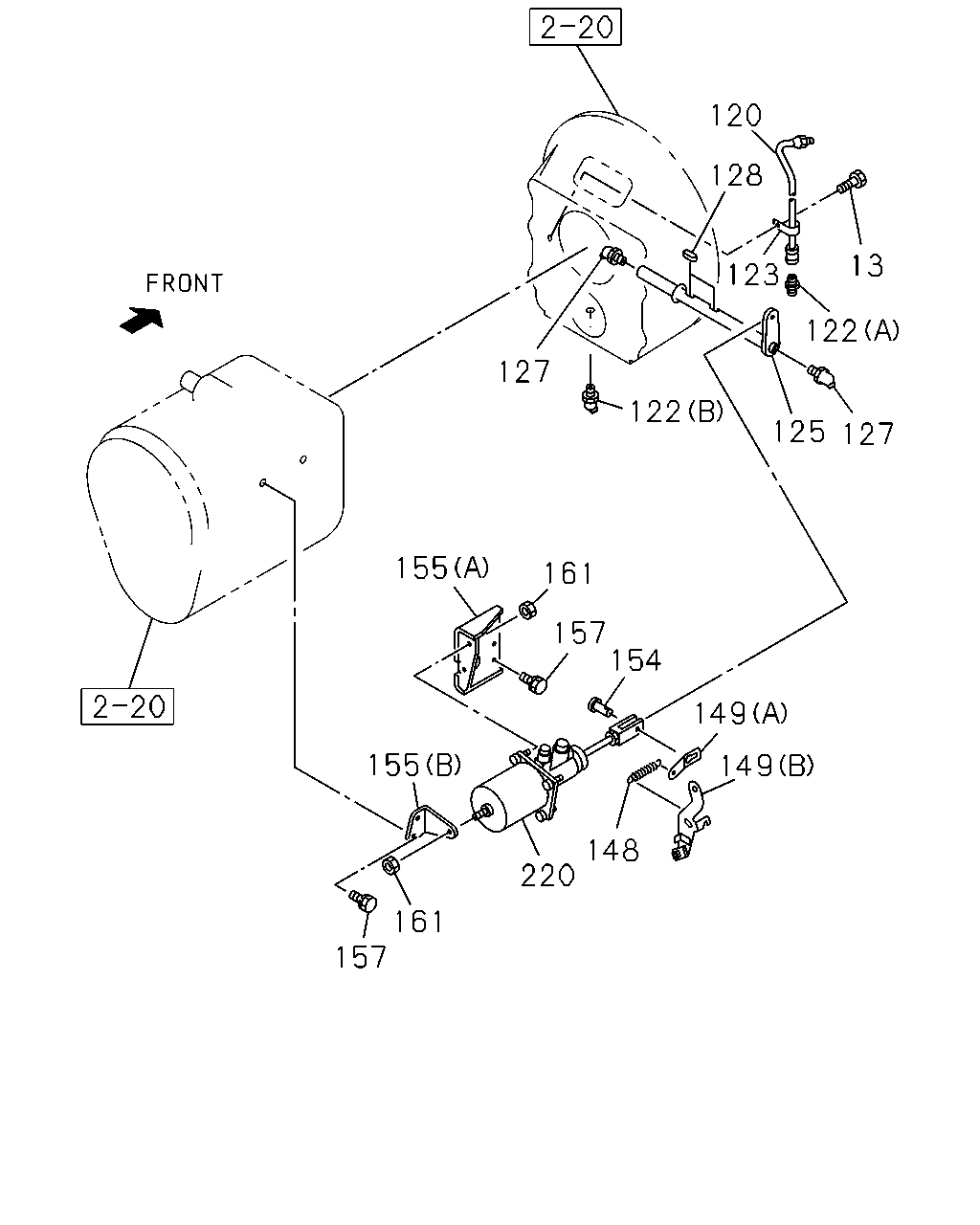

120
128
13
123
122
127
122
125
127
155
161
157
154
149
155
149
148
220
161
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0509-0512
●
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0509-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
0509-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
0509-0512
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
0601-
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
0509-0606
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0607-
●
125
SHAFT; CLU
1-31342-324-0
01
1
0810-
●
125
SHAFT; CLU
1-31342-262-0
01
1
0509-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0509-0512
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-0809
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0810-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0509-0809
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0810-
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0509-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-048-0
01
1
0509-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
0509-
●
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
0810-
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
0509-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
0810-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
0810-
●
155
BRACKET; MINIPACK
(A)
1-31429-323-1
01
1
0509-
●
155
BRACKET; MINIPACK
(B)
1-31429-350-0
01
1
0509-
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
01
1
0810-
●
157
BOLT; BRKT
M10X30 FLANGE
0-28751-030-0
02
1
0810-
●
157
BOLT; BRKT
M10X25 FLANGE
0-28181-025-0
03
1
0509-0512
●
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
0601-
●
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
0509-0602
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0603-0809
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0810-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
0810-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-424-2
01
1
0509-0910
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-556-0
01
1
0911-
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
0810-
●

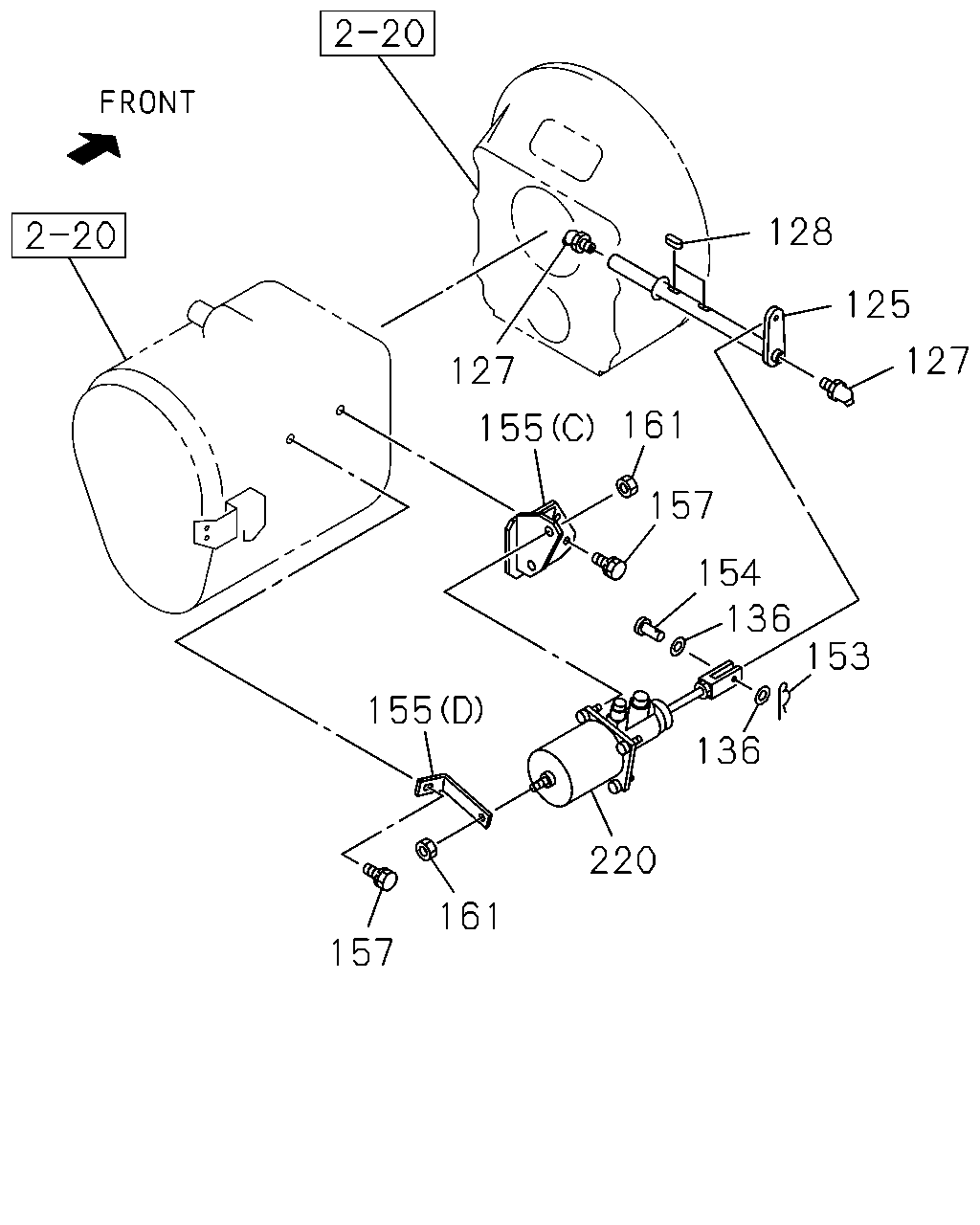

128
125
127
127
161
155
157
154
136
153
155
136
220
161
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
125
SHAFT; CLU
1-31342-324-0
01
1
0810-
●
125
SHAFT; CLU
1-31342-262-0
01
1
0509-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0509-0512
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-0809
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0810-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0509-0809
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0810-
●
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
0810-
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
0810-
●
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
0810-
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
0509-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
0810-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
0810-
●
155
BRACKET; MINIPACK
(A)
1-31429-323-1
01
1
0509-
●
155
BRACKET; MINIPACK
(B)
1-31429-350-0
01
1
0509-
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
01
1
0810-
●
157
BOLT; BRKT
M10X30 FLANGE
0-28751-030-0
02
1
0810-
●
157
BOLT; BRKT
M10X25 FLANGE
0-28181-025-0
03
1
0509-0512
●
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
0601-
●
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
0509-0602
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0603-0809
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0810-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
0810-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-424-2
01
1
0509-0910
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-556-0
01
1
0911-
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
0810-
●

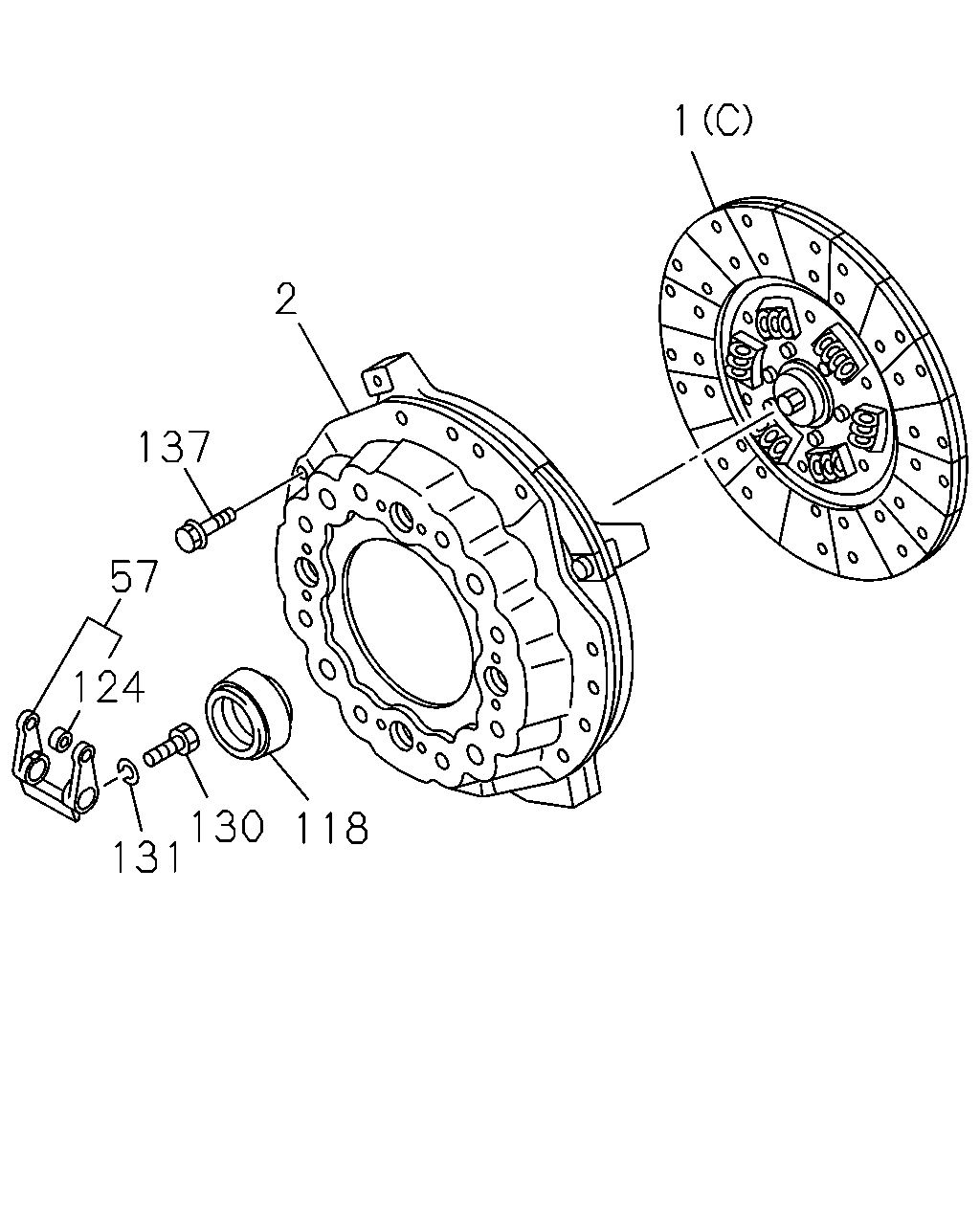

1
2
137
57
124
130
131
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
0810-
●
1
DISC; CLUTCH
(A) 15.5"
1-31240-873-0
01
1
0509-0702
●
1
DISC; CLUTCH
(A) 15.5"
1-31240-981-0
01
1
0703-1306
●
1
DISC; CLUTCH
(A) 15.5"
1-31260-038-0
01
1
1307-
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-874-0
01
1
0509-0702
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-982-0
01
1
0703-1306
●
1
DISC; CLUTCH
(B) 15.5"
1-31260-039-1
01
1
1307-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
0810-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-329-2
01
1
0509-
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
0810-
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
0509-
●
118
BEARING; CLU RELEASE
1-31310-021-0
01
1
0810-1306
●
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1307-
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
0509-
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-149-0
01
1
0509-
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
0810-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0509-
●
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
0509-0512
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0601-0809
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0810-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0509-0603
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-0809
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0810-
●
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
0810-
●
137
BOLT; CLU COVER
M12X80
0-28181-280-0
02
1
0509-0512
●
137
BOLT; CLU COVER
M12X80
0-28151-280-0
02
1
0601-
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28181-290-0
10
1
0509-0512
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28151-290-0
10
1
0601-
●
137
BOLT; CLU COVER
M12X30
0-28781-230-0
04
1
0509-0512
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
04
1
0601-
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
0810-
●

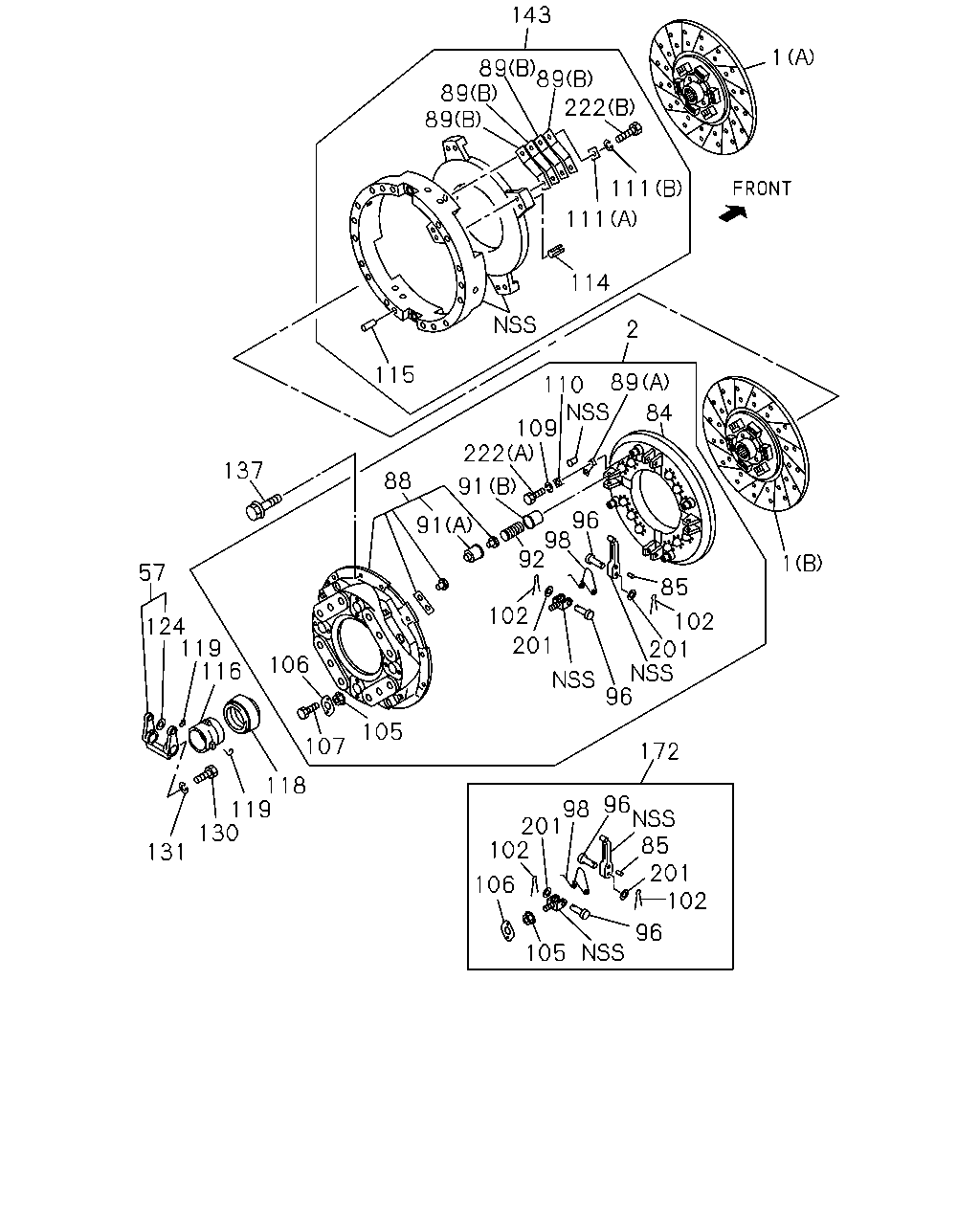

143
1
111
111
114
222
89
89
89
89
115
2
110
89
109
84
1
102
85
201
96
172
201
102
96
98
92
222
91
91
88
105
107
106
137
118
119
130
131
116
119
124
57
98
201
85
201
102
102
106
105
96
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
0810-
●
1
DISC; CLUTCH
(A) 15.5"
1-31240-873-0
01
1
0509-0702
●
1
DISC; CLUTCH
(A) 15.5"
1-31240-981-0
01
1
0703-1306
●
1
DISC; CLUTCH
(A) 15.5"
1-31260-038-0
01
1
1307-
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-874-0
01
1
0509-0702
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-982-0
01
1
0703-1306
●
1
DISC; CLUTCH
(B) 15.5"
1-31260-039-1
01
1
1307-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
0810-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-329-2
01
1
0509-
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
0810-
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
0509-
●
84
PLATE; PRESSURE
1-31221-087-0
01
1
0509-
●
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
0509-
●
88
COVER SUB ASM; CLU
1-31210-020-1
01
1
0509-
●
89
PLATE; STRAP
(A)
1-31229-010-0
12
1
0509-
●
89
PLATE; STRAP
(B)
1-31229-048-0
20
1
0509-
●
91
SEAT; SPR
(A)
1-31219-045-0
12
1
0509-
●
91
SEAT; SPR
(B)
1-31219-046-0
12
1
0509-
●
92
SPRING; CLU
1-31214-062-0
12
1
0509-
●
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
0509-
●
98
SPRING; RETURN
1-31233-007-0
04
1
0509-
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0509-
●
105
NUT; SUPPORT
1-31235-014-0
04
1
0509-
●
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0509-
●
107
BOLT; LK PLATE
1-31239-061-0
08
1
0509-
●
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
0509-0603
●
109
WASHER; LK,STRAP
ID=12.2
0-91510-512-0
04
1
0604-
●
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
0509-
●
111
WASHER; PL,STRAP
(A) ID=12
1-31229-006-0
08
1
0509-
●
111
WASHER; PL,STRAP
(B) ID=12.2
9-09150-512-0
08
1
0509-0603
●
111
WASHER; PL,STRAP
(B) ID=12.2
0-91510-512-0
08
1
0604-
●
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-033-0
04
1
0509-0702
●
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-037-0
04
1
0703-
●
115
PIN; STRAIGHT,FLYWHEEL,SPACER
D=10 L=25
1-09740-039-1
02
1
0509-
●
116
BLOCK; SHIFT,CLU
1-31321-093-1
01
1
0509-
●
118
BEARING; CLU RELEASE
1-31310-021-0
01
1
0810-1306
●
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1307-
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
0509-
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-149-0
01
1
0509-
●
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
0509-
●
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
0509-
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
0810-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0509-
●
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
0509-0512
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0601-0809
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0810-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0509-0603
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-0809
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0810-
●
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
0810-
●
137
BOLT; CLU COVER
M12X80
0-28181-280-0
02
1
0509-0512
●
137
BOLT; CLU COVER
M12X80
0-28151-280-0
02
1
0601-
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28181-290-0
10
1
0509-0512
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28151-290-0
10
1
0601-
●
137
BOLT; CLU COVER
M12X30
0-28781-230-0
04
1
0509-0512
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
04
1
0601-
●
143
PLATE; INTERMEDIATE
1-31221-109-0
01
1
0509-0702
●
143
PLATE; INTERMEDIATE
1-31221-133-0
01
1
0703-
●
172
LEVER KIT; RELEASE,CLU
1-87831-164-1
01
1
0509-
●
201
WASHER; PIN LEVER SUPPORT
ID=14
9-09651-098-0
08
1
0509-
●
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
0509-
●
222
BOLT; STRAP
(B) M12X26.7
1-09040-086-0
08
1
0509-
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
0810-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
