1-50 — EXHAUST PIPE AND SILENCER
(#29491) — 46 parça
◀

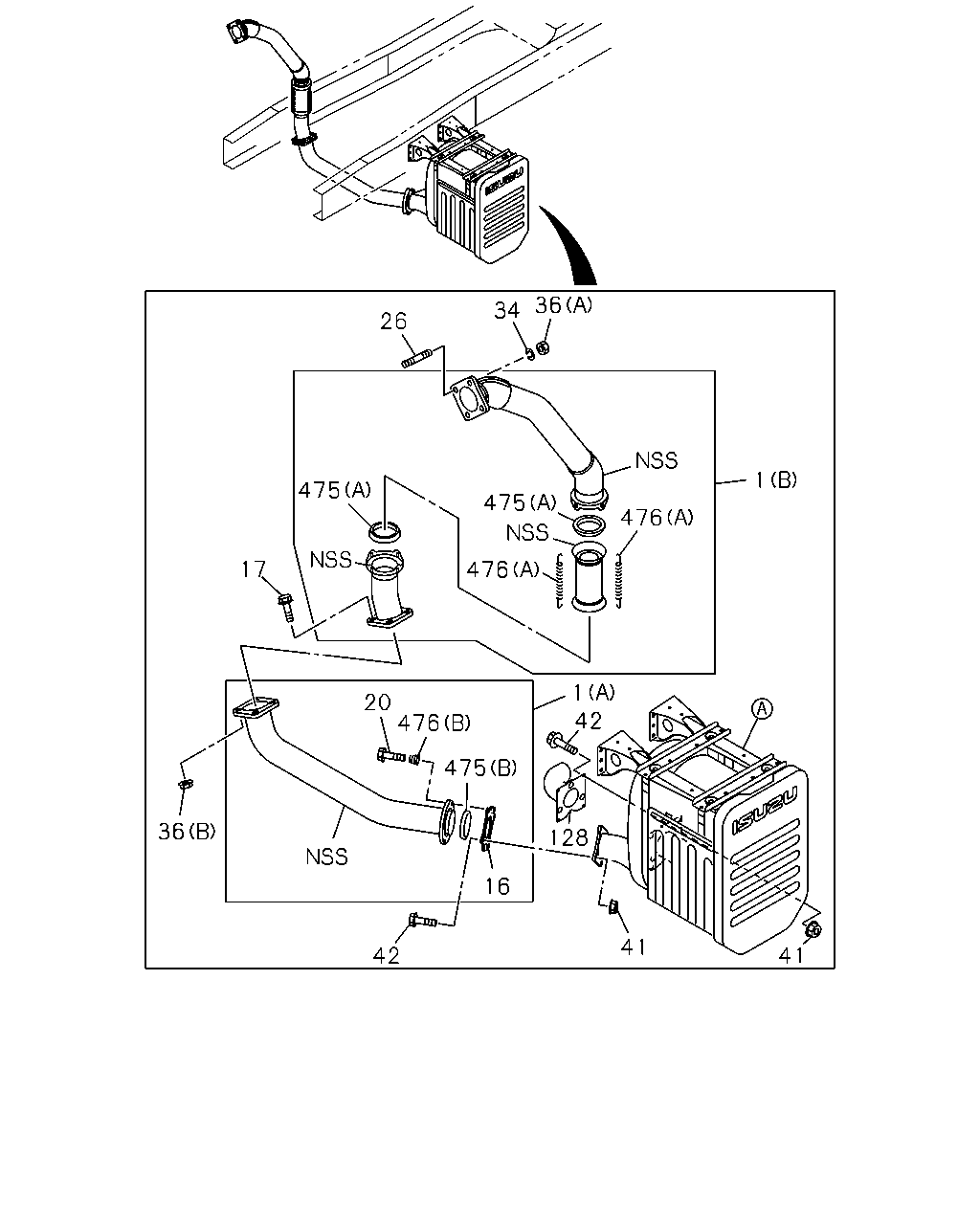

[150A] EXHAUST PIPE (19 parça)

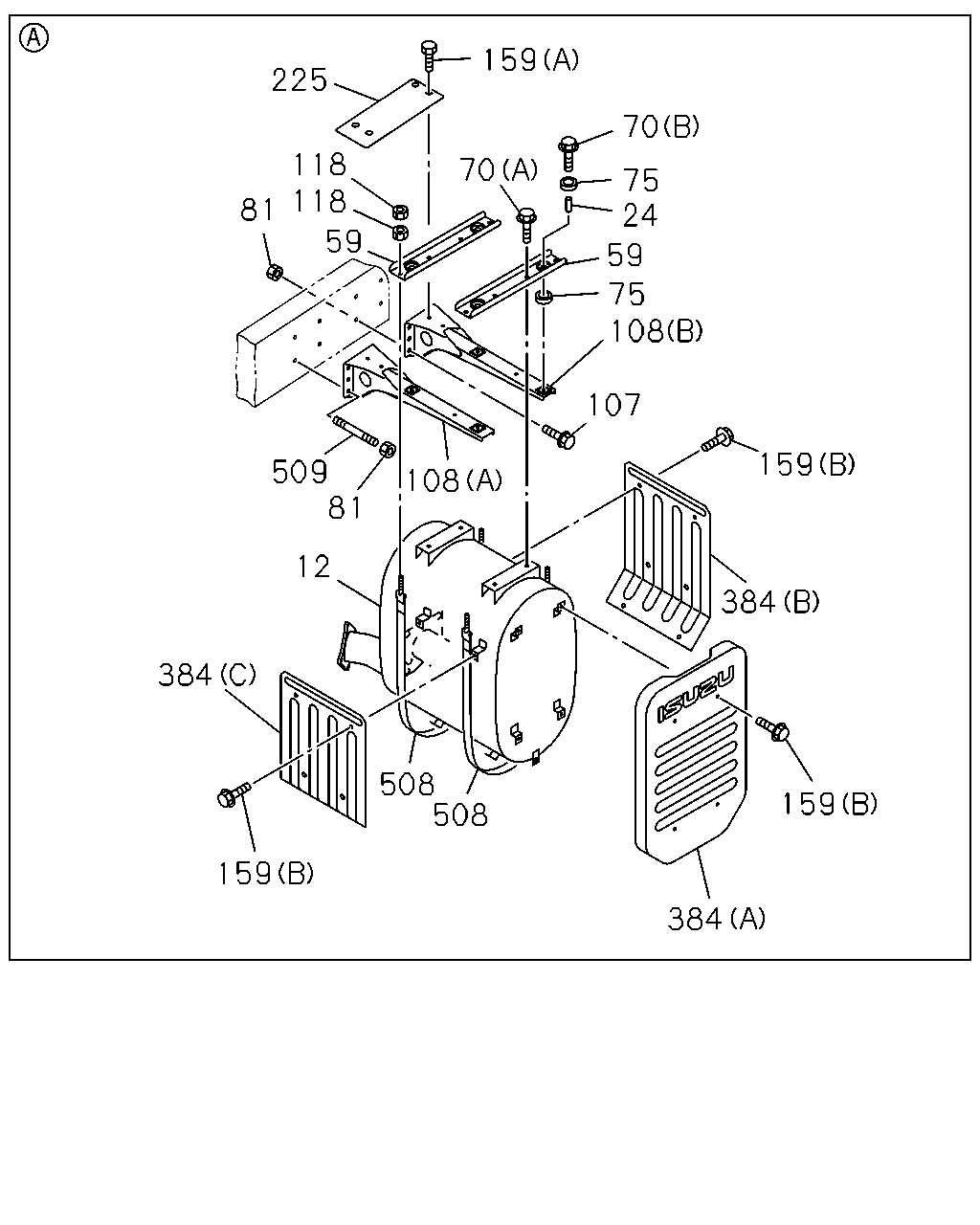

[150A] SILENCER (27 parça)
▶
36
34
26
1
475
475
476
17
476
1
42
20
476
475
36
128
16
41
42
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(A)
1-22123-573-1
01
1
0509-
1
PIPE; EXH
(B)
1-22123-646-2
01
1
0509-0606
1
PIPE; EXH
(B)
1-22124-027-0
01
1
0607-
16
FLANGE; EXH PIPE
1-22115-217-0
01
1
0509-
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
0509-
20
BOLT; FLANGE,EXH PIPE
M10X51.4
8-94436-943-0
02
1
0509-
26
STUD; EXH MANIF
M12X140 L=160
1-09302-163-0
04
1
0509-
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
0509-
36
NUT; EXH PIPE
(A) M12
1-09400-131-0
04
1
0509-
36
NUT; EXH PIPE
(B) M12
9-99110-512-0
04
1
0509-0512
36
NUT; EXH PIPE
(B) M12
0-91110-512-0
04
1
0601-
41
NUT; EXH PIPE TO EXH SILENCER
M12
9-99110-512-0
08
1
0509-0512
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
08
1
0601-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
08
1
0509-
128
PIPE; EXH,RR
1-22126-570-0
01
1
0509-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0509-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-0
02
1
0509-
476
SPRING; VIBNON,EXH PIPE
(B)
8-94141-851-0
02
1
0509-
476
SPRING; VIBNON,EXH PIPE
(A)
1-09583-248-0
04
1
0509-
159
225
70
118
118
70
75
24
81
59
59
75
108
107
108
159
509
81
12
384
384
508
508
159
159
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
SAUDI ARABIA EQUIPMENT(WH1)
8-98094-837-0
01
1
0709-
12
SILENCER ASM; EXH
1-22141-048-3
01
1
0509-0708
12
SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1)
1-22141-048-3
01
1
0709-
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
04
1
0509-
59
BRACKET; EXH SILENCER,FRT
1-22151-710-1
02
1
0509-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28081-050-0
04
1
0509-0512
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
04
1
0601-
70
BOLT; BRKT
(A) M10X20 FLANGE
0-28681-020-0
04
1
0509-0512
70
BOLT; BRKT
(A) M10X20 FLANGE
0-28651-020-0
04
1
0601-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
0509-
81
NUT; BRKT
M12 FLANGE
0-91150-212-0
08
1
0509-0602
81
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0603-
107
BOLT; BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0509-0512
107
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A)
1-22131-774-3
01
1
0509-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B)
1-22131-775-3
01
1
0509-
118
NUT; SILENCER MTG BRKT
M10
9-09110-510-0
08
1
0509-0512
118
NUT; SILENCER MTG BRKT
M10
0-91110-510-0
08
1
0601-
159
BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE
0-28680-820-0
02
1
0509-0512
159
BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
159
BOLT; HEAT PROTECTOR
(B) M8X22 W/LK&PL WASHER
1-09030-042-0
12
1
0509-
225
PROTECTOR; HEAT
1-22119-515-0
01
1
0509-
384
PROTECTOR; HEAT SILENCER MTG
(B)
1-22119-341-3
01
1
0509-
384
PROTECTOR; HEAT SILENCER MTG
(A)
1-22119-378-4
01
1
0509-
384
PROTECTOR; HEAT SILENCER MTG
(C)
1-22119-527-0
01
1
0509-
508
BAND; EXHAUST SILENCER
1-22159-382-0
02
1
0509-
509
STUD; BRKT
M12X40 L=56
1-09300-123-0
04
1
0509-
