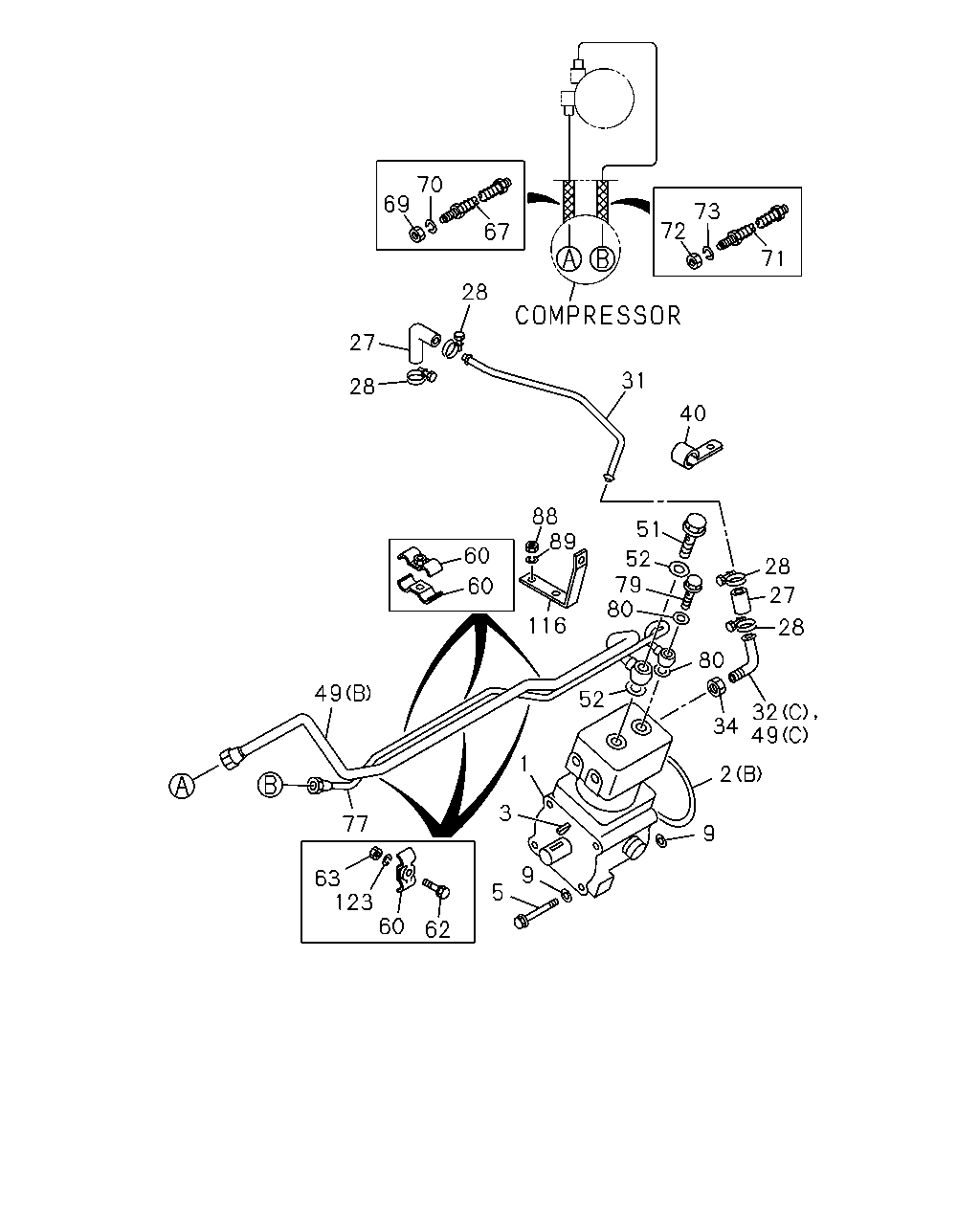

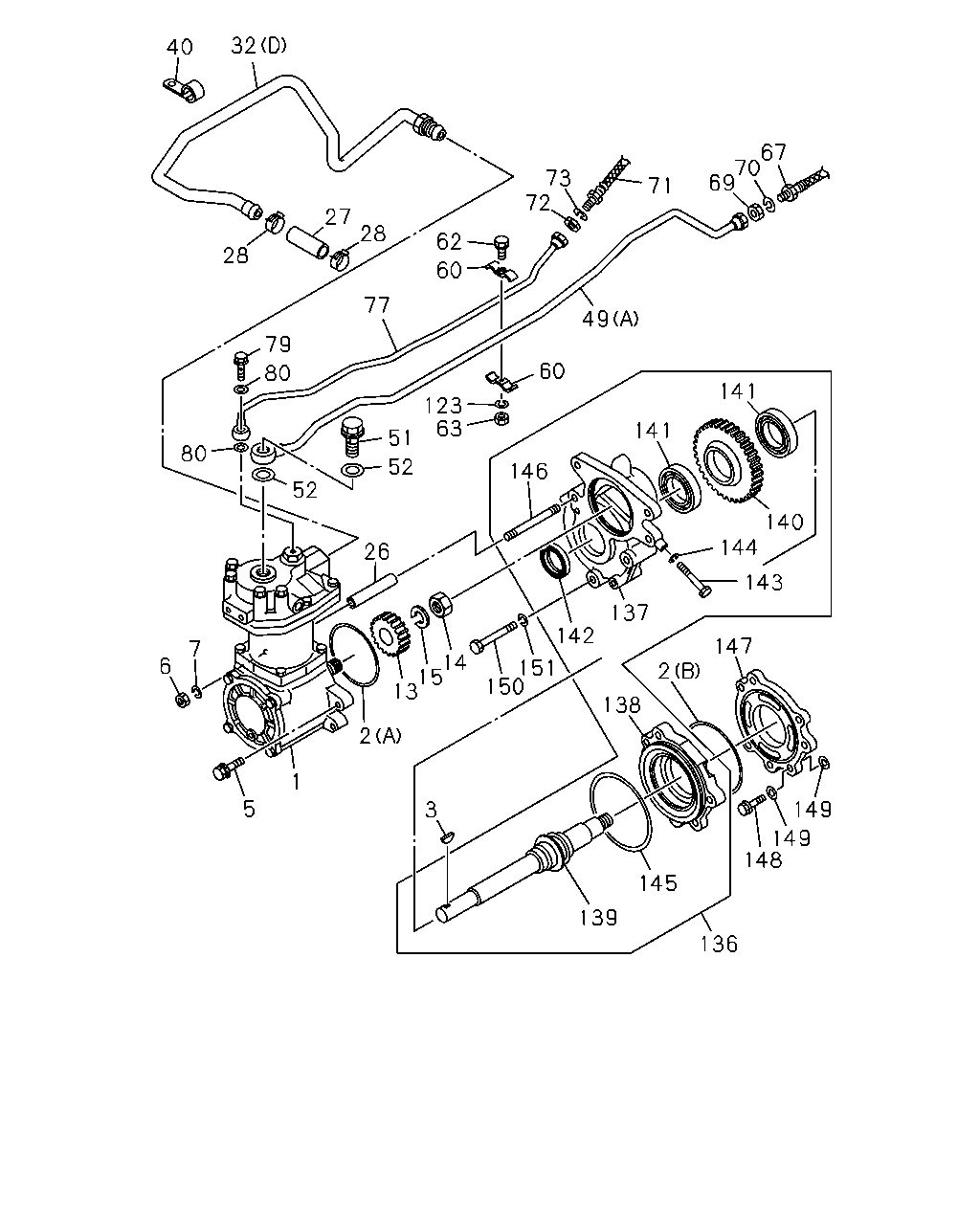

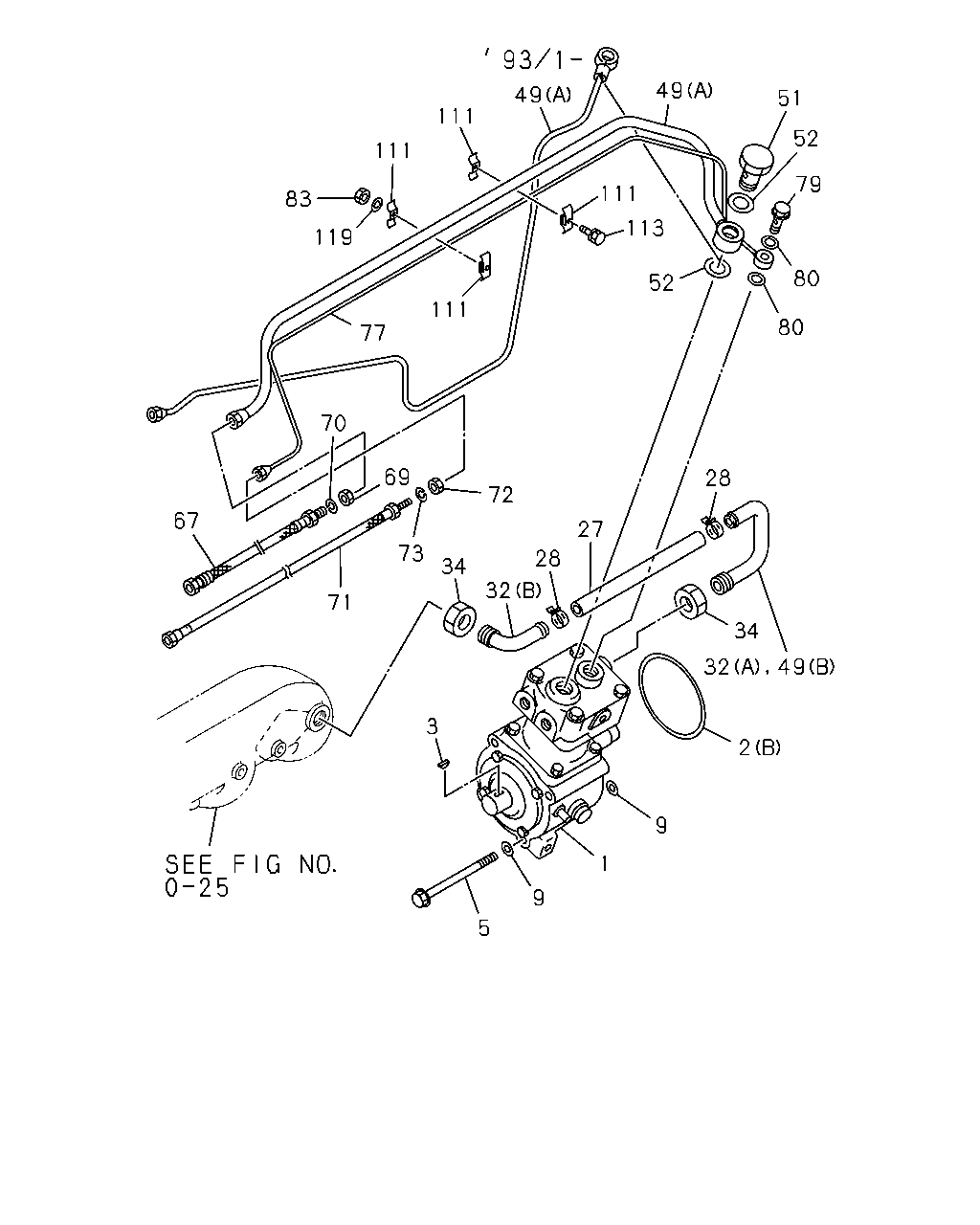

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#2949) — 205 parça

40 32 28 27 28 62 60 72 73 71 69 70 67 49 60 123 63 77 79 80 80 52 51 52 26 7 6 5 1 2 13 15 14 150 151 142 146 141 141 140 144 143 137 147 2 138 149 149 148 136 145 139 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-218-2	01	1	9002-9306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-232-5	01	1	9002-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-232-5	01	1	9002-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=105.6	1-09623-247-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (B) ID=124.6	1-09623-468-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>. (B) ID=124.6	1-09623-468-0	01	1	9002-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	01	1	9002-		●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-516-0	01	1	9002-9306	●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-622-0	01	1	9002-	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	9-01991-245-0	03	1	9002-9005	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	0-50151-245-0	03	1	9006-9306	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X143	1-09044-025-2	04	1	9002-	●
5	BOLT; AIR CMPR FIX M10X143	1-09044-025-2	04	1	9002-		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M12	9-99110-512-0	01	1	9002-9306	●
7	WASHER; LK,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=12.2	9-09150-512-0	01	1	9002-9306	●
13	GEAR; AIR CMPR DRIVE AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19372-007-0	01	1	9002-9306	●
14	NUT; GEAR AIR COMPRESSOR HEAVY DUTY<E1Q> M20	9-99111-520-0	01	1	9002-9306	●
15	WASHER; GEAR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=21	9-09164-520-0	01	1	9002-9306	●
26	COLLAR; DIST,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19189-003-1	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> TROPICAL ZONE KIT(WB6) L=65	1-09360-627-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> L=65	1-09360-627-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION L=265	1-09360-268-1	01	1	9002-9306		●
27	HOSE; AIR CMPR,SUCTION L=270	0-09818-270-0	01	1	9307-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	02	1	9002-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-		●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	04	1	9002-9306	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19192-300-0	01	1	9002-9306	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9002-9102	●
32	PIPE; AIR,AIR CMPR (A)	1-19191-328-0	01	1	9002-9102		●
32	PIPE; AIR,AIR CMPR (B)	9-19119-032-0	01	1	9002-		●
40	CLIP; AIR PIPE ID=19 L=28	9-09525-856-0	01	1	9002-9306	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-296-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-725-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-992-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19192-724-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9103-9306	●
49	PIPE; AIR,CHARGE (A)	1-19191-662-0	01	1	9002-9212		●
49	PIPE; AIR,CHARGE (A)	1-19192-721-0	01	1	9301-		●
49	PIPE; AIR,CHARGE (B)	1-19191-328-0	01	1	9103-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-9306	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9002-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-9306	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> WO/NUT	1-09700-547-0	06	1	9002-9306	●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> WO/NUT	1-09700-547-0	08	1	9002-9306	●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005	●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-9306	●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-9306	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-298-0	01	1	9002-9306	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19191-993-0	01	1	9002-9306	●
77	PIPE; AIR,GOV	1-19191-663-0	01	1	9002-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-9306	●
136	BOX ASM; GEAR,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19371-020-0	01	1	9002-9306	●
137	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19371-010-0	01	1	9002-9306	●
138	BODY; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19371-011-0	01	1	9002-9306	●
139	SHAFT; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19373-001-2	01	1	9002-9306	●
140	GEAR; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19372-008-0	01	1	9002-9306	●
141	BEARING; BALL,GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-00090-071-0	02	1	9002-9306	●
142	SEAL; OIL,GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09625-347-0	01	1	9002-9306	●
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY<E1Q> M8X60	9-01055-860-0	02	1	9002-9005	●
143	BOLT; BODY AIR COMPRESSOR HEAVY DUTY<E1Q> M8X60	0-10805-860-0	02	1	9006-9306	●
144	WASHER; LK,BODY AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.2	9-09150-508-0	02	1	9002-9306	●
145	GASKET; BODY AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-472-0	01	1	9002-9306	●
146	STUD; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09302-097-1	01	1	9002-9306	●
147	SPACER; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19371-009-0	01	1	9002-9306	●
148	BOLT; SPACER AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94257-289-0	04	1	9002-9306	●
149	GASKET; SPACER AIR COMPRESSOR HEAVY DUTY<E1Q> ID=11	1-09623-469-0	08	1	9002-9306	●
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X85	9-01666-285-0	03	1	9002-9306	●
150	BOLT; GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X35	9-02361-235-0	02	1	9002-9306	●
151	WASHER; PL,GEAR BOX AIR COMPRESSOR HEAVY DUTY<E1Q> ID=12.2	1-09503-008-0	05	1	9002-9306	●

70 69 67 72 73 71 28 27 28 31 40 88 60 60 89 116 49 77 63 123 60 62 5 9 3 1 52 80 79 52 51 28 27 28 80 34 32 49 2 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-218-2	01	1	9002-9306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-232-5	01	1	9002-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-232-5	01	1	9002-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=105.6	1-09623-247-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (B) ID=124.6	1-09623-468-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>. (B) ID=124.6	1-09623-468-0	01	1	9002-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	01	1	9002-		●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-516-0	01	1	9002-9306	●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-622-0	01	1	9002-	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	9-01991-245-0	03	1	9002-9005	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	0-50151-245-0	03	1	9006-9306	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X143	1-09044-025-2	04	1	9002-	●
5	BOLT; AIR CMPR FIX M10X143	1-09044-025-2	04	1	9002-		●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=11	1-09623-469-0	08	1	9002-	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	08	1	9002-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> TROPICAL ZONE KIT(WB6) L=65	1-09360-627-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> L=65	1-09360-627-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION L=265	1-09360-268-1	01	1	9002-9306		●
27	HOSE; AIR CMPR,SUCTION L=270	0-09818-270-0	01	1	9307-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	02	1	9002-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-		●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	04	1	9002-9306	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19191-765-0	01	1	9002-9306	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19192-300-0	01	1	9002-9306	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9002-9102	●
32	PIPE; AIR,AIR CMPR (A)	1-19191-328-0	01	1	9002-9102		●
32	PIPE; AIR,AIR CMPR (B)	9-19119-032-0	01	1	9002-		●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-09840-254-0	01	1	9002-9306	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9002-		●
40	CLIP; AIR PIPE ID=19 L=28	9-09525-856-0	01	1	9002-9306	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-296-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-725-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-992-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19192-724-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9103-9306	●
49	PIPE; AIR,CHARGE (A)	1-19191-662-0	01	1	9002-9212		●
49	PIPE; AIR,CHARGE (A)	1-19192-721-0	01	1	9301-		●
49	PIPE; AIR,CHARGE (B)	1-19191-328-0	01	1	9103-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-9306	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9002-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-9306	●
60	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> WO/NUT	1-09700-547-0	06	1	9002-9306	●
60	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> WO/NUT	1-09700-547-0	08	1	9002-9306	●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005	●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-9306	●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-9306	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-298-0	01	1	9002-9306	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19191-993-0	01	1	9002-9306	●
77	PIPE; AIR,GOV	1-19191-663-0	01	1	9002-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
88	NUT; BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09110-410-0	02	1	9002-9306	●
89	WASHER; LK,BRKT FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-510-0	02	1	9002-9306	●
116	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19199-112-0	01	1	9002-9306	●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-9306	●

51 52 79 80 80 49 49 111 111 111 113 52 111 119 83 77 70 67 69 72 73 71 34 32 28 27 28 34 32 49 2 9 1 9 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-218-2	01	1	9002-9306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-232-5	01	1	9002-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-232-5	01	1	9002-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=105.6	1-09623-247-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> (B) ID=124.6	1-09623-468-0	01	1	9002-9306	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>. (B) ID=124.6	1-09623-468-0	01	1	9002-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	01	1	9002-		●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-516-0	01	1	9002-9306	●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-08055-622-0	01	1	9002-	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	9-01991-245-0	03	1	9002-9005	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY<E1Q> M12X45	0-50151-245-0	03	1	9006-9306	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X143	1-09044-025-2	04	1	9002-	●
5	BOLT; AIR CMPR FIX M10X143	1-09044-025-2	04	1	9002-		●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=11	1-09623-469-0	08	1	9002-	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	08	1	9002-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> TROPICAL ZONE KIT(WB6) L=65	1-09360-627-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TROPICAL ZONE KIT(WB6) L=65	9-09919-309-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> L=65	1-09360-627-0	02	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION L=265	1-09360-268-1	01	1	9002-9306		●
27	HOSE; AIR CMPR,SUCTION L=270	0-09818-270-0	01	1	9307-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	02	1	9002-	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-		●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=26	1-09707-091-0	04	1	9002-9306	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19192-300-0	01	1	9002-9306	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9002-9102	●
32	PIPE; AIR,AIR CMPR (A)	1-19191-328-0	01	1	9002-9102		●
32	PIPE; AIR,AIR CMPR (B)	9-19119-032-0	01	1	9002-		●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-09840-254-0	01	1	9002-9306	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9002-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-296-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19192-725-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-992-0	01	1	9002-9212	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19192-724-0	01	1	9301-9306	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-321-0	01	1	9103-9306	●
49	PIPE; AIR,CHARGE (A)	1-19191-662-0	01	1	9002-9212		●
49	PIPE; AIR,CHARGE (A)	1-19192-721-0	01	1	9301-		●
49	PIPE; AIR,CHARGE (B)	1-19191-328-0	01	1	9103-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-9306	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9002-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-298-0	01	1	9002-9306	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19191-993-0	01	1	9002-9306	●
77	PIPE; AIR,GOV	1-19191-663-0	01	1	9002-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
83	NUT; CLIP,AIR PIPE M6	9-09110-406-0	03	1	9002-		●
111	CLIP; AIR PIPE WO/NUT	1-09700-547-0	07	1	9002-		●
111	CLIP; AIR PIPE W/NUT	1-09700-550-0	01	1	9002-		●
113	BOLT; CLIP,AIR PIPE M6X25	9-01910-625-0	01	1	9002-9005		●
113	BOLT; CLIP,AIR PIPE M6X25 W/LK WASHER	0-50040-625-0	01	1	9006-		●
119	WASHER; LK,CLIP,AIR PIPE ID=6.1	9-09150-506-0	03	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
