1 |

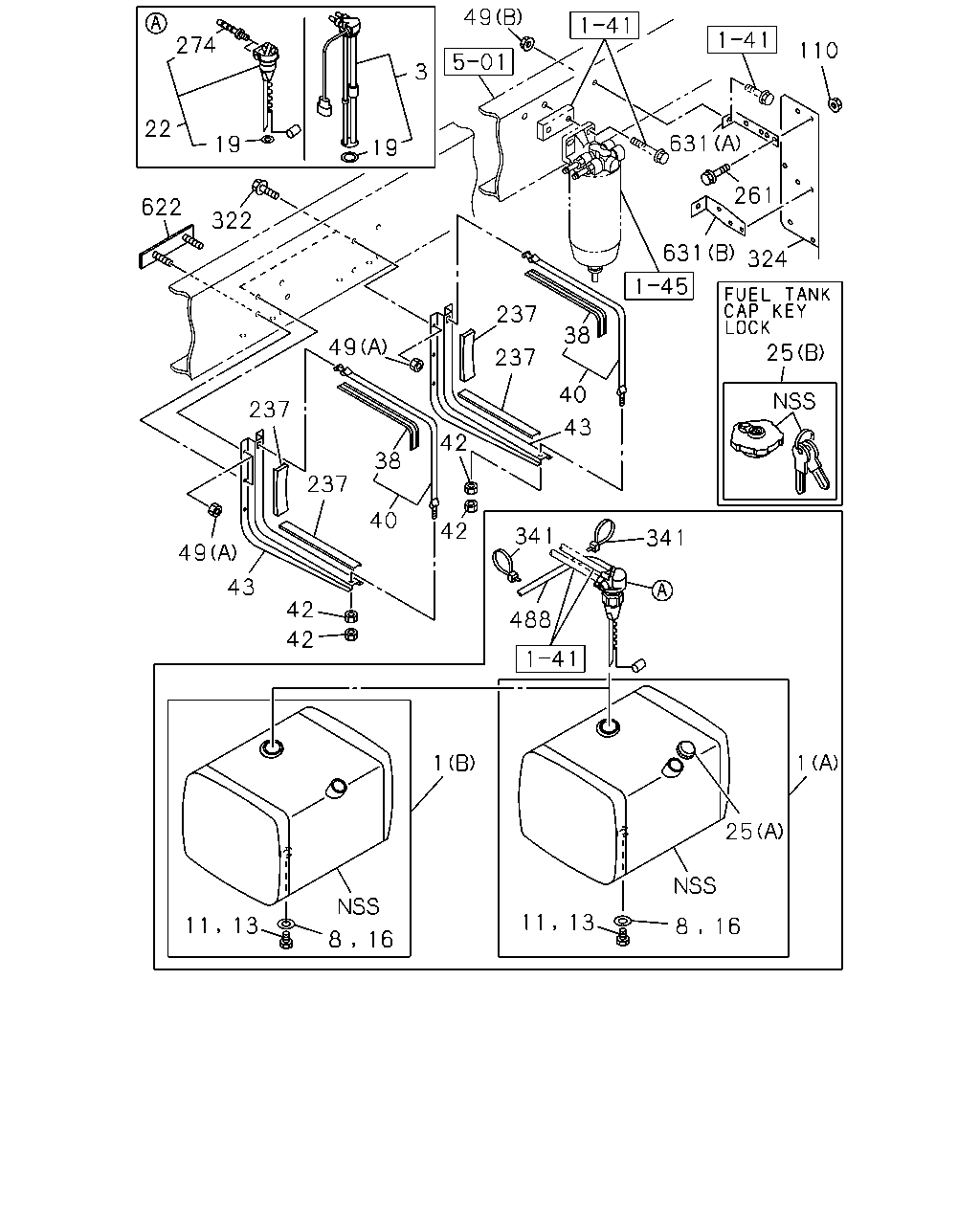

TANK; FUEL
FUEL TANK 400L<SDH>
CHINA EQUIPMENT(YT2)
(B)
1050X680X625 400L
|
1-87412-299-1 |
01 |
1 |
1110- |
| |
1 |
TANK; FUEL
(A)
1050X680X625 400L
|
1-87411-173-1 |
01 |
1 |
0509-0810 |
| |
1 |
TANK; FUEL
(A)
1050X680X625 400L
|
1-87411-699-1 |
01 |
1 |
0811-1109 |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(A)
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1110- |
| |
3 |
UNIT; FUEL TANK,SUB
|
8-98217-749-0 |
01 |
1 |
1211- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1211- |
| |
11 |
PLUG; DRAIN,FUEL TANK
M18X12
|
0-92002-418-0 |
01 |
1 |
1211- |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
M18X12
|
9-99202-318-0 |
01 |
1 |
0509-0606 |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
M18X12
|
0-92002-418-0 |
01 |
1 |
0607-1210 |
| |
16 |
GASKET; PLUG
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0509-1210 |
| |
19 |
GASKET; FUEL TANK UNIT
ID=58
|
1-83149-005-0 |
01 |
1 |
0509-1210 |
| |
19 |
GASKET; FUEL TANK UNIT
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211- |
| |
22 |
UNIT; FUEL TANK
|
1-83141-132-0 |
01 |
1 |
0509-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 400L<SDH>
(B)
|
8-98108-595-0 |
01 |
1 |
0808-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(B)
|
8-98108-595-0 |
01 |
1 |
1211- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
CHINA EQUIPMENT(YT2)
(B)
|
8-98108-595-0 |
01 |
1 |
1211- |
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
1-22440-063-1 |
01 |
1 |
0509-0810 |
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
8-98115-780-0 |
01 |
1 |
0811-1109 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
8-98182-306-0 |
01 |
1 |
1110- |
| |
38 |
INSULATION; SUPPORT BELT
L=1156
|
1-22553-039-1 |
02 |
1 |
0509- |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
1-22550-261-0 |
02 |
1 |
0509-1110 |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
0509-0512 |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-525-1 |
02 |
1 |
0509- |
| |
49 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0509-0602 |
| |
49 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
49 |
NUT; BRKT
(A)
M12
|
9-99110-512-0 |
08 |
1 |
0509-0512 |
| |
49 |
NUT; BRKT
(A)
M12
|
0-91110-512-0 |
08 |
1 |
0601- |
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0509-0602 |
| |
110 |
NUT; PROTECTOR
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
237 |
GASKET; BRKT TO FUEL TANK
|
1-22553-037-1 |
04 |
1 |
0509- |
| |
261 |
BOLT; PROTECTOR
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0509-0512 |
| |
261 |
BOLT; PROTECTOR
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
|
1-83149-006-0 |
02 |
1 |
0509-1210 |
| |
322 |
BOLT; BRKT FIX
M12X40 FLANGE
|
0-28081-240-0 |
10 |
1 |
0509-0512 |
| |
322 |
BOLT; BRKT FIX
M12X40 FLANGE
|
0-28051-240-0 |
10 |
1 |
0601- |
| |
324 |
PROTECTOR; FUEL SEDIMENTER
|
1-47471-216-0 |
01 |
1 |
0509- |
| |
341 |
CLIP; BAND,RUBBER HOSE
L=350
|
1-09707-183-0 |
02 |
1 |
0509-0606 |
| |
341 |
CLIP; BAND,RUBBER HOSE
L=350
|
1-09707-183-0 |
02 |
1 |
0607- |
| |
488 |
HOSE; RUBBER
|
8-97611-014-0 |
01 |
1 |
0509-0606 |
| |
488 |
HOSE; RUBBER
|
8-98049-832-0 |
01 |
1 |
0607-0811 |
| |
488 |
HOSE; RUBBER
|
8-98134-936-0 |
01 |
1 |
0812- |
| |
622 |
STUD; BRACKET
|
1-53461-534-0 |
01 |
1 |
0509- |
| |
631 |
BRACKET; PROTECTOR
(A)
|
1-82698-358-0 |
01 |
1 |
0509- |
| |
631 |
BRACKET; PROTECTOR
(B)
|
1-82698-625-0 |
01 |
1 |
0509- |
