◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#29485) — 21 parça

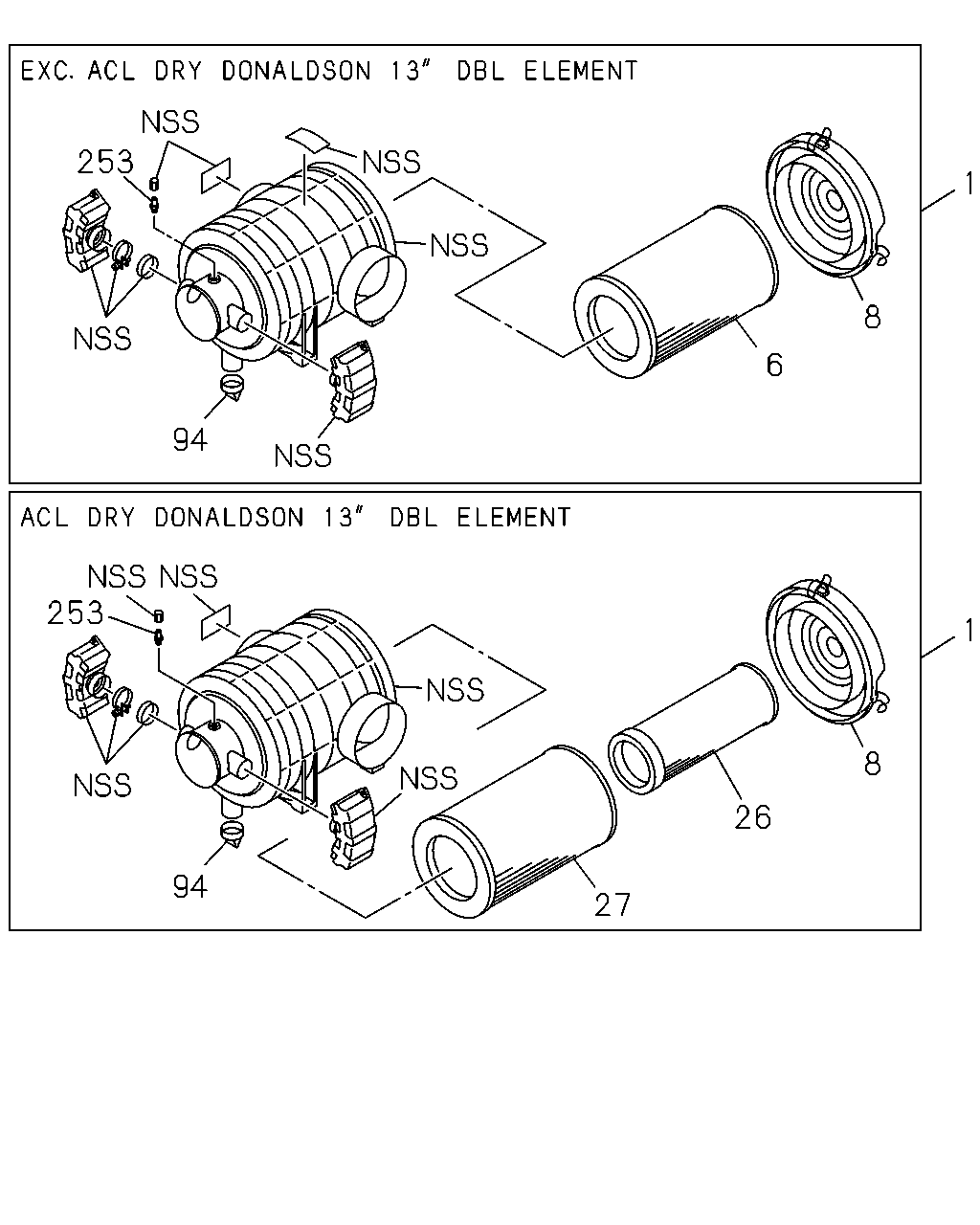

çizim 86177
253 1 8 6 94 253 1 8 26 94 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0509- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0509- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0509- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0509- ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0509- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0509- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-112-1 01 1 0509- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0509- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0509- ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0509- ● ●
253 NIPPLE 1-14219-252-0 01 1 0509- ● ●
çizim 86516
68 1 67 212 65 212 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0509- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0509- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0509-0602 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0509-1204 ● ●
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205- ● ●
67 COVER; ACL 1-53490-073-0 01 1 0509- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0509- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0509-0512 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
