0-35 — ENGINE CONTROL VALVE AND LEVER (#2948) — 153 parça

55 45 45 51 52 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	CLIP; FUEL CUT CABLE CVR&RHD(CVR5M*) CAB SUSPENSION RIGID<W71> (A) ID=9	9-09524-832-0	01	1	9002-9306	●	●
45	CLIP; FUEL CUT CABLE CVR&RHD(CVR5M*) EXC. CAB SUSPENSION RIGID<W71> (A) ID=9	9-09524-875-0	01	1	9006-9306	●	●
45	CLIP; FUEL CUT CABLE CVR&RHD(CVR5M*) (A) ID=9	9-09524-875-0	01	1	9307-		●
45	CLIP; FUEL CUT CABLE CVR&LHD(CVR6M*) CAB SUSPENSION RIGID<W71> (B) ID=13	9-09527-012-0	01	1	9002-		●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID<W71> M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID<W71> M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●	●
51	BOLT; CLIP,FUEL CUT CABLE CAB SUSPENSION RIGID<W71> M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●
51	BOLT; CLIP,FUEL CUT CABLE CVR&RHD(CVR5M*) M6X12	0-50000-612-0	01	1	9002-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE CVR&RHD(CVR5M*) M6X12	0-50080-612-0	01	1	9205-	●	●
51	BOLT; CLIP,FUEL CUT CABLE CVR&RHD(CVR5M*) EXC. CAB SUSPENSION RIGID<W71> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9006-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE CVR&RHD(CVR5M*) EXC. CAB SUSPENSION RIGID<W71> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
52	CABLE; FUEL CUT CVR&RHD(CVR5M*) L=2120	1-23210-739-4	01	1	9002-9306	●	●
52	CABLE; FUEL CUT CVR&RHD(CVR5M*) L=2070	1-79997-363-0	01	1	9307-		●
52	CABLE; FUEL CUT CVR&LHD(CVR6M*) L=3320	1-23210-754-4	01	1	9002-	●	●
55	GROMMET; FUEL CUT CABLE HONG KONG EQUIPMENT(PQ1) OD=35	1-09983-066-1	01	1	9307-		●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●

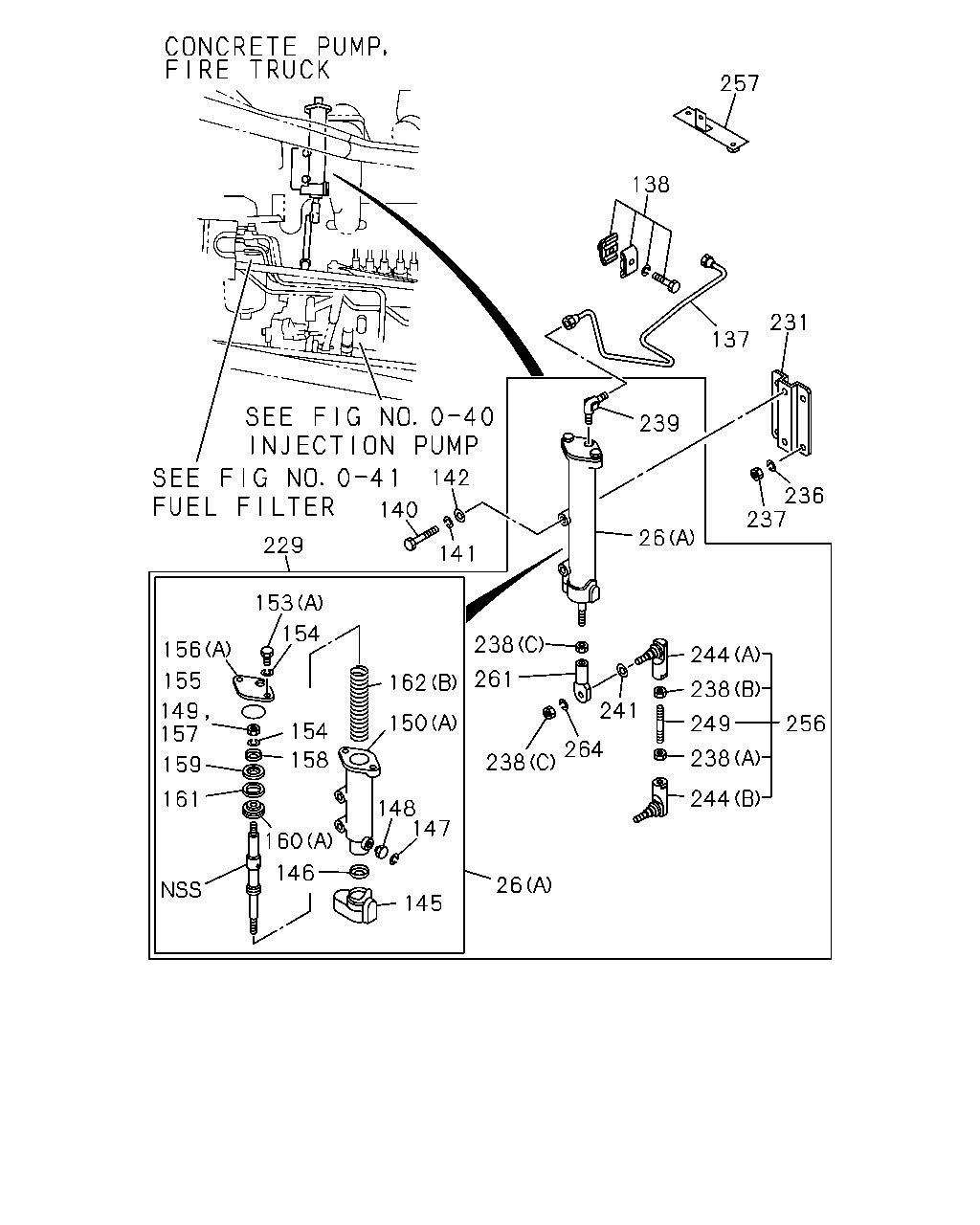

257 138 137 231 236 237 26 239 142 140 141 229 153 154 156 155 149 157 159 161 154 158 162 150 148 147 145 146 160 238 261 238 26 264 241 244 238 249 238 244 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	CYLINDER ASM; CONT (B)	1-22190-302-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22190-491-0	01	1	9002-		●
137	PIPE ASM; AIR ENG SPD CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-19191-871-0	01	1	9002-		●
138	CLIP; AIR PIPE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=6	9-15419-084-0	01	1	9002-		●
140	BOLT; CONNECTOR CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M10X60	9-01056-060-0	02	1	9002-9004		●
140	BOLT; CONNECTOR CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M10X60	0-10806-060-0	02	1	9005-		●
141	WASHER; LK,CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	02	1	9002-		●
142	WASHER; PL,CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=10.5 OD=18	9-09160-510-0	02	1	9002-		●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●
145	COVER; BREATHER CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22199-009-0	01	1	9002-		●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●
146	SEAL; DUST,CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22189-016-0	01	1	9002-		●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●
147	RING; RET CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-331-0	01	1	9002-		●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●
148	FILTER; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-330-0	01	1	9002-		●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9307-	●	●
149	NUT; LOCK,CONT SHAFT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-83315-085-0	01	1	9307-		●
150	CYLINDER; CONT (B)	9-88510-329-0	01	1	9002-9306	●	●
150	CYLINDER; CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-088-0	01	1	9002-9306		●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9002-	●	●
153	BOLT; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M8X20	9-01000-820-0	02	1	9002-		●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●
154	WASHER; LK,CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	03	1	9002-		●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●
155	GASKET; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-372-0	01	1	9002-		●
156	COVER; CONT CYL (B)	9-88510-375-0	01	1	9002-	●	●
156	COVER; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-086-0	01	1	9002-		●
157	NUT; CONT CYL	9-83315-085-0	01	1	9002-9306	●	●
157	NUT; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-83315-085-0	01	1	9002-9306		●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-	●	●
158	RETAINER; GASKET,CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-324-0	01	1	9002-		●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9002-	●	●
159	GASKET; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-373-0	01	1	9002-		●
160	PLATE (B)	1-22199-001-0	01	1	9002-	●	●
160	PLATE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-020-0	01	1	9002-		●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●
161	RING; WEAR CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22199-002-0	01	1	9002-		●
162	SPRING; CONT CYL (A)	9-88510-374-0	01	1	9002-	●	●
162	SPRING; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B)	1-22199-087-0	01	1	9002-		●
229	CONTROL ASM; ENG SPD CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-23300-286-0	01	1	9002-		●
231	BRACKET; ENG SPD CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22196-178-0	01	1	9002-		●
236	WASHER; LK,BRKT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=10.2	9-09150-510-0	04	1	9002-		●
237	NUT; BRKT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M10	9-09110-410-0	04	1	9002-		●
238	NUT; LINK CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) LH THREAD	1-09409-002-0	01	1	9002-		●
238	NUT; LINK CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B) M8	9-09110-408-0	01	1	9002-		●
238	NUT; LINK CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (C) M8	9-09111-408-0	02	1	9002-		●
239	UNION; LINK ROD CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M12 & PT1/8	9-09224-306-2	01	1	9002-		●
241	WASHER; PL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=8.4	9-09160-508-0	01	1	9002-		●
244	JOINT ASM; BALL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) RH THREAD	1-09760-009-0	01	1	9002-		●
244	JOINT ASM; BALL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B) LH THREAD	1-09760-010-0	01	1	9002-		●
249	ROD; LINK CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-09765-232-0	01	1	9002-		●
256	ROD ASM; LINK CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22190-536-0	01	1	9002-		●
257	BRACKET; AIR PIPE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22196-232-0	01	1	9002-		●
261	JAW; LINK ROD CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-09511-108-0	01	1	9002-		●
264	WASHER; LK,LINK,CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	01	1	9002-		●

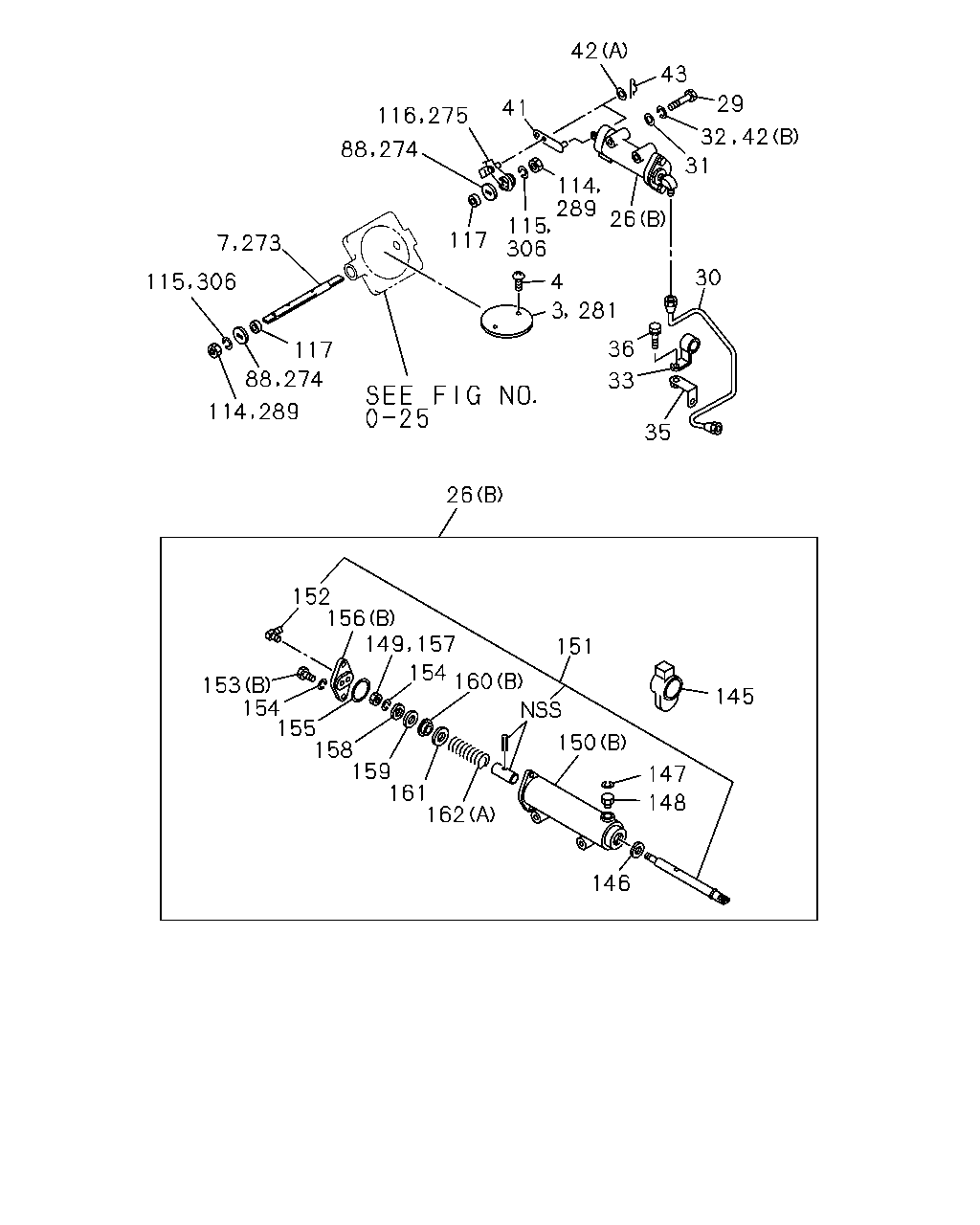

42 43 29 32 42 31 26 30 36 33 35 114 289 115 306 4 3 281 41 275 116 88 274 117 273 7 115 306 117 88 274 114 289 26 152 156 149 157 154 160 151 145 150 147 148 153 154 155 158 159 161 162 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	VALVE; INT SHUTTER	1-14312-012-0	01	1	9002-9306	●
4	SCREW; VLV FIX	1-09102-002-0	02	1	9002-	●	●
7	SHAFT ASM; INT SHUTTER	9-14313-129-0	01	1	9002-9306	●
26	CYLINDER ASM; CONT (B)	1-22190-302-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22190-491-0	01	1	9002-		●
29	BOLT; CONT CYL M10X55	9-01056-055-0	02	1	9002-9004	●	●
29	BOLT; CONT CYL M10X55	0-10806-055-0	02	1	9005-	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-126-0	01	1	9002-9312	●	●
30	PIPE ASM; AIR CONT CYL EXC. CONCRETE PUMP<RA5>	1-19192-126-0	01	1	9401-		●
30	PIPE ASM; AIR CONT CYL CONCRETE PUMP<RA5>	1-19192-119-0	01	1	9401-		●
31	WASHER; PL,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●
32	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9002-		●
33	CLIP; AIR PIPE	1-09700-955-0	02	1	9002-	●	●
35	BRACKET; AIR PIPE CLIP	1-13719-027-0	01	1	9002-9306	●
36	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-	●	●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●
42	WASHER; LK,ROD LOCK (B) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●
42	WASHER; LK,ROD LOCK (A) ID=6.4	9-09160-506-0	02	1	9002-	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●
88	WASHER; SHAFT	9-09855-383-0	02	1	9002-9306	●
114	NUT M12	9-99111-412-0	02	1	9002-9306	●
115	WASHER; LK ID=12.2	9-09150-512-0	02	1	9002-9306	●
116	LEVER	1-22196-129-1	01	1	9002-9306	●
117	COVER; VLV	9-14319-316-0	02	1	9002-9306	●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●
145	COVER; BREATHER CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22199-009-0	01	1	9002-		●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-	●	●
146	SEAL; DUST,CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22189-016-0	01	1	9002-		●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●
147	RING; RET CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-331-0	01	1	9002-		●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●
148	FILTER; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-330-0	01	1	9002-		●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9307-	●	●
149	NUT; LOCK,CONT SHAFT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-83315-085-0	01	1	9307-		●
150	CYLINDER; CONT (B)	9-88510-329-0	01	1	9002-9306	●	●
150	CYLINDER; CONT CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-088-0	01	1	9002-9306		●
151	SHAFT; CONT CYL	1-22199-083-0	01	1	9002-	●	●
152	CONNECTOR PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-	●	●
153	BOLT; CONT CYL (B)	9-88510-267-0	02	1	9002-	●	●
153	BOLT; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M8X20	9-01000-820-0	02	1	9002-		●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●
154	WASHER; LK,CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=8.2	9-09150-508-0	03	1	9002-		●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●
155	GASKET; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-372-0	01	1	9002-		●
156	COVER; CONT CYL (B)	9-88510-375-0	01	1	9002-	●	●
156	COVER; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-086-0	01	1	9002-		●
157	NUT; CONT CYL	9-83315-085-0	01	1	9002-9306	●	●
157	NUT; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-83315-085-0	01	1	9002-9306		●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9002-	●	●
158	RETAINER; GASKET,CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-324-0	01	1	9002-		●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9002-	●	●
159	GASKET; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	9-88510-373-0	01	1	9002-		●
160	PLATE (B)	1-22199-001-0	01	1	9002-	●	●
160	PLATE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-22199-020-0	01	1	9002-		●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●
161	RING; WEAR CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-22199-002-0	01	1	9002-		●
162	SPRING; CONT CYL (A)	9-88510-374-0	01	1	9002-	●	●
162	SPRING; CONT CYL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B)	1-22199-087-0	01	1	9002-		●
273	SHAFT; INT SHUTTER	9-14313-129-0	01	1	9002-		●
274	WASHER; THRUST	9-09855-383-0	02	1	9002-		●
275	LEVER	1-22196-129-1	01	1	9002-		●
281	VALVE; INL SHUTTER	1-14312-012-0	01	1	9002-		●
289	NUT; LEVER M12	9-99111-412-0	02	1	9002-		●
306	WASHER; LK,LINK ROD ID=12.2	9-09150-512-0	02	1	9002-		●

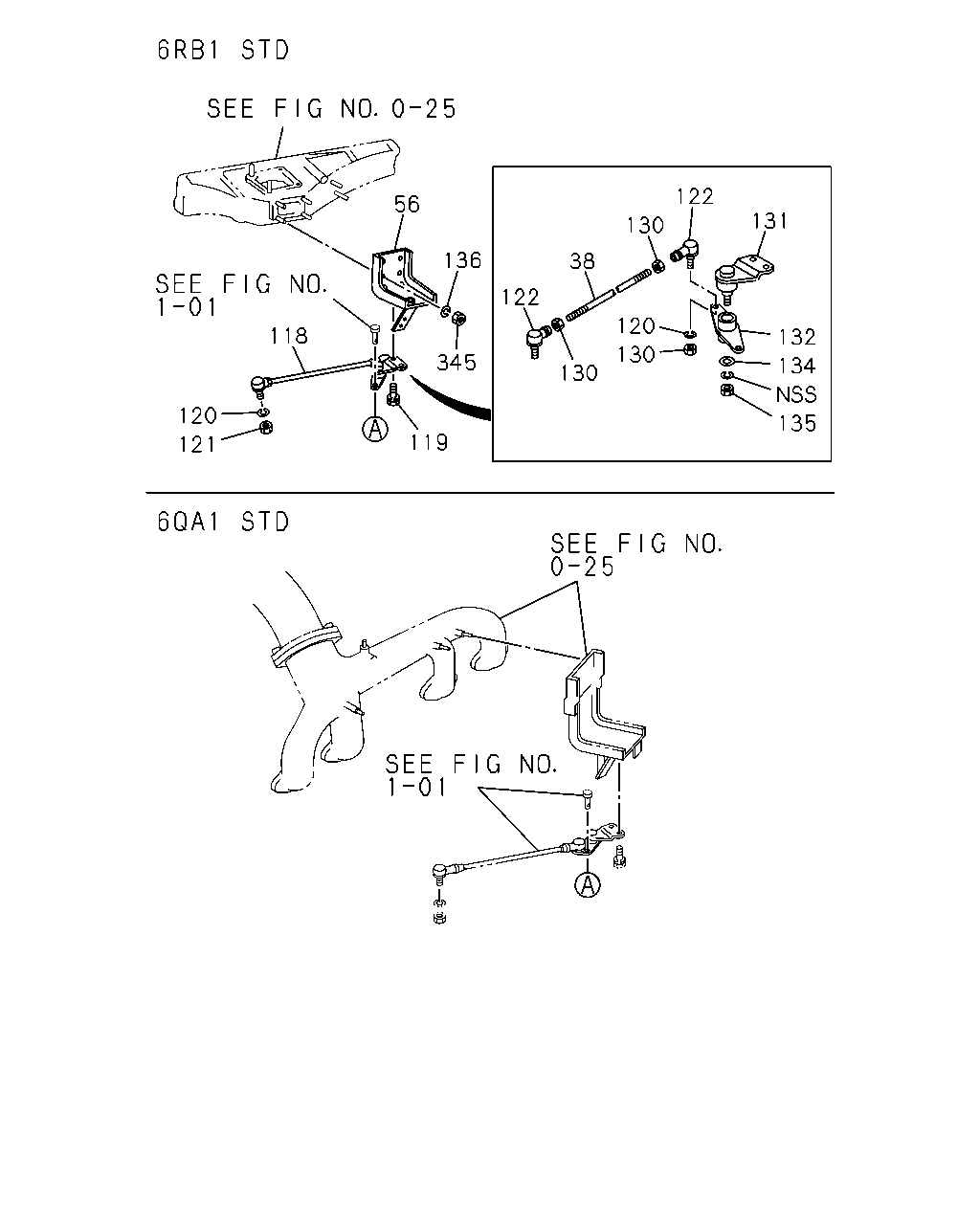

56 136 345 119 118 120 121 122 130 38 122 130 120 130 131 132 134 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
38	ROD; LINK SHAFT TO LEVER	9-08400-532-0	01	1	9002-9306	●
56	BRACKET; FUEL CUT LINK	1-23335-261-1	01	1	9002-9306	●
118	ROD ASM; LINK FUEL CUT	1-23310-465-0	01	1	9002-9306	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-9306	●
120	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	02	1	9002-9306	●
121	NUT; BALL JOINT M5	9-99110-405-0	01	1	9002-9306	●
122	BALL ASM; JOINT RH THREAD	1-09760-002-0	02	1	9002-9306	●
130	NUT; BALL JOINT M5	9-99110-405-0	03	1	9002-9306	●
131	BRACKET	1-23335-226-0	01	1	9002-9306	●
132	LEVER; W/BUSHING	1-23311-267-0	01	1	9002-9306	●
134	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	9002-9306	●
135	NUT; LEVER M10	9-09110-410-0	01	1	9002-9306	●
136	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9002-9306	●
345	NUT; BRKT M10	9-09110-410-0	04	1	9002-9306	●
