0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#29478) — 118 parça

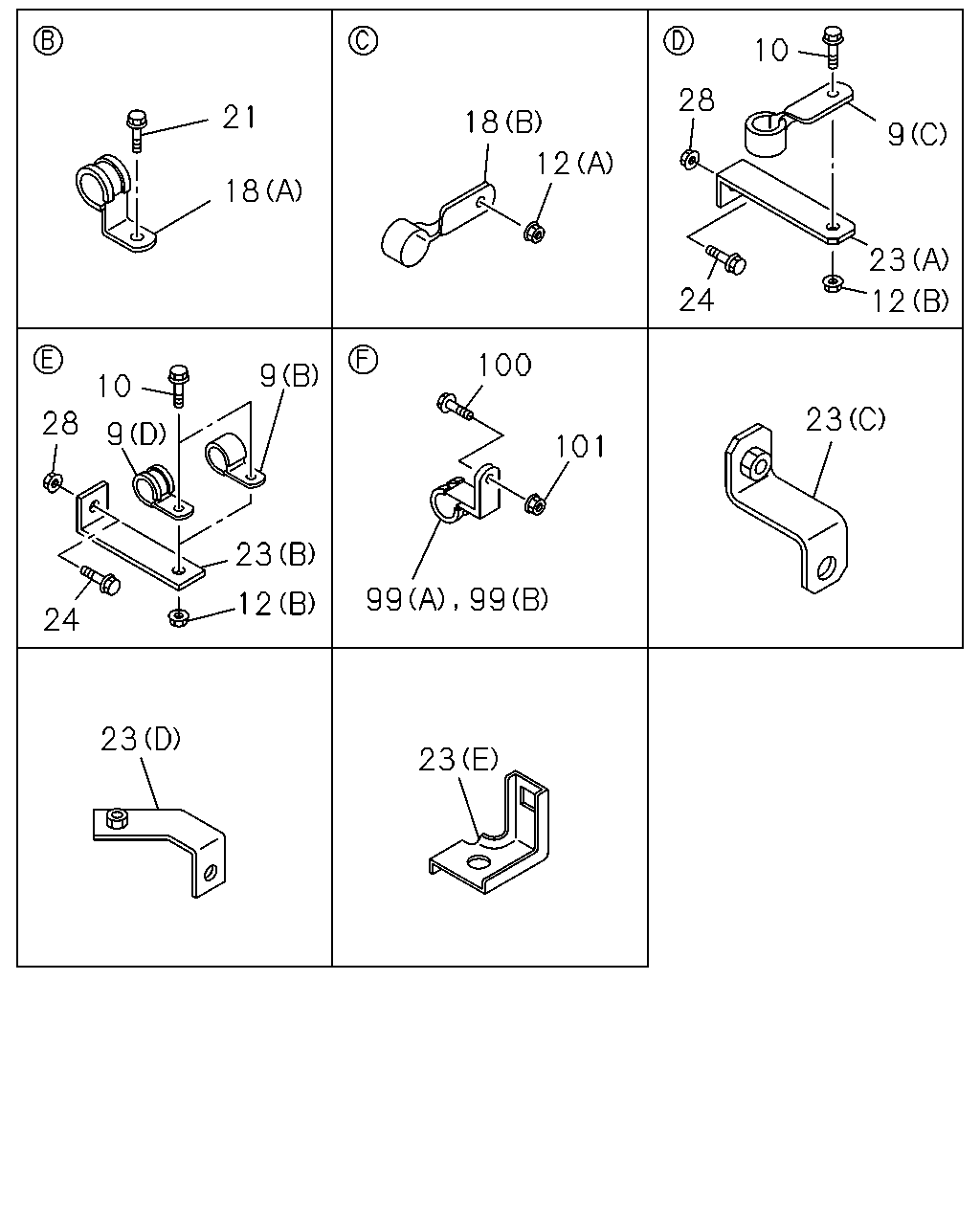

çizim 86169
10 28 21 18 9 12 18 23 24 12 100 9 10 23 28 9 101 23 99 99 12 24 23 23
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0509-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0509-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 0509-
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0509-0606
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-0809
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=19 L=28 		0-95235-856-0 01 1 0810-
10 BOLT; BATTERY CABLE CLIP
MJX M/T<Y9N> M8X20 FLANGE 		0-28650-820-0 03 1 0810-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0509-0512
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601-0809
10 BOLT; BATTERY CABLE CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28650-820-0 04 1 0810-
12 NUT; BATTERY CABLE CLIP
MJX M/T<Y9N> (B) M8 FLANGE 		0-91180-108-0 02 1 0810-
12 NUT; BATTERY CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 04 1 0509-0602
12 NUT; BATTERY CABLE CLIP
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-0809
12 NUT; BATTERY CABLE CLIP
MJT7 M/T<Y9E> (B) M8 FLANGE 		0-91180-108-0 04 1 0810-
12 NUT; BATTERY CABLE CLIP
(A) M10 FLANGE 		0-91150-210-0 01 1 0509-0602
12 NUT; BATTERY CABLE CLIP
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-0809
12 NUT; BATTERY CABLE CLIP
MJT7 M/T<Y9E> (A) M10 FLANGE 		0-91180-210-0 01 1 0810-
18 CLIP; BATTERY CABLE
MJX M/T<Y9N> (B) ID=21 L=24 		8-94176-807-1 01 1 0810-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
18 CLIP; BATTERY CABLE
(B) ID=18 L=54 		1-09701-106-0 01 1 0509-0809
18 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=18 L=54 		1-09701-106-0 01 1 0810-
21 BOLT; CLIP CABLE
MJX M/T<Y9N> M8X16 FLANGE 		0-28050-816-0 02 1 0810-
21 BOLT; CLIP CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 0509-0512
21 BOLT; CLIP CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0809
21 BOLT; CLIP CABLE
MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
MJX M/T<Y9N> (C) 		1-47476-200-0 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
MJX M/T<Y9N> (D) 		1-47479-642-0 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
MJX M/T<Y9N> (B) L=95 		1-82699-085-0 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
MJX M/T<Y9N> (E) 		8-97304-944-0 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=112 		1-47475-694-1 01 1 0509-0809
23 BRACKET; CABLE CLIP TO FRAME
MJT7 M/T<Y9E> (A) L=112 		1-47475-694-1 01 1 0810-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 03 1 0509-0809
23 BRACKET; CABLE CLIP TO FRAME
MJT7 M/T<Y9E> (B) L=95 		1-82699-085-0 03 1 0810-
24 BOLT; BRKT TO FRAME
MJX M/T<Y9N> M8X20 FLANGE 		0-28650-820-0 02 1 0810-
24 BOLT; BRKT TO FRAME
MJX M/T<Y9N> M8X30 FLANGE 		0-28650-830-0 02 1 0810-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 04 1 0509-0512
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 04 1 0601-0809
24 BOLT; BRKT TO FRAME
MJT7 M/T<Y9E> M8X30 FLANGE 		0-28650-830-0 04 1 0810-
28 NUT; BRKT TO FRAME
MJX M/T<Y9N> M8 FLANGE 		0-91180-108-0 02 1 0810-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-0809
28 NUT; BRKT TO FRAME
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 04 1 0810-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 0509-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 0509-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-

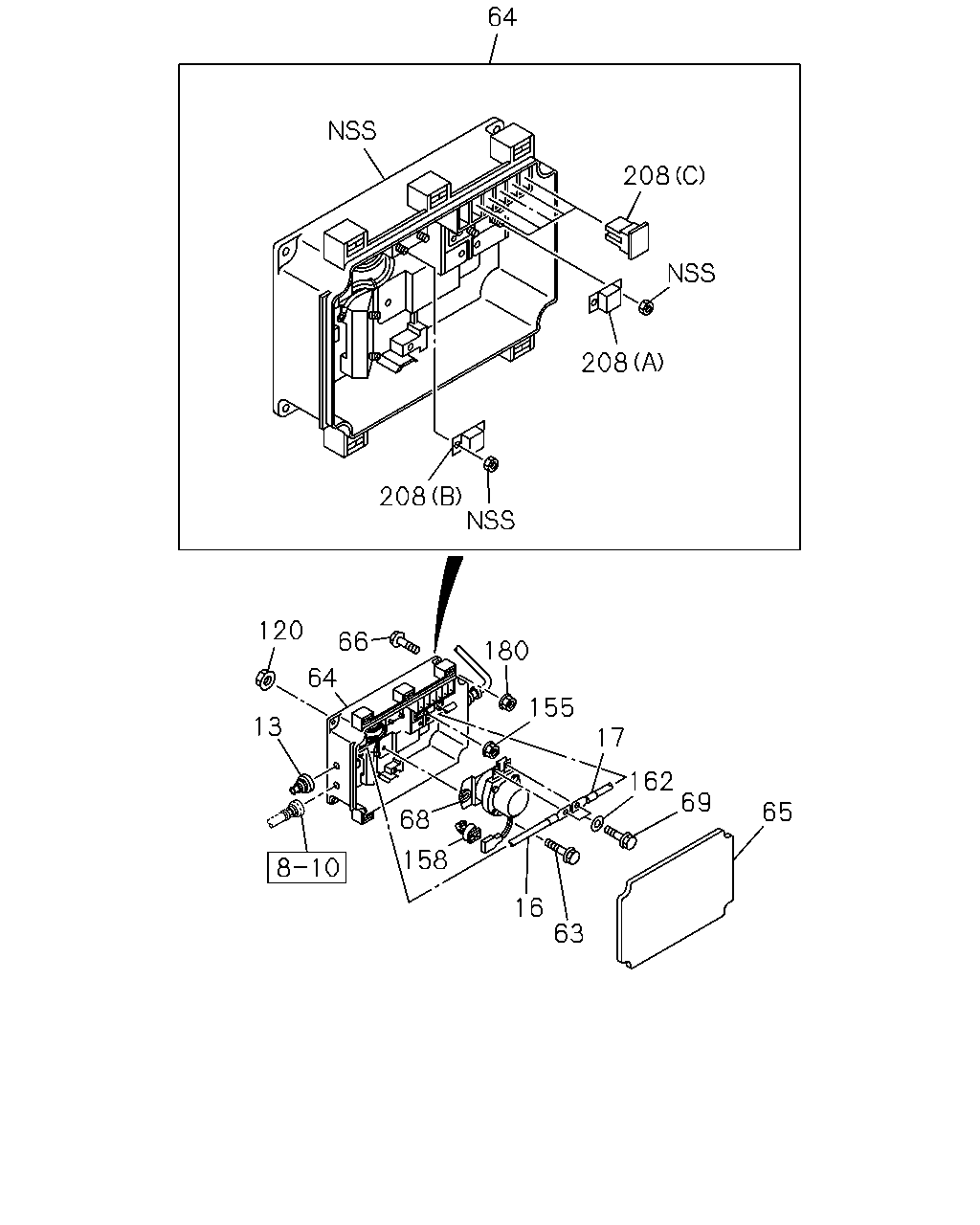

çizim 86199
64 208 208 208 120 66 180 64 155 13 17 162 69 65 68 158 16 63
BalonParca AdiParca NoAdetTipApplied Date
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0509-
16 CABLE; STARTER TO RELAY
MJX M/T<Y9N> L=5690 		1-82652-897-2 01 1 0810-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0509-0809
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 0810-
17 CABLE; BATTERY (+) TO RELAY
BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-762-3 01 1 0509-
17 CABLE; BATTERY (+) TO RELAY
EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-760-3 01 1 0509-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0509-0512
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
64 BOX; BATTERY RELAY 1-82510-648-0 01 1 0509-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0509-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0509-0512
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
68 RELAY; BATTERY 1-82550-313-0 01 1 0509-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0509-0512
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0911-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0509-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0509-0605
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606-
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0603-
208 FUSE
(B) 80A 		1-82516-031-0 01 1 0509-
208 FUSE
(A) 100A 		1-82516-032-0 01 1 0509-
208 FUSE
(C) 40A GREEN 		8-94468-662-0 05 1 0509-

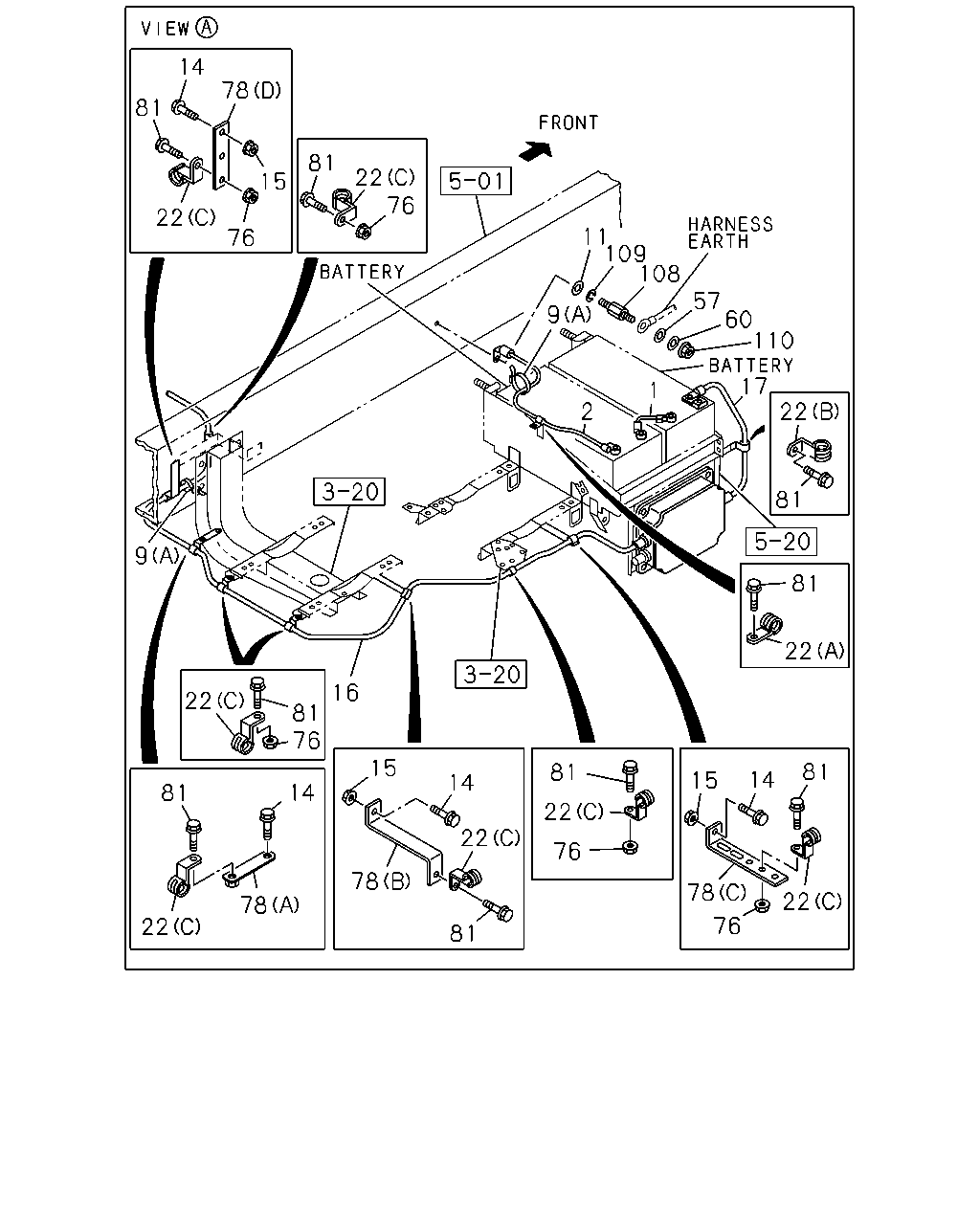

çizim 105127
14 78 81 81 22 76 15 22 11 109 108 76 57 60 110 17 9 1 2 22 81 9 81 22 16 22 81 76 15 81 81 14 15 14 81 14 22 22 76 78 78 22 78 76 22 81
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 115F51 N120<SJ3> L=265 		1-82650-390-1 01 1 0509-
1 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 145G51 N150<SJ8> L=450 		1-82650-391-1 01 1 0509-
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=265 		1-82650-388-1 01 1 0509-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450 		1-82650-389-1 01 1 0509-
2 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> L=720 		1-82650-386-1 01 1 0509-
2 CABLE; BATTERY
EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720 		1-82650-384-1 01 1 0509-
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0509-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0509-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 0509-
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0509-0606
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-0809
9 CLIP; BATTERY CABLE
MJT7 M/T<Y9E> (B) ID=19 L=28 		0-95235-856-0 01 1 0810-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0509-0605
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0509-0512
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 03 1 0509-0602
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
16 CABLE; STARTER TO RELAY
MJX M/T<Y9N> L=5690 		1-82652-897-2 01 1 0810-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0509-0809
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 0810-
17 CABLE; BATTERY (+) TO RELAY
BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-762-3 01 1 0509-
17 CABLE; BATTERY (+) TO RELAY
EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-760-3 01 1 0509-
22 CLIP; BATTERY CABLE
(C) ID=20 H=23 L=27 		1-09700-861-0 08 1 0509-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0509-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0509-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0509-0603
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91150-108-0 07 1 0509-0602
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 07 1 0603-
78 BRACKET; CLIP BATTERY
(A) 		1-47476-396-1 01 1 0509-
78 BRACKET; CLIP BATTERY
(D) L=117 		1-47478-116-0 01 1 0509-
78 BRACKET; CLIP BATTERY
(C) L=160 H=30 		1-47479-759-0 01 1 0509-
78 BRACKET; CLIP BATTERY
(B) L=110 		1-82699-589-0 01 1 0509-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 10 1 0509-0512
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 10 1 0601-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0509-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0509-0603
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0509-

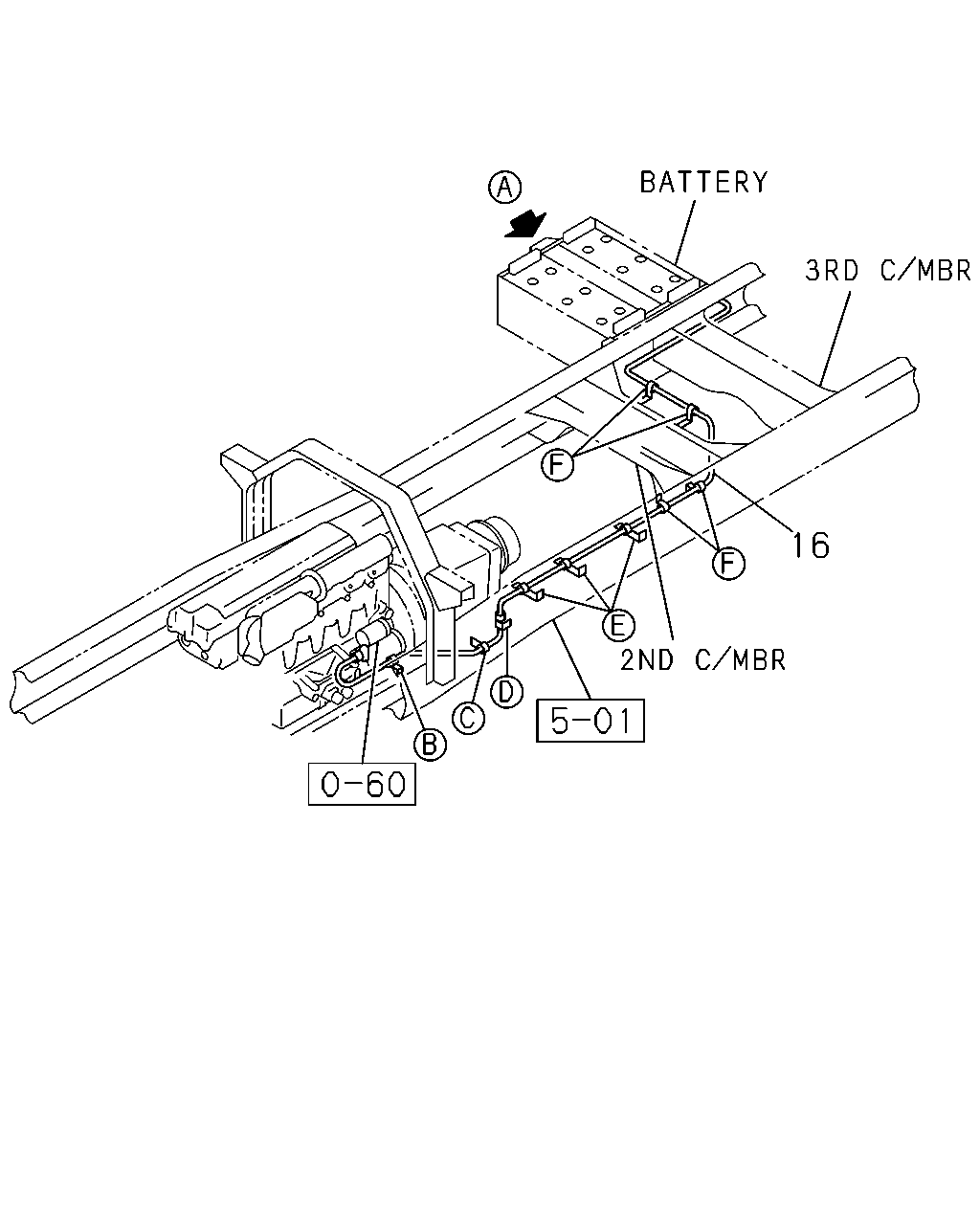

çizim 105128
16
BalonParca AdiParca NoAdetTipApplied Date
16 CABLE; STARTER TO RELAY
MJX M/T<Y9N> L=5690 		1-82652-897-2 01 1 0810-
16 CABLE; STARTER TO RELAY
L=5730 		1-82652-896-1 01 1 0509-0809
16 CABLE; STARTER TO RELAY
MJT7 M/T<Y9E> L=5730 		1-82652-896-1 01 1 0810-
