0-60 — ENGINE ELECTRICAL CONTROL PARTS (#29477) — 108 parça

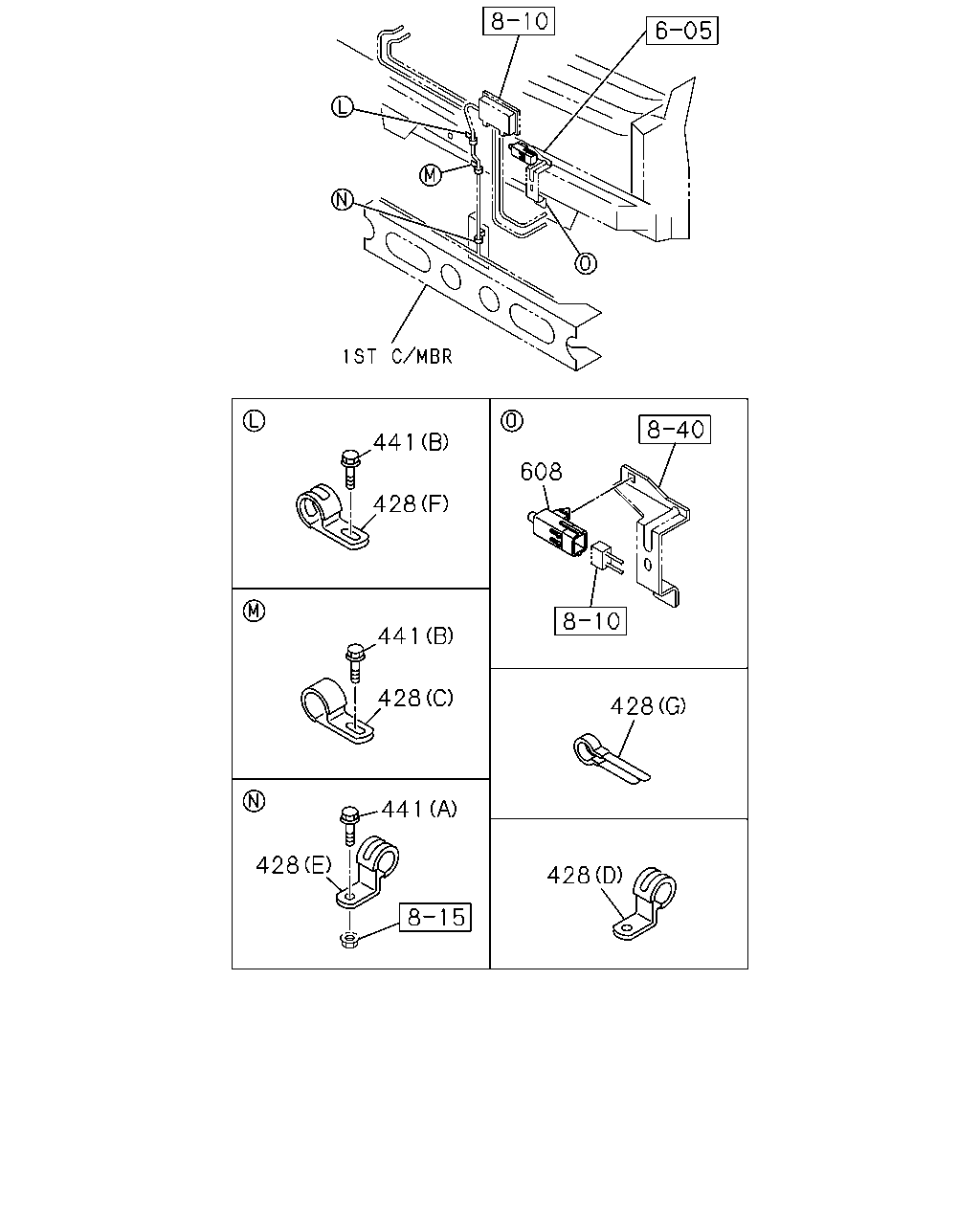

çizim 86168
441 608 428 441 428 428 441 428 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0509-
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 0509-
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 01 1 0509-
428 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
428 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0509-
428 CLIP; HARNESS
(F) ID=32 L=35 		1-09701-244-0 01 1 0509-0612
428 CLIP; HARNESS
(G) ID=22 L=52 		9-09917-431-0 03 1 0509-
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0509-0612
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0701-0809
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0810-0904
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
608 SENSOR; AIR TEMP 8-97177-549-0 01 1 0509-1204
608 SENSOR; AIR TEMP 8-98214-375-0 01 1 1205-

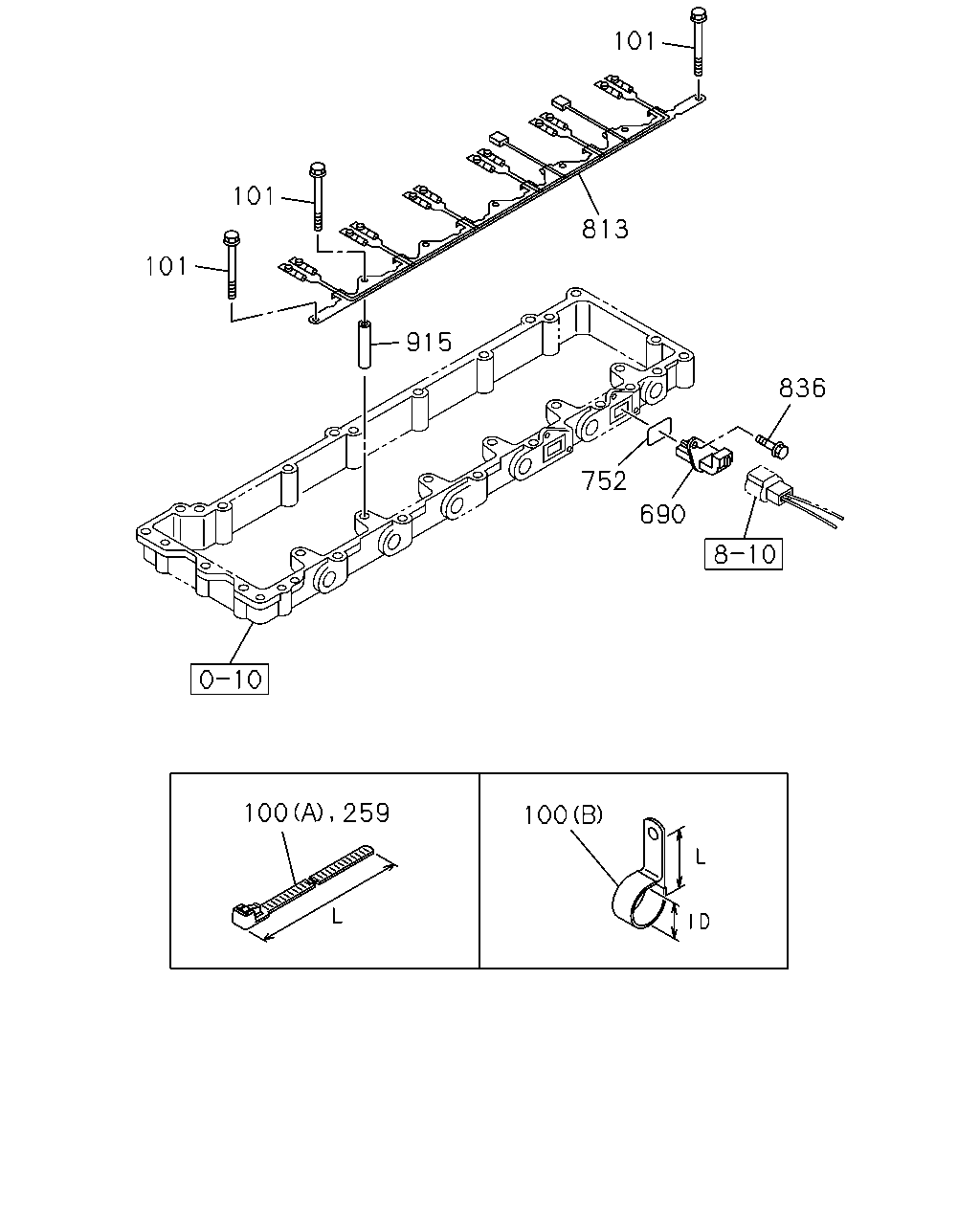

çizim 86425
101 101 813 101 915 836 752 690 100 259 100
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0509-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
100 CLIP; HARNESS
(B) ID=11 L=20 		9-09525-035-0 01 1 0509-0606
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0607-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28080-870-0 07 1 0509-0512
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0601-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 04 1 0509-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 04 1 1206-1208
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 05 1 1209-
690 CONNECTOR 8-94390-858-1 02 1 0509-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0509-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0509-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28080-812-0 04 1 0509-0512
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0601-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0509-

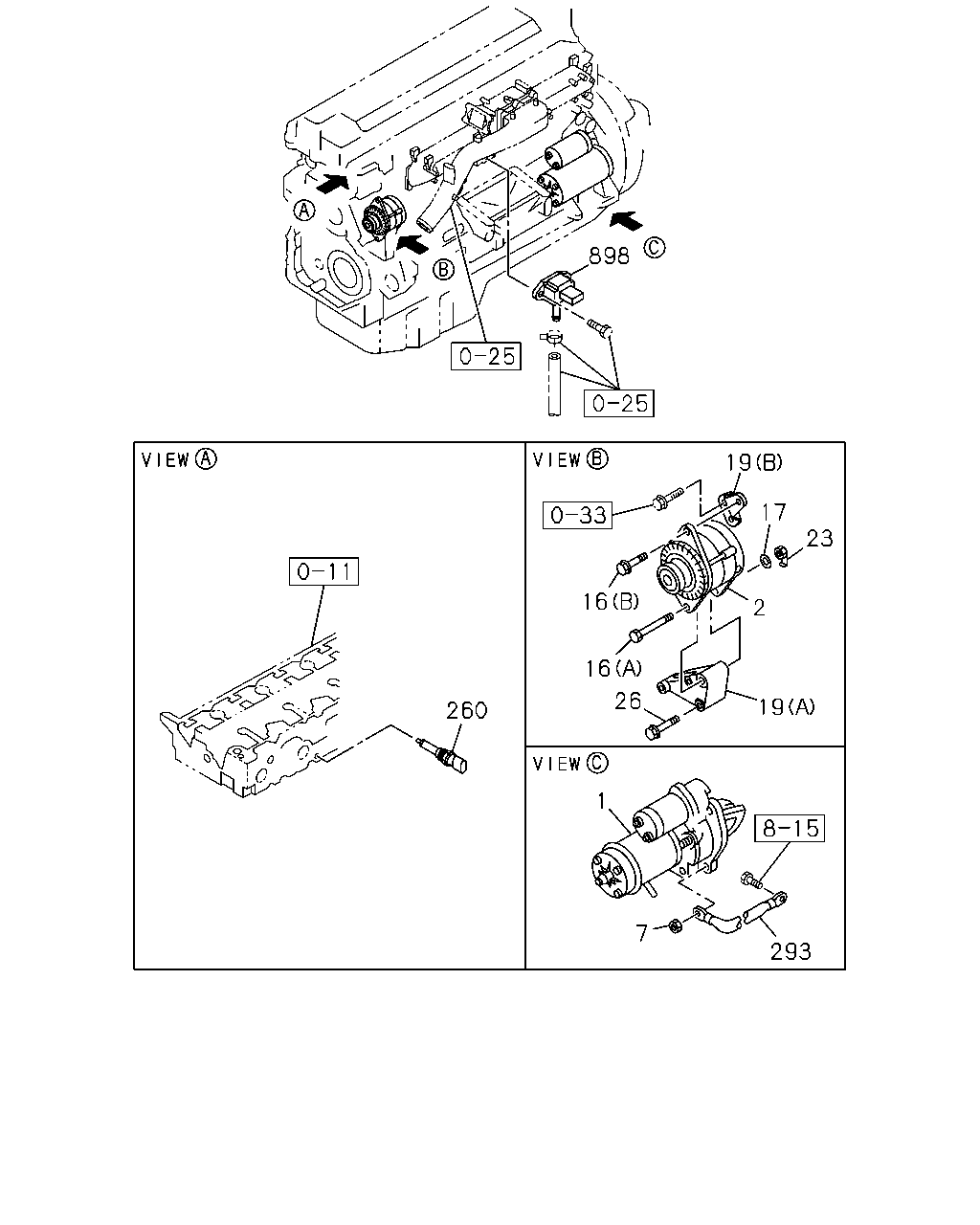

çizim 86880
898 19 17 23 2 19 26 16 16 260 1 7 293
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-341-6 01 1 0509-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 24V 60A MITSUBISHI 		1-81200-572-8 01 1 0807-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-484-8 01 1 0509-0806
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		1-81200-484-8 01 1 0807-1112
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		8-98200-154-0 01 1 1201-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0509-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 0509-0512
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0601-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0509-
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0509-0605
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-
19 BRACKET; GEN
(A) 		8-97604-177-0 01 1 0509-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0509-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0509-0910
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 0509-0512
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0601-
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0509-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0509-
898 SENSOR; BOOST 1-80220-014-0 01 1 0509-

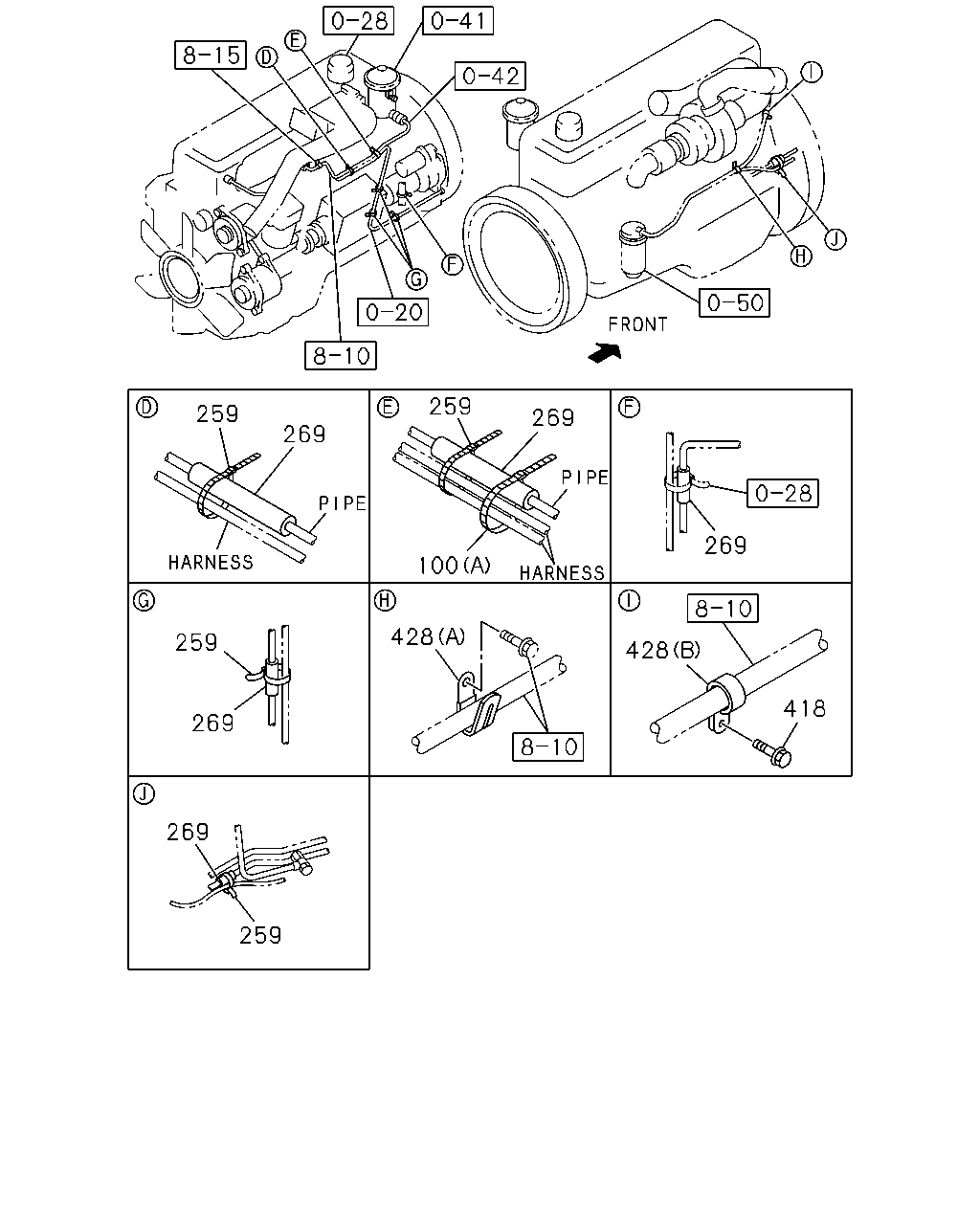

çizim 86914
259 259 269 269 269 100 428 259 428 418 269 269 259
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0509-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
100 CLIP; HARNESS
(B) ID=11 L=20 		9-09525-035-0 01 1 0509-0606
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0607-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 04 1 0509-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 04 1 1206-1208
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 05 1 1209-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0509-
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 0509-0512
418 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 01 1 0601-
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0509-
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 0509-
428 CLIP; HARNESS
(C) ID=35 L=35 		1-09700-684-0 01 1 0509-
428 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
428 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0509-
428 CLIP; HARNESS
(F) ID=32 L=35 		1-09701-244-0 01 1 0509-0612
428 CLIP; HARNESS
(G) ID=22 L=52 		9-09917-431-0 03 1 0509-

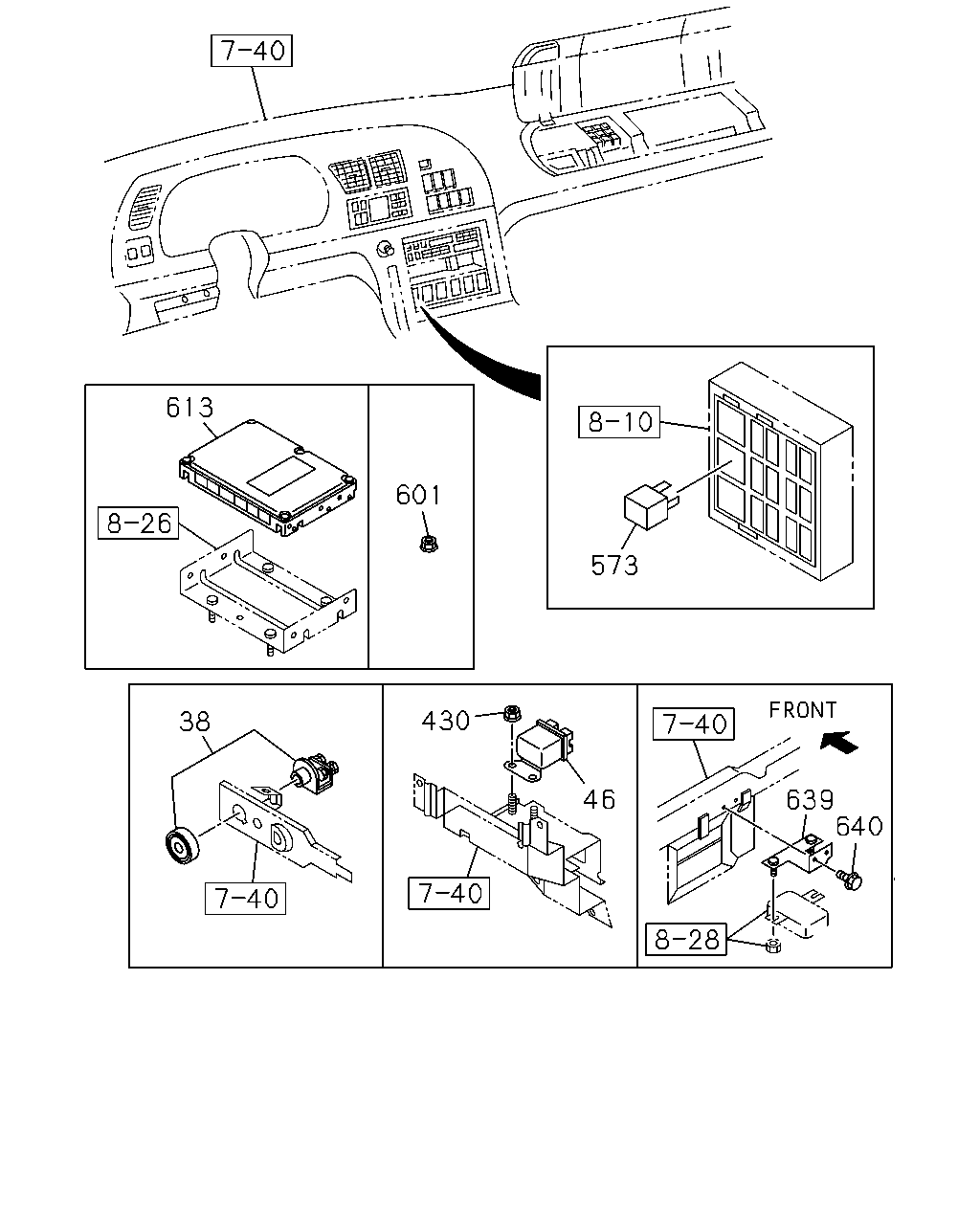

çizim 86915
613 601 573 430 38 639 640 46
BalonParca AdiParca NoAdetTipApplied Date
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0509-
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0509-
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 0509-0602
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603-
573 RELAY; ELEC GOV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0509-0706
573 RELAY; ELEC GOV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
601 NUT; UNIT
M6 FLANGE 		0-91150-106-0 04 1 0509-0602
601 NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 04 1 0603-0603
601 NUT; UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 0603-0802
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0803-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-0 01 1 0707-0802
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-0 01 1 0803-0806
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) KD ENGINE<KDA> 		1-80111-424-0 01 1 0803-0806
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-0 01 1 0807-0807
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-0 01 1 0807-0807
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-424-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-424-1 01 1 0810-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-424-1 01 1 0810-
613 CONTROL UNIT; ENG
6WF1 TC(84L) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) 		1-80111-425-0 01 1 0707-0807
613 CONTROL UNIT; ENG
6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-425-1 01 1 0808-
613 CONTROL UNIT; ENG
6WF1 TC(84L) INJ PUMP Q SET STD(T1B) 		1-80111-115-0 01 1 0603-0706
613 CONTROL UNIT; ENG
6WF1 TC(84L) EURO3 SPECIFICATION<NJX> INJ PUMP Q SET STD(T1B) 		1-80111-115-0 01 1 0707-0807
613 CONTROL UNIT; ENG
6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-115-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC(84L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) INJ PUMP Q SET STD(T1B) 		1-80111-115-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-115-1 01 1 0810-
613 CONTROL UNIT; ENG
6WF1 TC(84L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) INJ PUMP Q SET STD(T1B) 		1-80111-115-1 01 1 0810-
613 CONTROL UNIT; ENG 1-80111-114-1 01 1 0509-0602
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) INJ PUMP Q SET STD(T1B) 		1-80111-114-1 01 1 0603-0706
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> INJ PUMP Q SET STD(T1B) 		1-80111-114-1 01 1 0707-0807
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-114-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) INJ PUMP Q SET STD(T1B) 		1-80111-114-1 01 1 0808-0809
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA> 		1-80111-114-2 01 1 0810-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) INJ PUMP Q SET STD(T1B) 		1-80111-114-2 01 1 0810-
639 BRACKET; QOS GLOW TIMER 1-73908-161-0 01 1 0509-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0509-

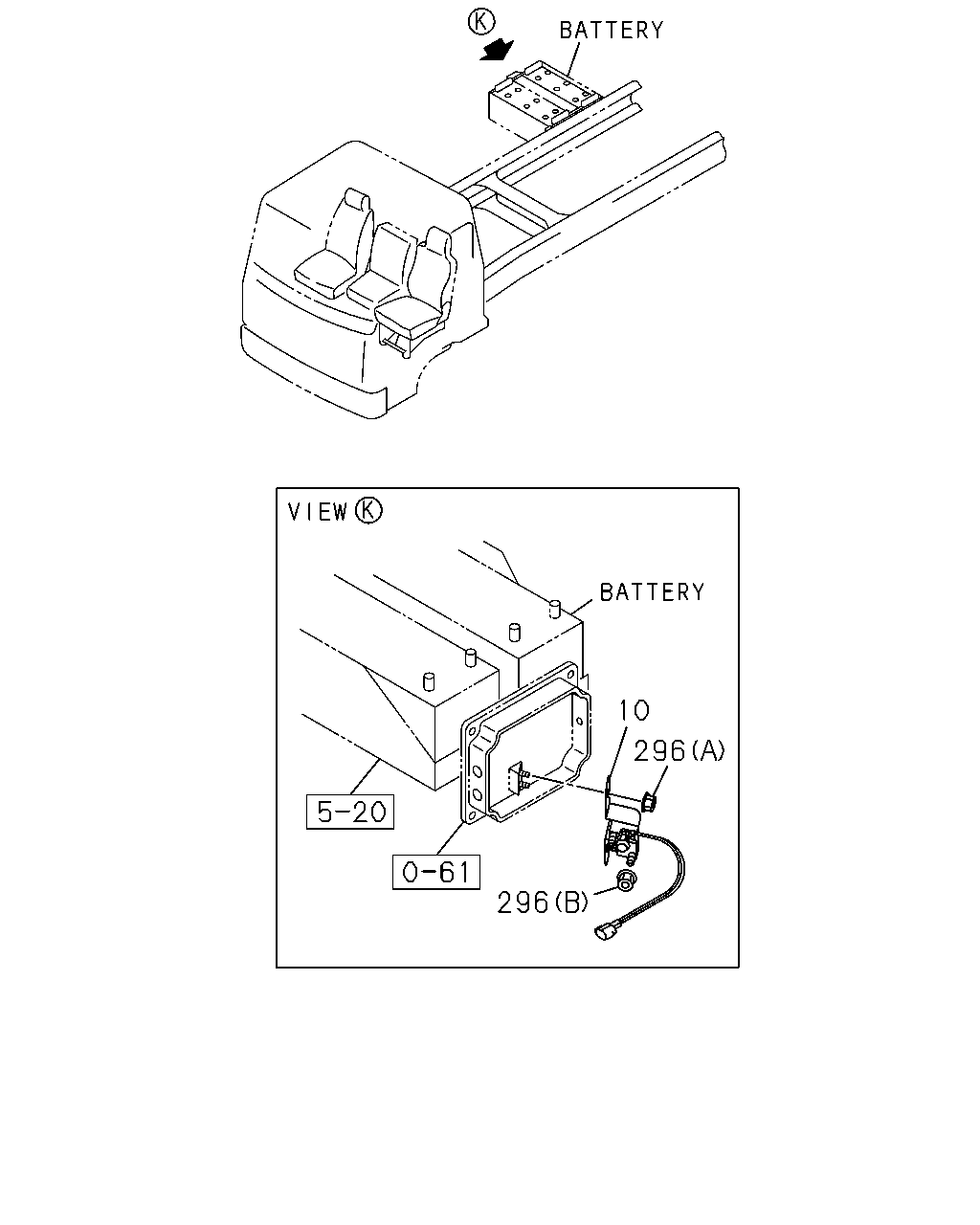

çizim 105126
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 1-81171-097-1 01 1 0509-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91150-108-0 02 1 0509-0602
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91150-206-0 02 1 0509-0602
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0603-
