0-52 — OIL AND VACUUM PIPING; ENGINE (#29475) — 99 parça

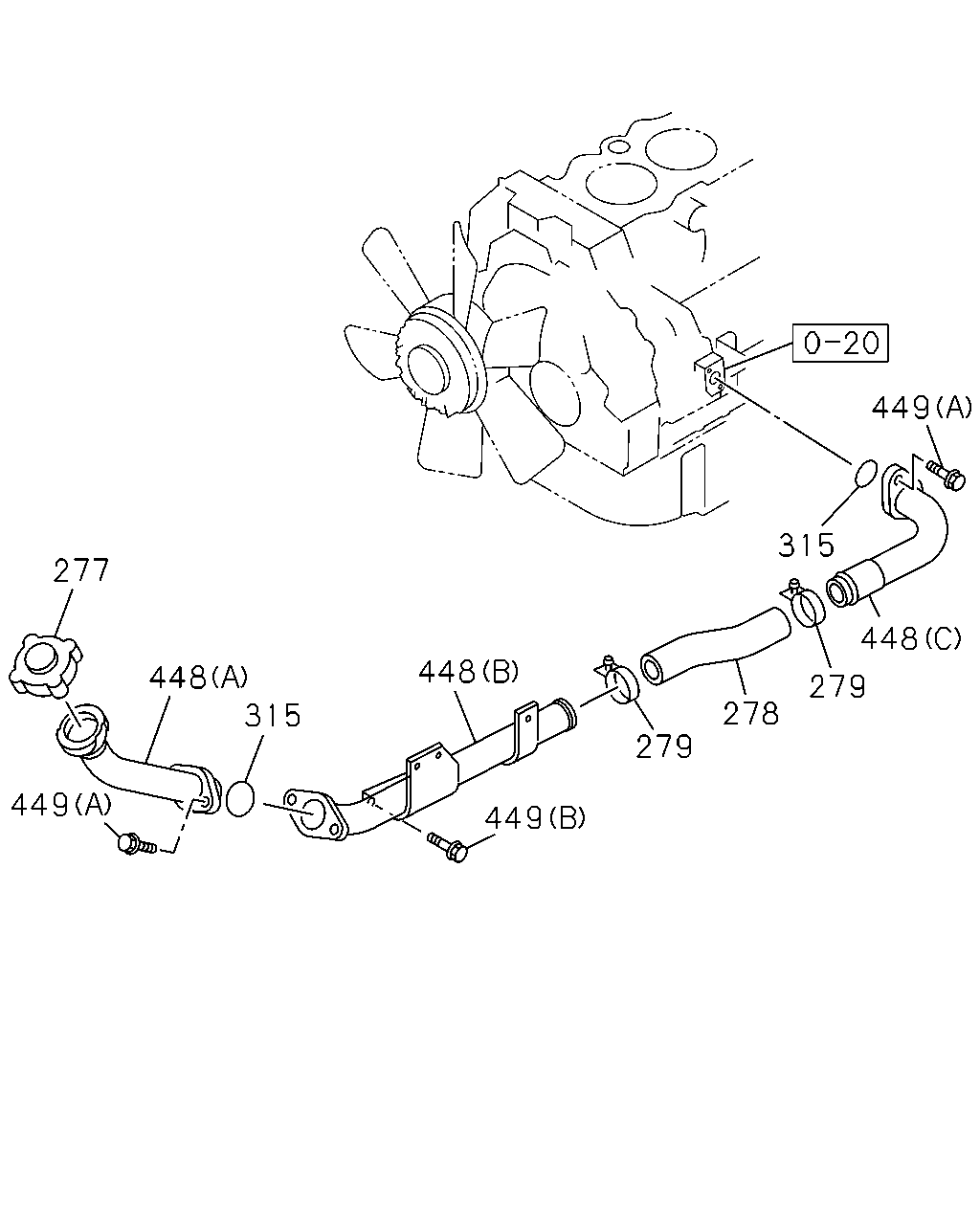

449 315 277 448 448 448 315 279 278 279 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
277	CAP; OIL FILLER	1-11750-020-0	01	1	0509-0611	●	●
277	CAP; OIL FILLER	1-11750-028-0	01	1	0612-	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-205-0	01	1	0509-	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	0509-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0509-0602	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	0509-0602	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0603-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	0603-	●	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	0509-0602	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	0603-	●	●
448	FILLER; OIL (A)	1-11741-175-4	01	1	0509-	●	●
448	FILLER; OIL (B)	1-11741-304-0	01	1	0509-	●	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	0509-0512	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●

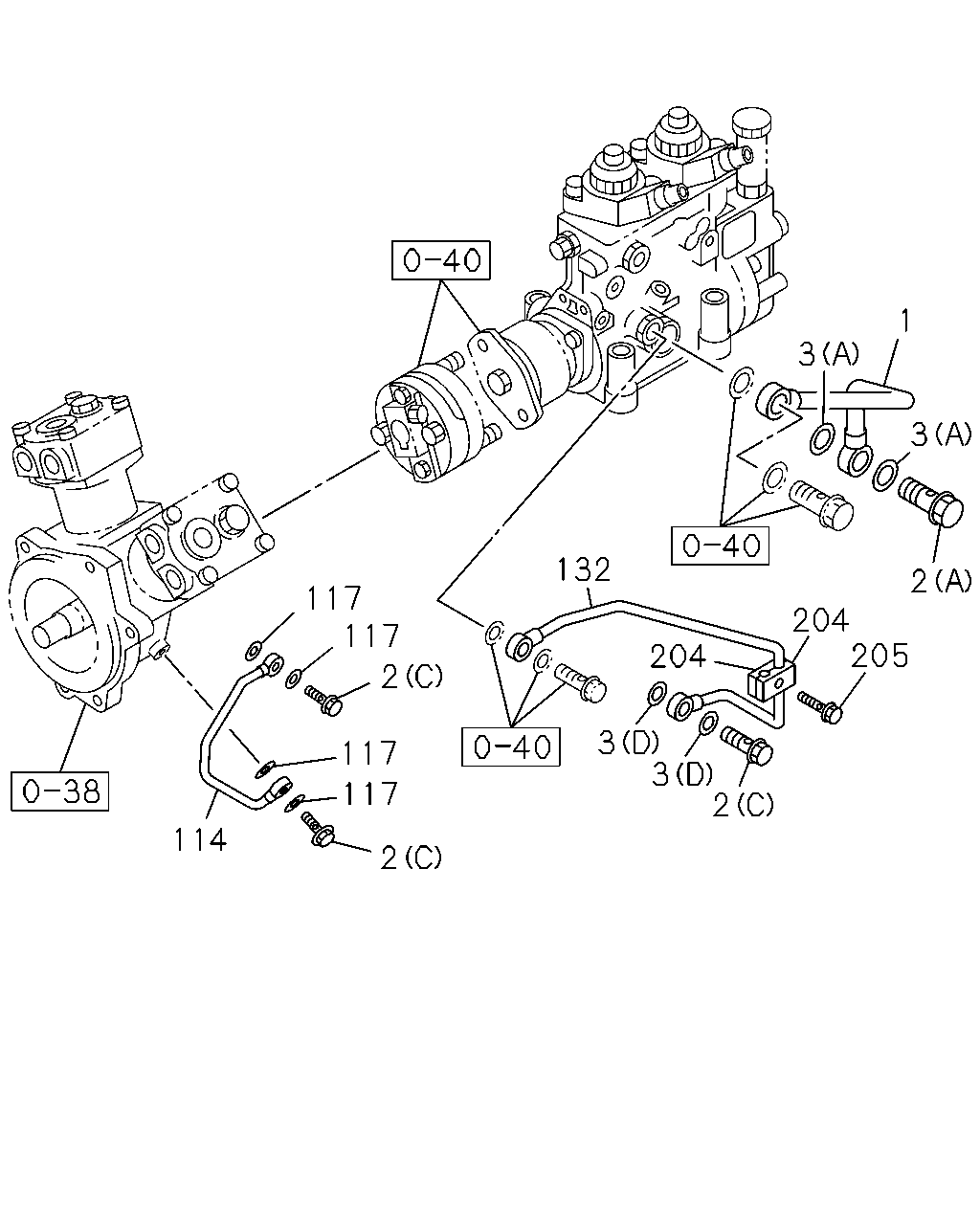

1 3 3 132 2 117 117 204 205 204 2 3 3 2 117 117 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13314-022-0	01	1	0509-0602	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13314-022-0	01	1	0603-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0603-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0603-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0603-0710	●	●
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	0711-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0603-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0603-	●	●
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	0509-0602	●
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	0603-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0509-0602	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0603-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13314-021-0	01	1	0509-0602	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13314-021-0	01	1	0603-	●	●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0509-0602	●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0603-1210	●	●
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-	●	●
205	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0509-0512	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-0602	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0603-	●	●

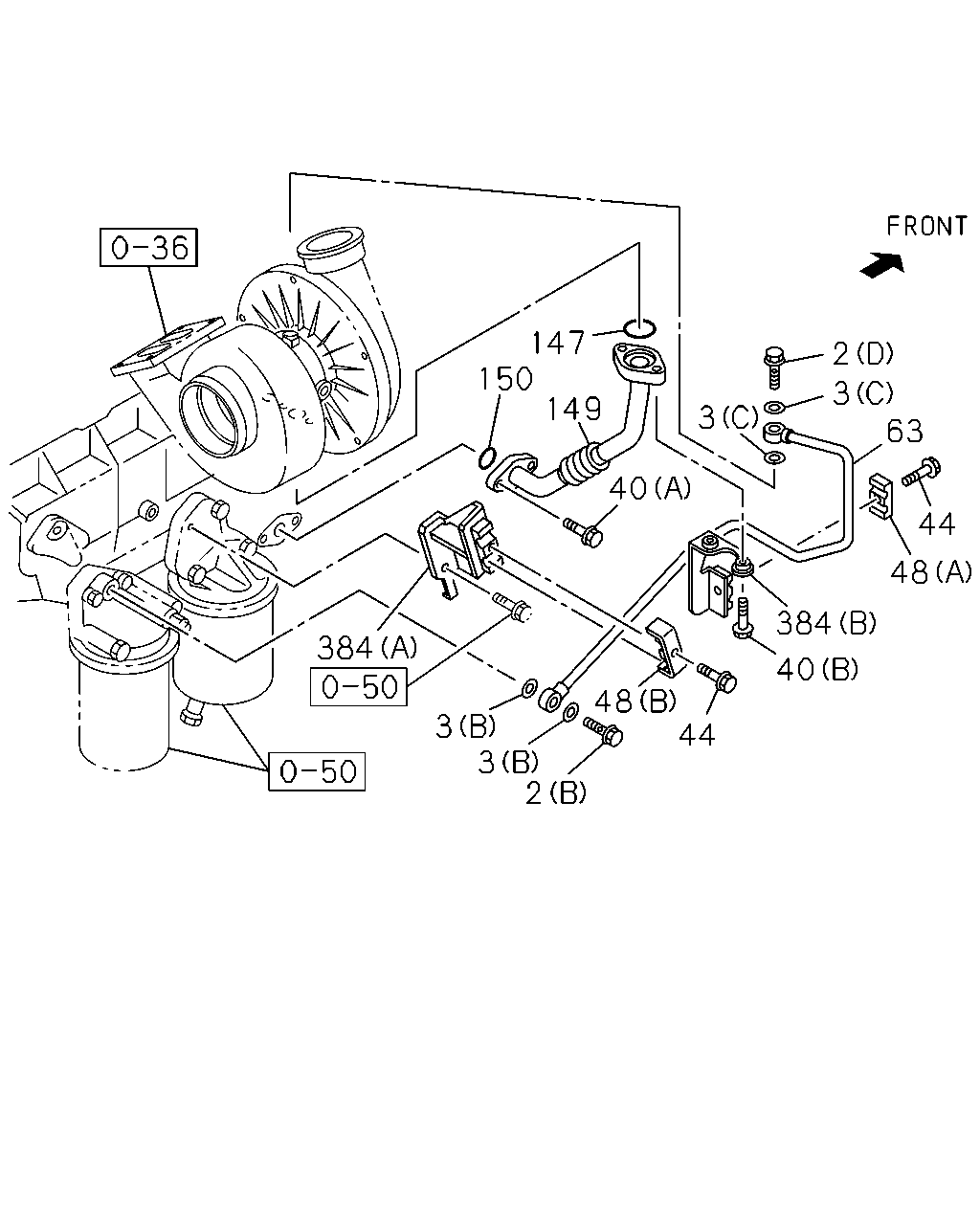

147 150 2 3 63 149 3 40 44 48 384 384 40 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	03	1	0603-0805	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0603-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0603-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0509-0602	●
2	BOLT; EYE,OIL PIPE (D) M10X28 FLANGE	8-97149-995-0	01	1	0603-0710	●	●
2	BOLT; EYE,OIL PIPE (D) M10X28	8-98037-823-0	01	1	0711-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0603-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0603-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0509-0602	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	0603-	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	02	1	0509-0512	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-0602	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0603-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28781-025-0	02	1	0509-0512	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	0601-0602	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	0603-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0509-0512	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-0602	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0603-	●	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0509-0602	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0603-	●	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	0509-0602	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	0603-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	0509-0602	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	0603-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0509-0602	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0603-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-1	01	1	0509-0602	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	0603-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0509-0602	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0603-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0509-0602	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0603-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-201-0	01	1	0509-0602	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-201-0	01	1	0603-	●	●
