Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#29470) — 239 parça

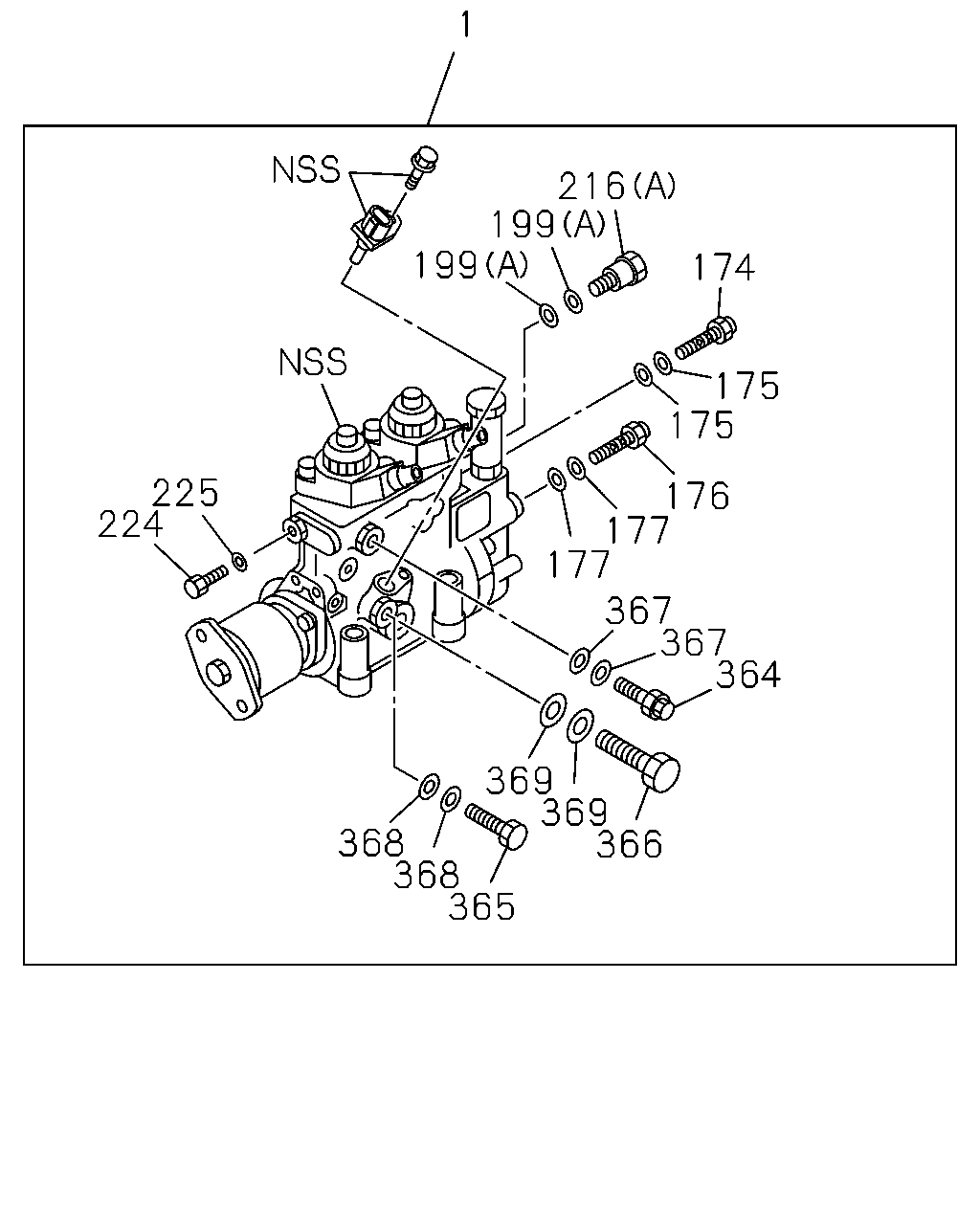

1 216 199 199 174 175 175 225 224 176 177 177 367 367 364 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97603-414-0	01	1	0509-0602	●
1	PUMP ASM; INJ	8-97603-414-4	01	1	0603-	●	●
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	0509-0602	●
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	0603-	●	●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	0509-0602	●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	0603-	●	●
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	0509-0602	●
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	0603-	●	●
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	0509-0602	●
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	0603-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0603-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0603-	●	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-0602	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0603-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-0602	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0603-	●	●
224	PLUG; INJ PUMP	1-15619-500-0	01	1	0509-0602	●
224	PLUG; INJ PUMP	1-15619-500-0	01	1	0603-	●	●
225	GASKET; PLUG	1-15619-502-0	01	1	0509-0602	●
225	GASKET; PLUG	1-15619-502-0	01	1	0603-	●	●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	0509-0602	●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	0603-	●	●
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	0509-0602	●
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	0603-	●	●
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	0509-0602	●
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	0603-	●	●
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	0509-0602	●
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	0603-	●	●
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	0509-0602	●
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	0603-	●	●
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	0509-0602	●
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	0603-	●	●

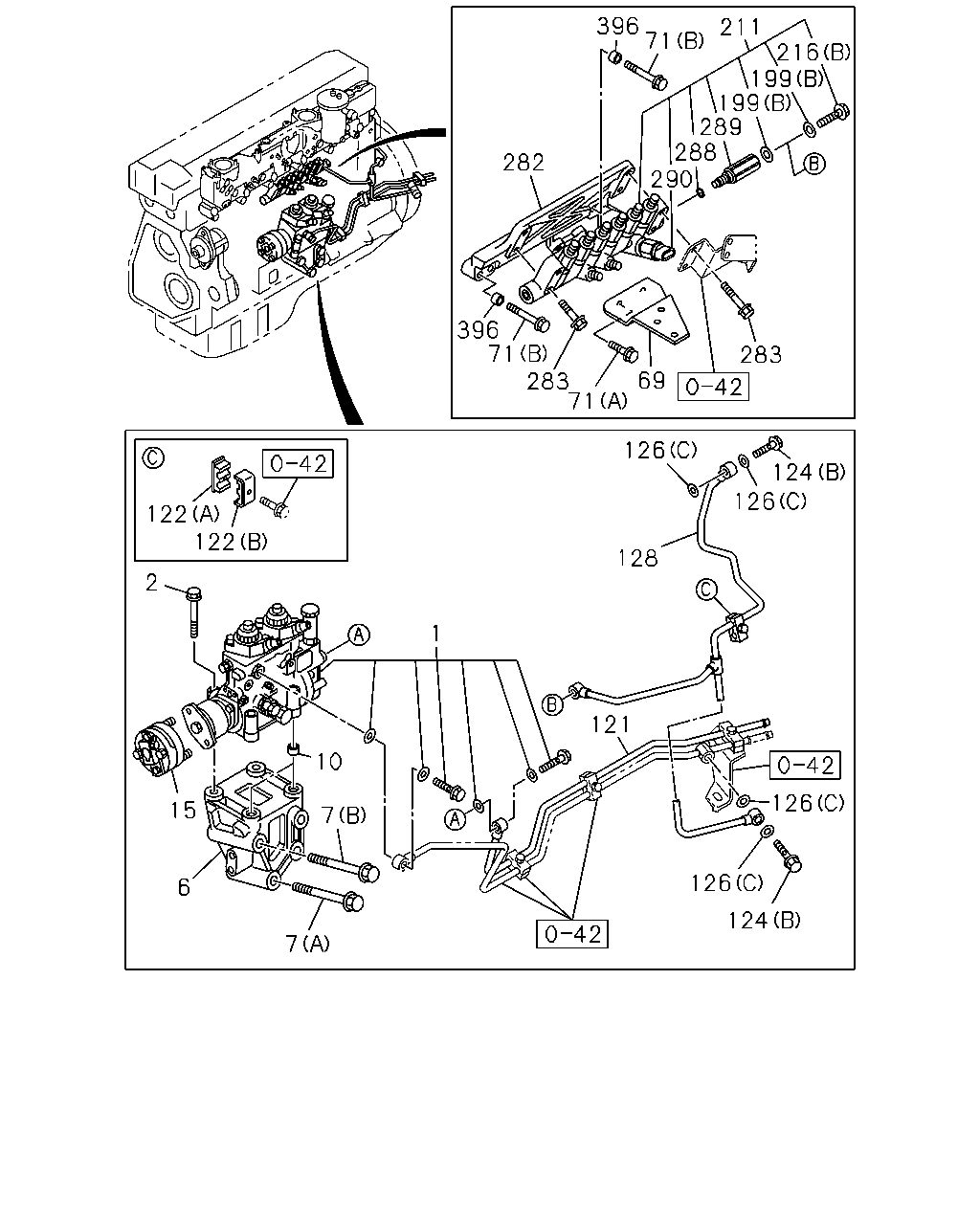

122 122 2 1 121 10 7 15 6 7 126 124 126 128 126 124 126 282 396 71 283 71 69 283 290 288 289 199 199 216 211 71 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97603-414-0	01	1	0509-0602	●
1	PUMP ASM; INJ	8-97603-414-4	01	1	0603-	●	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0509-0512	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-0602	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0603-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0509-0602	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0603-	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0509-0512	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-0602	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0603-	●	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0509-0512	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-0602	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0603-	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0509-0602	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0603-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0509-0602	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0603-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0509-0602	●
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0603-	●	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28181-060-0	02	1	0509-0512	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0601-0602	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0603-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97607-212-0	01	1	0509-0602	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97607-212-0	01	1	0603-	●	●
122	CLIP; LEAK OFF PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1206-	●	●
122	CLIP; LEAK OFF PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1206-	●	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0603-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0603-1205	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0603-0805	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0603-0702	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0603-1205	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-	●	●
128	PIPE ASM; INJ	1-15416-818-0	01	1	0509-0602	●
128	PIPE ASM; INJ	1-15416-818-0	01	1	0603-1205	●	●
128	PIPE ASM; INJ	8-98218-279-0	01	1	1206-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0603-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0603-	●	●
211	RAIL ASM; COMMON	8-97603-121-1	01	1	0509-0602	●
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0603-	●	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-0602	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0603-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-0602	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0603-	●	●
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0509-0602	●
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0603-	●	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28181-040-0	04	1	0509-0512	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0601-0602	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0603-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0509-0602	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0603-	●	●
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0509-0602	●
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0603-	●	●
290	SENSOR; PRESS	8-97318-684-0	01	1	0509-0602	●
290	SENSOR; PRESS	8-97318-684-0	01	1	0603-1102	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-	●	●
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0509-0602	●
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0603-	●	●

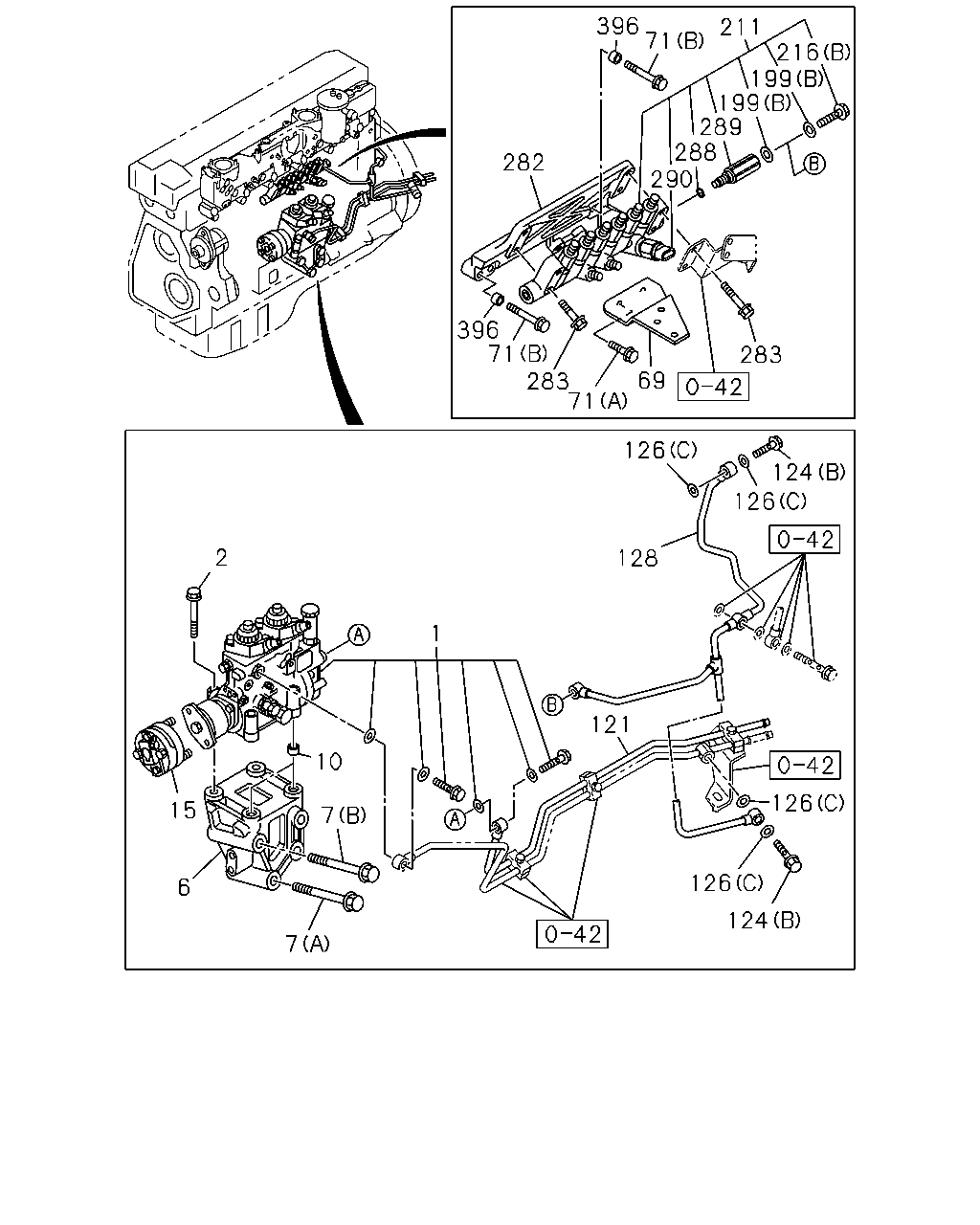

396 71 211 216 199 199 289 288 290 282 396 71 283 71 283 69 126 124 126 2 128 1 15 121 10 126 7 126 6 124 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97603-414-0	01	1	0509-0602	●
1	PUMP ASM; INJ	8-97603-414-4	01	1	0603-	●	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0509-0512	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-0602	●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0603-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0509-0602	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0603-	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0509-0512	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-0602	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0603-	●	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0509-0512	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-0602	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0603-	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0509-0602	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0603-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0509-0602	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0603-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0509-0602	●
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0603-	●	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0602	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28181-060-0	02	1	0509-0512	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0601-0602	●
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0603-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97607-212-0	01	1	0509-0602	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97607-212-0	01	1	0603-	●	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0603-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0603-1205	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0603-0805	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0603-0702	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0603-1205	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-	●	●
128	PIPE ASM; INJ	1-15416-818-0	01	1	0509-0602	●
128	PIPE ASM; INJ	1-15416-818-0	01	1	0603-1205	●	●
128	PIPE ASM; INJ	8-98218-279-0	01	1	1206-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0603-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-0602	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0603-	●	●
211	RAIL ASM; COMMON	8-97603-121-1	01	1	0509-0602	●
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0603-	●	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-0602	●
216	BOLT; EYE (B)	8-97602-173-0	01	1	0603-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-0602	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0603-	●	●
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0509-0602	●
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0603-	●	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28181-040-0	04	1	0509-0512	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0601-0602	●
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0603-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0509-0602	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0603-	●	●
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0509-0602	●
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0603-	●	●
290	SENSOR; PRESS	8-97318-684-0	01	1	0509-0602	●
290	SENSOR; PRESS	8-97318-684-0	01	1	0603-1102	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-	●	●
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0509-0602	●
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0603-	●	●

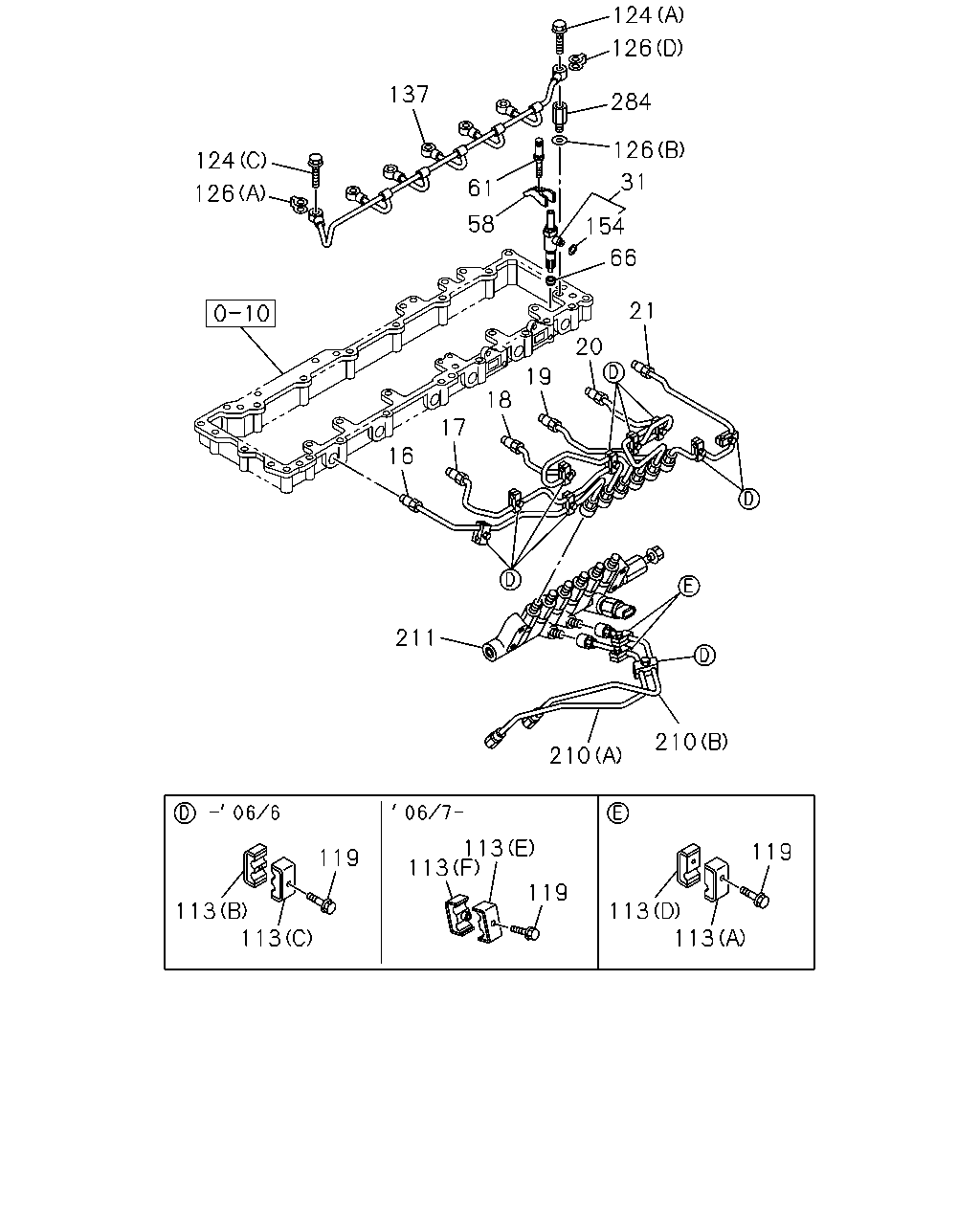

119 113 113 119 113 113 113 119 113 211 210 210 16 17 18 19 20 21 66 154 31 126 284 126 124 137 61 58 126 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15416-842-1	01	1	0509-0602	●
16	PIPE; INJ NO.1	1-15416-842-2	01	1	0603-	●	●
17	PIPE; INJ NO.2	1-15416-843-2	01	1	0509-0602	●
17	PIPE; INJ NO.2	1-15416-843-3	01	1	0603-	●	●
18	PIPE; INJ NO.3	1-15416-844-1	01	1	0509-0602	●
18	PIPE; INJ NO.3	1-15416-844-2	01	1	0603-	●	●
19	PIPE; INJ NO.4	1-15416-845-1	01	1	0509-0602	●
19	PIPE; INJ NO.4	1-15416-845-2	01	1	0603-	●	●
20	PIPE; INJ NO.5	1-15416-846-2	01	1	0509-0602	●
20	PIPE; INJ NO.5	1-15416-846-3	01	1	0603-	●	●
21	PIPE; INJ NO.6	1-15416-847-1	01	1	0509-0602	●
21	PIPE; INJ NO.6	1-15416-847-2	01	1	0603-	●	●
31	NOZZLE ASM; INJ	8-97603-415-2	06	1	0509-0602	●
31	NOZZLE ASM; INJ	8-97603-415-7	06	1	0603-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97603-469-0	06	1	0509-0602	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97603-469-0	06	1	0603-	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0509-0602	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10	8-97216-082-0	06	1	0509-0602	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10	8-97216-082-0	06	1	0603-	●	●
113	CLIP; INJ PIPE (B)	1-09701-172-2	10	1	0509-0602	●
113	CLIP; INJ PIPE (B)	1-09701-172-2	10	1	0603-0606	●	●
113	CLIP; INJ PIPE (E) ID=7 & 7 L=22	8-97330-118-3	10	1	0607-	●	●
113	CLIP; INJ PIPE (C)	1-09701-173-1	10	1	0509-0602	●
113	CLIP; INJ PIPE (C)	1-09701-173-1	10	1	0603-0606	●	●
113	CLIP; INJ PIPE (F) ID=7 & 7 L=22	8-97330-119-3	10	1	0607-	●	●
113	CLIP; INJ PIPE (D)	1-09701-269-0	02	1	0509-0602	●
113	CLIP; INJ PIPE (D)	1-09701-269-0	02	1	0603-	●	●
113	CLIP; INJ PIPE (A)	8-94396-371-0	02	1	0509-0602	●
113	CLIP; INJ PIPE (A)	8-94396-371-0	02	1	0603-	●	●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	12	1	0509-0512	●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	12	1	0601-0602	●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	12	1	0603-	●	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0603-	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0603-1205	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0602	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0603-0805	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0603-0702	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-0602	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0603-1205	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-	●	●
137	PIPE ASM; LEAK OFF	1-15416-851-0	01	1	0509-0602	●
137	PIPE ASM; LEAK OFF	1-15416-851-0	01	1	0603-0702	●	●
137	PIPE ASM; LEAK OFF	8-97617-161-0	01	1	0703-	●	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0509-0602	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0603-1106	●	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-	●	●
210	PIPE; INJ,C/R (A)	1-15416-811-1	01	1	0509-0602	●
210	PIPE; INJ,C/R (A)	1-15416-811-1	01	1	0603-	●	●
210	PIPE; INJ,C/R (B)	1-15416-812-1	01	1	0509-0602	●
210	PIPE; INJ,C/R (B)	1-15416-812-1	01	1	0603-	●	●
211	RAIL ASM; COMMON	8-97603-121-1	01	1	0509-0602	●
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0603-	●	●
284	ADAPTER; FUEL LEAK OFF	1-15419-525-2	01	1	0509-0602	●
284	ADAPTER; FUEL LEAK OFF	1-15419-525-2	01	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
