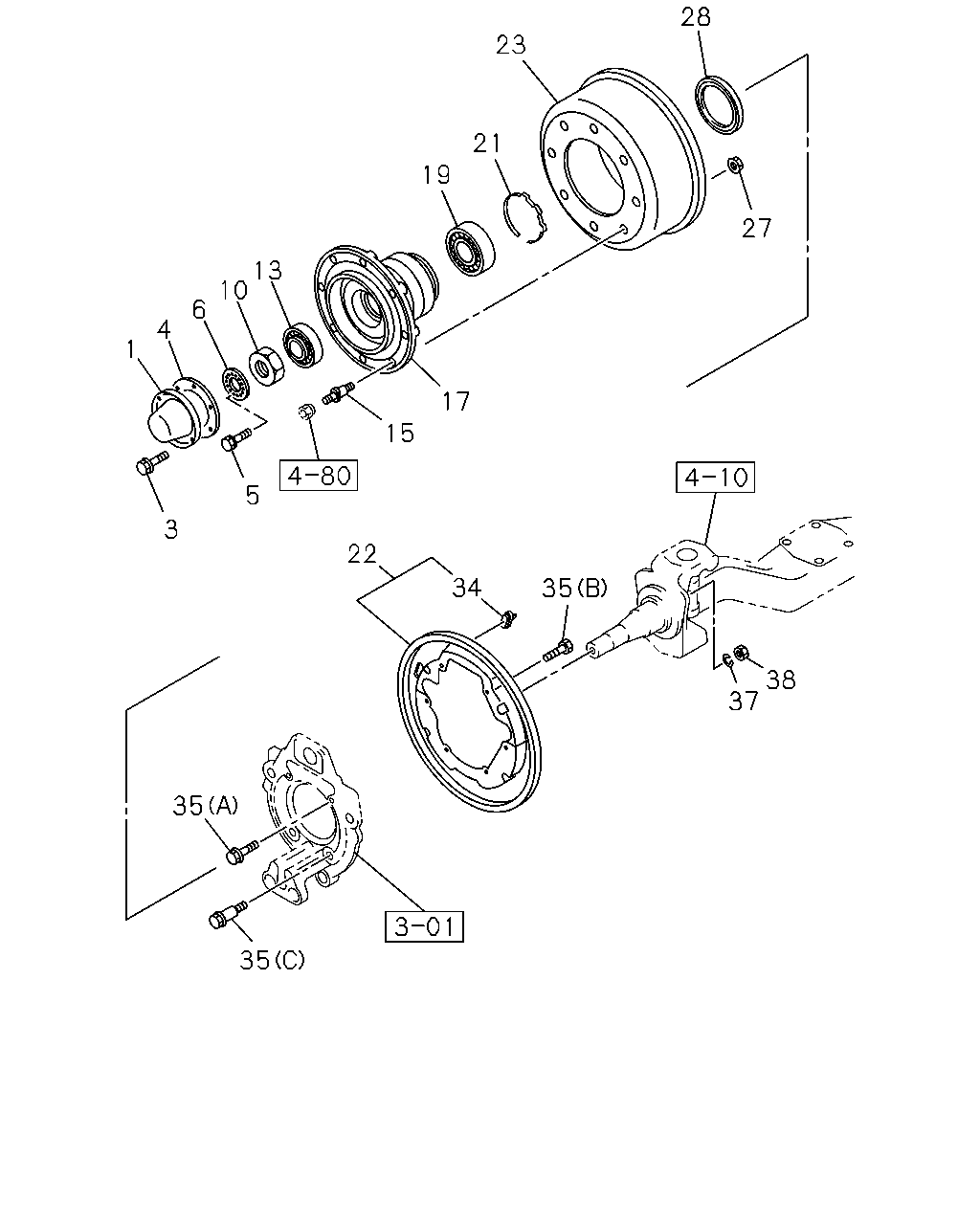

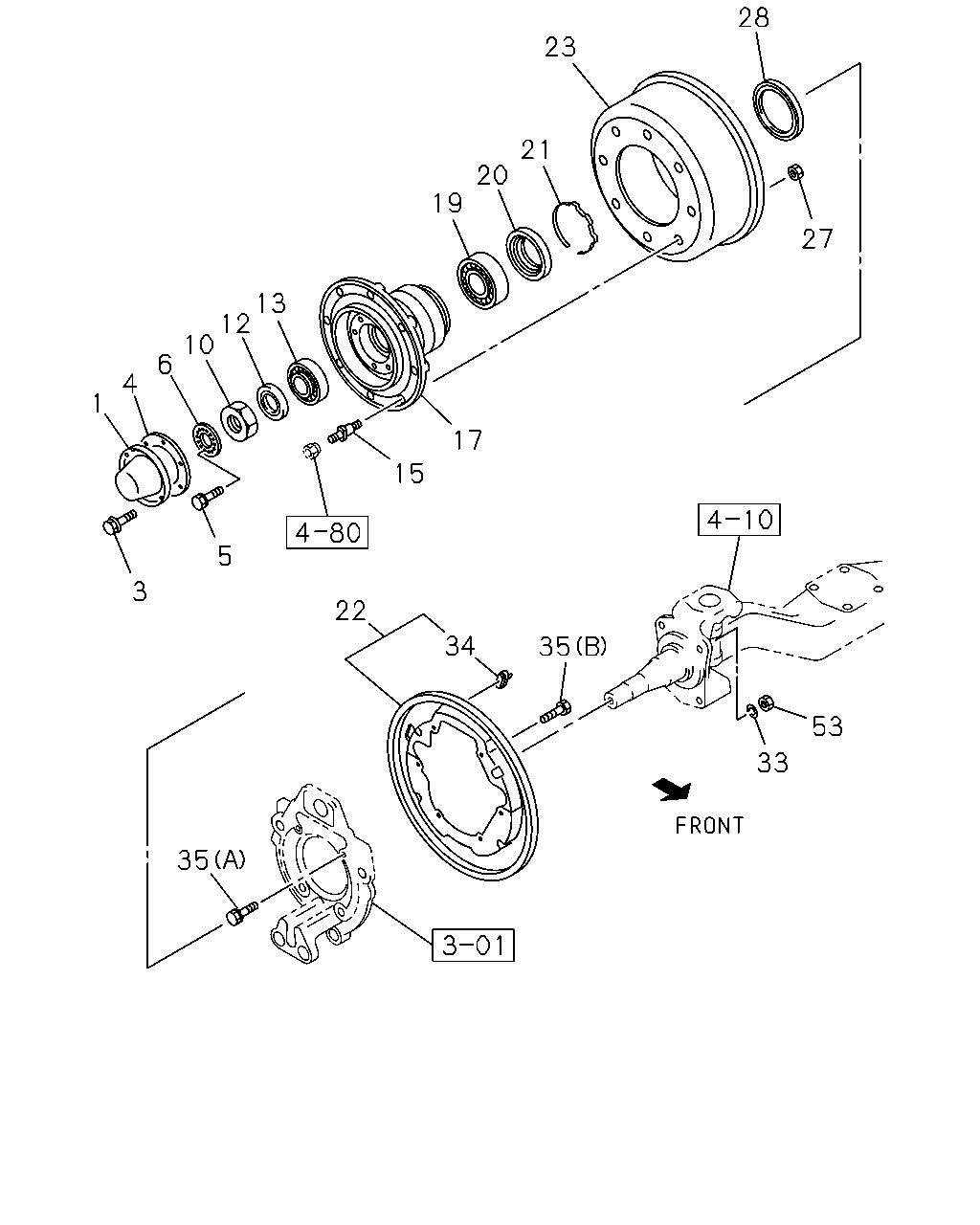

4-11 — FRONT HUB AND DRUM OR ROTOR (#29468) — 93 parça

28 23 21 20 19 27 13 12 10 6 4 1 17 15 5 3 22 34 35 53 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE FRONT AXLE F049<FS4> OD=136	1-42313-007-1	02	1	0311-
1	CAP; HUB,FRT AXLE FRONT AXLE F063<FS7> OD=156	9-42313-123-2	02	1	0311-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0311-0512
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049<FS4>	1-42319-028-0	02	1	0311-
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F063<FS7>	1-42319-185-2	02	1	0311-
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0311-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-
6	WASHER; LK,FRT HUB FRONT AXLE F049<FS4> ID=39	1-09841-003-0	02	1	0311-
6	WASHER; LK,FRT HUB FRONT AXLE F063<FS7> ID=48	1-09533-012-1	02	1	0311-
10	NUT; FRT HUB BRG FRONT AXLE F049<FS4> M39	1-09840-019-1	02	1	0311-
10	NUT; FRT HUB BRG FRONT AXLE F063<FS7> M48	1-09840-012-5	02	1	0311-
12	WASHER; LK,FRT HUB BRG FRONT AXLE F063<FS7> ID=48	1-09533-016-0	02	1	0311-0911
12	WASHER; LK,FRT HUB BRG FRONT AXLE F063<FS7> ID=48	8-98156-755-0	02	1	0912-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> NSK	9-00093-146-0	02	1	0311-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> KOYO	9-00093-147-1	02	1	0311-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-234-0	02	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0311-0610
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0702-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0311-0610
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0702-
17	HUB; FRT AXLE FRONT AXLE F049<FS4> IDN	8-97520-100-0	02	1	0311-
17	HUB; FRT AXLE FRONT AXLE F063<FS7> IDN	8-97520-101-0	02	1	0311-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> NSK	8-98143-848-0	02	1	0907-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> KOYO	9-00093-114-0	02	1	0311-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-231-0	02	1	0311-
20	COVER; HUB BRG INNER FRONT AXLE F063<FS7>	1-42319-039-0	02	1	0311-
21	RING; SNAP,HUB FRONT AXLE F049<FS4> OD=132	9-09950-164-0	02	1	0311-
21	RING; SNAP,HUB FRONT AXLE F063<FS7>	1-09587-017-0	02	1	0311-
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	0311-
23	DRUM; BRK,FRT IDN	8-97520-135-0	02	1	0311-
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0311-
28	SEAL; OIL,FRT HUB FRONT AXLE F049<FS4> OD=128	1-09625-129-0	02	1	0311-
28	SEAL; OIL,FRT HUB FRONT AXLE F063<FS7> OD=140	1-09625-041-0	02	1	0311-
33	WASHER; LK,DRUM COVER FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	04	1	0311-0603
33	WASHER; LK,DRUM COVER FRONT AXLE F063<FS7> ID=16.2	0-91510-816-0	04	1	0604-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0311-
35	BOLT; DRUM COVER FRONT AXLE F049<FS4> (C) M16X61	1-09040-058-1	04	1	0311-
35	BOLT; DRUM COVER (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0311-0906
35	BOLT; DRUM COVER (B) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	04	1	0311-0805
35	BOLT; DRUM COVER (A) M16X52	1-09044-120-0	04	1	0806-
53	NUT; DRUM COVER FRONT AXLE F063<FS7> M16 IDN	9-99110-416-0	04	1	0311-0512
53	NUT; DRUM COVER FRONT AXLE F063<FS7> M16	0-91110-516-0	04	1	0601-

28 23 21 19 27 13 10 6 4 1 17 15 5 3 22 34 35 38 37 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE FRONT AXLE F049<FS4> OD=136	1-42313-007-1	02	1	0311-
1	CAP; HUB,FRT AXLE FRONT AXLE F063<FS7> OD=156	9-42313-123-2	02	1	0311-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	0311-0512
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	0601-
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049<FS4>	1-42319-028-0	02	1	0311-
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F063<FS7>	1-42319-185-2	02	1	0311-
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	0311-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-
6	WASHER; LK,FRT HUB FRONT AXLE F049<FS4> ID=39	1-09841-003-0	02	1	0311-
6	WASHER; LK,FRT HUB FRONT AXLE F063<FS7> ID=48	1-09533-012-1	02	1	0311-
10	NUT; FRT HUB BRG FRONT AXLE F049<FS4> M39	1-09840-019-1	02	1	0311-
10	NUT; FRT HUB BRG FRONT AXLE F063<FS7> M48	1-09840-012-5	02	1	0311-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> NSK	9-00093-146-0	02	1	0311-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049<FS4> KOYO	9-00093-147-1	02	1	0311-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-234-0	02	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049<FS4> M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	0311-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	0311-0610
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-150-1	08	1	0611-0701
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0702-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	0311-0610
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-150-1	08	1	0611-0701
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0702-
17	HUB; FRT AXLE FRONT AXLE F049<FS4> IDN	8-97520-100-0	02	1	0311-
17	HUB; FRT AXLE FRONT AXLE F063<FS7> IDN	8-97520-101-0	02	1	0311-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> NSK	8-98143-848-0	02	1	0907-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049<FS4> KOYO	9-00093-114-0	02	1	0311-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-231-0	02	1	0311-
21	RING; SNAP,HUB FRONT AXLE F049<FS4> OD=132	9-09950-164-0	02	1	0311-
21	RING; SNAP,HUB FRONT AXLE F063<FS7>	1-09587-017-0	02	1	0311-
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	0311-
23	DRUM; BRK,FRT IDN	8-97520-135-0	02	1	0311-
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0311-
28	SEAL; OIL,FRT HUB FRONT AXLE F049<FS4> OD=128	1-09625-129-0	02	1	0311-
28	SEAL; OIL,FRT HUB FRONT AXLE F063<FS7> OD=140	1-09625-041-0	02	1	0311-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0311-
35	BOLT; DRUM COVER FRONT AXLE F049<FS4> (C) M16X61	1-09040-058-1	04	1	0311-
35	BOLT; DRUM COVER (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	0311-0906
35	BOLT; DRUM COVER (B) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	04	1	0311-0805
35	BOLT; DRUM COVER (A) M16X52	1-09044-120-0	04	1	0806-
37	WASHER; LK,BACK PLATE FRONT AXLE F049<FS4> ID=16.2	9-09150-816-0	08	1	0311-0603
37	WASHER; LK,BACK PLATE FRONT AXLE F049<FS4> ID=16.2	0-91510-816-0	08	1	0604-
38	NUT; BACK PLATE FRONT AXLE F049<FS4> M16 IDN	9-99110-416-0	08	1	0311-0512
38	NUT; BACK PLATE FRONT AXLE F049<FS4> M16	0-91110-516-0	08	1	0601-
