Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#29467) — 241 parça

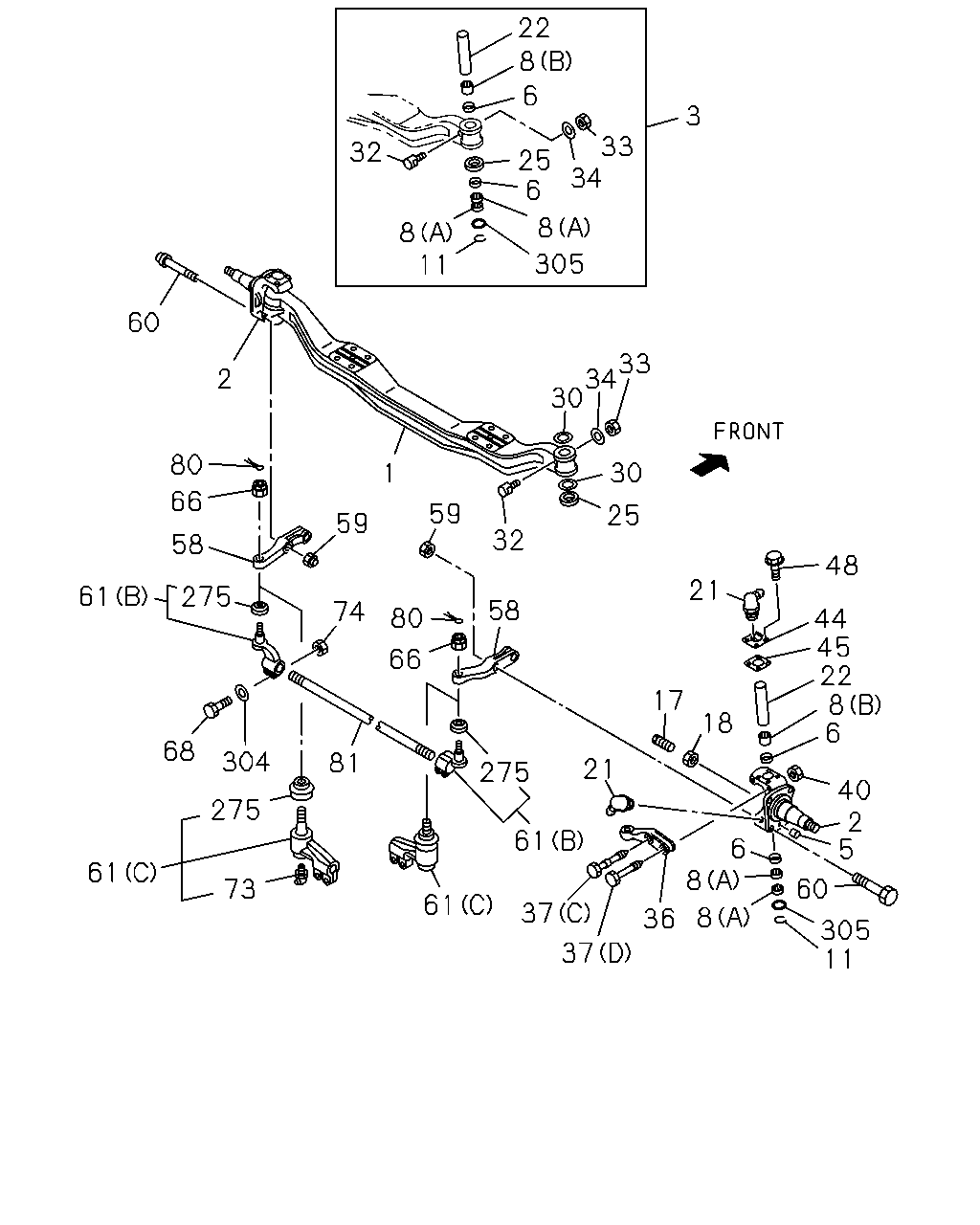

22 33 8 32 8 6 3 25 8 34 6 305 11 33 34 30 30 59 1 59 2 60 32 25 21 48 44 45 22 8 6 40 2 5 60 305 11 6 8 8 36 37 37 61 21 17 18 58 80 66 74 81 275 61 73 275 61 304 68 61 66 275 58 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F049<FS4>	1-43111-133-0	01	1	0311-
1	AXLE; FRT FRONT AXLE F063<FS7>	1-43111-113-6	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F049<FS4>	1-43131-083-0	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F049<FS4>	1-43132-083-0	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F063<FS7>	1-43131-079-1	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F063<FS7>	1-43132-079-1	01	1	0311-
3	KING PIN SET FRONT AXLE F049<FS4>	1-87830-804-2	01	1	0311-0704
3	KING PIN SET FRONT AXLE F049<FS4>	1-87831-389-1	01	1	0705-
3	KING PIN SET FRONT AXLE F049<FS4>	1-87830-837-2	01	1	0311-0704
3	KING PIN SET FRONT AXLE F049<FS4>	1-87831-390-1	01	1	0705-
3	KING PIN SET FRONT AXLE F063<FS7>	1-87830-738-5	02	1	0311-
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063<FS7>	1-09740-072-0	02	1	0311-
6	SEAL; KING PIN FRONT AXLE F063<FS7>	9-09926-024-0	04	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049<FS4> (C) NTN	1-09811-071-0	08	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049<FS4> (C) NSK	1-09811-072-0	08	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063<FS7> (A) NTN	9-00096-242-0	04	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063<FS7> (B) NTN	9-00096-243-0	02	1	0311-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0311-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049<FS4> M14X47	1-09009-058-0	02	1	0311-0805
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049<FS4> M14X47	1-09009-191-0	02	1	0806-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063<FS7> M18X43	1-09009-065-0	02	1	0311-0705
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063<FS7> M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049<FS4> M14	9-99112-814-0	02	1	0311-0512
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049<FS4> M14	0-91112-814-0	02	1	0601-
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063<FS7> M18 IDN	9-99110-518-0	02	1	0311-0512
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063<FS7> M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049<FS4> PT1/8 STRAIGHT	9-09031-010-0	04	1	0311-0512
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049<FS4> PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063<FS7> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0311-0512
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063<FS7> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
22	PIN; KING,FRT AXLE FRONT AXLE F049<FS4>	1-43161-007-1	02	1	0311-
22	PIN; KING,FRT AXLE FRONT AXLE F063<FS7>	9-43161-043-3	02	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NTN	1-09829-026-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NSK	1-09829-028-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NSK	1-09829-040-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F063<FS7> NSK	1-09829-043-2	02	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.800	1-43171-229-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.850	1-43171-230-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.900	1-43171-231-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.950	1-43171-232-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.000	1-43171-233-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.050	1-43171-234-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.100	1-43171-235-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.150	1-43171-236-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.200	1-43171-237-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.250	1-43171-238-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.300	1-43171-239-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.875 -4.900	1-43171-185-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.900 -4.925	1-43171-186-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.925 -4.950	1-43171-187-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.950 -4.975	1-43171-188-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.975 -5.000	1-43171-189-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.000 -5.025	1-43171-190-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.025 -5.050	1-43171-191-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.050 -5.075	1-43171-192-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.075 -5.100	1-43171-193-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.100 -5.125	1-43171-194-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.125 -5.150	1-43171-195-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.150 -5.175	1-43171-196-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.175 -5.200	1-43171-197-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.200 -5.225	1-43171-198-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.225 -5.250	1-43171-199-0	AR	1	0311-
32	BOLT; KEY,KING PIN FRONT AXLE F049<FS4>	1-43116-005-1	02	1	0311-
32	BOLT; KEY,KING PIN FRONT AXLE F063<FS7>	1-43116-002-1	02	1	0311-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0311-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0311-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE FRONT AXLE F049<FS4>	1-43133-068-2	01	1	0311-
36	ARM; KNUCKLE FRONT AXLE F063<FS7>	1-43133-063-3	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F049<FS4> (A) M22X162	1-09000-107-1	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F049<FS4> (B) M22X147	1-09000-108-1	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (C) M22X179	1-09000-578-1	01	1	0311-0704
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (C) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (D) M22X167	9-09806-847-3	01	1	0311-0704
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (D) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0311-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN FRONT AXLE F049<FS4>	1-43175-016-0	02	1	0311-
44	COVER; KING PIN FRONT AXLE F063<FS7>	1-43175-014-1	02	1	0311-
45	GASKET; KING PIN COVER FRONT AXLE F063<FS7>	1-42319-044-0	02	1	0311-
48	BOLT; COVER FRONT AXLE F049<FS4> M12X25	1-09009-081-0	02	1	0311-
48	BOLT; COVER FRONT AXLE F063<FS7> M12X16 FLANGE	0-28081-216-0	08	1	0311-0512
48	BOLT; COVER FRONT AXLE F063<FS7> M12X16 FLANGE	0-28051-216-0	08	1	0601-
58	ARM; TIE ROD FRONT AXLE F049<FS4>	1-43134-015-1	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F049<FS4>	1-43135-015-1	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F063<FS7>	1-43134-042-3	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F063<FS7>	1-43135-042-3	01	1	0311-
59	NUT; TIE ROD ARM FRONT AXLE F049<FS4> M27	1-09449-016-0	02	1	0311-0704
59	NUT; TIE ROD ARM FRONT AXLE F049<FS4> M27 FLANGE	1-09449-082-0	02	1	0705-
59	NUT; TIE ROD ARM FRONT AXLE F063<FS7> M22	9-09844-670-1	04	1	0311-0704
59	NUT; TIE ROD ARM FRONT AXLE F063<FS7> M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM FRONT AXLE F063<FS7> M22X193	1-09000-154-2	04	1	0311-0704
60	BOLT; TIE ROD ARM FRONT AXLE F063<FS7> M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD FRONT AXLE F049<FS4> (A)	1-43150-677-3	01	1	0311-
61	ROD END; TIE ROD FRONT AXLE F049<FS4> (A)	1-43150-678-3	01	1	0311-
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (B)	1-43150-801-0	01	1	0311-1009
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (B)	1-43150-802-0	01	1	0311-1009
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0311-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END FRONT AXLE F049<FS4> M12X55	9-91061-255-0	04	1	0311-
68	BOLT; TIE ROD END FRONT AXLE F063<FS7> M12X65	9-91061-265-0	04	1	0311-0805
68	BOLT; TIE ROD END FRONT AXLE F063<FS7> M12X65	8-98053-922-0	04	1	0806-
73	NIPPLE; GREASE,TIE ROD END FRONT AXLE F063<FS7>	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12 IDN	9-99110-512-0	04	1	0311-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0311-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE FRONT AXLE F049<FS4>	1-43151-129-0	01	1	0311-
81	ROD; TIE FRONT AXLE F063<FS7>	1-43151-119-0	01	1	0311-1009
81	ROD; TIE FRONT AXLE F063<FS7>	8-98172-133-0	01	1	1010-1109
81	ROD; TIE FRONT AXLE F063<FS7>	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE FRONT AXLE F063<FS7>	1-43159-107-0	02	1	0311-1009
275	BOOT; ROD END,TIE FRONT AXLE F063<FS7>	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE FRONT AXLE F063<FS7>	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0311-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0311-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

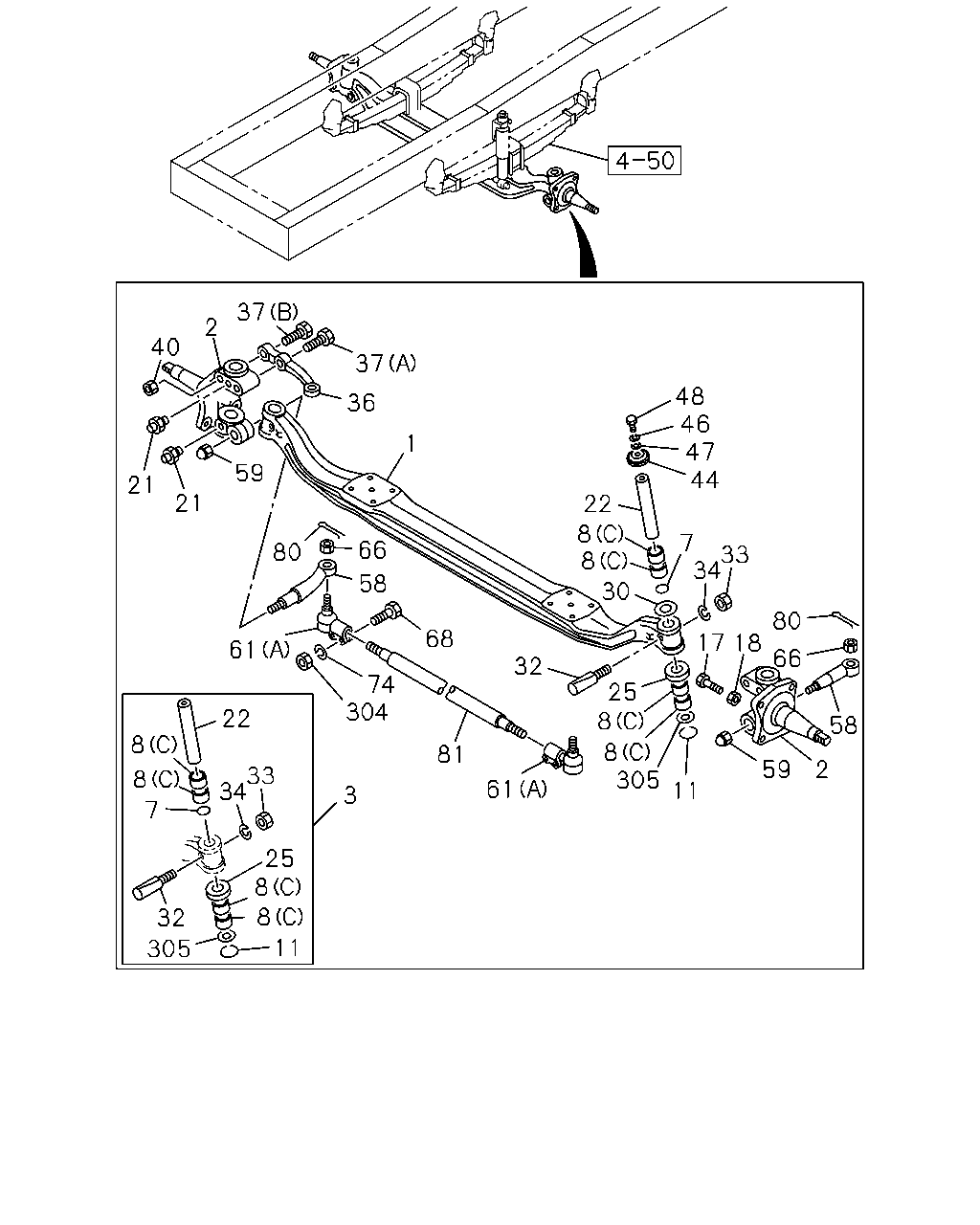

37 2 40 21 21 59 36 37 1 80 66 58 68 32 30 8 8 22 48 46 47 44 7 33 34 17 18 80 66 58 2 59 11 305 8 8 25 61 81 304 74 61 22 8 8 7 34 33 3 25 8 8 11 305 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F049<FS4>	1-43111-133-0	01	1	0311-
1	AXLE; FRT FRONT AXLE F063<FS7>	1-43111-113-6	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F049<FS4>	1-43131-083-0	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F049<FS4>	1-43132-083-0	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F063<FS7>	1-43131-079-1	01	1	0311-
2	KNUCKLE; FRT AXLE FRONT AXLE F063<FS7>	1-43132-079-1	01	1	0311-
3	KING PIN SET FRONT AXLE F049<FS4>	1-87830-804-2	01	1	0311-0704
3	KING PIN SET FRONT AXLE F049<FS4>	1-87831-389-1	01	1	0705-
3	KING PIN SET FRONT AXLE F049<FS4>	1-87830-837-2	01	1	0311-0704
3	KING PIN SET FRONT AXLE F049<FS4>	1-87831-390-1	01	1	0705-
3	KING PIN SET FRONT AXLE F063<FS7>	1-87830-738-5	02	1	0311-
7	SEAL; OIL,KING PIN FRONT AXLE F049<FS4> NSK	1-09625-087-0	02	1	0311-
7	SEAL; OIL,KING PIN FRONT AXLE F049<FS4> NTN	1-09625-089-0	02	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049<FS4> (C) NTN	1-09811-071-0	08	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049<FS4> (C) NSK	1-09811-072-0	08	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063<FS7> (A) NTN	9-00096-242-0	04	1	0311-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063<FS7> (B) NTN	9-00096-243-0	02	1	0311-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0311-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049<FS4> M14X47	1-09009-058-0	02	1	0311-0805
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049<FS4> M14X47	1-09009-191-0	02	1	0806-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063<FS7> M18X43	1-09009-065-0	02	1	0311-0705
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063<FS7> M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049<FS4> M14	9-99112-814-0	02	1	0311-0512
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049<FS4> M14	0-91112-814-0	02	1	0601-
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063<FS7> M18 IDN	9-99110-518-0	02	1	0311-0512
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063<FS7> M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049<FS4> PT1/8 STRAIGHT	9-09031-010-0	04	1	0311-0512
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049<FS4> PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063<FS7> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0311-0512
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063<FS7> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
22	PIN; KING,FRT AXLE FRONT AXLE F049<FS4>	1-43161-007-1	02	1	0311-
22	PIN; KING,FRT AXLE FRONT AXLE F063<FS7>	9-43161-043-3	02	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NTN	1-09829-026-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NSK	1-09829-028-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F049<FS4> NSK	1-09829-040-0	01	1	0311-
25	BEARING; THRUST,KING PIN FRONT AXLE F063<FS7> NSK	1-09829-043-2	02	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.800	1-43171-229-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.850	1-43171-230-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.900	1-43171-231-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=2.950	1-43171-232-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.000	1-43171-233-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.050	1-43171-234-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.100	1-43171-235-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.150	1-43171-236-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.200	1-43171-237-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.250	1-43171-238-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F049<FS4> T=3.300	1-43171-239-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.875 -4.900	1-43171-185-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.900 -4.925	1-43171-186-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.925 -4.950	1-43171-187-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.950 -4.975	1-43171-188-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=4.975 -5.000	1-43171-189-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.000 -5.025	1-43171-190-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.025 -5.050	1-43171-191-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.050 -5.075	1-43171-192-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.075 -5.100	1-43171-193-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.100 -5.125	1-43171-194-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.125 -5.150	1-43171-195-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.150 -5.175	1-43171-196-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.175 -5.200	1-43171-197-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.200 -5.225	1-43171-198-0	AR	1	0311-
30	WASHER; THRUST,KING PIN FRONT AXLE F063<FS7> T=5.225 -5.250	1-43171-199-0	AR	1	0311-
32	BOLT; KEY,KING PIN FRONT AXLE F049<FS4>	1-43116-005-1	02	1	0311-
32	BOLT; KEY,KING PIN FRONT AXLE F063<FS7>	1-43116-002-1	02	1	0311-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0311-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0311-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE FRONT AXLE F049<FS4>	1-43133-068-2	01	1	0311-
36	ARM; KNUCKLE FRONT AXLE F063<FS7>	1-43133-063-3	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F049<FS4> (A) M22X162	1-09000-107-1	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F049<FS4> (B) M22X147	1-09000-108-1	01	1	0311-
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (C) M22X179	1-09000-578-1	01	1	0311-0704
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (C) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (D) M22X167	9-09806-847-3	01	1	0311-0704
37	BOLT; KNUCKLE ARM FRONT AXLE F063<FS7> (D) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0311-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN FRONT AXLE F049<FS4>	1-43175-016-0	02	1	0311-
44	COVER; KING PIN FRONT AXLE F063<FS7>	1-43175-014-1	02	1	0311-
46	WASHER; LK,COVER FRONT AXLE F049<FS4> ID=12.2	9-09150-512-0	02	1	0311-0603
46	WASHER; LK,COVER FRONT AXLE F049<FS4> ID=12.2	0-91510-512-0	02	1	0604-
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049<FS4> ID=12.5 OD=32	9-09164-712-0	02	1	0311-0605
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049<FS4> ID=12.5 OD=32 IDN	0-91614-712-0	02	1	0606-
48	BOLT; COVER FRONT AXLE F049<FS4> M12X25	1-09009-081-0	02	1	0311-
48	BOLT; COVER FRONT AXLE F063<FS7> M12X16 FLANGE	0-28081-216-0	08	1	0311-0512
48	BOLT; COVER FRONT AXLE F063<FS7> M12X16 FLANGE	0-28051-216-0	08	1	0601-
58	ARM; TIE ROD FRONT AXLE F049<FS4>	1-43134-015-1	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F049<FS4>	1-43135-015-1	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F063<FS7>	1-43134-042-3	01	1	0311-
58	ARM; TIE ROD FRONT AXLE F063<FS7>	1-43135-042-3	01	1	0311-
59	NUT; TIE ROD ARM FRONT AXLE F049<FS4> M27	1-09449-016-0	02	1	0311-0704
59	NUT; TIE ROD ARM FRONT AXLE F049<FS4> M27 FLANGE	1-09449-082-0	02	1	0705-
59	NUT; TIE ROD ARM FRONT AXLE F063<FS7> M22	9-09844-670-1	04	1	0311-0704
59	NUT; TIE ROD ARM FRONT AXLE F063<FS7> M22	1-09449-084-0	04	1	0705-
61	ROD END; TIE ROD FRONT AXLE F049<FS4> (A)	1-43150-677-3	01	1	0311-
61	ROD END; TIE ROD FRONT AXLE F049<FS4> (A)	1-43150-678-3	01	1	0311-
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (B)	1-43150-801-0	01	1	0311-1009
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (B)	1-43150-802-0	01	1	0311-1009
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD FRONT AXLE F063<FS7> (C)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0311-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END FRONT AXLE F049<FS4> M12X55	9-91061-255-0	04	1	0311-
68	BOLT; TIE ROD END FRONT AXLE F063<FS7> M12X65	9-91061-265-0	04	1	0311-0805
68	BOLT; TIE ROD END FRONT AXLE F063<FS7> M12X65	8-98053-922-0	04	1	0806-
74	NUT; TIE ROD END M12 IDN	9-99110-512-0	04	1	0311-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0311-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE FRONT AXLE F049<FS4>	1-43151-129-0	01	1	0311-
81	ROD; TIE FRONT AXLE F063<FS7>	1-43151-119-0	01	1	0311-1009
81	ROD; TIE FRONT AXLE F063<FS7>	8-98172-133-0	01	1	1010-1109
81	ROD; TIE FRONT AXLE F063<FS7>	8-98193-965-0	01	1	1110-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0311-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0311-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
