◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10935 - FTR(INDONESIA)WB4600 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#29466) — 69 parça

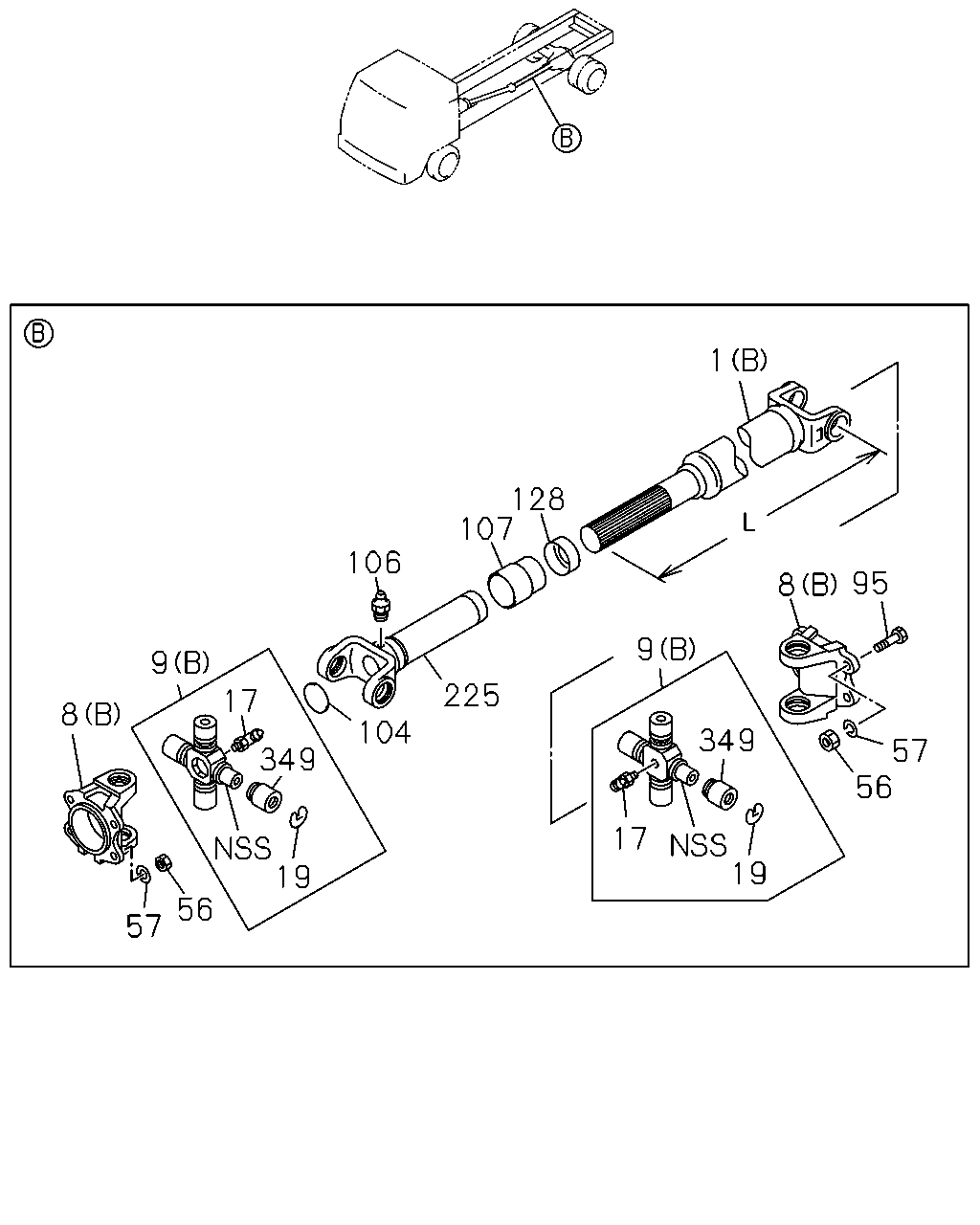

çizim 84714
8 9 57 56 19 349 17 104 106 225 107 128 9 17 19 349 56 57 8 95 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) END L=1275 IDN 		8-97520-241-0 01 1 0311-
1 SHAFT; PROP
(A) 1ST L=1096 IDN 		8-97520-531-0 01 1 0311-
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-1 01 1 0311-
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0311-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0311-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 AR 1 0311-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0311-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0311-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0311-
56 NUT; YOKE
M14 IDN 		9-99110-514-0 08 1 0311-0512
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601-
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0311-0603
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604-
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0311-
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0311-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0311-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0311-
128 SEAL; SLEEVE 1-37247-015-0 01 1 0311-
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0311-
349 BEARING; FRT UJT,PROP SHAFT
END 		1-09811-330-0 08 1 0311-
349 BEARING; FRT UJT,PROP SHAFT
1ST 		1-09811-420-0 04 1 0311-
çizim 85150
8 71 9 17 14 349 19 1 63 45 64 173 174 172 20 46 51 74 21 24 23 22 25 21
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) END L=1275 IDN 		8-97520-241-0 01 1 0311-
1 SHAFT; PROP
(A) 1ST L=1096 IDN 		8-97520-531-0 01 1 0311-
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-1 01 1 0311-
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0311-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 0311-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-069-0 AR 1 0311-
14 COVER; DUST,SPIDER
IDN 		1-37319-012-0 04 1 0311-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0311-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0311-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0311-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0311-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0311-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0311-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0311-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0311-
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0311-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT IDN 		1-09380-006-0 01 1 0311-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0311-0605
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0311-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0311-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28681-035-0 04 1 0311-0512
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 0601-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0311-0602
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0311-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0311-
172 BRACKET; CENTER BRG 1-37515-071-2 01 1 0311-
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0311-0512
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 0601-
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0311-0602
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
349 BEARING; FRT UJT,PROP SHAFT
END 		1-09811-330-0 08 1 0311-
349 BEARING; FRT UJT,PROP SHAFT
1ST 		1-09811-420-0 04 1 0311-
