1 |

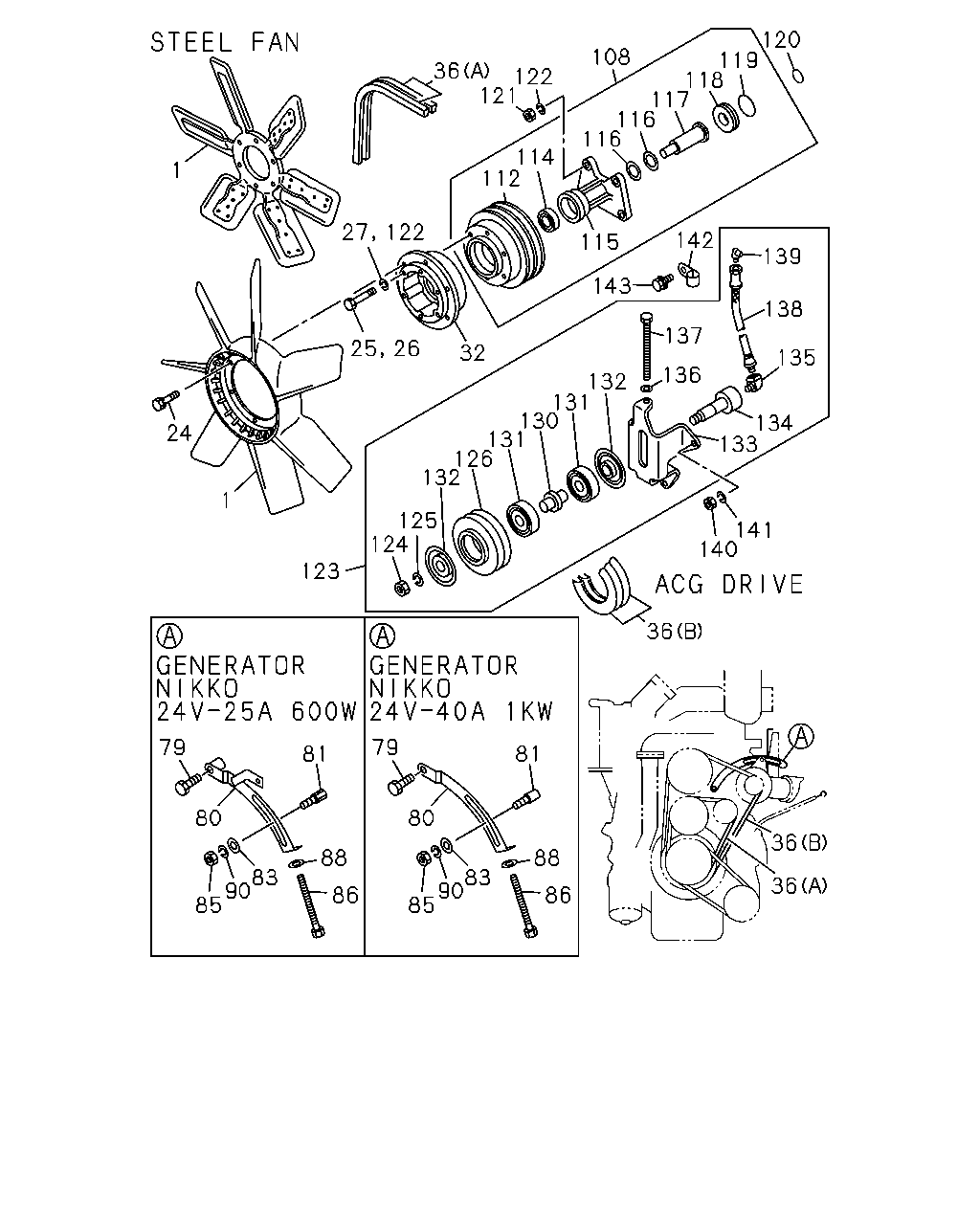

FAN; COOLING
STEEL FAN<E1P>
|
1-13660-072-0 |
01 |
1 |
9002-9306 |
● |
|
| |
1 |
FAN; COOLING
EXC. STEEL FAN<E1P>
|
1-13660-168-2 |
01 |
1 |
9002-9410 |
● |
|
| |
1 |
FAN; COOLING
|
1-13660-168-2 |
01 |
1 |
9002-9410 |
|
● |
| |
1 |
FAN; COOLING
|
1-13660-168-2 |
01 |
1 |
9411- |
|
● |
| |
24 |
BOLT; FAN
STEEL FAN<E1P>
M8X22
|
9-01910-822-0 |
06 |
1 |
9002-9005 |
● |
|
| |
24 |
BOLT; FAN
STEEL FAN<E1P>
M8X22 W/LK WASHER
|
0-50040-822-0 |
06 |
1 |
9006-9306 |
● |
|
| |
24 |
BOLT; FAN
EXC. STEEL FAN<E1P>
M8X18 W/LK&PL WASHER
|
9-01970-818-0 |
06 |
1 |
9002-9005 |
● |
|
| |
24 |
BOLT; FAN
EXC. STEEL FAN<E1P>
M8X18 W/LK&PL WASHER
|
0-50140-818-0 |
06 |
1 |
9006-9306 |
● |
|
| |
24 |
BOLT; FAN
M8X16 W/LK WASHER
|
9-01910-816-0 |
06 |
1 |
9002-9005 |
|
● |
| |
24 |
BOLT; FAN
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9006- |
|
● |
| |
25 |
BOLT; ADAPTER
STEEL FAN<E1P>
M8X75
|
9-01055-875-0 |
06 |
1 |
9002-9005 |
● |
|
| |
25 |
BOLT; ADAPTER
STEEL FAN<E1P>
M8X75
|
0-10805-875-0 |
06 |
1 |
9006-9306 |
● |
|
| |
25 |
BOLT; ADAPTER
EXC. STEEL FAN<E1P>
M8X85
|
9-01055-885-0 |
06 |
1 |
9002-9005 |
● |
|
| |
25 |
BOLT; ADAPTER
EXC. STEEL FAN<E1P>
M8X85
|
0-10805-885-0 |
06 |
1 |
9006-9202 |
● |
|
| |
25 |
BOLT; ADAPTER
EXC. DESERT ZONE PACKAGE(W01)
M8X85
|
0-10805-885-0 |
06 |
1 |
9203-9306 |
● |
|
| |
26 |
BOLT; FAN TO CLU
M8X85
|
9-01055-885-0 |
06 |
1 |
9002-9005 |
|
● |
| |
26 |
BOLT; FAN TO CLU
M8X85
|
0-10805-885-0 |
06 |
1 |
9006- |
|
● |
| |
27 |
WASHER; LK,ADAPTER
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9002-9306 |
● |
|
| |
32 |
ADAPTER; FAN TO PULLEY
STEEL FAN<E1P>
|
1-13669-103-1 |
01 |
1 |
9002-9306 |
● |
|
| |
32 |
ADAPTER; FAN TO PULLEY
EXC. STEEL FAN<E1P>
|
1-13669-101-1 |
01 |
1 |
9002-9410 |
● |
|
| |
32 |
ADAPTER; FAN TO PULLEY
|
1-13669-101-1 |
01 |
1 |
9002-9410 |
|
● |
| |
32 |
ADAPTER; FAN TO PULLEY
|
1-13669-101-1 |
01 |
1 |
9411- |
|
● |
| |
36 |
BELT; COOLING FAN
(A)
1 SET=2 PIECE(1136711970) MITSUBOSHI
|
1-13671-194-0 |
01 |
1 |
9002- |
● |
|
| |
36 |
BELT; COOLING FAN
EXC. CHINA TIBET EQUIPMENT(WD1)
(A)
1 SET=2 PIECE(1136711970) MITSUBOSHI
|
1-13671-194-0 |
01 |
1 |
9002- |
|
● |
| |
36 |
BELT; COOLING FAN
GENERATOR NIKKO 24V-25A 600W(SB9)
EXC. CHINA TIBET EQUIPMENT(WD1)
(B)
1 SET=2 PIECE(1136711360) MITSUBOSHI
|
1-13671-137-0 |
01 |
1 |
9002- |
● |
● |
| |
36 |
BELT; COOLING FAN
GENERATOR NIKKO 24V-40A 1KW(SC5)
EXC. CHINA TIBET EQUIPMENT(WD1)
(B)
1 SET=2 PIECE(1136711530) MITSUBOSHI
|
1-13671-152-0 |
01 |
1 |
9002- |
● |
● |
| |
36 |
BELT; COOLING FAN
CHINA TIBET EQUIPMENT(WD1)
(A)
1 SET=2 PIECE(1136713490) MITSUBOSHI
|
1-13671-348-0 |
01 |
1 |
9002- |
|
● |
| |
36 |
BELT; COOLING FAN
CHINA TIBET EQUIPMENT(WD1)
(B)
1 SET=2 PIECE(1136713510) MITSUBOSHI
|
1-13671-350-0 |
01 |
1 |
9002- |
|
● |
| |
79 |
BOLT; PLATE
M12X45
|
9-01931-245-0 |
01 |
1 |
9002-9005 |
● |
● |
| |
79 |
BOLT; PLATE
M12X45
|
0-50051-245-0 |
01 |
1 |
9006- |
● |
● |
| |
80 |
PLATE; ADJ
GENERATOR NIKKO 24V-25A 600W(SB9)
|
1-13674-124-0 |
01 |
1 |
9002- |
● |
● |
| |
80 |
PLATE; ADJ
GENERATOR NIKKO 24V-40A 1KW(SC5)
|
1-13674-135-0 |
01 |
1 |
9002- |
● |
● |
| |
81 |
PIECE; SLIDING
M12X45
|
1-13674-160-0 |
01 |
1 |
9002- |
● |
● |
| |
83 |
WASHER; PL
ID=12.5
|
9-09160-512-0 |
01 |
1 |
9002- |
● |
● |
| |
85 |
NUT; AC GEN
M12
|
9-99110-412-0 |
01 |
1 |
9002- |
● |
● |
| |
86 |
BOLT; ADJ
GENERATOR NIKKO 24V-25A 600W(SB9)
M10X135
|
1-09009-113-1 |
01 |
1 |
9002- |
● |
● |
| |
86 |
BOLT; ADJ
GENERATOR NIKKO 24V-40A 1KW(SC5)
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
9002- |
● |
● |
| |
88 |
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
|
9-09160-712-0 |
01 |
1 |
9002- |
● |
● |
| |
90 |
WASHER; LK
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9002- |
● |
● |
| |
108 |
CENTER; COOLING FAN
|
1-13660-243-1 |
01 |
1 |
9002- |
● |
● |
| |
112 |
PULLEY; FAN CENTER
2-GROOVE
|
1-13663-039-0 |
01 |
1 |
9002- |
● |
● |
| |
114 |
SEAL; OIL
|
1-09625-325-0 |
01 |
1 |
9002- |
● |
● |
| |
115 |
BODY; FAN CENTER
|
1-13661-046-1 |
01 |
1 |
9002- |
● |
● |
| |
116 |
BEARING; THRUST
|
1-13666-010-0 |
02 |
1 |
9002- |
● |
● |
| |
117 |
SPINDLE
|
1-13665-024-0 |
01 |
1 |
9002- |
● |
● |
| |
118 |
COLLAR; THRUST BRG
|
1-13666-009-1 |
01 |
1 |
9002- |
● |
● |
| |
119 |
GASKET; COLLAR
ID=49.7
|
1-09623-171-0 |
01 |
1 |
9002- |
● |
● |
| |
120 |
GASKET; FAN CENTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=38.7
|
1-09623-184-0 |
01 |
1 |
9002- |
● |
● |
| |
121 |
NUT; FAN CENTER
M10
|
9-09110-410-0 |
04 |
1 |
9002- |
● |
● |
| |
122 |
WASHER; LK,FAN
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9002- |
● |
● |
| |
122 |
WASHER; LK,FAN
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9002- |
|
● |
| |
123 |
PULLEY ASM; CENTER
|
1-13660-154-3 |
01 |
1 |
9002- |
● |
● |
| |
124 |
NUT; BRG
M18
|
9-99110-518-0 |
01 |
1 |
9002- |
● |
● |
| |
125 |
WASHER
ID=19 OD=36
|
9-09164-618-0 |
01 |
1 |
9002- |
● |
● |
| |
126 |
PULLEY; IDLE
2-GROOVE
|
1-13663-023-3 |
01 |
1 |
9002- |
● |
● |
| |
130 |
SPACER; IDLE PULLEY BRG
|
1-13666-007-0 |
01 |
1 |
9002- |
● |
● |
| |
131 |
BEARING; BALL,FAN PULLEY
|
1-09800-176-0 |
02 |
1 |
9002- |
● |
● |
| |
132 |
COVER; DUST
|
1-13664-009-1 |
02 |
1 |
9002- |
● |
● |
| |
133 |
BRACKET; IDLE PULLEY
|
1-13669-089-2 |
01 |
1 |
9002- |
● |
● |
| |
134 |
SPINDLE; IDLE PULLEY
|
1-13665-009-1 |
01 |
1 |
9002- |
● |
● |
| |
135 |
CONNECTOR
PT 1/8
|
1-09660-143-0 |
01 |
1 |
9002- |
● |
● |
| |
136 |
WASHER; TENSION
ID=10.5 OD=18
|
9-09160-510-0 |
01 |
1 |
9002- |
● |
● |
| |
137 |
BOLT; TENSION
M10X140
|
1-09000-104-1 |
01 |
1 |
9002- |
● |
● |
| |
138 |
HOSE; FLEX,IDLE PULLEY
|
9-09911-863-0 |
01 |
1 |
9002- |
● |
● |
| |
139 |
NIPPLE; GREASE,IDLE PULLEY
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9002- |
● |
● |
| |
140 |
NUT; IDLE PULLEY
M10
|
9-09110-410-0 |
03 |
1 |
9002- |
● |
● |
| |
141 |
WASHER; LK,IDLE PULLEY
ID=10.2
|
9-09150-510-0 |
03 |
1 |
9002- |
● |
● |
| |
142 |
CLIP; FLEX TUBE
|
1-09700-913-0 |
01 |
1 |
9002- |
● |
● |
| |
143 |
BOLT; CLIP,FLEX TUBE
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
01 |
1 |
9002- |
● |
● |
