Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#29458) — 32 parça
◀

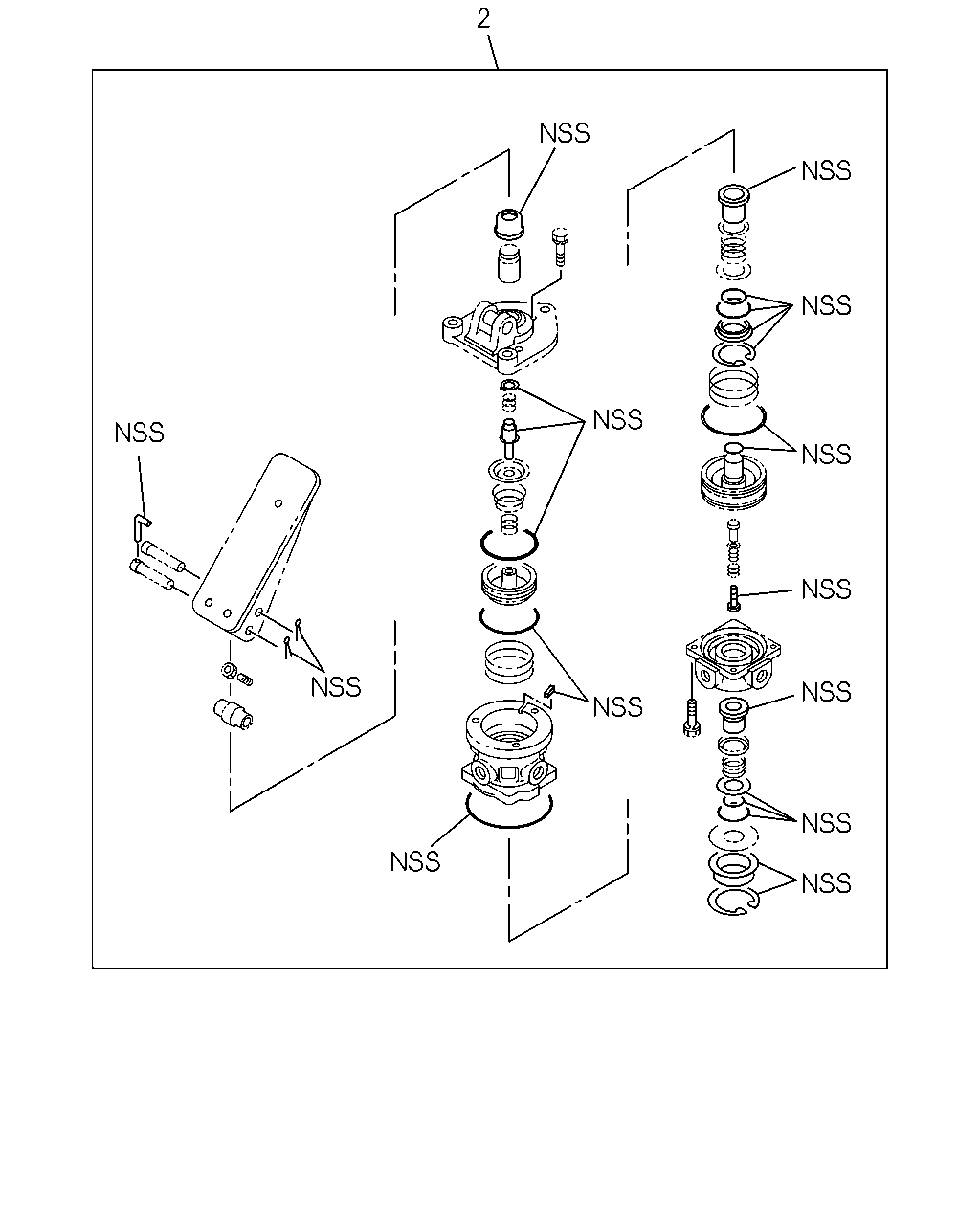

[334A] REPAIR KIT (2 parça)

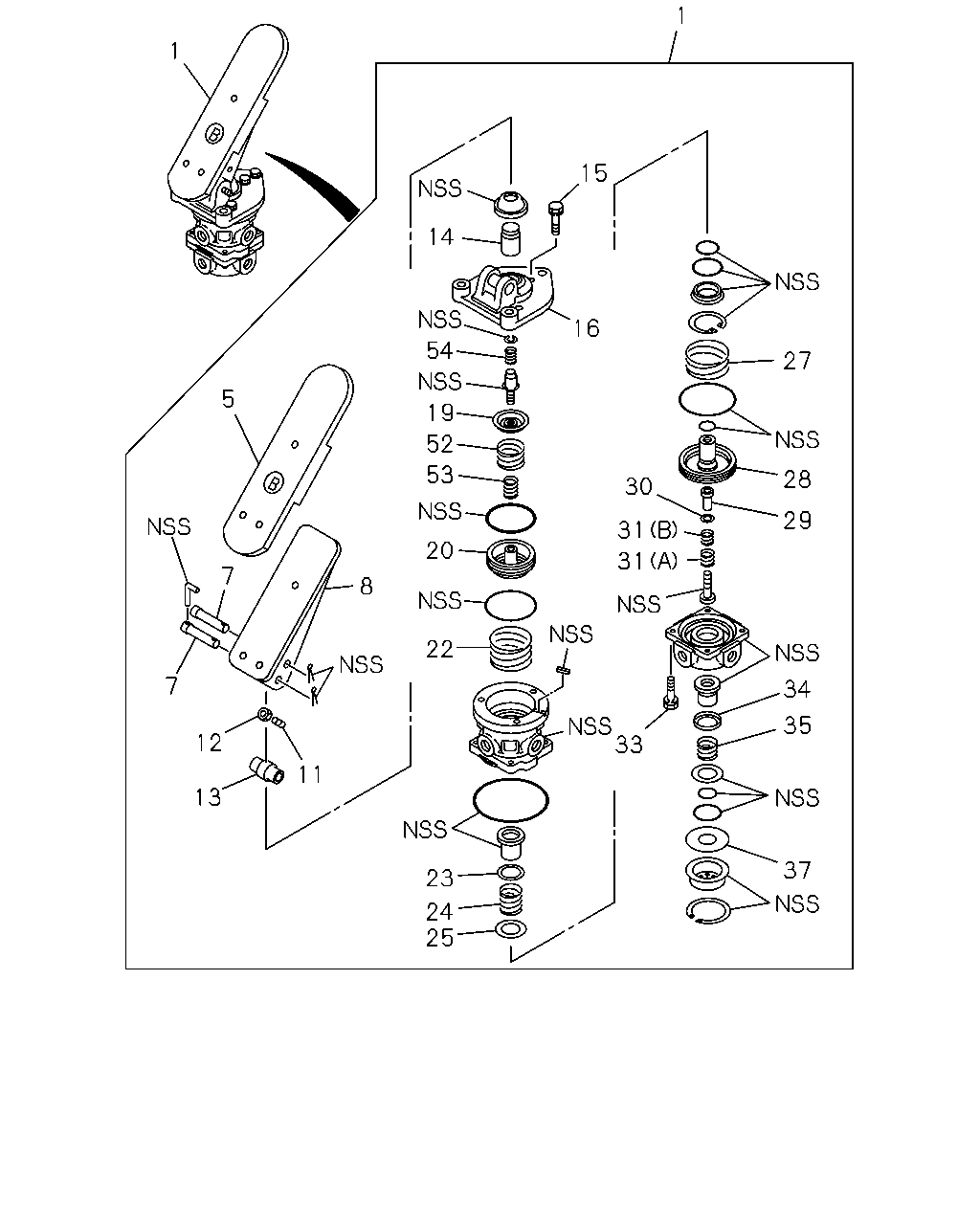

[334A] COMPONENT (30 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-285-0
01
1
0311-1211
2
REPAIR KIT; BRK VLV
8-98222-819-0
01
1
1212-
1
1
15
14
16
54
27
5
19
52
53
28
30
29
31
20
31
7
8
22
7
34
35
33
12
11
13
37
23
24
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-844-0
01
1
0311-1211
1
VALVE; BRK
8-98222-791-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0311-
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0311-
8
PEDAL; BRK VLV
1-48119-428-0
01
1
0311-
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0311-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0311-
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0311-
14
PLUNGER; BRK VLV
1-48119-561-0
01
1
0311-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0311-
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0311-
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
0311-
20
PISTON; UPR,BRK VLV
1-48119-560-0
01
1
0311-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
0311-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
0311-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
0311-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
0311-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
0311-
28
PISTON; LWR,BRK VLV
1-48129-313-0
01
1
0311-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
0311-
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
0311-
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
0311-
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
0311-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0311-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
0311-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
0311-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
0311-
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
0311-
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
0311-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
0311-
