0-32 — WATER PIPING; ENGINE (#2945) — 37 parça

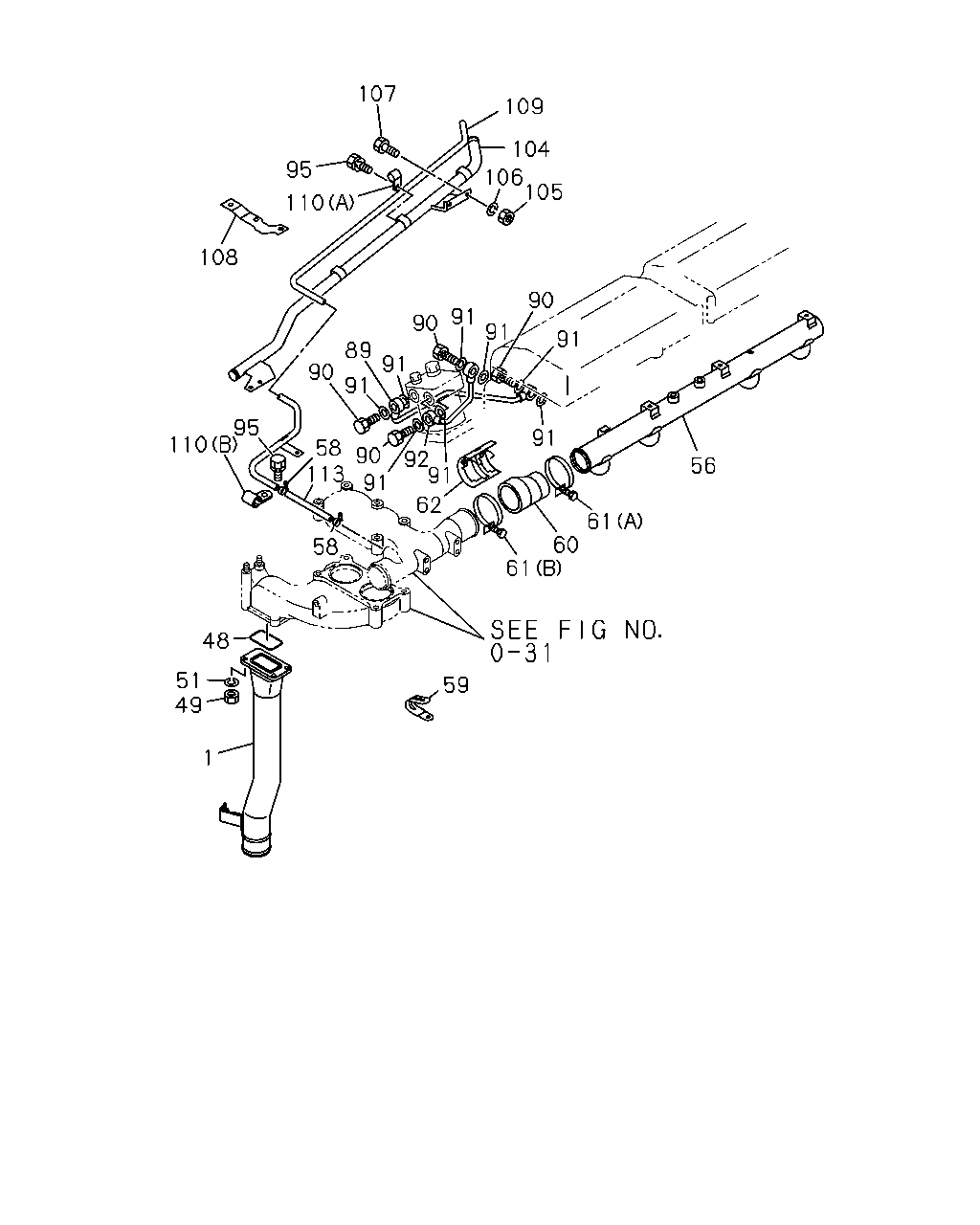

çizim 3967
109 104 106 105 90 91 91 91 90 91 56 61 60 61 59 91 92 91 90 91 89 90 91 58 113 62 58 107 95 110 108 95 110 48 51 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; WATER PUMP,INL 1-13711-387-1 01 1 9002- ● ●
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-217-0 01 1 9002- ● ●
49 NUT; WATER PIPE
M8 		9-09110-408-0 04 1 9002- ● ●
51 WASHER; LK,PIPE
ID=8.2 		9-09150-508-0 04 1 9002- ● ●
56 PIPE; WATER OUTLET 1-13711-421-0 01 1 9002-9306 ●
56 PIPE; WATER OUTLET 1-13711-304-2 01 1 9002- ●
58 CLIP; RUBBER HOSE 5-09704-056-0 02 1 9002- ● ●
59 CLIP; HARNESS,WATER OUTLET PIPE
L=36 		8-94224-891-1 01 1 9002- ● ●
60 HOSE; OUTLET PIPE TO HSG 1-09360-446-0 01 1 9002-9008 ● ●
60 HOSE; OUTLET PIPE TO HSG 1-09360-895-0 01 1 9009- ● ●
61 CLIP; HOSE,OUTLET PIPE TO HSG
(A) ID=63 		1-09704-067-0 01 1 9002- ● ●
61 CLIP; HOSE,OUTLET PIPE TO HSG
(B) ID=70 		1-09704-078-0 01 1 9002- ● ●
62 PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE 1-14181-156-1 01 1 9002- ● ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-256-0 01 1 9002-9306 ●
89 PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-156-1 01 1 9002-9306 ●
89 PIPE; WATER,AIR CMPR,IN 1-13721-166-0 01 1 9002- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 FLANGE 		1-09675-086-0 04 1 9002- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9002- ● ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-359-0 01 1 9002-9306 ●
92 PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13721-127-0 01 1 9002-9306 ●
92 PIPE; WATER,AIR CMPR,OUT 1-13721-127-0 01 1 9002-9306 ●
92 PIPE; WATER,AIR CMPR,OUT 1-13721-127-0 01 1 9307- ●
95 BOLT; CLIP
M6X14 		9-01910-614-0 03 1 9002-9005 ● ●
95 BOLT; CLIP
M6X14 W/LK WASHER 		0-50040-614-0 03 1 9006- ● ●
104 PIPE; WATER CHARGE 1-13721-241-2 01 1 9002-9306 ●
104 PIPE; WATER CHARGE 1-13721-245-2 01 1 9002- ●
105 NUT; PIPE
M8 		9-09110-408-0 02 1 9002- ● ●
105 NUT; PIPE
M10 		9-09110-410-0 02 1 9002- ● ●
106 WASHER; LK
ID=8.2 		9-09150-508-0 02 1 9002- ● ●
106 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002- ● ●
107 BOLT; WATER PIPE
M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005 ●
107 BOLT; WATER PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9306 ●
108 BRACKET; WATER CHARGE 1-13729-002-0 01 1 9002-9306 ●
109 PIPE; AIR,LEAK,THERMOSTAT HSG 1-13721-204-2 01 1 9002- ● ●
110 CLIP; AIR PIPE
(A) ID=11 L=20 		9-09525-033-0 03 1 9002- ● ●
110 CLIP; AIR PIPE
(B) ID=11 L=28 		9-09917-544-0 01 1 9002- ● ●
113 HOSE; RUBBER,AIR LEAK
L=180 SERVICED BY L=3000 		0-03259-300-0 01 1 9002- ● ●
