2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#29447) — 21 parça

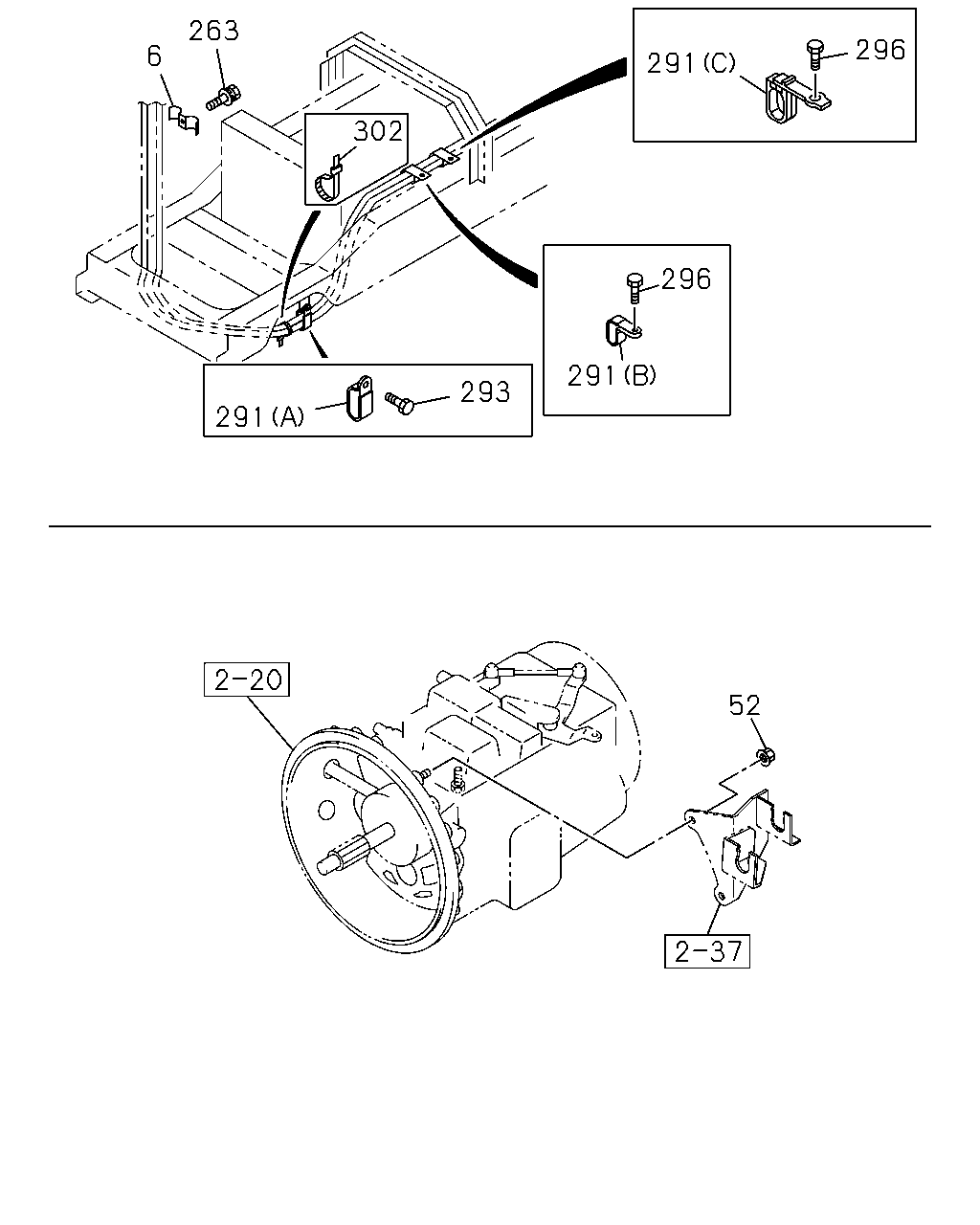

çizim 22918
263 296 6 291 302 296 291 293 291 52
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0311-
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0311-0602
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0311-
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=10 & 10 M8 		1-09701-220-0 01 1 0311-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-245-0 01 1 0311-0506
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 01 1 0507-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		9-09535-026-0 01 1 0311-0606
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0607-
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28080-816-0 01 1 0311-0512
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28680-830-0 02 1 0311-0512
296 BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
302 CLIP; BAND
L=300 		1-09707-001-1 02 1 0311-

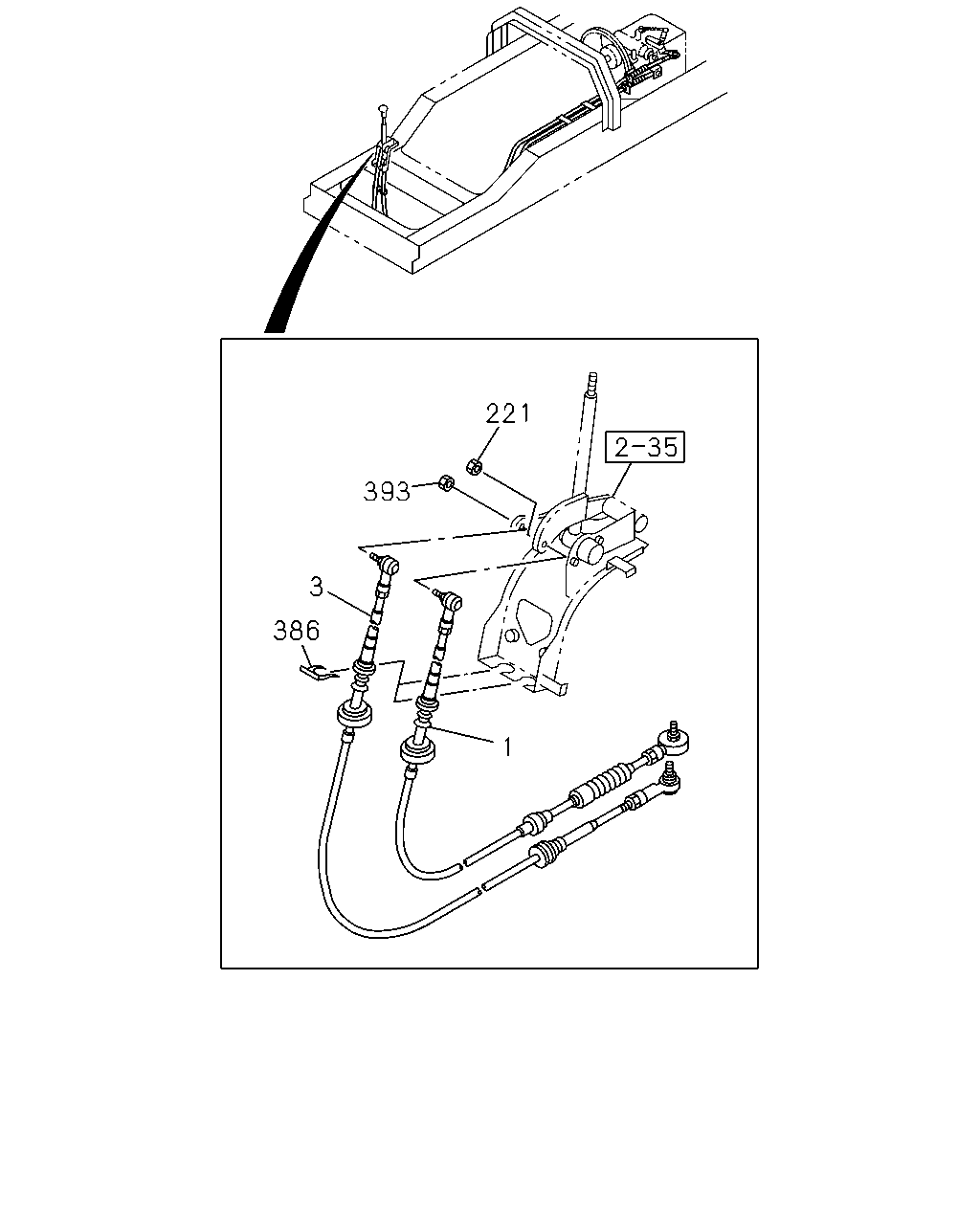

çizim 83517
221 393 3 386 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=3565 		1-33671-144-0 01 1 0311-
3 CABLE; SELECT,TRANS CONT
L=3660 		1-33671-151-0 01 1 0311-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0311-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0311-
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0311-1011
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012-
