Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

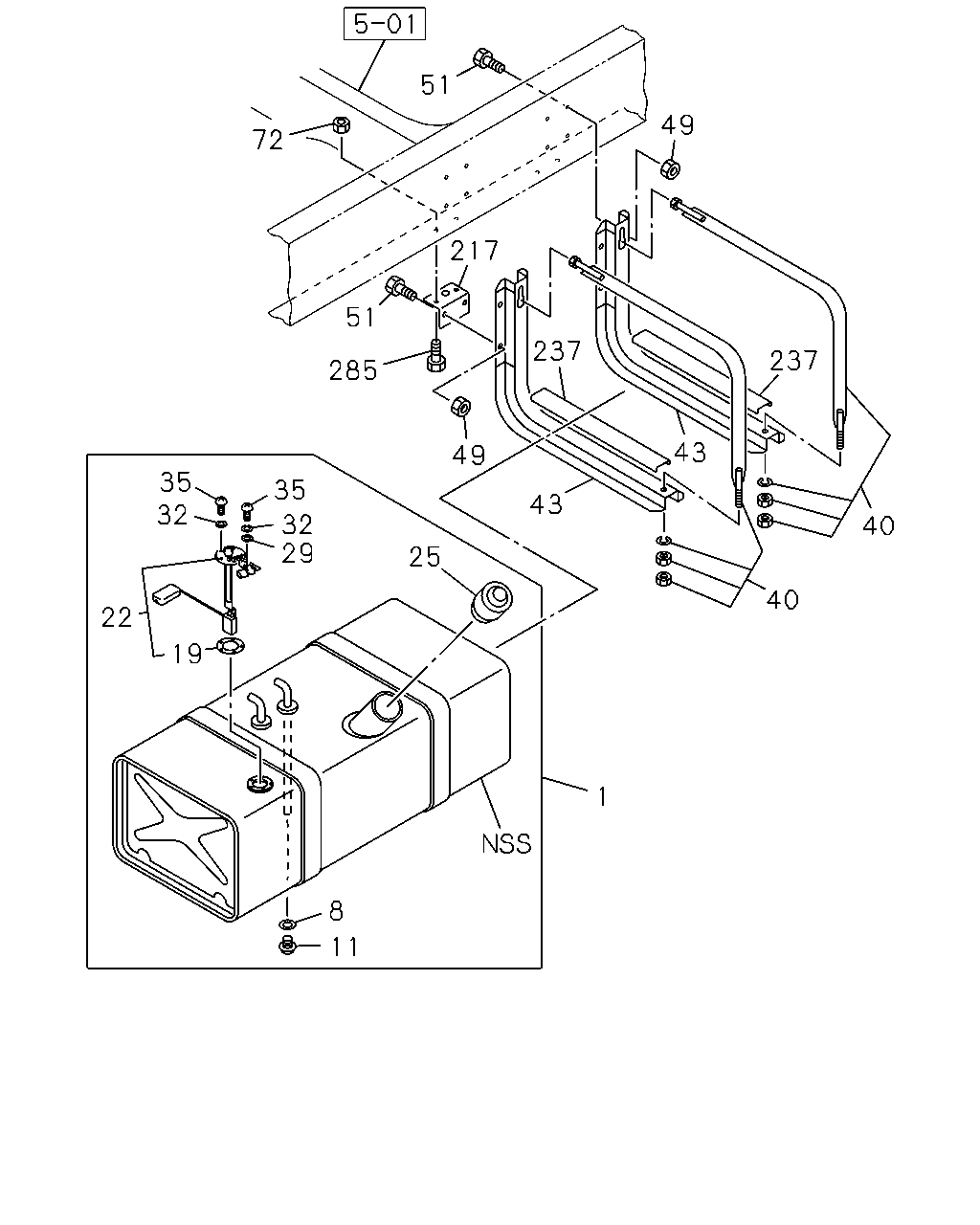

1-40 — FUEL TANK
(#29430) — 24 parça
51
217
49
72
51
237
237
285
43
49
35
32
35
43
32
29
40
25
40
22
19
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
720X610X496 200L IDN
8-97520-473-0
01
1
0311-
8
GASKET; DRAIN PLUG,FUEL TANK
IDN
8-97520-041-0
01
1
0311-
11
PLUG; DRAIN,FUEL TANK
IDN
8-97520-124-0
01
1
0311-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0311-
22
UNIT; FUEL TANK
IDN
1-83141-084-1
01
1
0311-
25
CAP; FILLER,FUEL TANK
IDN
8-97520-228-0
01
1
0311-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
0311-0605
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0606-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
05
1
0311-0501
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
0311-0501
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
9-03910-510-0
05
1
0502-0604
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
0-36220-510-0
05
1
0605-
40
BELT; SUPPORT,FUEL TANK
IDN
8-97520-472-0
02
1
0311-
43
BRACKET; FUEL TANK
IDN
8-97520-474-0
02
1
0311-
49
NUT; BRKT
M12 IDN
9-99110-512-0
08
1
0311-0512
49
NUT; BRKT
M12
0-91110-512-0
08
1
0601-
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28681-240-0
08
1
0311-0512
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
08
1
0601-
72
NUT; BRKT
M12 IDN
9-99110-512-0
04
1
0311-0512
72
NUT; BRKT
M12
0-91110-512-0
04
1
0601-
217
BRACKET; FUEL TANK,LOW
1-53461-283-2
02
1
0311-
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0311-
285
BOLT; BRKT
M12X40 FLANGE
0-28681-240-0
04
1
0311-0512
285
BOLT; BRKT
M12X40 FLANGE
0-28651-240-0
04
1
0601-
