1-01 — ACCELERATOR PEDAL AND CONTROL
(#29425) — 77 parça
◀

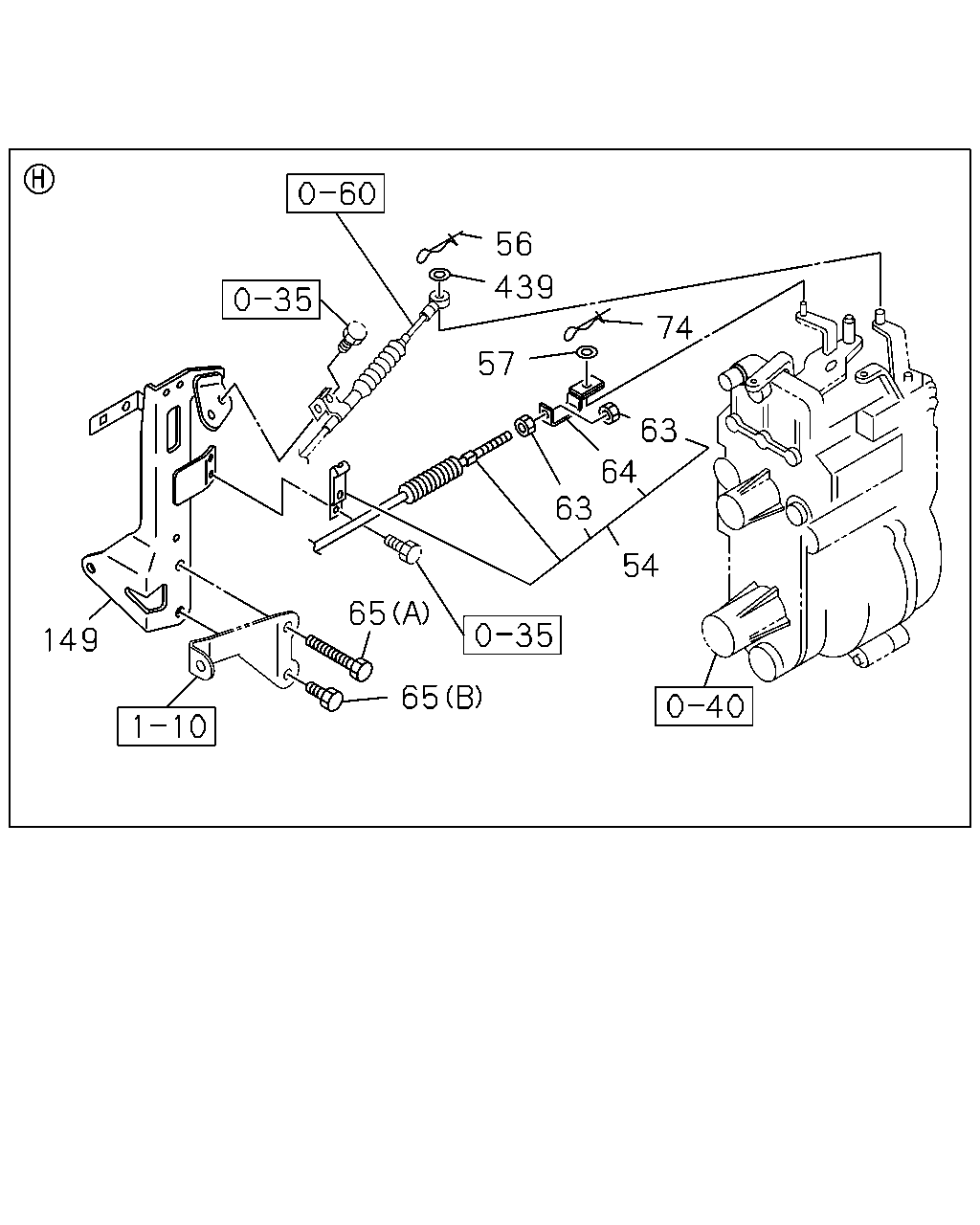

[101A] ENG SIDE (19 parça)

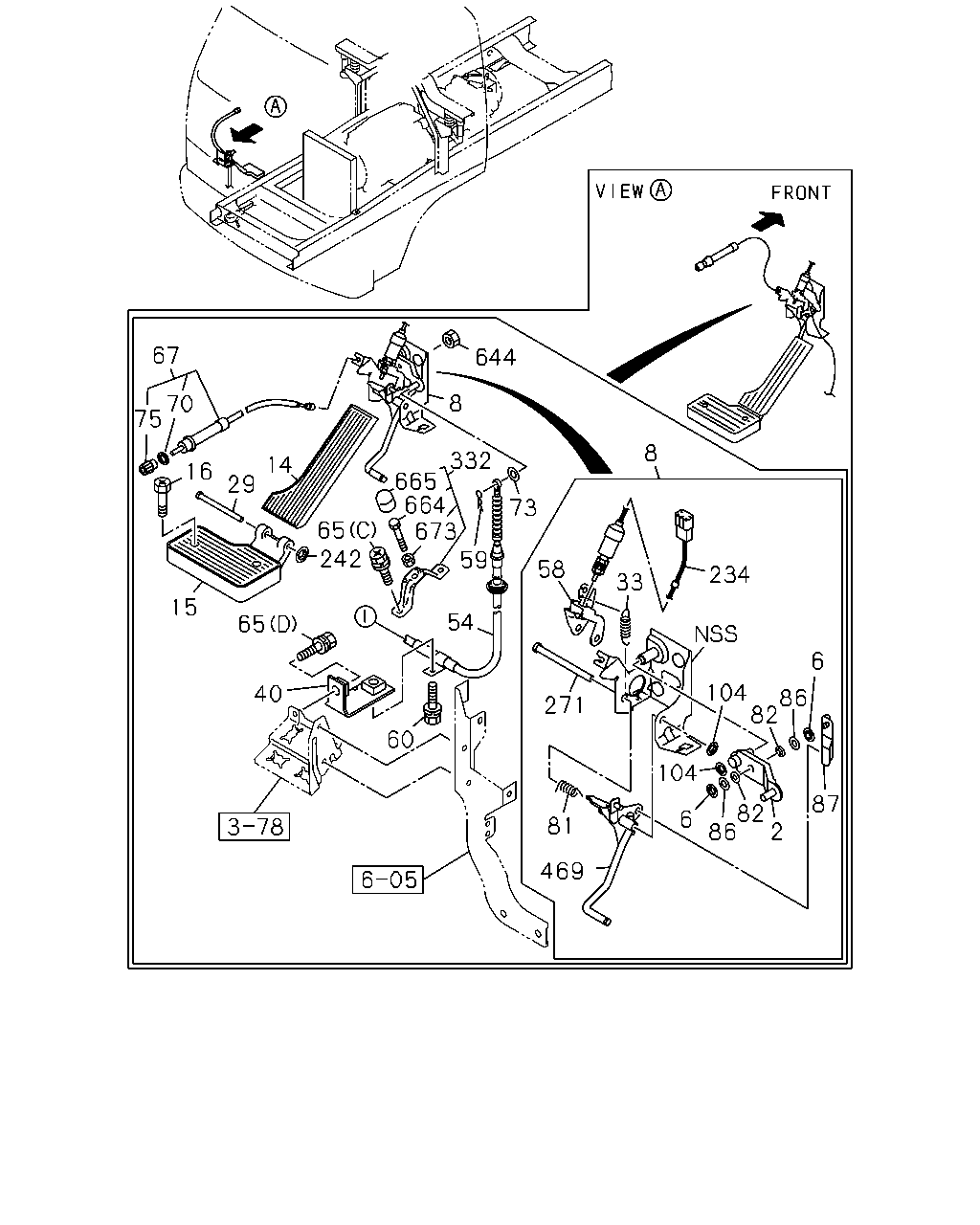

[101A] ACCEL PEDAL SIDE (42 parça)

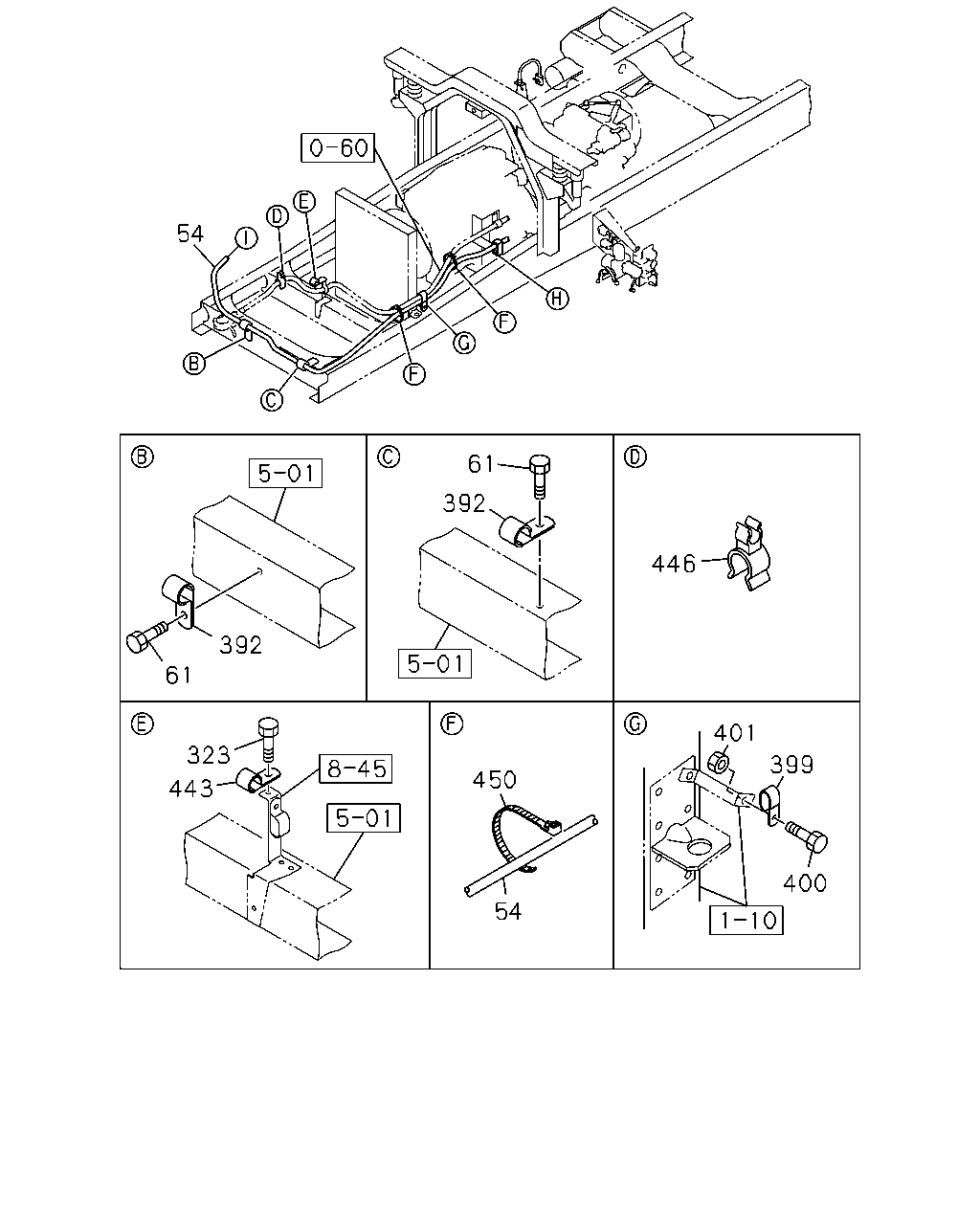

[101A] FIXING;ENG CONT CABLE (16 parça)
▶
56
439
74
57
63
64
63
54
6
149
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
RING; SNAP,LINK TO LINK
ID=4
9-09185-404-0
02
1
0311-0604
6
RING; SNAP,LINK TO LINK
ID=4
0-91805-504-0
02
1
0605-
54
CABLE; ENG CONT
L=2939
1-73998-940-6
01
1
0311-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-015-0
01
1
0311-
57
WASHER; ENG CONT CABLE
ID=8.4
9-09160-508-0
01
1
0311-0605
57
WASHER; ENG CONT CABLE
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
63
NUT; LOCK,BRKT
M8
9-09111-408-0
02
1
0311-
64
BRACKET; ENG CONT CABLE
1-23219-105-1
01
1
0311-
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0311-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0311-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0311-
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0311-0904
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
74
PIN; SNAP,CABLE END
L=27.7
8-94157-841-0
01
1
0311-
149
BRACKET; ENG CONT
8-94390-006-2
01
1
0311-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0311-0605
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
0-91610-505-0
01
1
0606-
67
644
8
70
75
332
8
14
16
665
664
673
59
29
73
6
242
58
234
33
15
54
65
6
104
86
82
40
271
60
104
87
82
6
81
469
86
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-210-2
01
1
0311-
6
RING; SNAP,LINK TO LINK
ID=4
9-09185-404-0
02
1
0311-0604
6
RING; SNAP,LINK TO LINK
ID=4
0-91805-504-0
02
1
0605-
8
LINK ASM; ENG CONT
1-73996-206-6
01
1
0311-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0311-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0311-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0311-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0311-
33
SPRING; IDLING CONT LEVER
8-94414-815-0
01
1
0311-
40
BRACKET; ENG CONT CABLE
1-47478-612-0
01
1
0311-
54
CABLE; ENG CONT
L=2939
1-73998-940-6
01
1
0311-
58
LEVER; IDLING CONT
1-71907-242-1
01
1
0311-
59
PIN; SNAP,ENG CONT CABLE
L=27.7
1-09747-005-0
01
1
0311-
60
BOLT; CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0311-0904
60
BOLT; CABLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0311-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0311-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0311-
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0311-0904
65
BOLT
(D) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
67
CABLE ASM; IDLE CONT
L=315
1-73908-423-0
01
1
0311-
70
NUT; CONT CABLE
1-73908-045-1
01
1
0311-
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4
9-09160-508-0
01
1
0311-0605
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
75
KNOB ASM; IDLING CONT
1-73908-409-0
01
1
0311-
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
0311-
82
BUSHING; ENG CONT LVR
1-71907-244-1
02
1
0311-
86
WASHER; PL,ENG CONT LEVER
ID=6.4
9-09160-506-0
02
1
0311-
87
LINK; ENG CONT
1-71907-211-1
01
1
0311-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
02
1
0311-
234
SWITCH; ACCEL
1-82380-114-3
01
1
0311-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0311-
271
SHAFT; ENG CONT
OD=8.0 L=74
1-71907-212-1
01
1
0311-
332
BRACKET; ACCEL PEDAL STOPPER
1-73998-937-1
01
1
0311-
469
LEVER ASM
1-71907-209-5
01
1
0311-
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0311-
664
BOLT; STOPPER
M8X45 IDN
0-20800-845-0
01
1
0311-
665
COVER; STOPPER
RUBBER
1-23249-009-0
01
1
0311-
673
NUT; STOPPER
M8
9-09111-408-0
01
1
0311-0512
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0601-
54
61
392
446
392
61
401
323
399
450
443
400
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CABLE; ENG CONT
L=2939
1-73998-940-6
01
1
0311-
61
BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE
0-28080-816-0
02
1
0311-0512
61
BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE
0-28050-816-0
02
1
0601-
323
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0311-0512
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
392
CLIP; ACCEL CONT CABLE
ID=13 L=32
9-09525-265-0
02
1
0311-0606
392
CLIP; ACCEL CONT CABLE
ID=13 L=32
0-95235-265-0
02
1
0607-
399
CLIP; CABLE,RAD SIDE
1-09701-260-0
01
1
0311-
400
BOLT; CLIP,RAD SIDE
M8X16 FLANGE
0-28080-816-0
01
1
0311-0512
400
BOLT; CLIP,RAD SIDE
M8X16 FLANGE
0-28050-816-0
01
1
0601-
401
NUT; CLIP,RAD SIDE
M8 FLANGE
0-91150-108-0
01
1
0311-0602
401
NUT; CLIP,RAD SIDE
M8 FLANGE
0-91180-108-0
01
1
0603-
443
CLIP; CABLE
ID=7 L=20
9-09524-635-0
01
1
0311-0606
443
CLIP; CABLE
ID=7 L=20
0-95234-635-0
01
1
0607-
446
CLIP; ENG CONT
ID=6.8X11.8
1-09709-127-0
01
1
0311-
450
CLIP; BAND
L=140 IDN
5-09707-031-1
02
1
0311-
