Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

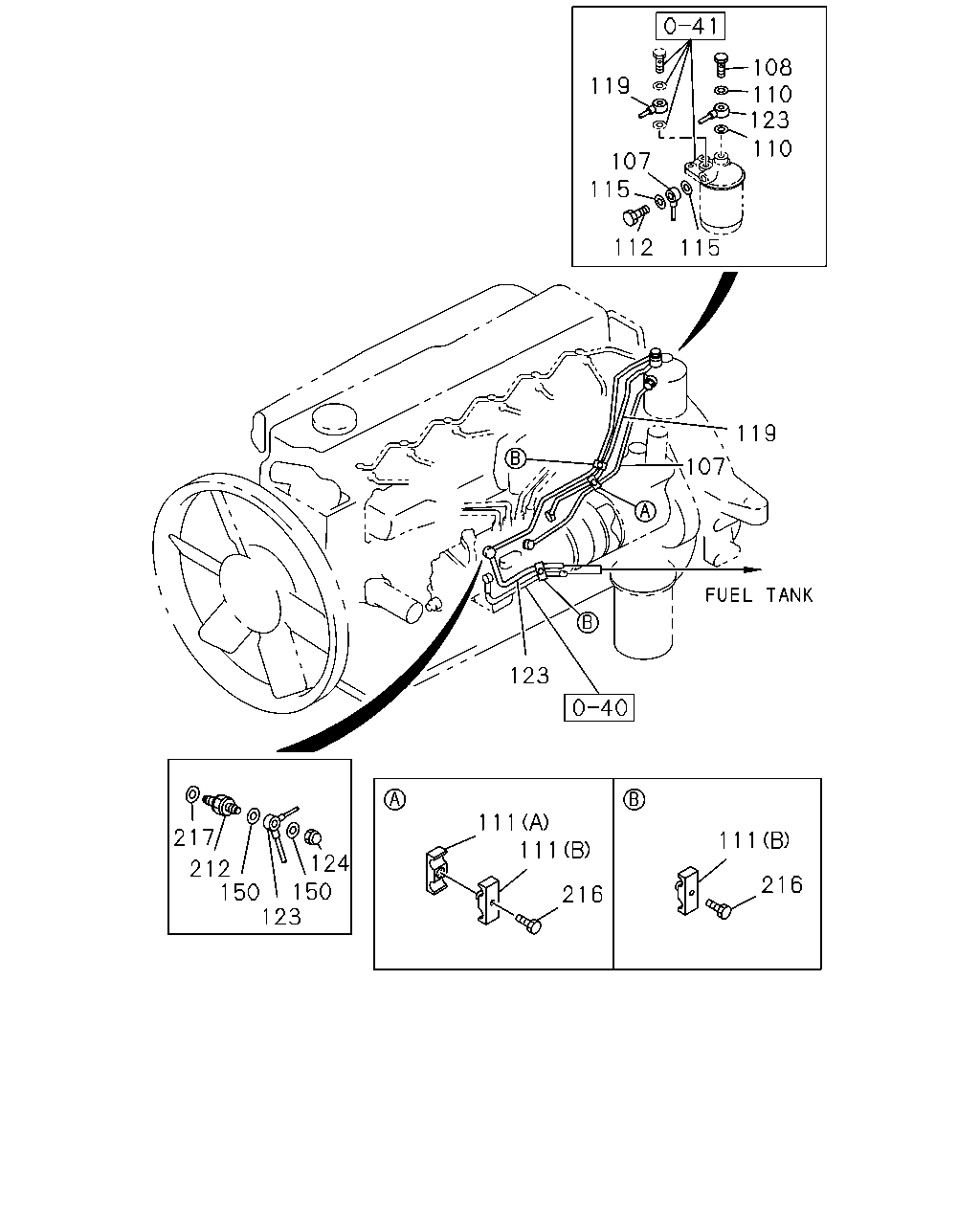

0-42 — FUEL PUMP AND PIPE
(#29412) — 19 parça
108
110
123
119
110
107
115
115
112
119
107
123
111
111
217
111
124
212
150
150
123
216
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-94396-681-0
01
1
0311-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0311-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0311-1312
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
111
CLIP; FUEL PIPE
(B) L=48
5-09709-103-0
03
1
0311-
111
CLIP; FUEL PIPE
(A) L=45
5-09709-104-0
01
1
0311-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0311-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0311-1312
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-94390-343-0
01
1
0311-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
8-94394-556-1
01
1
0311-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0311-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0311-1312
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
212
VALVE; OVERFLOW
8-94399-087-0
01
1
0311-
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50040-630-0
03
1
0311-0512
216
BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER
0-50540-630-0
03
1
0601-
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0311-1312
217
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
