Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
0 - Engine, Emission, Engine Electrical
▶

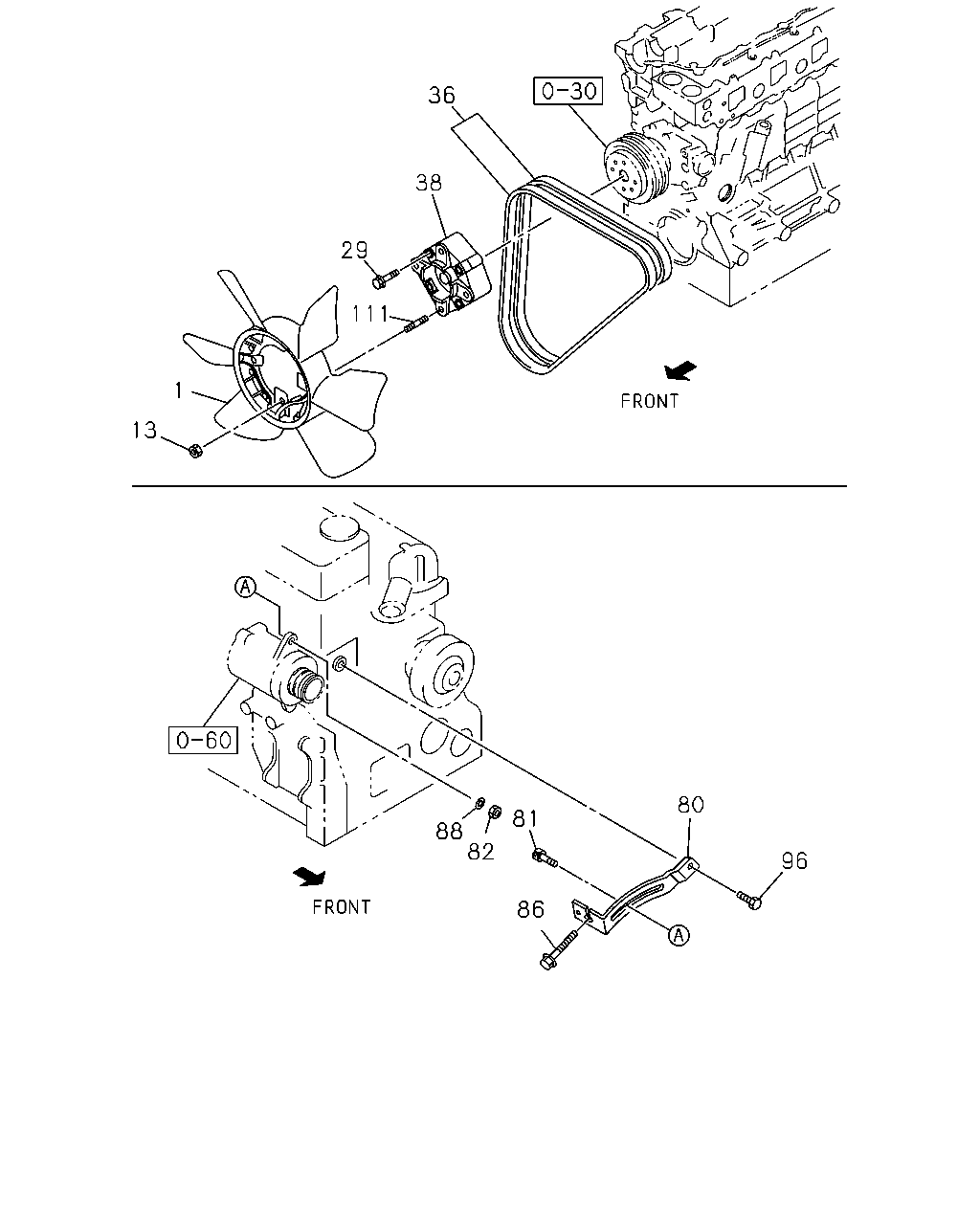

0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#29406) — 20 parça
36
38
29
1
111
13
88
81
82
80
96
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
8-94399-286-1
01
1
0311-
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
0311-0602
13
NUT; COOLING FAN
M6 FLANGE
0-91180-106-0
04
1
0603-
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28080-870-0
04
1
0311-0512
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28050-870-0
04
1
0601-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
0311-1402
36
BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI
8-98253-275-0
01
1
1403-
38
SPACER; FAN
8-94393-896-0
01
1
0311-1104
38
SPACER; FAN
8-98167-649-0
01
1
1105-
80
PLATE; ADJ
8-97601-021-0
01
1
0311-
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
0311-
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
0311-0602
82
NUT; ADJ PLATE
M12 FLANGE IDN
0-91180-112-0
01
1
0603-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
0311-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
0311-0605
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32 IDN
0-91614-712-0
01
1
0606-
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
0311-0512
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28151-045-0
01
1
0601-
111
STUD; FAN DRIVE
M6X12 L=21
9-04110-612-0
04
1
0311-0604
111
STUD; FAN DRIVE
M6X12 L=21
0-41010-612-0
04
1
0605-
