0-25 — INLET MANIFOLD (#2940) — 88 parça

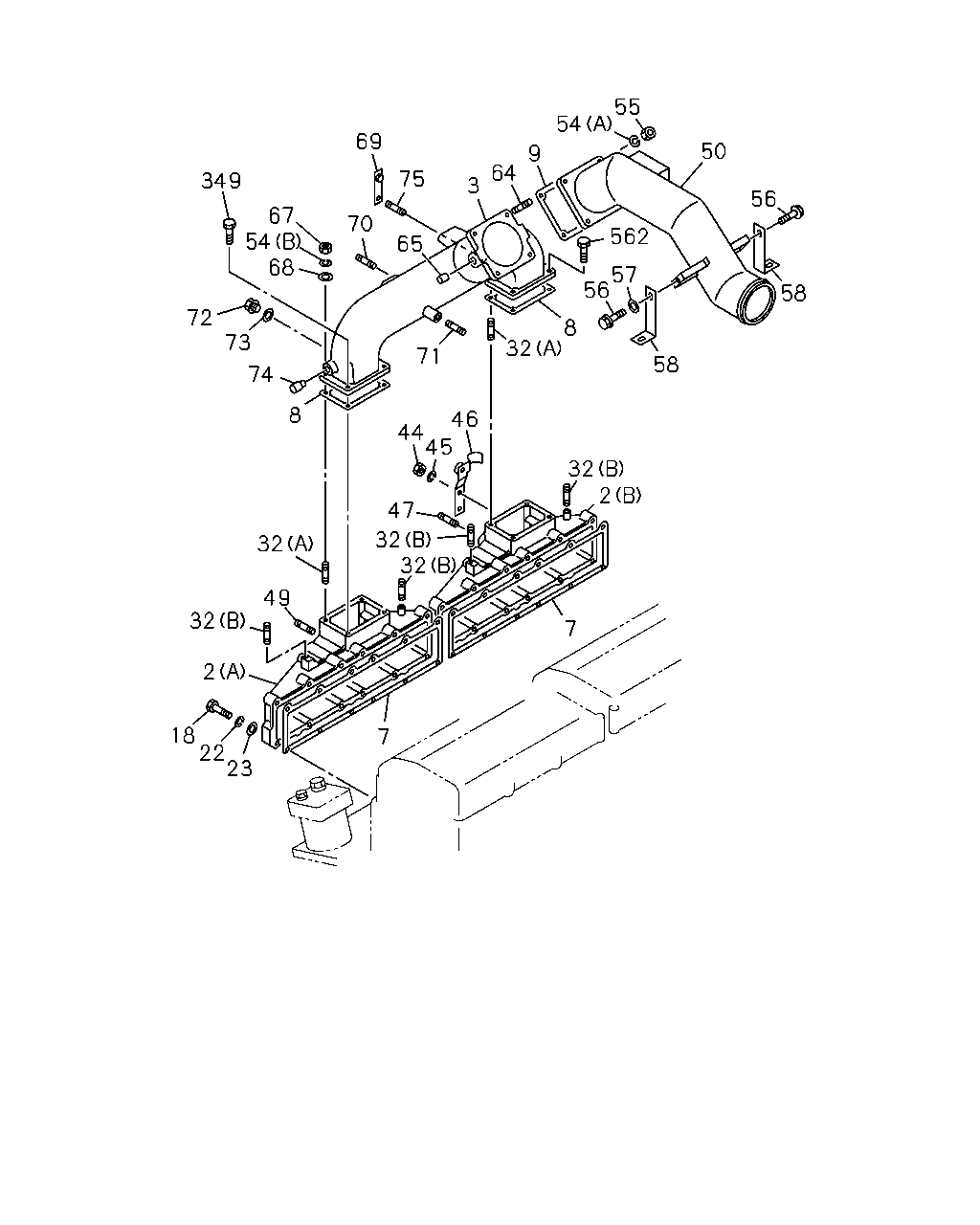

56 50 58 58 57 562 55 54 9 64 3 56 8 32 65 75 69 70 67 349 54 68 72 73 74 8 71 46 44 45 32 2 7 47 32 32 32 49 32 2 7 18 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (B)	1-14110-225-0	01	1	9002-9306	●
2	COVER; INL AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-14110-303-0	01	1	9002-9306	●
2	COVER; INL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-14110-225-0	01	1	9002-9306	●
3	DUCT; INT	1-14114-672-1	01	1	9002-9306	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9002-9306	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-14115-033-0	04	1	9002-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> (B) ID=22.5	9-09571-422-0	01	1	9002-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	9002-9306	●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-031-0	01	1	9002-9306	●
18	SCREW; PLATE,INL CVR M8X50	9-01065-850-0	12	1	9002-9306	●
18	SCREW; PLATE,INL CVR M8X102 L=116	9-09801-273-0	04	1	9002-9306	●
18	SCREW; PLATE,INL CVR M8X140	9-09801-276-0	08	1	9002-9306	●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9002-9306	●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	08	1	9002-		●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	9002-9306	●
23	WASHER; PL,INL MANIF ID=10.5 OD=18	9-09160-510-0	08	1	9002-		●
32	STUD; INL PIPE (A) M8X30 L=42	9-04110-830-0	02	1	9002-9306	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	9002-9306	●
44	NUT; PIPE BRKT M10	9-09110-410-0	02	1	9002-9306	●
45	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	02	1	9002-9306	●
46	BRACKET; P/S PIPE	1-11369-119-0	01	1	9002-9306	●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	9002-9306	●
49	STUD; CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X22 L=37	9-04411-022-0	04	1	9002-9306	●
49	STUD; CABLE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X16 L=31	9-04411-016-0	06	1	9002-9306	●
50	PIPE; INL	1-14111-938-2	01	1	9002-	●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	9002-9306	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9002-9306	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	06	1	9002-		●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9002-	●	●
56	BOLT; STAY AIR DUCT M10X20 W/LK WASHER	0-50041-020-0	04	1	9002-9306	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-9306	●
58	STAY; INL MANIF	1-14119-200-0	02	1	9002-	●	●
64	STUD; INL PIPE M10X25 L=40	9-04411-025-0	04	1	9002-9306	●
65	BUSHING; SHAFT	1-14319-065-0	02	1	9002-9306	●
67	NUT; INL DUCT M8	9-09110-408-0	06	1	9002-9306	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	9002-9306	●
69	BRACKET; AIR PIPE	1-19199-074-0	01	1	9002-9306	●
70	STUD; WATER PIPE M10X16 L=31	9-04411-016-0	04	1	9002-9306	●
70	STUD; WATER PIPE EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M10X20 L=35	9-04411-020-0	08	1	9002-		●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	9002-9306	●
72	PLUG; HTR BOSS M22X12	1-09604-035-0	02	1	9002-9306	●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	9002-9306	●
74	PIPE; AIR SUCTION	9-14119-228-1	01	1	9002-9306	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	9002-9306	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9306	●
349	BOLT; BRKT,INL PIPE M10	9-09110-410-0	02	1	9002-		●
562	BOLT; INL DUCT M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
562	BOLT; INL DUCT M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9306	●

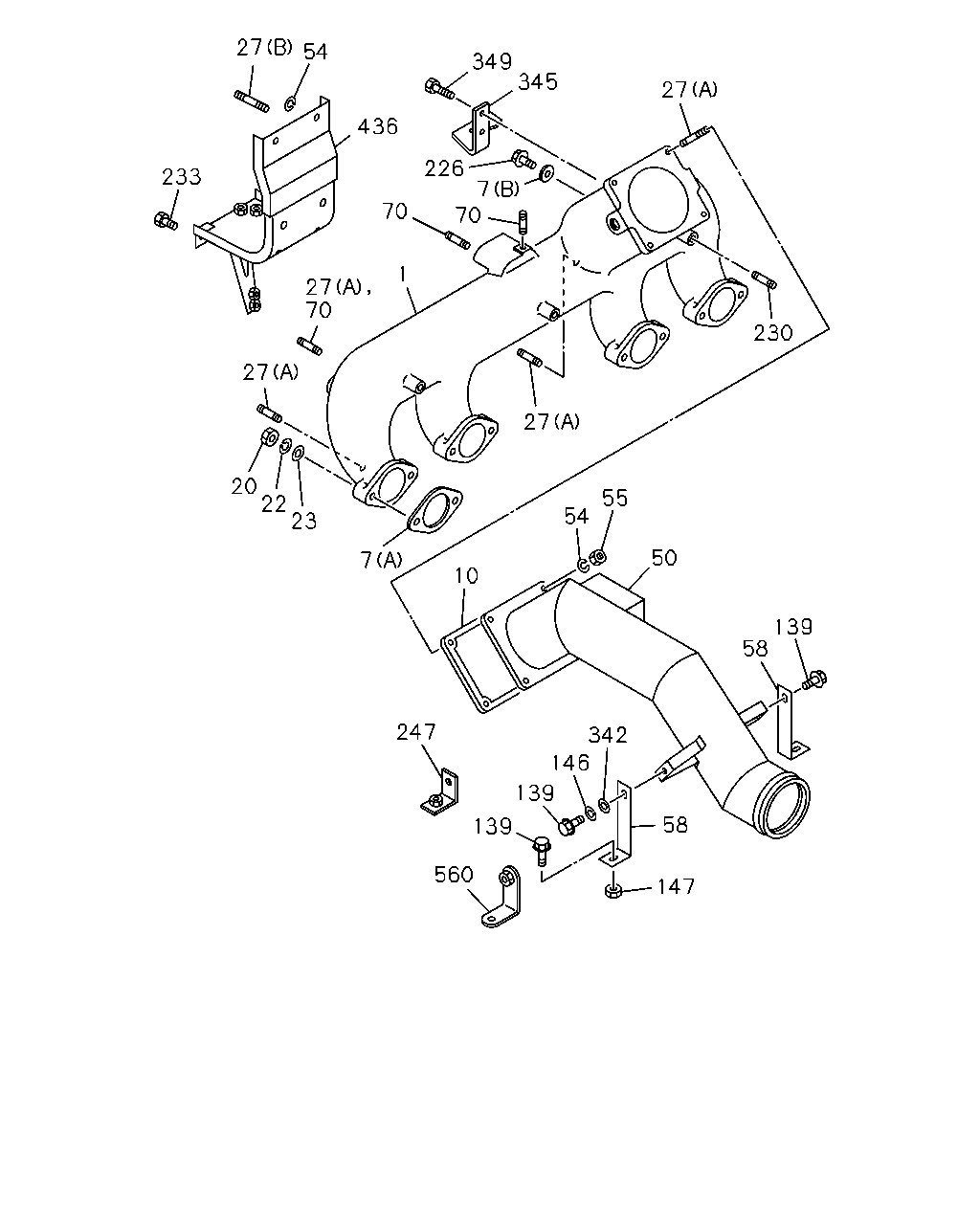

27 230 345 349 27 54 233 436 226 7 70 70 1 27 70 27 20 22 23 27 7 55 54 10 50 139 58 342 146 139 139 247 560 58 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-14111-976-0	01	1	9002-		●
1	MANIFOLD; INL EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-14111-985-0	01	1	9002-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9002-9306	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-14115-033-0	04	1	9002-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INTAKE HEATER<SL2> (B) ID=22.5	9-09571-422-0	01	1	9002-		●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14317-031-0	01	1	9002-		●
20	NUT; INL MANIF M10	9-09110-410-0	08	1	9002-		●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9002-9306	●
22	WASHER; LK,INL MANIF ID=10.2	9-09150-510-0	08	1	9002-		●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	9002-9306	●
23	WASHER; PL,INL MANIF ID=10.5 OD=18	9-09160-510-0	08	1	9002-		●
27	STUD; INL MANIF (A) M10X25 L=40	9-04411-025-0	04	1	9002-		●
27	STUD; INL MANIF CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M6X18 L=27	9-04110-618-0	03	1	9002-		●
27	STUD; INL MANIF CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B) M10X20 L=35	9-04411-020-0	12	1	9002-		●
27	STUD; INL MANIF EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M6X16 L=25	9-04110-616-0	02	1	9002-		●
27	STUD; INL MANIF EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M6X20 L=29	9-04110-620-0	01	1	9002-		●
50	PIPE; INL	1-14111-938-2	01	1	9002-	●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	9002-9306	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9002-9306	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	06	1	9002-		●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9002-	●	●
58	STAY; INL MANIF	1-14119-200-0	02	1	9002-	●	●
70	STUD; WATER PIPE M10X16 L=31	9-04411-016-0	04	1	9002-9306	●
70	STUD; WATER PIPE EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> M10X20 L=35	9-04411-020-0	08	1	9002-		●
139	BOLT; BRKT FIX M10X20 W/LK WASHER	0-50041-020-0	04	1	9002-		●
146	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-		●
147	NUT; BRKT M10	9-09110-410-0	02	1	9002-		●
226	PLUG; SCREW EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	01	1	9002-		●
230	STUD; INL MANIF,PIPE M6X25 L=34	9-04110-625-0	03	1	9002-		●
233	BOLT; BRKT,AIR PIPE M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●
233	BOLT; BRKT,AIR PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-		●
247	BRACKET; CLIP INTAKE HEATER<SL2>	1-13719-036-0	01	1	9002-		●
342	WASHER; PL,STAY,INL PIPE ID=10.5 OD=26	9-09160-710-0	04	1	9002-		●
345	BRACKET; INL PIPE	1-21119-068-0	01	1	9002-		●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9306	●
349	BOLT; BRKT,INL PIPE M10	9-09110-410-0	02	1	9002-		●
436	BRACKET; FUEL CUT	1-23335-269-0	01	1	9002-		●
560	BRACKET; AIR PIPE	1-13719-027-0	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
