0-10 — CYLINDER HEAD COVER (#294) — 15 parça

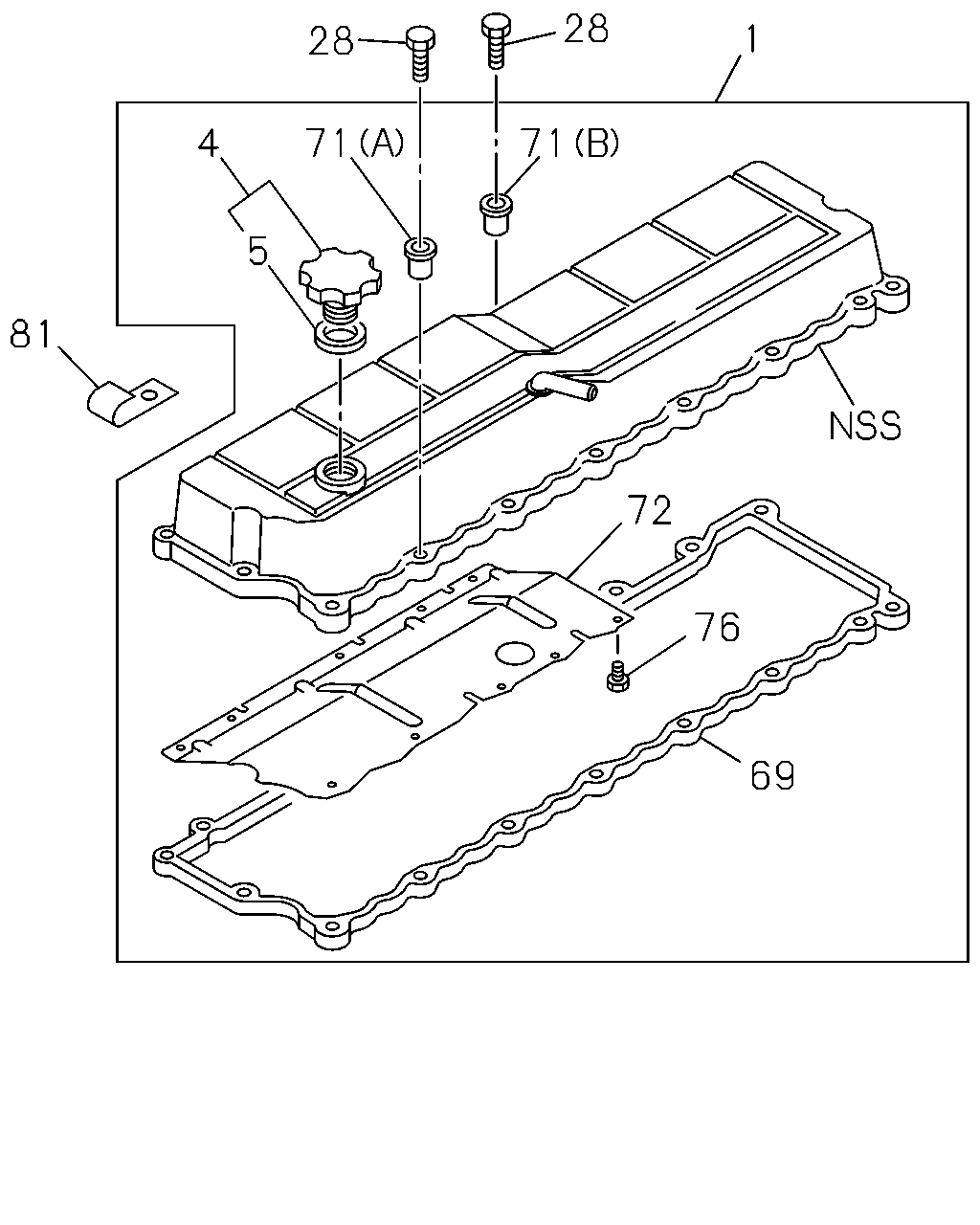

çizim 95564
28 1 28 71 71 4 5 81 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD
THAILAND EQUIPMENT(PM9) 		8-94394-862-1 01 1 9211- ●
1 COVER; CYL HD
EXC. THAILAND EQUIPMENT(PM9) 		8-94393-712-4 01 1 9202- ●
1 COVER; CYL HD 8-94393-712-4 01 1 9202- ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9202- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9202- ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9202- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9202- ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9202- ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9202- ● ●
72 PLATE; INNER HD COVER
THAILAND EQUIPMENT(PM9) 		8-94393-609-1 01 1 9211- ●
72 PLATE; INNER HD COVER
EXC. THAILAND EQUIPMENT(PM9) 		8-94393-247-2 01 1 9202- ●
72 PLATE; INNER HD COVER 8-94393-247-2 01 1 9202- ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 11 1 9202-9501 ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9502- ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9202- ● ●
