Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

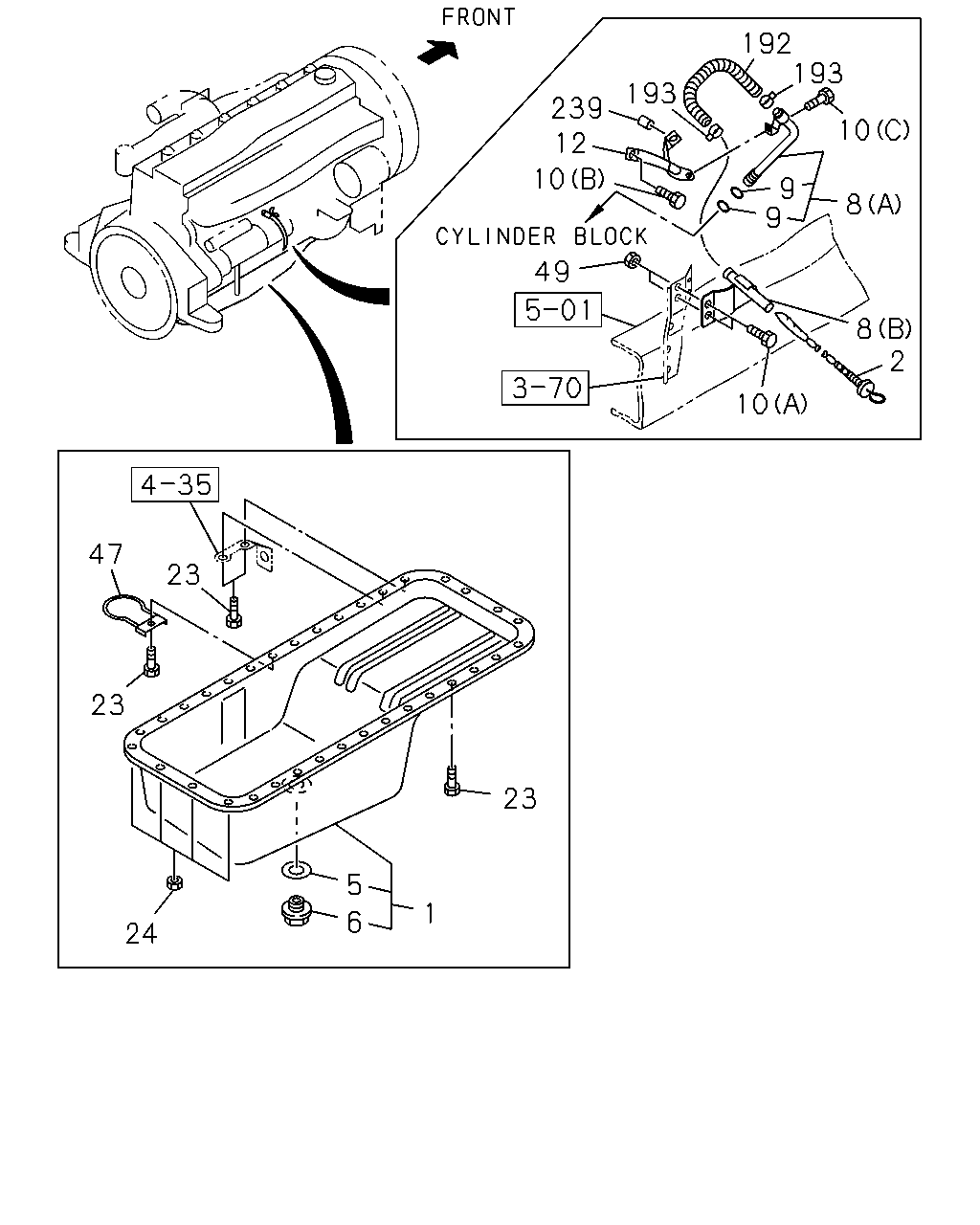

0-13 — OIL PAN AND LEVEL GAUGE
(#29395) — 25 parça
192
193
193
239
12
10
10
9
9
8
49
8
2
10
47
23
23
23
5
1
6
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-94395-861-1
01
1
0311-
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
0311-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0311-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0311-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-453-0
01
1
0311-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
0311-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0311-
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28080-812-0
01
1
0311-0512
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28050-812-0
01
1
0601-
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE
0-28080-816-0
01
1
0311-0512
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE
0-28050-816-0
01
1
0601-
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28080-830-0
01
1
0311-0512
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28050-830-0
01
1
0601-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
02
1
0311-0512
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE IDN
0-28650-820-0
02
1
0601-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-150-0
01
1
0311-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
0311-
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
0311-0602
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
0603-
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
0311-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91150-108-0
02
1
0311-0602
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
02
1
0603-
192
HOSE; GUIDE TUBE
L=300 IDN
1-09360-978-0
01
1
0311-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0311-
239
SPACER; BRKT
8-94313-327-0
01
1
0311-
