Isuzu WW
▶
TRUCKS
▶
FTR
▶
10935 - FTR(INDONESIA)WB4600
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

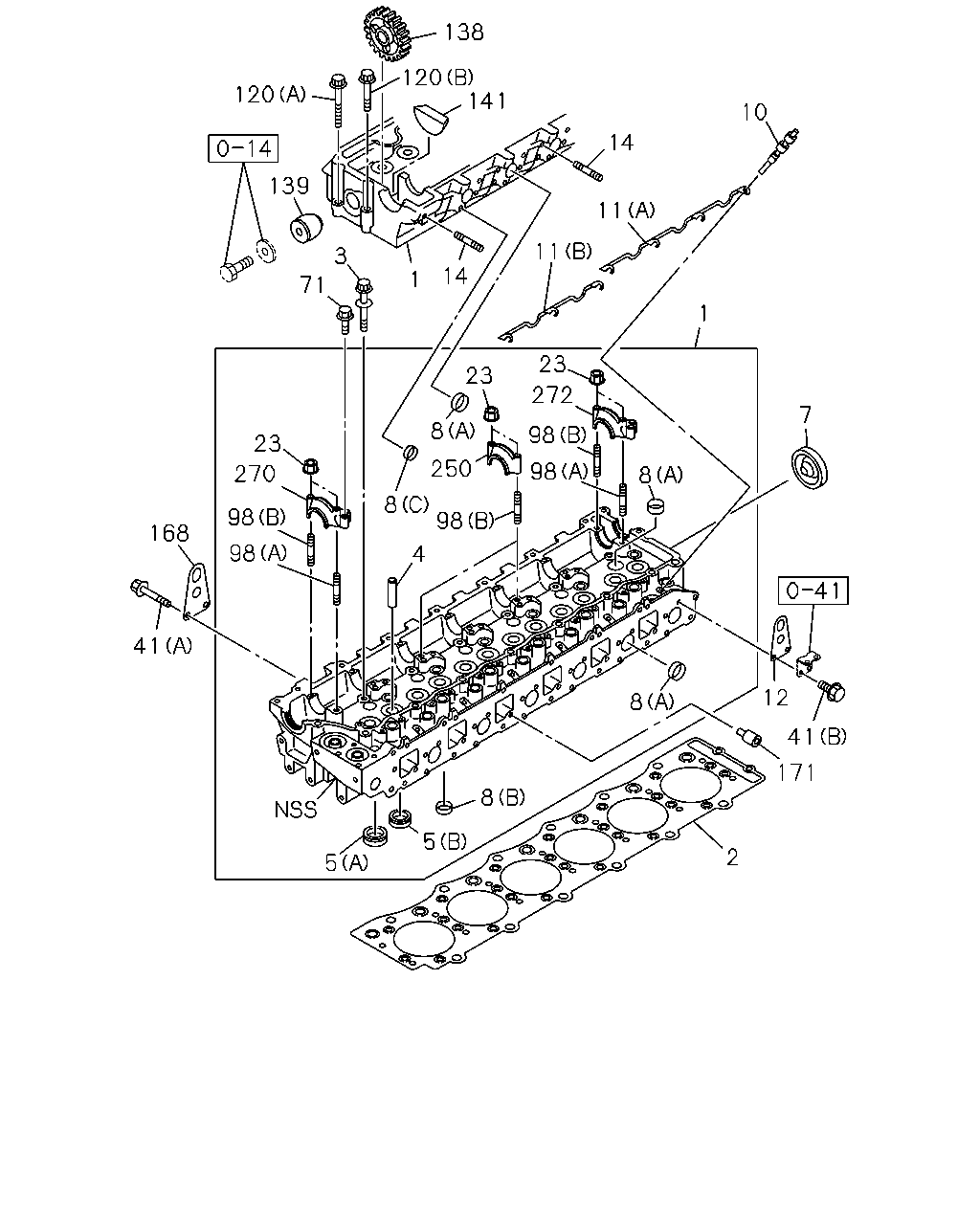

0-11 — CYLINDER HEAD
(#29393) — 38 parça
138
120
141
120
10
14
14
139
11
11
3
14
1
71
1
23
23
272
7
8
98
23
250
98
270
8
8
98
98
168
98
4
41
41
12
8
41
171
8
5
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-94390-082-7
01
1
0311-1012
1
HEAD ASM; CYL
8-98180-572-1
01
1
1101-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-346-3
01
1
0311-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-94396-207-3
26
1
0311-0901
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-97077-638-0
26
1
0902-1407
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1408-
4
GUIDE; VLV
8-94396-598-0
12
1
0311-
5
SEAT; VLV INSERT
(B) INLET OD=52
8-94394-127-0
06
1
0311-
5
SEAT; VLV INSERT
(A) EXHAUST OD=43
8-94396-172-0
06
1
0311-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
0311-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
18
1
0311-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
03
1
0311-
8
CUP; SEALING,WATER JACKET
(C) OD=12.3
5-09600-013-0
06
1
0311-
10
PLUG; GLOW
1-82513-043-2
06
1
0311-
11
CONNECTOR; GLOW PLUG
(B)
8-94399-631-3
01
1
0311-
11
CONNECTOR; GLOW PLUG
(A)
8-97136-565-0
01
1
0311-
12
HANGER; ENG,RR
8-94399-404-3
01
1
0311-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
0311-
23
NUT; CAM BRKT
M8 FLANGE IDN
0-91150-208-0
08
1
0311-0602
23
NUT; CAM BRKT
M8 FLANGE IDN
0-91180-208-0
08
1
0603-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28181-020-0
02
1
0311-0512
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
02
1
0601-
41
BOLT; ENG HANGER
(B) M12X28 FLANGE
0-28181-228-0
02
1
0311-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28080-835-0
02
1
0311-0512
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
0601-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
0311-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
0311-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
0311-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
0311-
138
GEAR; IDLE
Z=41
8-97112-607-1
01
1
0311-
139
SHAFT; IDLE GEAR
8-97186-398-1
01
1
0311-
141
PLUG; RUBBER,CYL HD
8-94399-605-0
02
1
0311-1005
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1006-
168
HANGER; ENG,FRT
8-94399-403-1
01
1
0311-
171
SEAT; VLV
8-94395-571-1
06
1
0311-
250
CAP
8-94393-196-0
02
1
0311-
270
BRACKET; CAM,FRONT
8-94393-194-0
01
1
0311-
272
BRACKET; CAM,RR
8-94393-809-0
01
1
0311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
