9-01 — TOOLS (#29389) — 138 parça

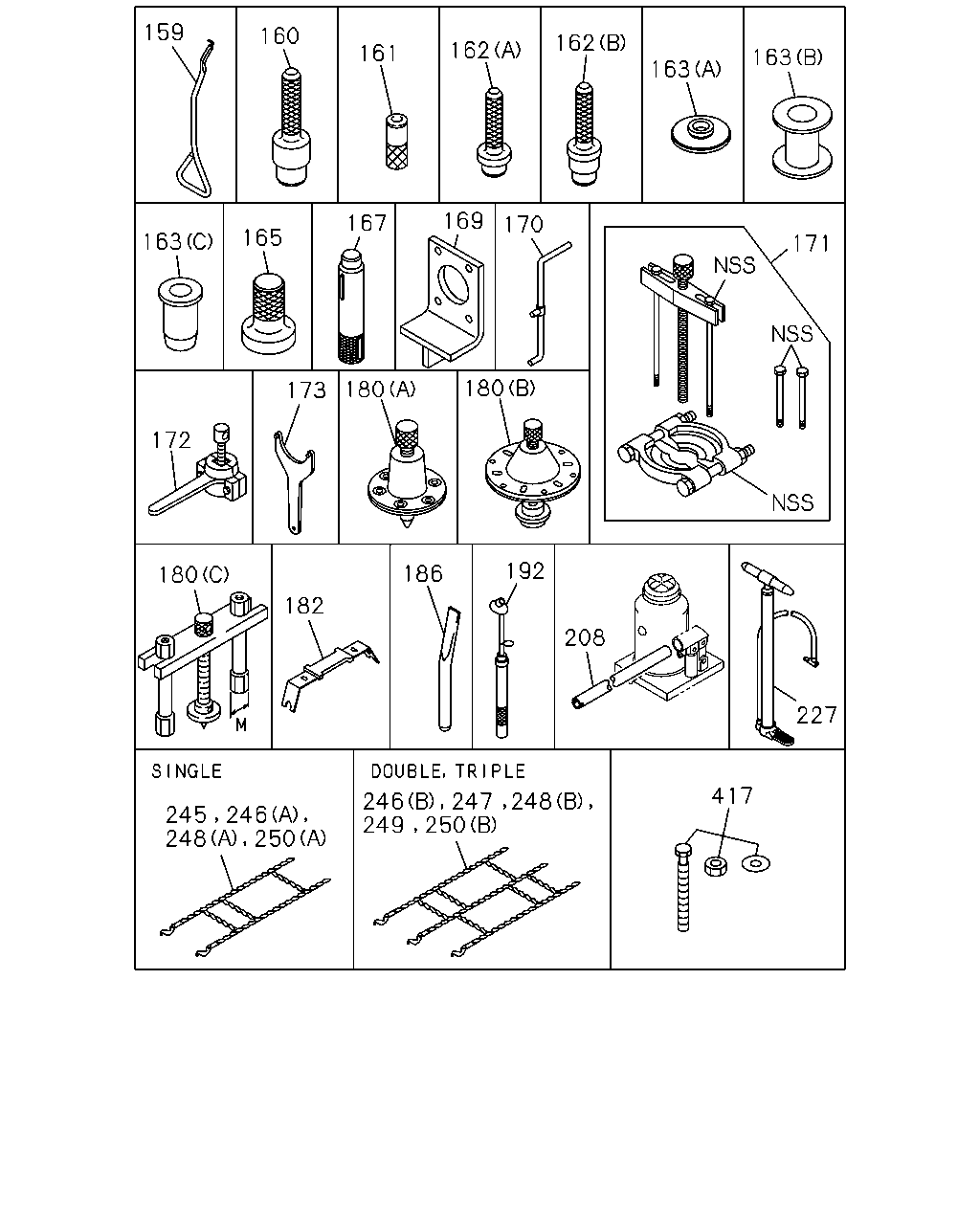

159 160 162 162 161 163 163 169 167 170 165 163 171 180 180 173 172 192 186 180 182 208 227 417 245 246 248 250 249 250 248 247 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	REMOVER; RETURN SPR	1-85237-023-0	01	1	0309-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0309-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0309-
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0309-
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0309-
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	0309-
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	0309-
163	TOOL; SETTING (A) OD=150	1-85221-167-0	01	1	0309-
165	SETTING TOOL; PTO MJT7 M/T<Y9E> TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-85221-177-0	01	1	0309-
167	ALIGNER; CLU PILOT MJT7S M/T(Y3E)	1-85253-020-0	01	1	0309-
167	ALIGNER; CLU PILOT MJX16P M/T(Y3Z) L=300 OD=52.5	1-85253-025-0	01	1	0309-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0309-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0309-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0309-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0309-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	0309-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0309-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0309-
180	PULLER; FRT & RR HUB (C) M22	1-85210-049-0	01	1	0309-
182	REMOVER ASM	1-85239-008-0	01	1	0309-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0309-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0309-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0309-
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0309-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0309-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0309-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0309-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0309-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0309-
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0309-
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0309-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0309-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0309-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0309-
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0309-

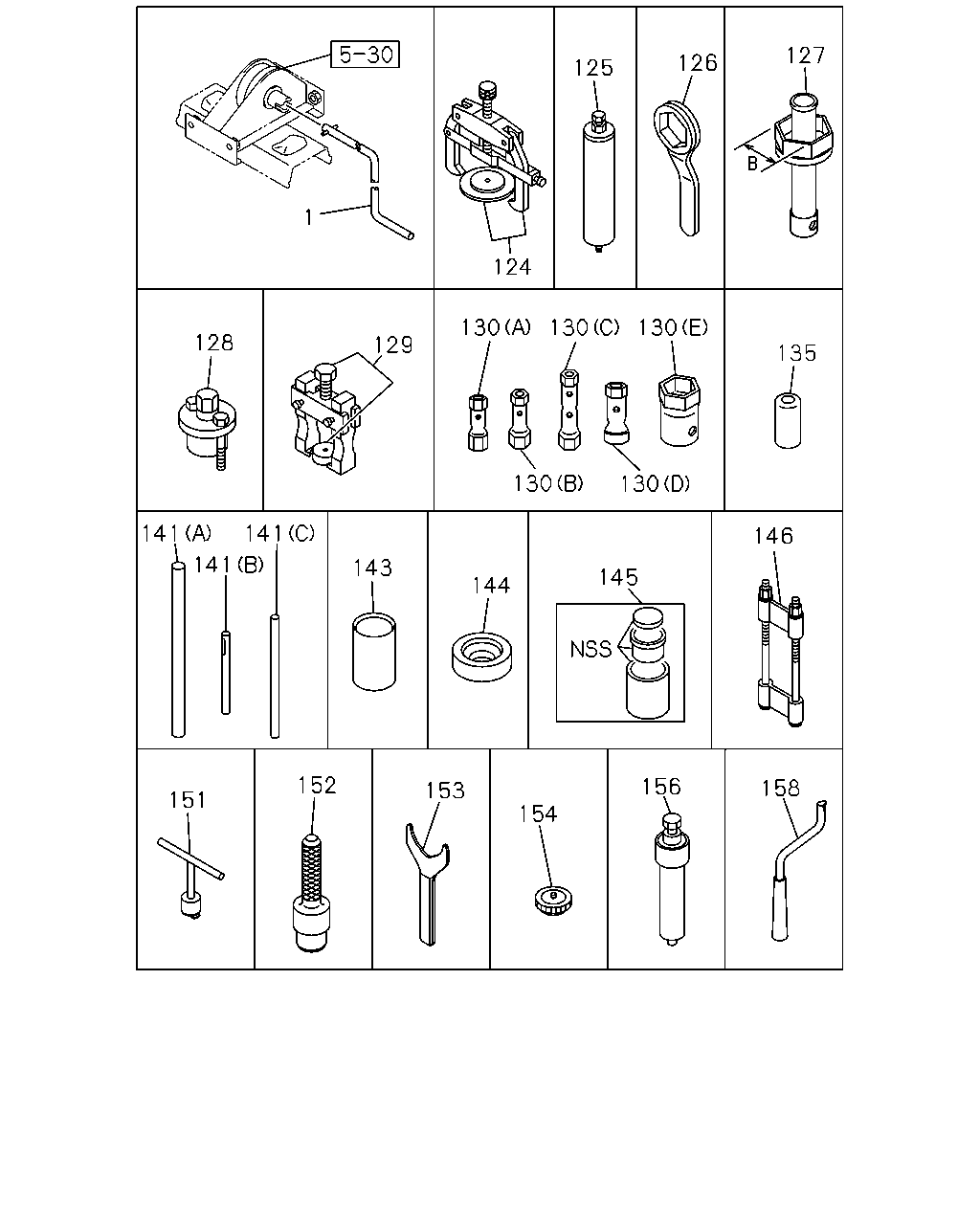

127 126 125 1 124 130 130 130 128 129 135 130 130 141 141 146 141 143 145 144 152 156 158 153 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0309-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0309-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0309-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	0309-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0309-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0309-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0309-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0309-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0309-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0309-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0309-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0309-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0309-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0309-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0309-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0309-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0309-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0309-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0309-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	0309-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0309-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0309-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0309-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0309-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0309-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0309-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0309-

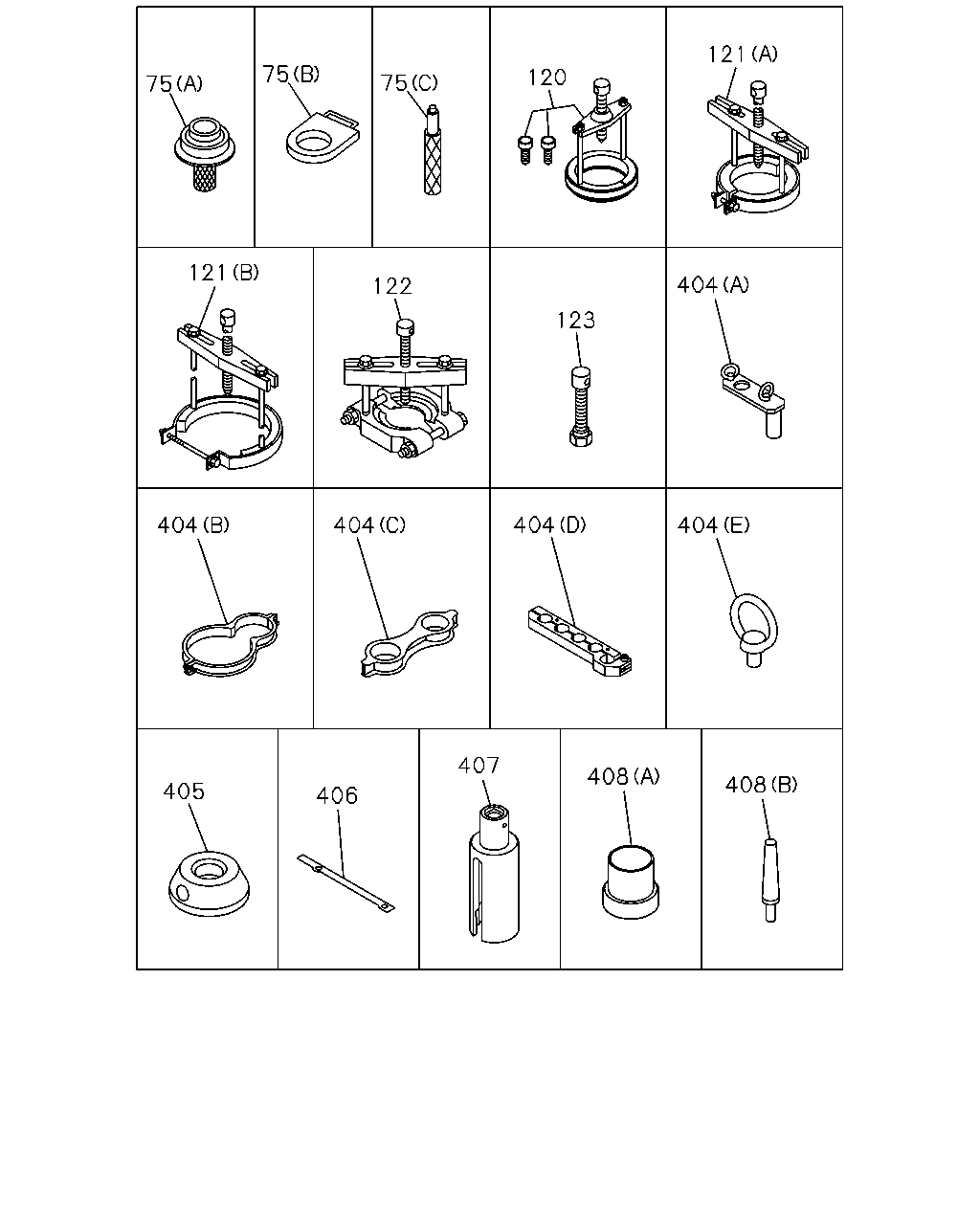

121 75 120 75 75 121 404 122 123 404 404 404 404 407 408 408 405 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL MJT7S M/T(Y3E) (A)	1-85221-168-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL MJT7S M/T(Y3E) (B)	1-85221-169-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0309-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0309-
121	PULLER ASM; COUNTER REAR MJT7S M/T(Y3E) (A) OD=146	1-85210-074-0	01	1	0309-
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	0309-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0309-
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E)	9-85210-091-0	01	1	0309-
123	PULLER; SPEEDOMETER BUSHING MJX16P M/T(Y3Z)	9-85210-181-0	01	1	0309-
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (A)	1-85221-257-0	01	1	0309-
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (B)	1-85221-258-0	01	1	0309-
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (C)	1-85221-259-0	01	1	0309-
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (D)	1-85221-260-0	01	1	0309-
404	TOOL; SETTING,MAIN COUNTER (E)	1-85221-262-0	02	1	0309-
405	GUIDE; COUNTER	1-85221-264-0	01	1	0309-
406	PLATE; SETTING MJT7 M/T<Y9E>	1-85221-266-0	01	1	0309-
407	SOCKET; SW	1-85221-267-1	01	1	0309-
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0309-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0309-

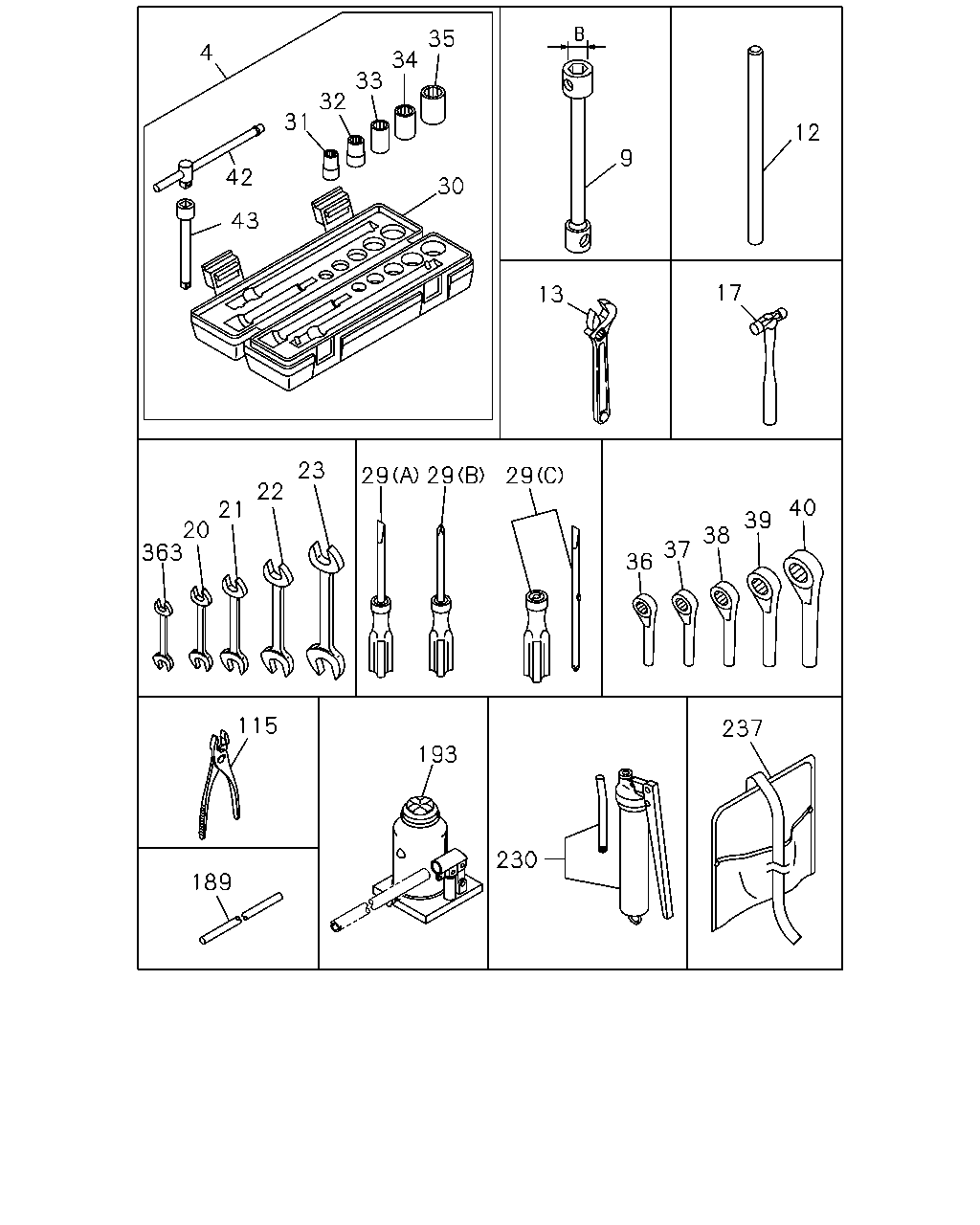

35 34 33 32 4 31 12 9 42 30 43 17 13 23 29 29 29 22 40 21 20 363 39 38 37 36 115 237 193 230 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0309-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0309-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0309-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0309-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0309-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0309-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0309-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0309-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0309-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0309-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0309-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0309-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0309-
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0309-
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0309-
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0309-
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0309-
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0309-
36	WRENCH; 24	9-85111-377-0	01	1	0309-
37	WRENCH; 27	9-85111-375-0	01	1	0309-
38	WRENCH; 32	9-85111-358-0	01	1	0309-
39	WRENCH; 36	9-85111-374-0	01	1	0309-
40	WRENCH; 41	9-85111-356-0	01	1	0309-
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0309-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0309-
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0309-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0309-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0309-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-3	01	1	0309-
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0309-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0309-

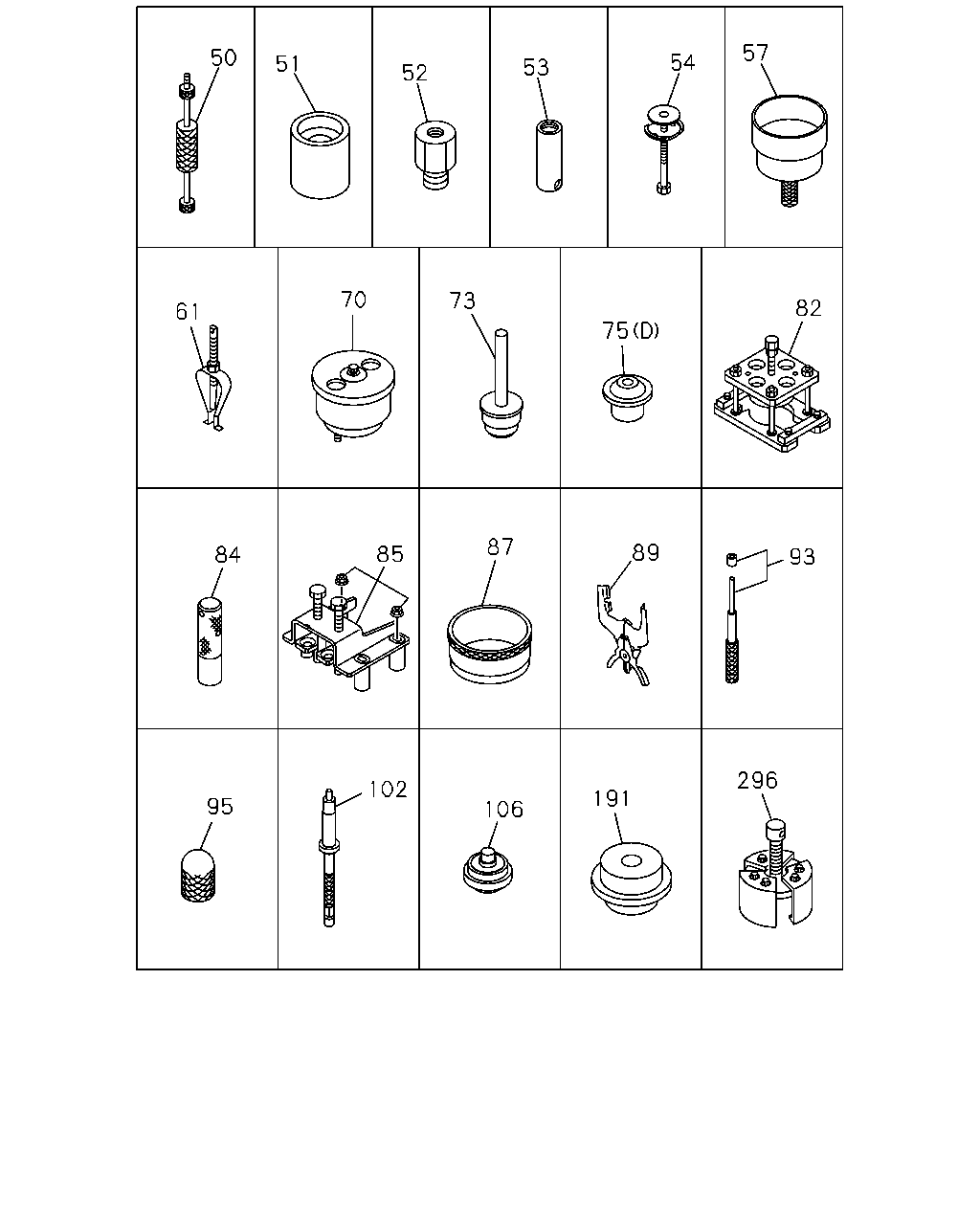

57 50 54 51 53 52 70 73 82 61 75 87 89 85 84 93 296 102 191 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0309-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0309-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0309-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0309-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0309-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0309-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	0309-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0309-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL MJT7S M/T(Y3E) (A)	1-85221-168-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL MJT7S M/T(Y3E) (B)	1-85221-169-0	01	1	0309-
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0309-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0309-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0309-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0309-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0309-
87	TOOL; PISTON	1-85220-059-0	01	1	0309-
89	TOOL; PISTON RING	1-85221-025-0	01	1	0309-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0309-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0309-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0309-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0309-
191	ADAPTER	1-85216-009-0	01	1	0309-
296	REPLACER; SLINGER	1-85210-027-0	AR	1	0309-
