8-90 — RADIO AND TV (#29388) — 12 parça

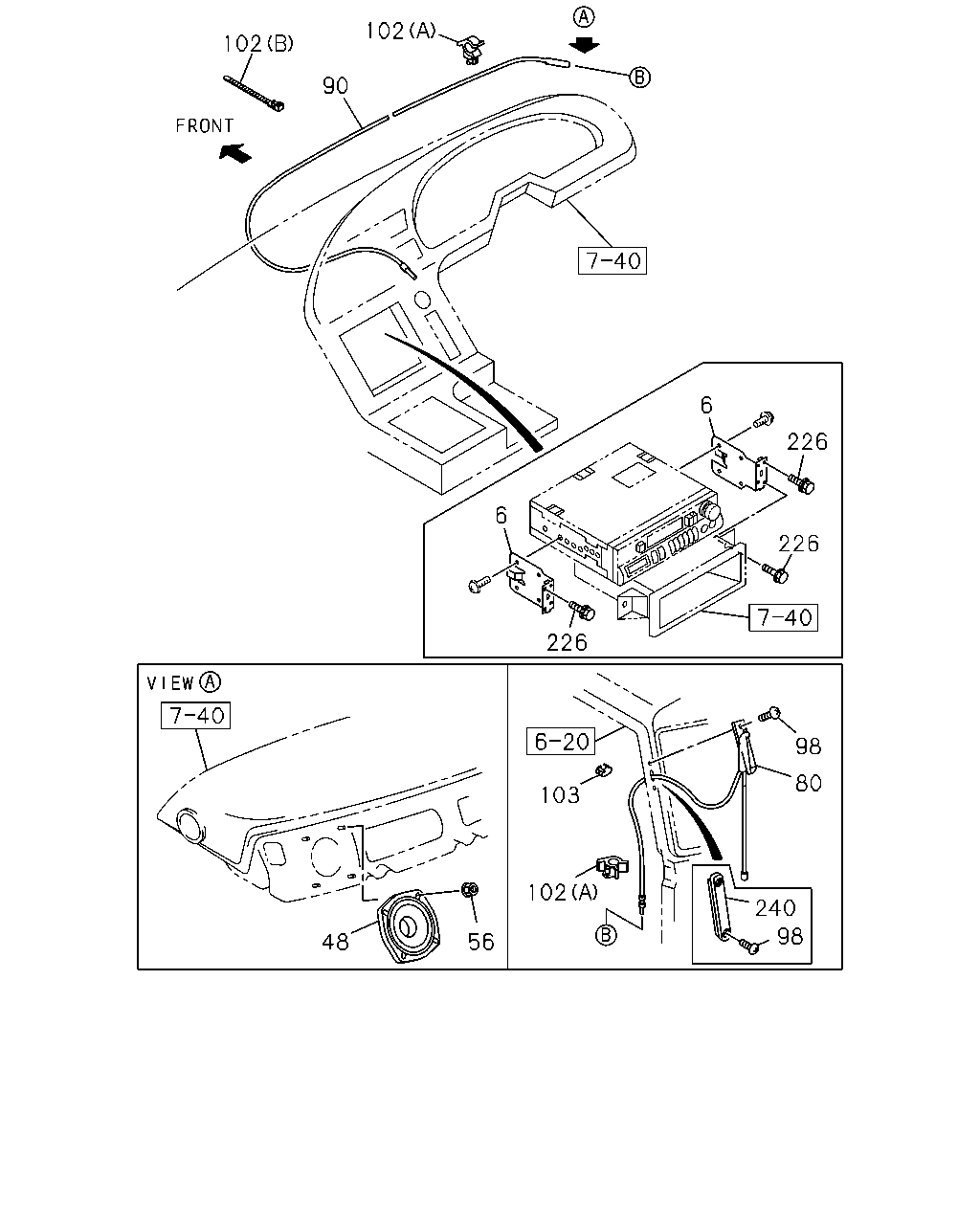

çizim 84961
102 102 90 6 226 6 226 226 98 80 103 102 240 98 56 48
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0309-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> 		1-84114-062-0 02 1 0309-
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> M5 FLANGE 		1-09984-170-0 04 1 0309-
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0309-
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0309-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0309-
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8 		1-73907-618-0 05 1 0309-
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) L=140 		5-09707-031-1 01 1 0309-
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 03 1 0309-
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 0309-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0309-
