8-52 — PIPING; AIR CONDITIONING (#29381) — 55 parça

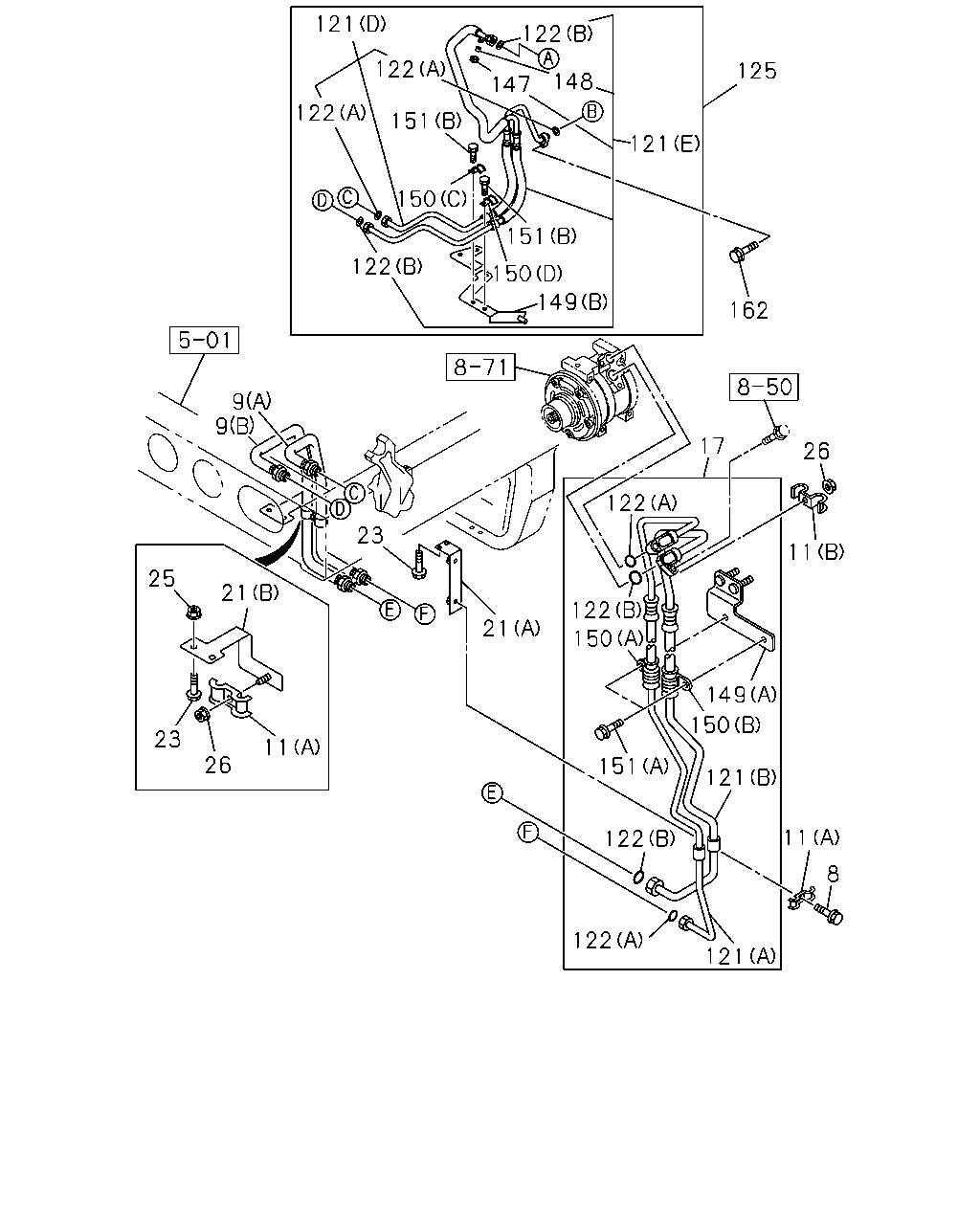

çizim 22656
121 122 148 122 125 147 122 151 121 150 151 150 122 149 162 9 9 17 26 122 23 11 25 21 122 21 150 149 150 23 11 26 151 121 11 122 8 122 121
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-841-0 01 1 0309-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-842-0 01 1 0309-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 02 1 0309-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0309-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-928-2 01 1 0309-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-202-0 01 1 0309-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-249-0 01 1 0309-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 04 1 0309-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0309-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0309-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83577-037-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83577-038-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-863-1 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-953-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-954-0 01 1 0309-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0309-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0309-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0309-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0309-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-940-0 01 1 0309-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-972-0 01 1 0309-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0309-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0309-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83573-255-0 01 1 0309-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-265-0 01 1 0309-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-262-0 01 1 0309-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-263-0 01 1 0309-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83574-249-0 01 1 0309-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-264-0 01 1 0309-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0309-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83578-098-0 02 1 0309-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0309-

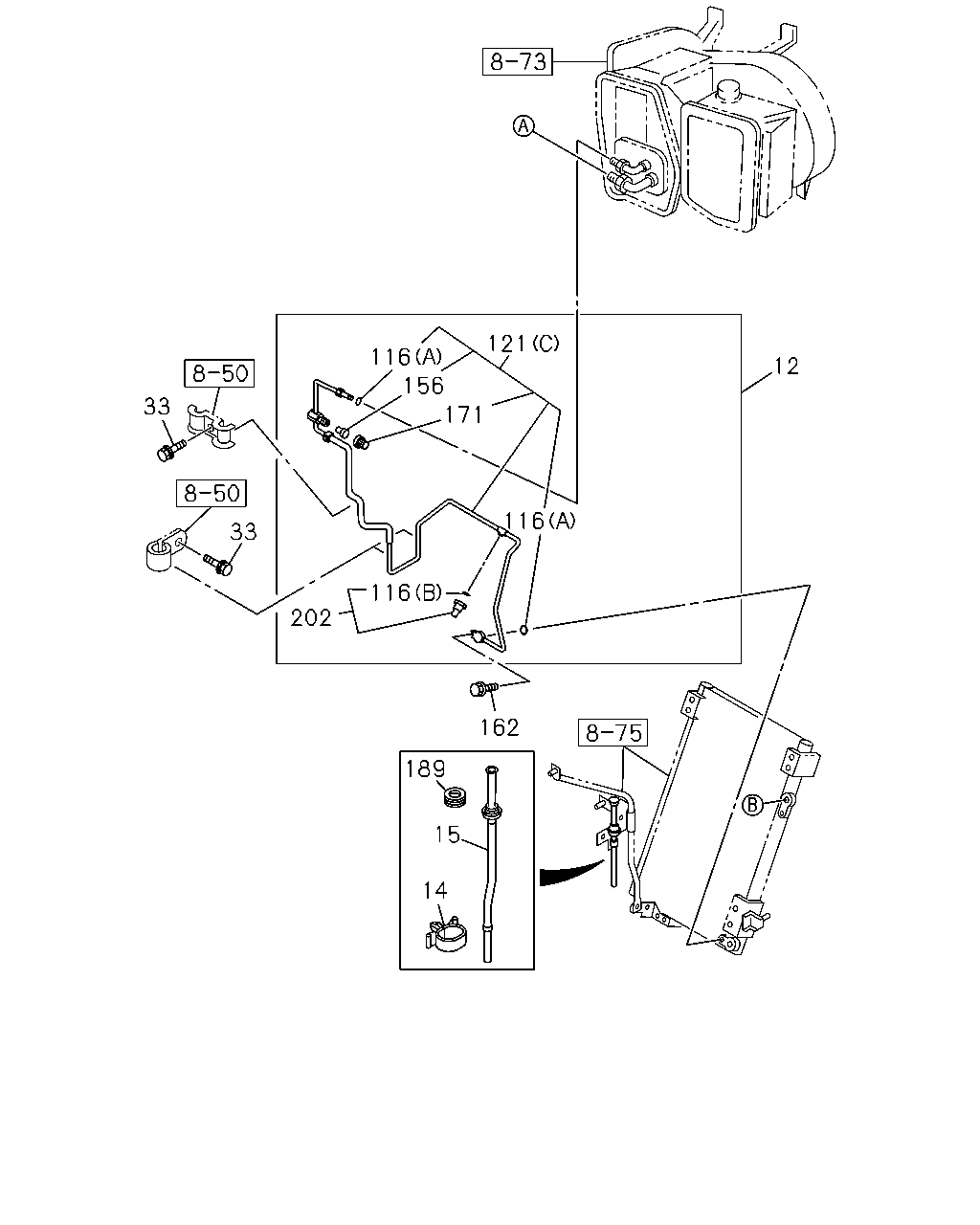

çizim 85072
121 116 12 156 33 171 116 116 202 162 189 15 14 33
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-852-2 01 1 0309-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0309-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) 		1-83572-412-0 01 1 0309-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 0309-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0309-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0309-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83577-037-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83577-038-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-863-1 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-953-0 01 1 0309-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-954-0 01 1 0309-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0309-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0309-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0309-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		9-09575-397-0 01 1 0309-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0309-
