Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#29376) — 252 parça

13 133 132 134 13 133 134 132 30 135 134 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0604-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0604-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0604-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-934-0	01	1	0604-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-934-0	01	1	0604-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0604-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0604-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-935-0	01	1	0604-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0604-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0604-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0604-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0604-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0604-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0604-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0604-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0604-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0604-

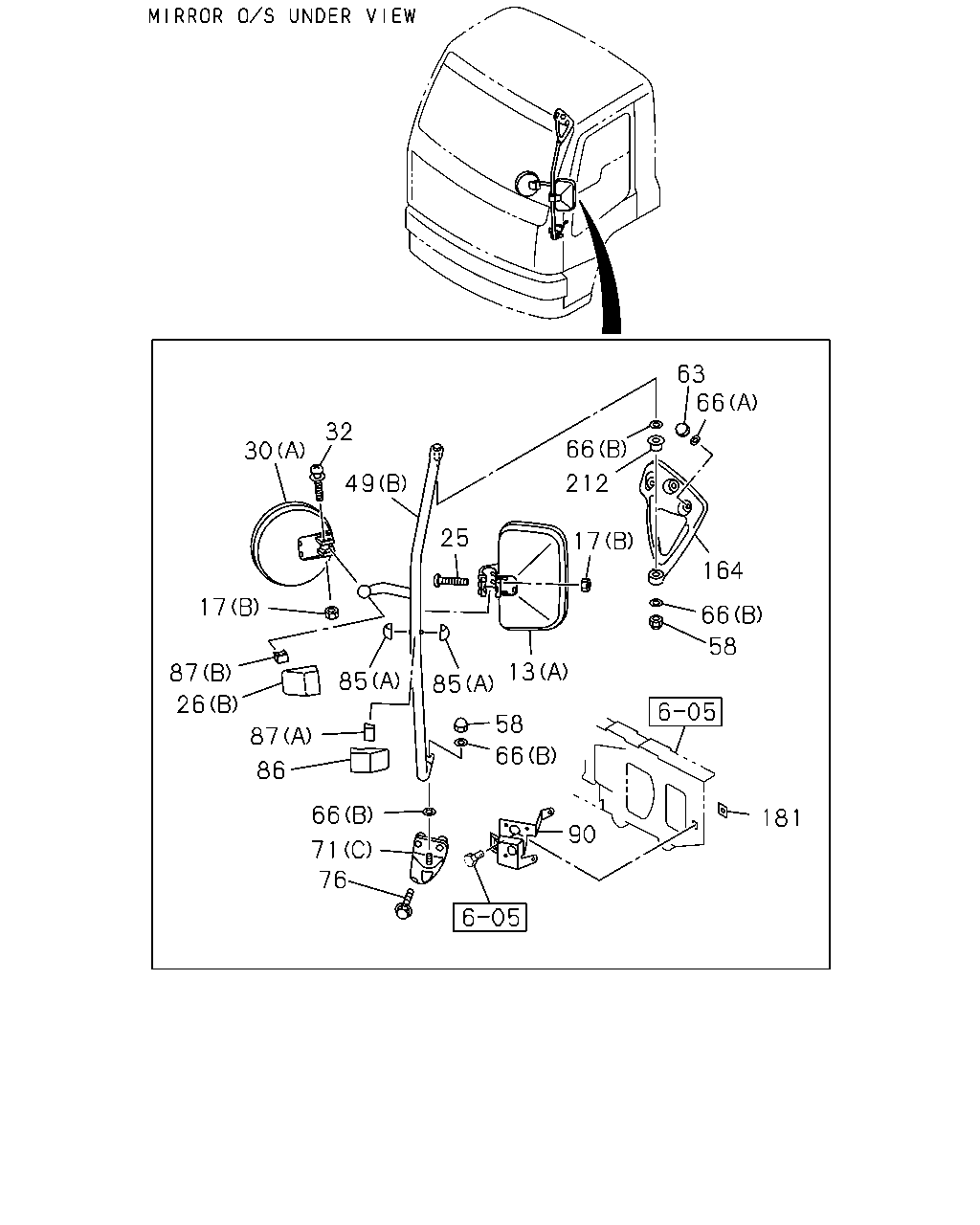

63 66 32 66 30 212 49 25 17 164 17 66 58 13 87 85 85 26 58 87 66 86 66 181 90 71 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0604-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0604-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0604-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0604-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0604-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0604-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0604-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0604-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-491-3	01	1	0604-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0604-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0604-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0604-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0604-0808
58	NUT; MIRROR STAY MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M10	1-09985-342-0	02	1	0809-
58	NUT; MIRROR STAY MIRROR O/S UNDER VIEW<RR9> M10	1-09985-342-0	02	1	0809-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	03	1	0604-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0604-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-581-3	01	1	0604-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0604-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0604-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0604-
87	SPACER (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0604-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0604-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0604-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0604-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-299-4	01	1	0604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0604-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09983-175-1	01	1	0604-

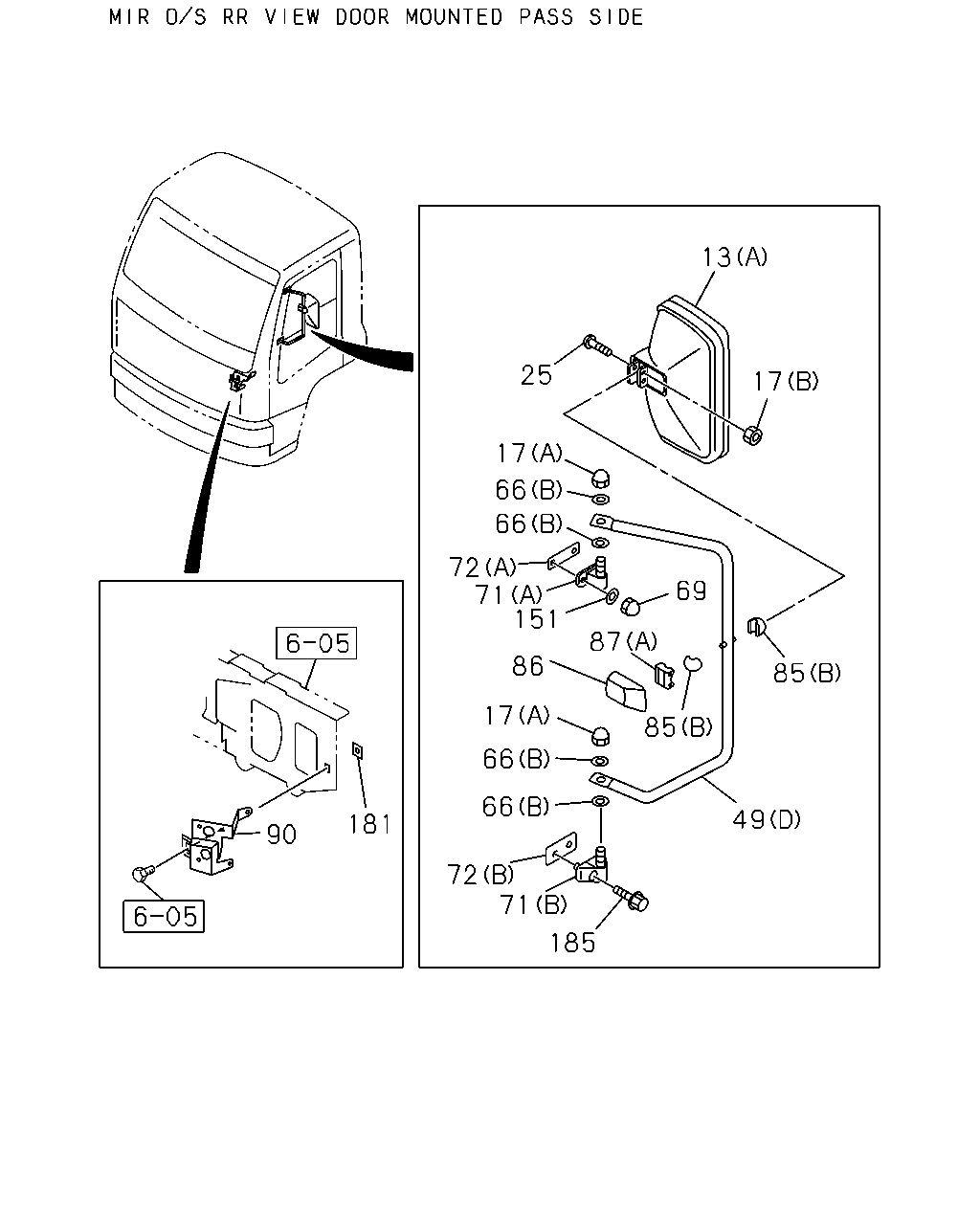

13 25 17 17 66 66 72 71 151 69 87 86 85 17 85 66 66 49 181 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0604-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0604-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-491-3	01	1	0604-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0604-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0604-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0604-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0604-0809
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	04	1	0810-
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0604-0809
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0604-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-581-3	01	1	0604-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0604-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0604-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0604-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0604-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0604-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0604-
87	SPACER (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0604-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0604-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0604-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0604-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0604-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0604-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0604-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0604-0605
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

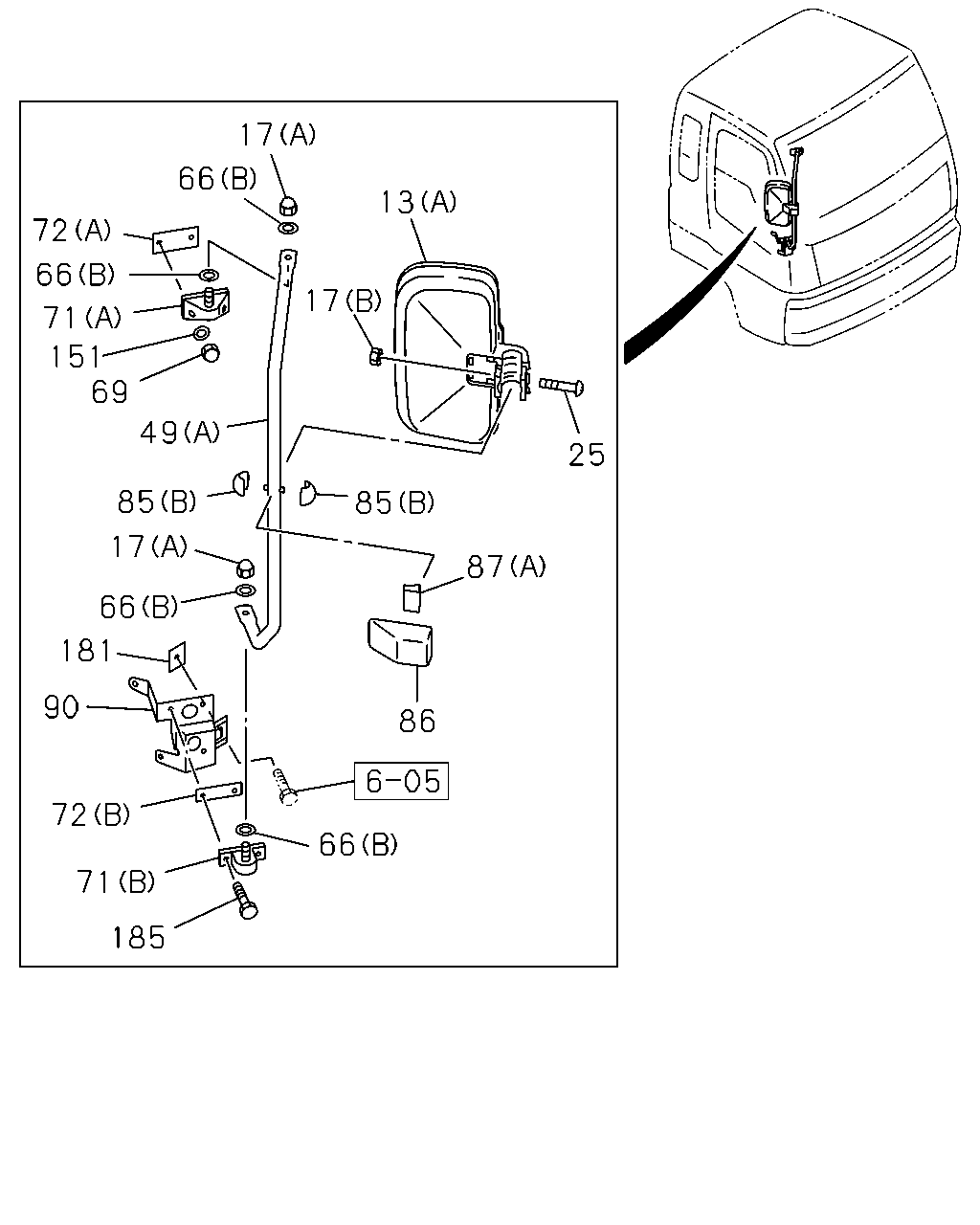

17 66 13 72 66 17 71 151 69 49 25 85 85 17 87 66 181 90 86 72 66 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0604-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0604-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-491-3	01	1	0604-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0604-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0604-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0604-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0604-0809
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	04	1	0810-
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0604-0809
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0604-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-581-3	01	1	0604-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0604-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0604-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0604-
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0604-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0604-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0604-
87	SPACER (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0604-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0604-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0604-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0604-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0604-
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0604-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	04	1	0604-0605
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	04	1	0606-
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28660-835-0	02	1	0604-0605
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	8-98046-876-0	02	1	0606-

1 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0604-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0604-

63 32 30 66 66 49 17 212 25 13 164 17 66 87 32 58 26 85 30 85 87 17 86 87 26 58 66 181 66 90 71 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0604-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0604-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0604-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0604-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0604-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0604-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0604-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0604-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0604-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0604-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0604-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0604-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-491-3	01	1	0604-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0604-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0604-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0604-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0604-0808
58	NUT; MIRROR STAY MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M10	1-09985-342-0	02	1	0809-
58	NUT; MIRROR STAY MIRROR O/S UNDER VIEW<RR9> M10	1-09985-342-0	02	1	0809-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	03	1	0604-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0604-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0604-0808
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0809-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0604-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	0604-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-581-3	01	1	0604-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0604-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0604-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0604-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0604-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0604-
87	SPACER (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0604-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0604-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0604-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0604-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0604-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-299-4	01	1	0604-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0604-
212	BUSHING; MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09983-175-1	01	1	0604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
