◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#29375) — 30 parça

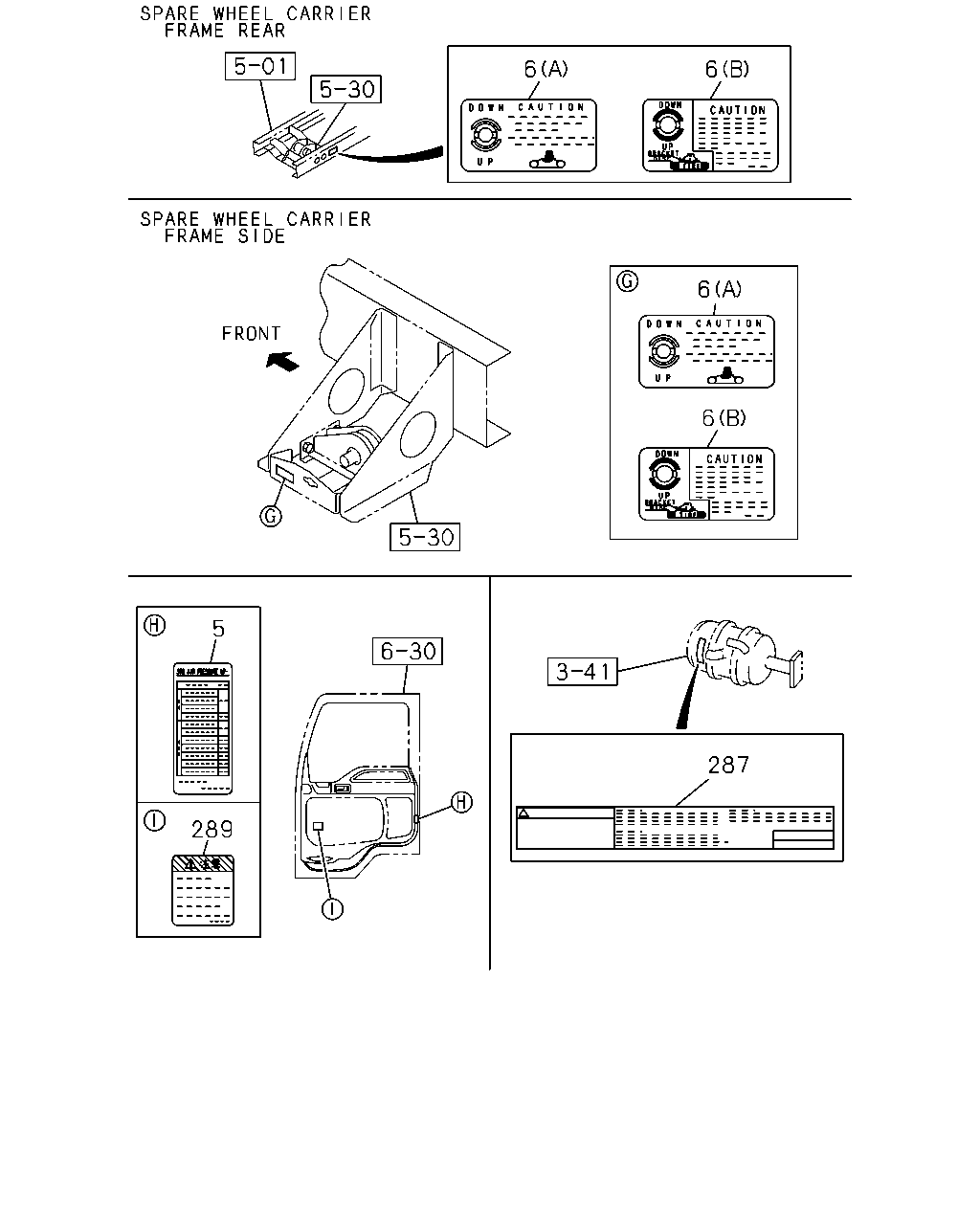

çizim 105812
6 6 6 6 5 287 289
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0604-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0604-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B) 		8-98082-438-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0604-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (B) 		8-98082-439-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0604-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (B) 		8-98082-437-0 01 1 0709-
287 PLATE; CAUTION,SPRING CHAMBER
CAUTIONS SPANISH<YN1> 		1-85883-238-0 04 1 0604-0709
289 PLATE; CAUTION,DRIVING
CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 0604-

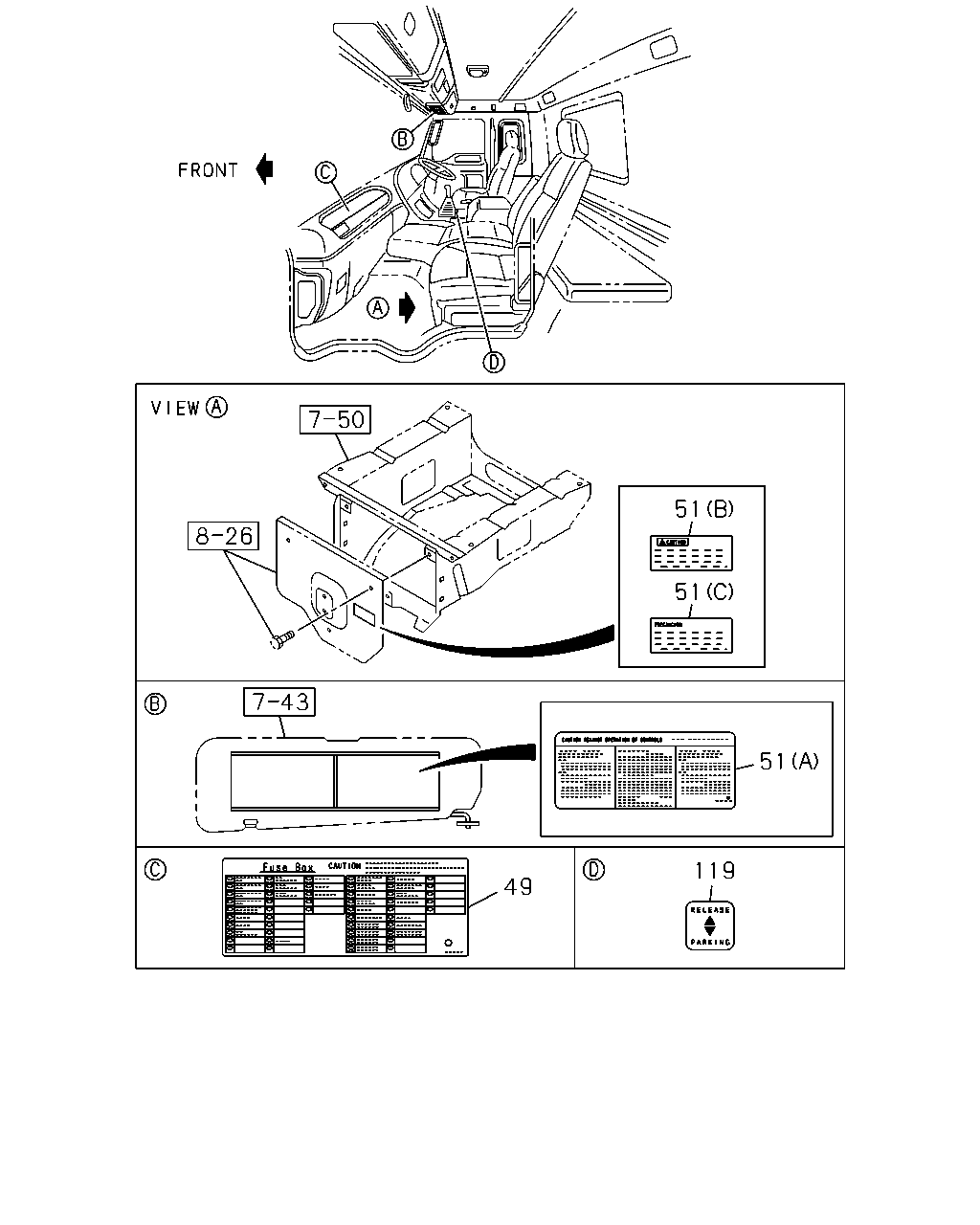

çizim 105814
51 51 51 119 49
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		1-85878-393-0 01 1 0604-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-431-0 01 1 0604-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-555-0 01 1 0604-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 0604-
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (C) 		8-97613-336-0 01 1 0604-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A) 		1-85880-777-0 01 1 0604-
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (A) 		1-85880-725-0 01 1 0604-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0604-

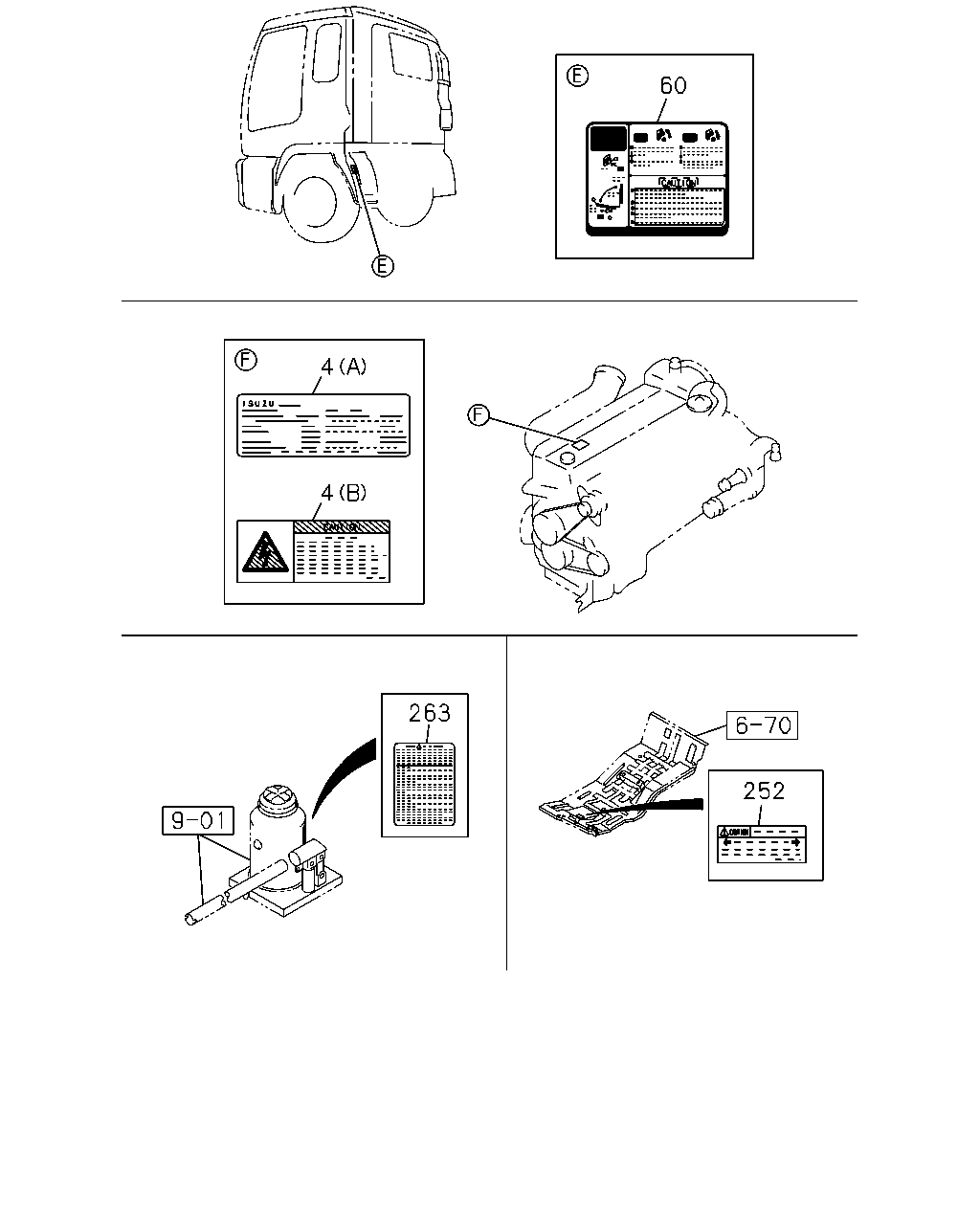

çizim 105901
60 4 4 263 252
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-463-1 01 1 0604-
4 LABEL; ENG MAINTENANCE
(A) 		8-94391-524-0 01 1 0604-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0604-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0604-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0604-
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 0604-
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> 		1-85878-515-0 01 1 0604-
252 PLATE; CAUTION,HARNESS
CAUTIONS SPANISH<YN1> 		1-85878-559-0 01 1 0604-
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 0604-
çizim 106214
181 181 162
BalonParca AdiParca NoAdetTipApplied Date
162 PLATE; CAUTION,FUEL
CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> 		8-98083-160-0 01 1 0706-0706
162 PLATE; CAUTION,FUEL
CAUTIONS PORTUGUESE<NAT> 		8-98083-160-0 01 1 0706-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0604-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
