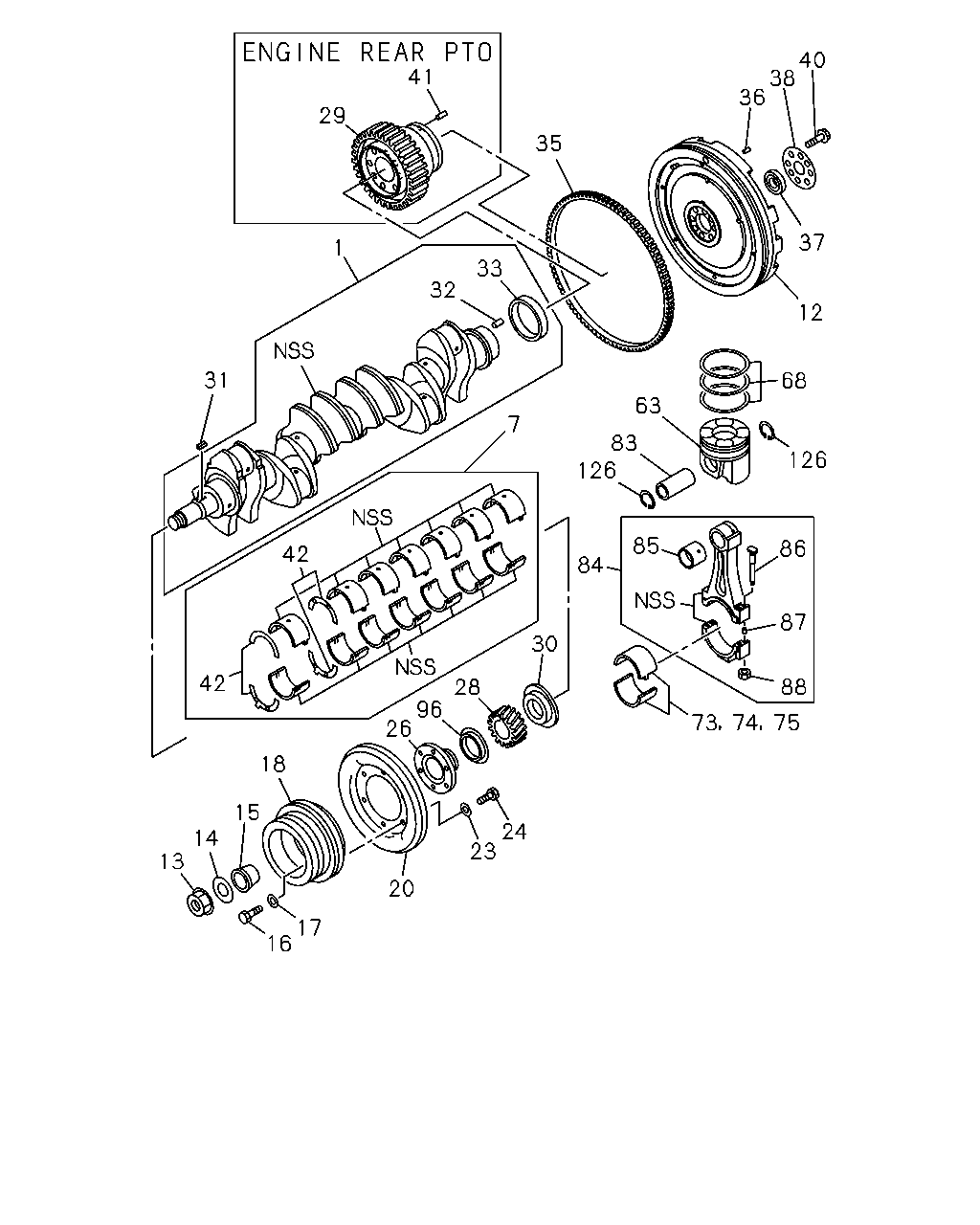

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#2937) — 143 parça

40 38 36 37 12 35 41 29 33 32 1 7 42 31 42 13 14 15 18 16 17 20 23 24 26 96 28 30 84 126 83 63 68 126 85 86 87 88 75 74 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	1-12310-503-2	01	1	9002-9306	●
1	CRANKSHAFT	1-12310-500-4	01	1	9002-		●
7	METAL KIT; CRANKSHAFT,STANDARD DESERT ZONE PACKAGE(W01)	1-11510-073-0	01	1	9002-9306	●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. DESERT ZONE PACKAGE(W01)	1-11510-060-1	01	1	9002-9306	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-066-0	01	1	9002-		●
12	FLYWHEEL	1-12331-127-3	01	1	9002-9306	●
12	FLYWHEEL	1-12331-120-4	01	1	9002-		●
13	NUT; STARTING HANDLE	9-12378-039-0	01	1	9002-	●	●
14	WASHER; PULLEY DAMPER	9-09851-431-0	01	1	9002-	●	●
15	BUSHING; TAPER,CR/SHF PULLEY	9-12379-061-0	01	1	9002-	●	●
16	BOLT; PULLEY TO CENTER M12X30	9-92061-230-0	06	1	9002-	●	●
17	WASHER; PULLEY CENTER	1-09503-111-0	06	1	9002-	●	●
18	PULLEY; CR/SHF 5-GROOVE	1-12371-182-1	01	1	9002-	●	●
20	DAMPER; CR/SHF	1-12375-075-3	01	1	9002-	●	●
23	WASHER; DAMPER ID=10	1-09503-033-1	06	1	9002-	●	●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9002-	●	●
26	PULLEY; CENTER	1-12371-313-0	01	1	9002-9306	●	●
26	PULLEY; CENTER	1-12371-292-0	01	1	9307-	●	●
28	GEAR; CR/SHF	9-12521-045-2	01	1	9002-	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1)	1-38261-008-2	01	1	9002-9306	●	●
30	COLLAR; THRUST	9-12361-024-2	01	1	9002-9306	●
30	COLLAR; THRUST	9-12361-012-2	01	1	9002-		●
31	KEY; FEATHER,CR/SHF	9-08031-225-0	01	1	9002-	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9002-	●	●
33	RING; WEAR,CR/SHF ENGINE REAR PTO(SV1) D=19	1-12315-009-1	01	1	9002-9306	●	●
33	RING; WEAR,CR/SHF EXC. ENGINE REAR PTO(SV1) D=22	1-12319-010-0	01	1	9002-9306	●	●
33	RING; WEAR,CR/SHF D=22	1-12319-010-0	01	1	9307-		●
35	GEAR; RING Z=139	1-12333-013-0	01	1	9002-	●	●
36	PIN; FLYWHEEL OD=10 L=20	9-08151-020-0	02	1	9002-9010	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9011-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-195-0	01	1	9002-9412	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	9501-	●	●
38	WASHER; FLYWHEEL	9-12336-025-1	01	1	9002-	●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1)	1-09070-021-1	08	1	9002-9306	●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-09070-017-1	08	1	9002-9306	●	●
40	BOLT; FLYWHEEL	1-09070-017-1	08	1	9307-		●
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO(SV1)	9-08151-222-0	01	1	9002-9306	●	●
42	WASHER; THRUST,CR/SHF	1-11515-040-0	02	1	9002-9306	●
42	WASHER; THRUST,CR/SHF	1-11515-038-0	02	1	9002-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-437-0	06	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1)	1-12111-262-1	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1) GRADE=AX	1-12111-850-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1) GRADE=CX	1-12111-851-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1)	1-12111-206-1	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1) GRADE=AX	1-12111-869-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1) GRADE=CX	1-12111-870-0	06	1	9307-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-068-1	06	1	9002-9306	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-046-0	06	1	9002-		●
73	METAL SET; CONN ROD,STANDARD DESERT ZONE PACKAGE(W01)	1-12271-057-0	06	1	9002-9306	●
73	METAL SET; CONN ROD,STANDARD EXC. DESERT ZONE PACKAGE(W01)	1-12271-048-0	06	1	9002-9306	●
73	METAL SET; CONN ROD,STANDARD	1-12271-047-0	06	1	9002-		●
74	METAL SET; CONN ROD,U/S=0.25 DESERT ZONE PACKAGE(W01)	1-12273-057-0	06	1	9002-9306	●
74	METAL SET; CONN ROD,U/S=0.25 EXC. DESERT ZONE PACKAGE(W01)	1-12273-048-0	06	1	9002-9306	●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-047-0	06	1	9002-		●
75	METAL SET; CONN ROD,U/S=0.50 DESERT ZONE PACKAGE(W01)	1-12274-057-0	06	1	9002-9306	●
75	METAL SET; CONN ROD,U/S=0.50 EXC. DESERT ZONE PACKAGE(W01)	1-12274-048-0	06	1	9002-9306	●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-047-0	06	1	9002-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-078-0	06	1	9002-9306	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-068-0	06	1	9002-		●
84	ROD ASM; CONN	1-12230-109-1	06	1	9002-9306	●
84	ROD ASM; CONN	1-12230-126-1	06	1	9002-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-088-0	06	1	9002-9306	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-073-0	06	1	9002-		●
86	BOLT; CONNROD	1-12235-026-0	24	1	9002-9306	●
86	BOLT; CONNROD	9-12235-047-1	12	1	9002-		●
87	PIN; CONNROD BIG END	9-09878-610-0	12	1	9002-9306	●
88	NUT; CONNROD	9-09840-316-0	24	1	9002-9306	●
88	NUT; CONNROD	9-09840-313-0	12	1	9002-		●
96	THROWER; DUST,CR/SHF	1-12379-020-0	01	1	9002-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-051-0	12	1	9002-9306	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	9-09950-195-1	12	1	9002-		●

40 38 36 37 12 68 126 86 88 75 74 73 85 63 83 126 84 35 41 29 33 32 1 31 9 8 7 42 30 28 96 26 24 23 20 18 42 15 14 13 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	1-12310-503-2	01	1	9002-9306	●
1	CRANKSHAFT	1-12310-500-4	01	1	9002-		●
7	METAL KIT; CRANKSHAFT,STANDARD DESERT ZONE PACKAGE(W01)	1-11510-073-0	01	1	9002-9306	●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. DESERT ZONE PACKAGE(W01)	1-11510-060-1	01	1	9002-9306	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-066-0	01	1	9002-		●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11530-066-0	01	1	9002-		●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11540-066-0	01	1	9002-		●
12	FLYWHEEL	1-12331-127-3	01	1	9002-9306	●
12	FLYWHEEL	1-12331-120-4	01	1	9002-		●
13	NUT; STARTING HANDLE	9-12378-039-0	01	1	9002-	●	●
14	WASHER; PULLEY DAMPER	9-09851-431-0	01	1	9002-	●	●
15	BUSHING; TAPER,CR/SHF PULLEY	9-12379-061-0	01	1	9002-	●	●
16	BOLT; PULLEY TO CENTER M12X30	9-92061-230-0	06	1	9002-	●	●
17	WASHER; PULLEY CENTER	1-09503-111-0	06	1	9002-	●	●
18	PULLEY; CR/SHF 5-GROOVE	1-12371-182-1	01	1	9002-	●	●
20	DAMPER; CR/SHF	1-12375-075-3	01	1	9002-	●	●
23	WASHER; DAMPER ID=10	1-09503-033-1	06	1	9002-	●	●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9002-	●	●
26	PULLEY; CENTER	1-12371-313-0	01	1	9002-9306	●	●
26	PULLEY; CENTER	1-12371-292-0	01	1	9307-	●	●
28	GEAR; CR/SHF	9-12521-045-2	01	1	9002-	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1)	1-38261-008-2	01	1	9002-9306	●	●
30	COLLAR; THRUST	9-12361-024-2	01	1	9002-9306	●
30	COLLAR; THRUST	9-12361-012-2	01	1	9002-		●
31	KEY; FEATHER,CR/SHF	9-08031-225-0	01	1	9002-	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9002-	●	●
33	RING; WEAR,CR/SHF ENGINE REAR PTO(SV1) D=19	1-12315-009-1	01	1	9002-9306	●	●
33	RING; WEAR,CR/SHF EXC. ENGINE REAR PTO(SV1) D=22	1-12319-010-0	01	1	9002-9306	●	●
33	RING; WEAR,CR/SHF D=22	1-12319-010-0	01	1	9307-		●
35	GEAR; RING Z=139	1-12333-013-0	01	1	9002-	●	●
36	PIN; FLYWHEEL OD=10 L=20	9-08151-020-0	02	1	9002-9010	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9011-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-195-0	01	1	9002-9412	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	9501-	●	●
38	WASHER; FLYWHEEL	9-12336-025-1	01	1	9002-	●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1)	1-09070-021-1	08	1	9002-9306	●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-09070-017-1	08	1	9002-9306	●	●
40	BOLT; FLYWHEEL	1-09070-017-1	08	1	9307-		●
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO(SV1)	9-08151-222-0	01	1	9002-9306	●	●
42	WASHER; THRUST,CR/SHF	1-11515-040-0	02	1	9002-9306	●
42	WASHER; THRUST,CR/SHF	1-11515-038-0	02	1	9002-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-437-0	06	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1)	1-12111-262-1	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1) GRADE=AX	1-12111-850-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. CHINA TIBET EQUIPMENT(WD1) GRADE=CX	1-12111-851-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1)	1-12111-206-1	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1) GRADE=AX	1-12111-869-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. CHINA TIBET EQUIPMENT(WD1) GRADE=CX	1-12111-870-0	06	1	9307-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-068-1	06	1	9002-9306	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-046-0	06	1	9002-		●
73	METAL SET; CONN ROD,STANDARD DESERT ZONE PACKAGE(W01)	1-12271-057-0	06	1	9002-9306	●
73	METAL SET; CONN ROD,STANDARD EXC. DESERT ZONE PACKAGE(W01)	1-12271-048-0	06	1	9002-9306	●
73	METAL SET; CONN ROD,STANDARD	1-12271-047-0	06	1	9002-		●
74	METAL SET; CONN ROD,U/S=0.25 DESERT ZONE PACKAGE(W01)	1-12273-057-0	06	1	9002-9306	●
74	METAL SET; CONN ROD,U/S=0.25 EXC. DESERT ZONE PACKAGE(W01)	1-12273-048-0	06	1	9002-9306	●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-047-0	06	1	9002-		●
75	METAL SET; CONN ROD,U/S=0.50 DESERT ZONE PACKAGE(W01)	1-12274-057-0	06	1	9002-9306	●
75	METAL SET; CONN ROD,U/S=0.50 EXC. DESERT ZONE PACKAGE(W01)	1-12274-048-0	06	1	9002-9306	●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-047-0	06	1	9002-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-078-0	06	1	9002-9306	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-068-0	06	1	9002-		●
84	ROD ASM; CONN	1-12230-109-1	06	1	9002-9306	●
84	ROD ASM; CONN	1-12230-126-1	06	1	9002-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-088-0	06	1	9002-9306	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-073-0	06	1	9002-		●
86	BOLT; CONNROD	1-12235-026-0	24	1	9002-9306	●
86	BOLT; CONNROD	9-12235-047-1	12	1	9002-		●
88	NUT; CONNROD	9-09840-316-0	24	1	9002-9306	●
88	NUT; CONNROD	9-09840-313-0	12	1	9002-		●
96	THROWER; DUST,CR/SHF	1-12379-020-0	01	1	9002-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-051-0	12	1	9002-9306	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	9-09950-195-1	12	1	9002-		●
